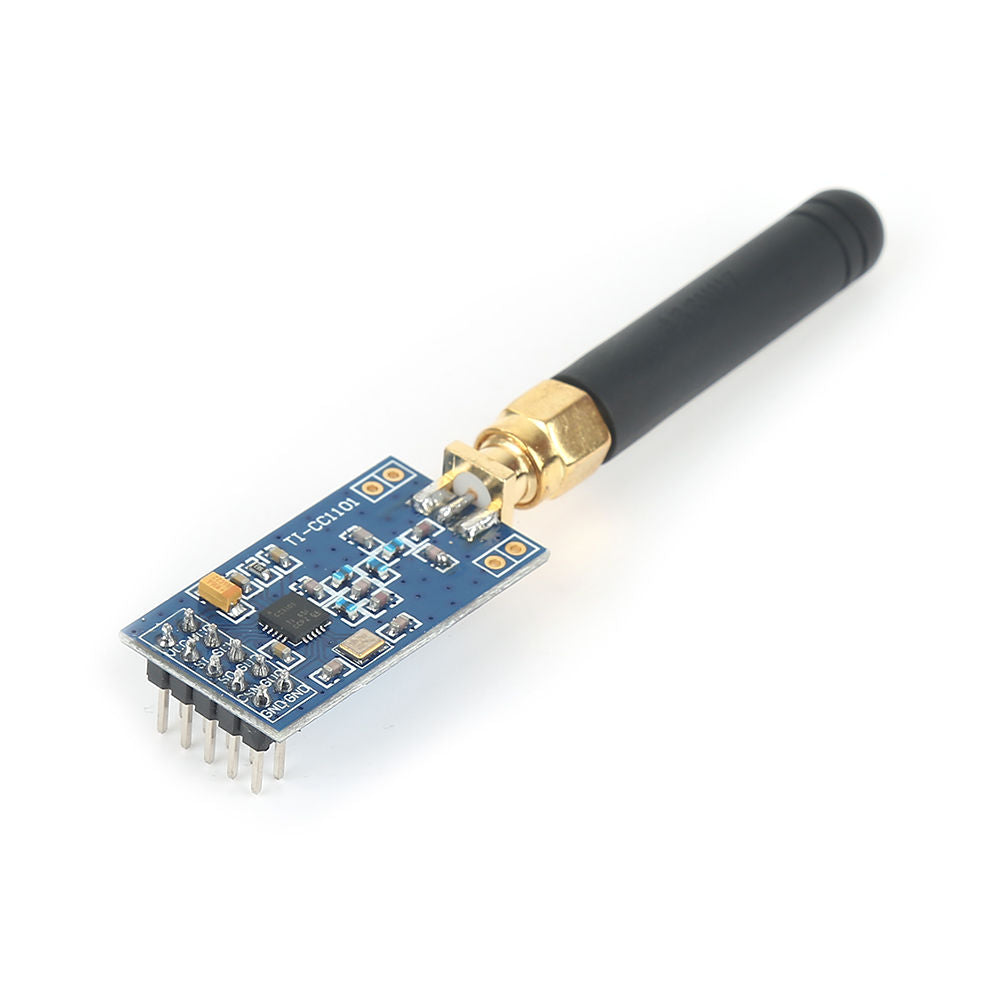

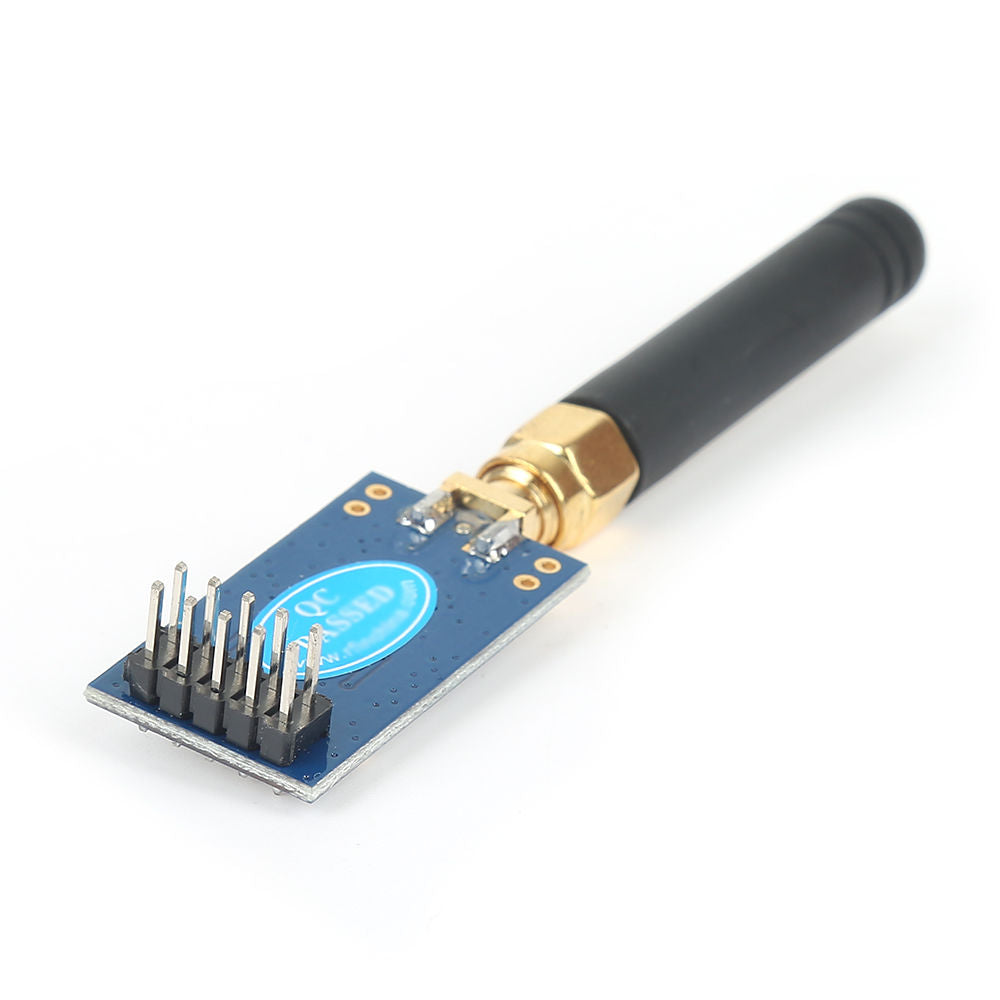

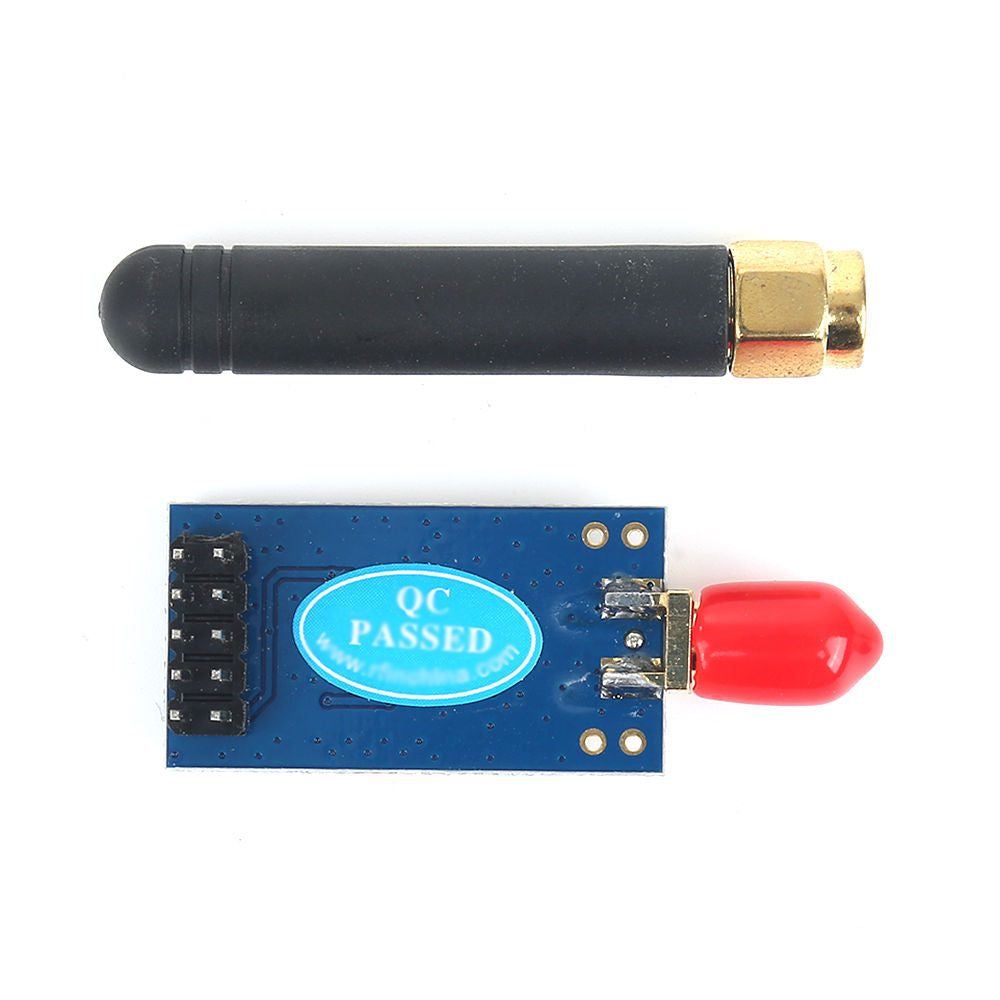

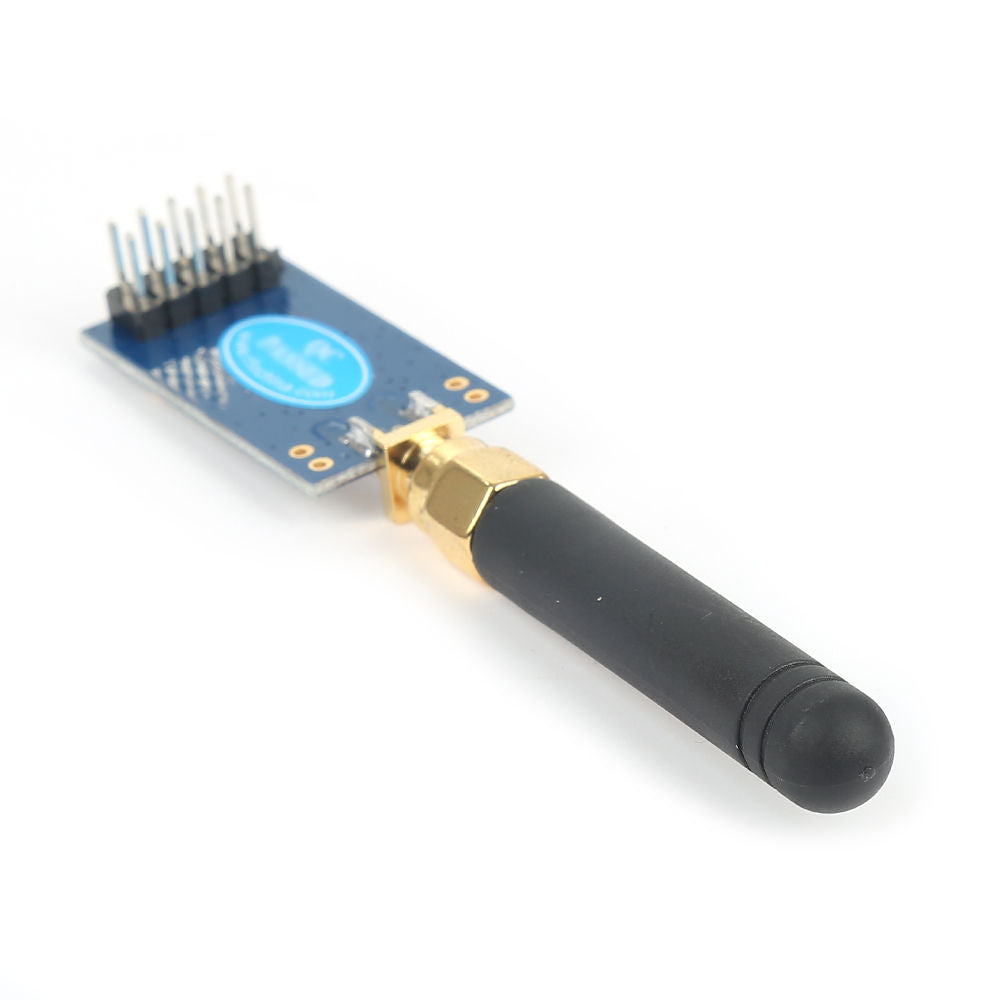

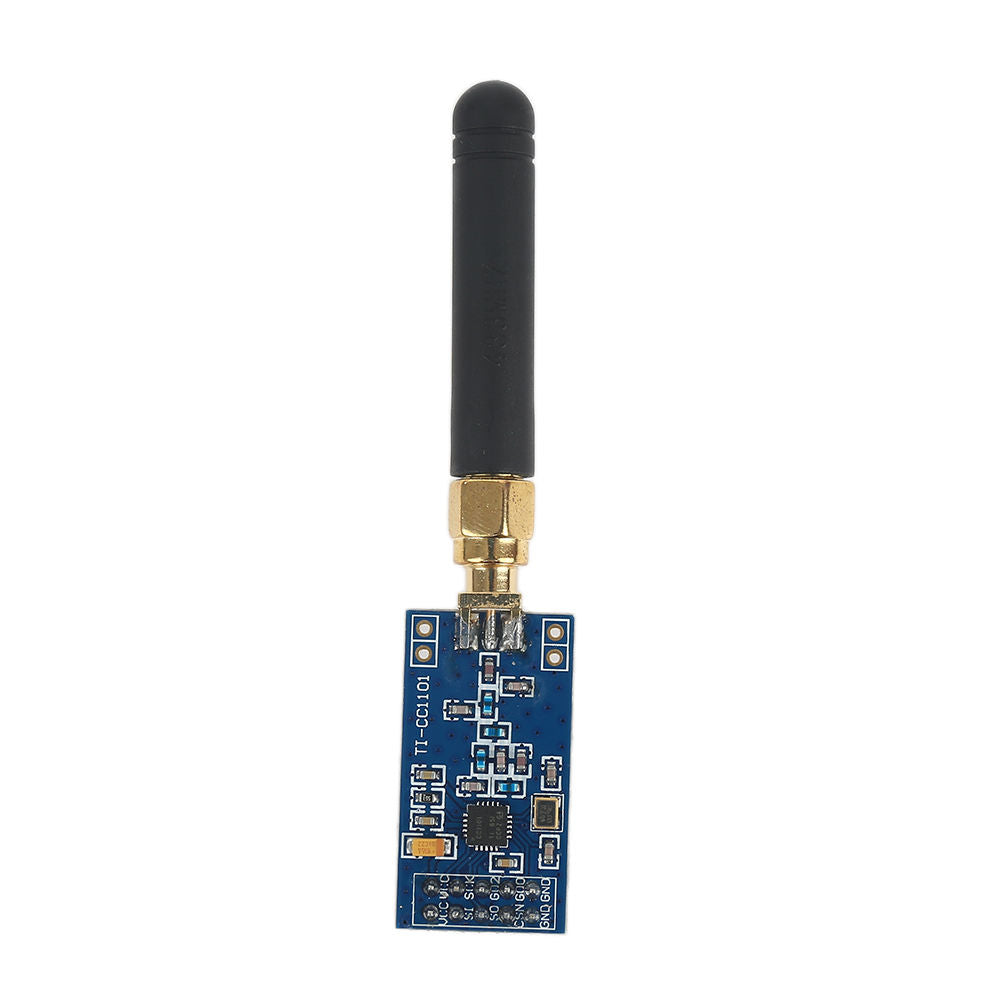

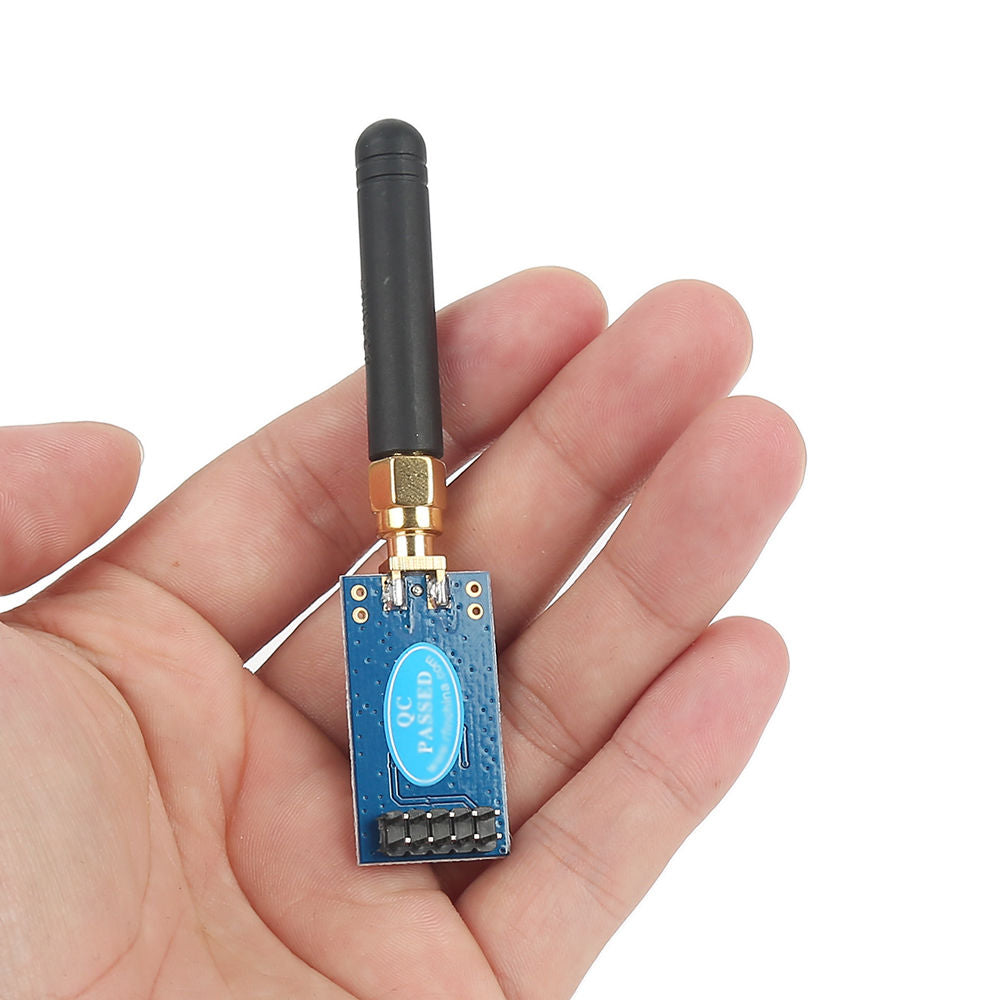

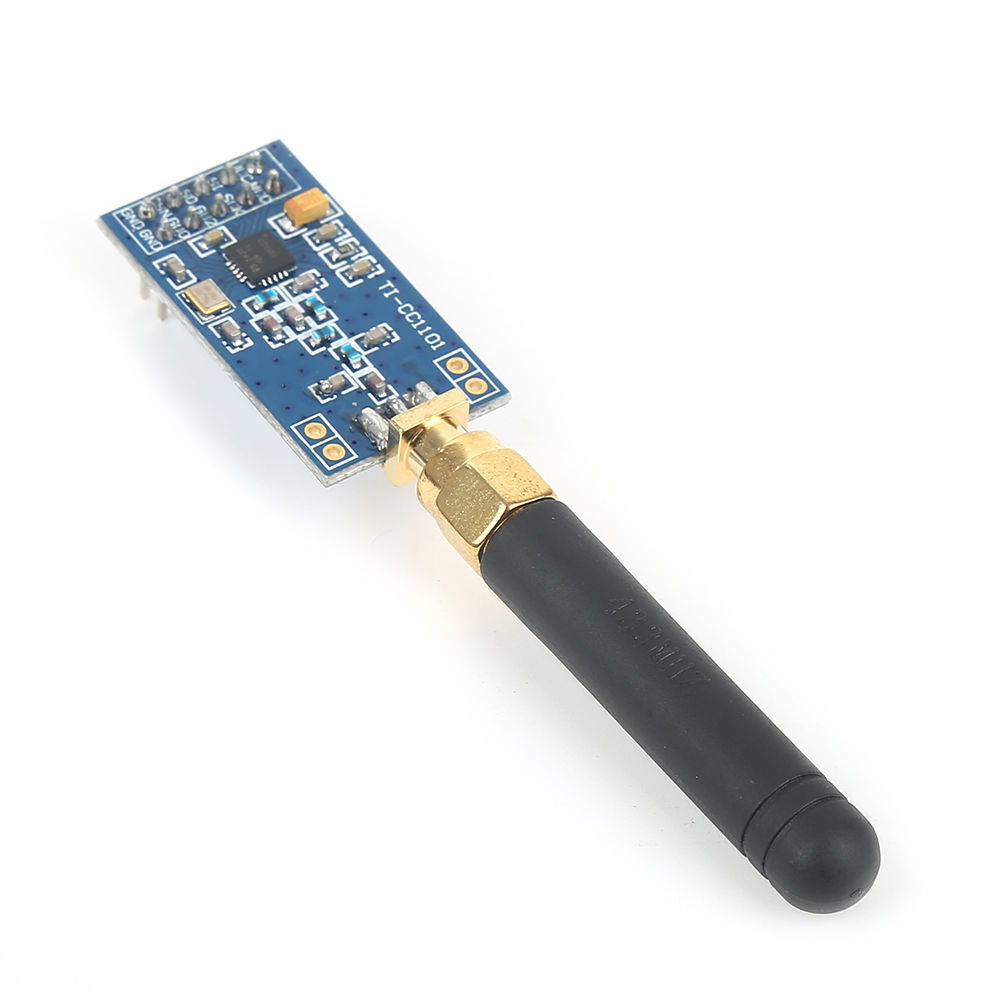

5PCS Wireless CC1101 Transceiver 315/433/868/915MHZ + SMA Antenna Wireless

5PCS Wireless CC1101 Transceiver 315/433/868/915MHZ + SMA Antenna Wireless

SKU:0401955
Regular price $21.99

Description:
  • 100% brand new and high quality
  • Continuous frequency band extension:
  • CC1101: 387-464 MHz and 779-928 MHz.
Basic Features:
  • Working voltage :1.8-3.6V.
  • Operating frequency:(Module:387-464MHZ) Default working frequency: 433Mhz.
  • Instantaneous maximum working current: <30mA.
  • Maximum transmit power: 10 (+10dBm).
  • Support 2-FSK, GFSK and MSK modulation.
  • Receiver sensitivity -110dBm at 1200 baud.
  • Minimum operating speed 1.2kbps, the highest 500kbps.
  • Separate 64-byte RX and TX data FIFO buffer.
  • Built-in hardware CRC error detection ensures reliable data transmission.
  • Support RSSI signal strength detection and carrier sense function.
  • Low power consumption.
  • Mailing Address (256) Operating frequency can be programmed via SPI.
  • Programmable output power, for all the support frequencies up to +10 dBm.
  • WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption.
  • Fast frequency synthesizer with proper frequency hopping system.
Note:
  • Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
  • And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package included:
  • 5Pcs x Wireless Module
  • 5Pcs x Antenna
