5V/12V/24V Relay Module 1 Channel 30A With Optocoupler Isolation Module Trigger

5V/12V/24V Relay Module 1 Channel 30A With Optocoupler Isolation Module Trigger

SKU:X13695
Regular price $6.99

Description:
  • The module uses genuine high quality 30A relay, normally open interface maximum load: AC 250V / 30A, DC 30V / 30A;
  • The use of SMD optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;

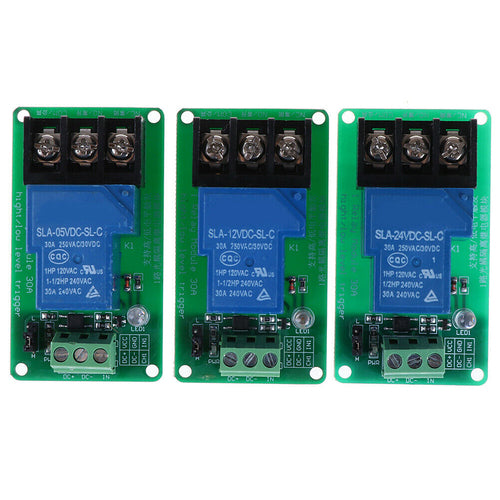

  • The module voltage 5V, 12V, 24V to choose from;
  • The module can be set by jumper high or low trigger
  • User-friendly interface design, all interfaces can be directly connected through the terminal leads, very convenient
  • Module Size: 72mm * 40mm * 24mm (L * W * H)
  • Product weight: 46g;
  • With four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 27.5mm
Technical parameters:

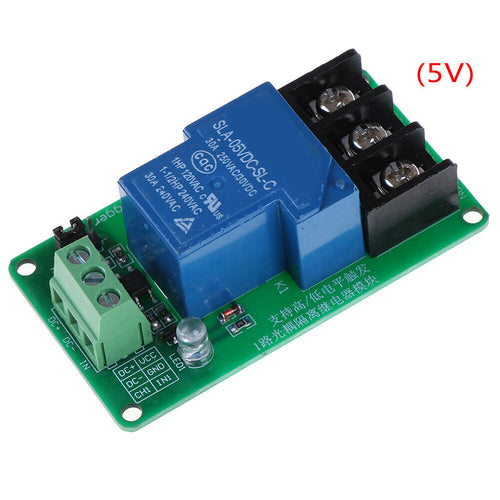

  • Relay version: 5V
  • Quiescent current: 5mA
  • Maximum current: 190mA
  • Trigger current: 2-4mA

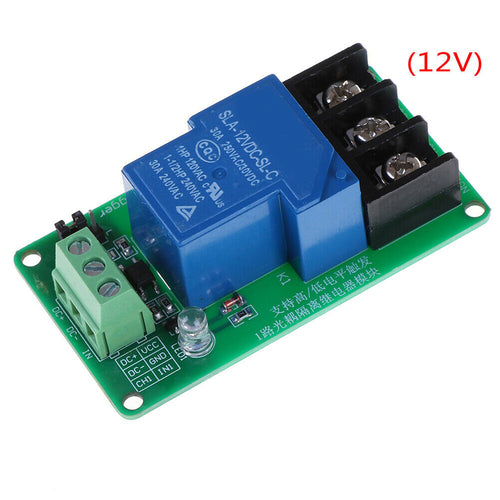

  • Relay version: 12V
  • Quiescent current: 5mA
  • Maximum current: 80mA
  • Trigger current: 2-4mA
  • Relay version: 24V
  • Quiescent current: 5mA
  • Maximum current: 50mA
  • Trigger current: 2-4mA
Module interface Description:
  • DC +: module DC power supply positive (trigger terminal voltage positive)
  • DC-: module DC power supply negative (trigger terminal voltage negative)
  • IN: signal trigger terminal (the default trigger voltage and power supply the same)

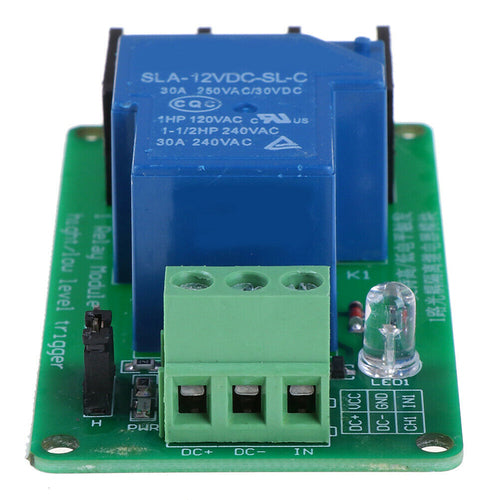

  • High / low level trigger mode selection, as shown, jumper and L-side connection, IN-side low-level trigger, connected with the H-side high trigger

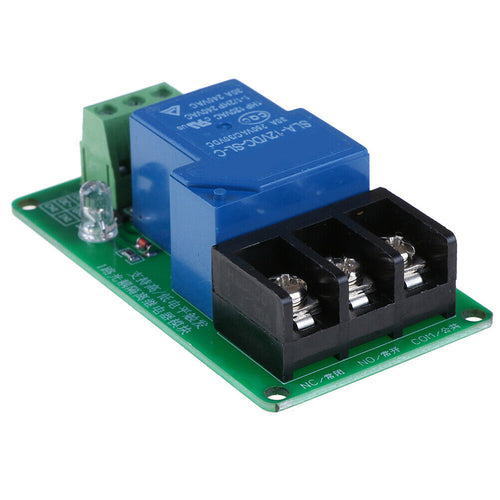

  • NC (NC): normally closed relay
  • Common (COM): Relay Common
  • Often open (NO): relay normally open
Package Included:
  • 1PC*
