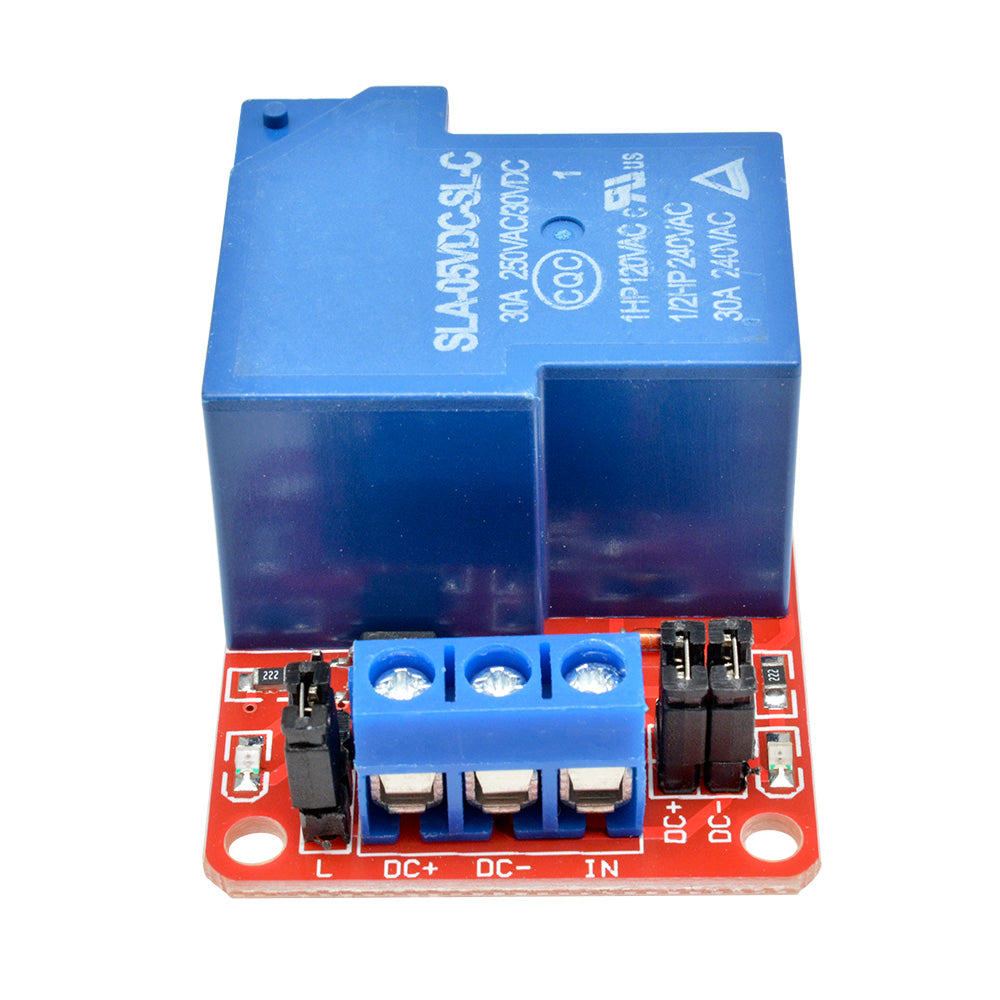

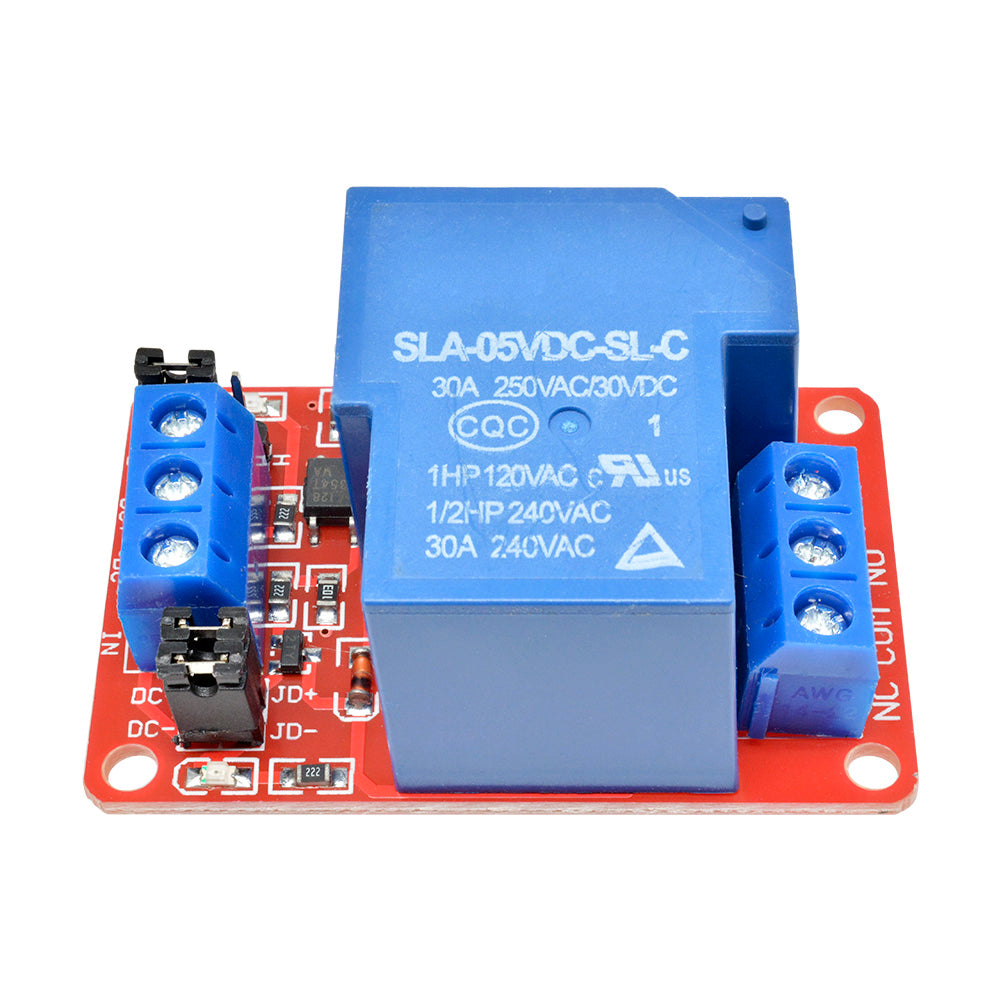

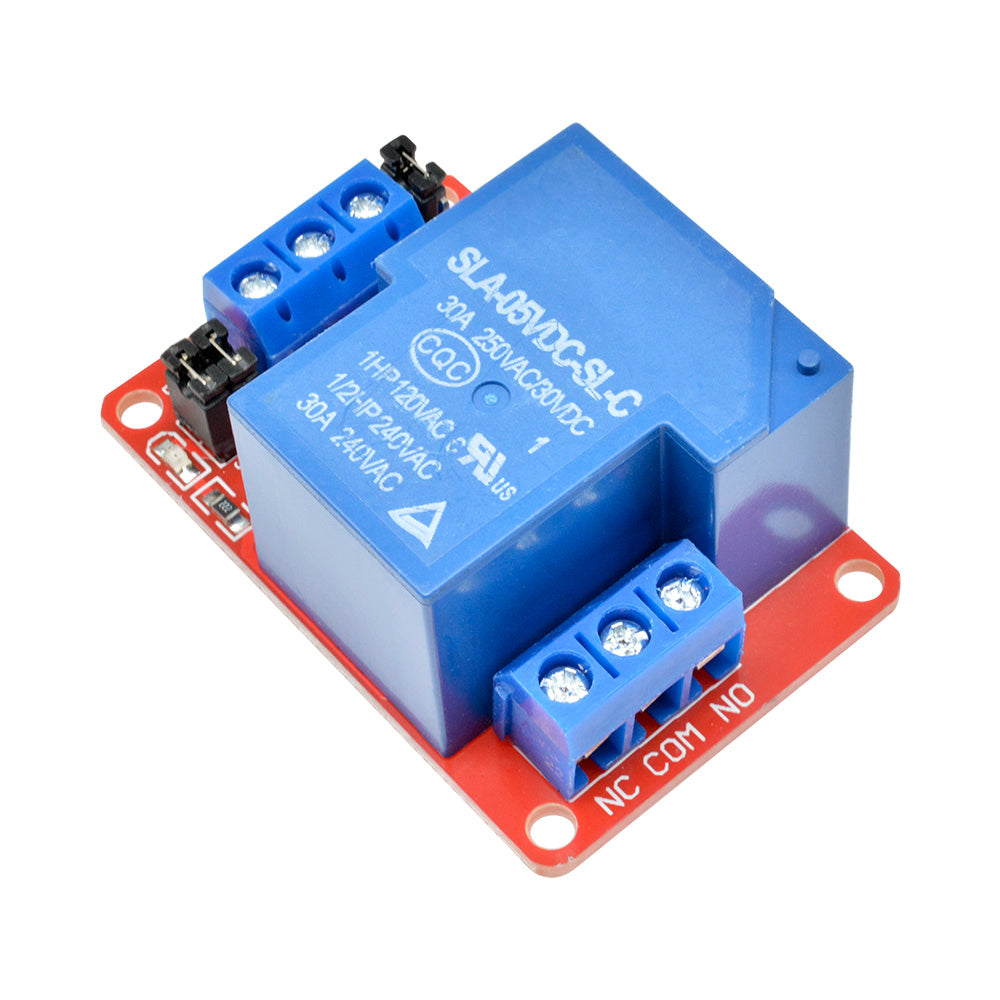

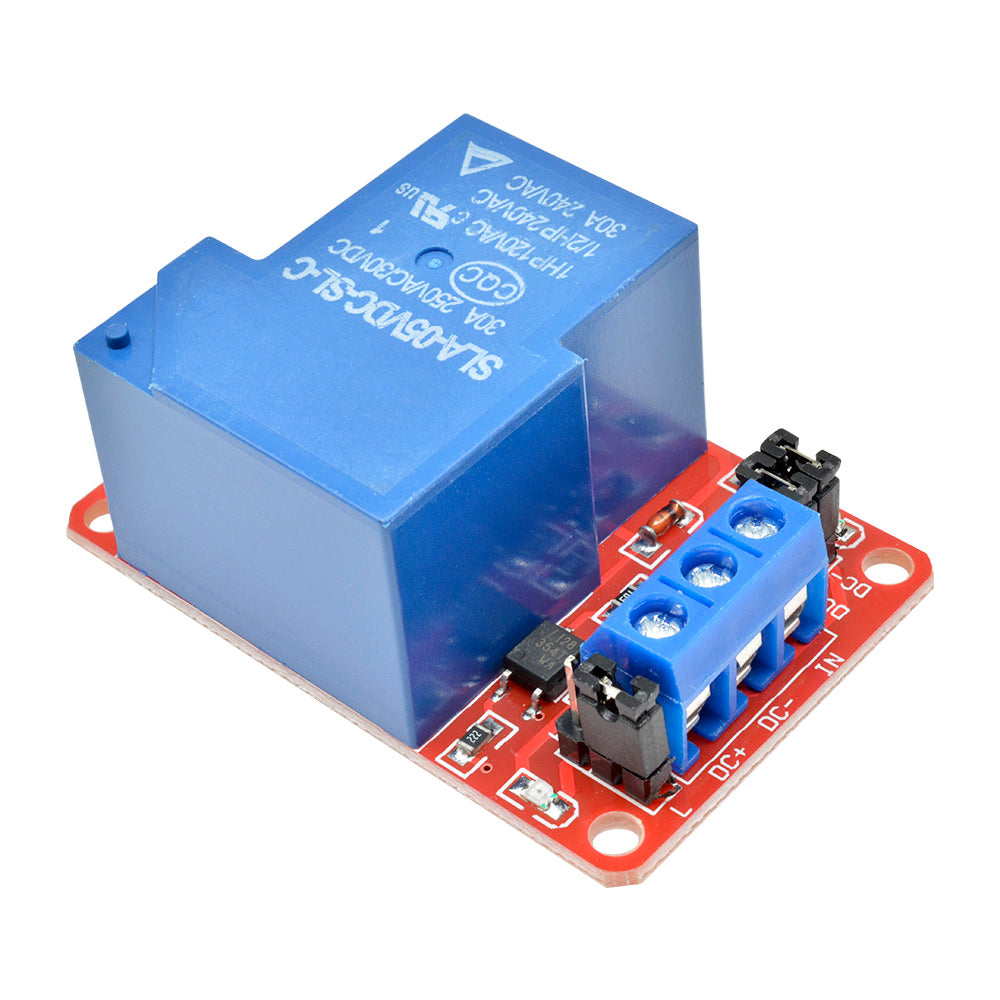

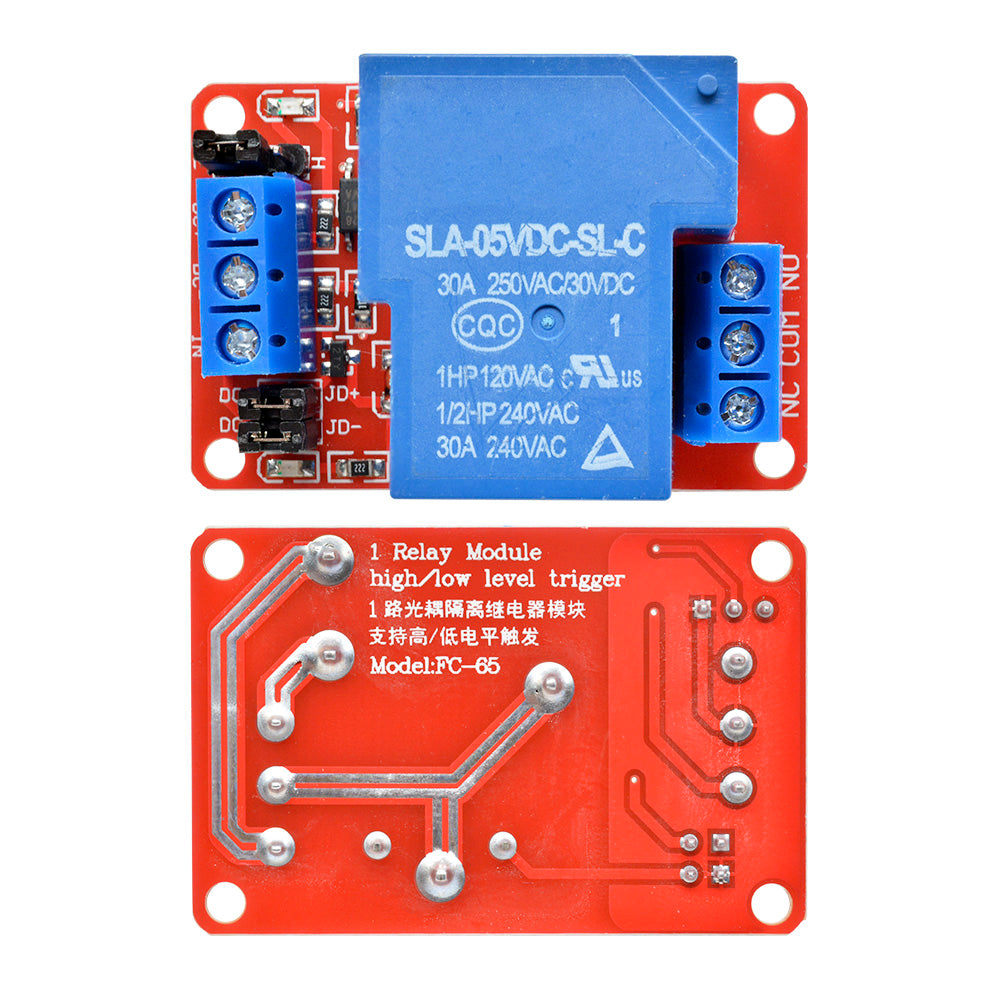

5V 30A 1-Channel Relay Module Board With Optocoupler H/L Level Triger
5V 30A 1-Channel Relay Module Board With Optocoupler H/L Level Triger
SKU:100010
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
- 5V 30A 1-Channel Relay Module with Optocoupler H/L Level Triger
- Module description:
- 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A
- Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA
- Module can be set high level or low level trigger by the jumper
- Power indicator light (green), relay status indicator light (red)
- Module Size:50mm*33mm*24mm
- Technical parameters:
- Voltage version:5V
- The static current:5mA
- Working current:190mA
- Trigger current:2-4mA
- Module interface specifications:
- DC+ : DC power supply positive pole
- DC- :DC power supply negative pole
- IN : signal triggering pin
- JD+ : relay control voltage positive
- JD- : relay control voltage negative
- DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
- High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger
- Normally closed pin (NC) : relay normally closed pin
- Common pin (COM) : relay common pin
- Normally opened pin (NO) : relay normally opened pin
- Rated current of the interface is 16A
Package Included:
- 1 x 5V Relay Module
