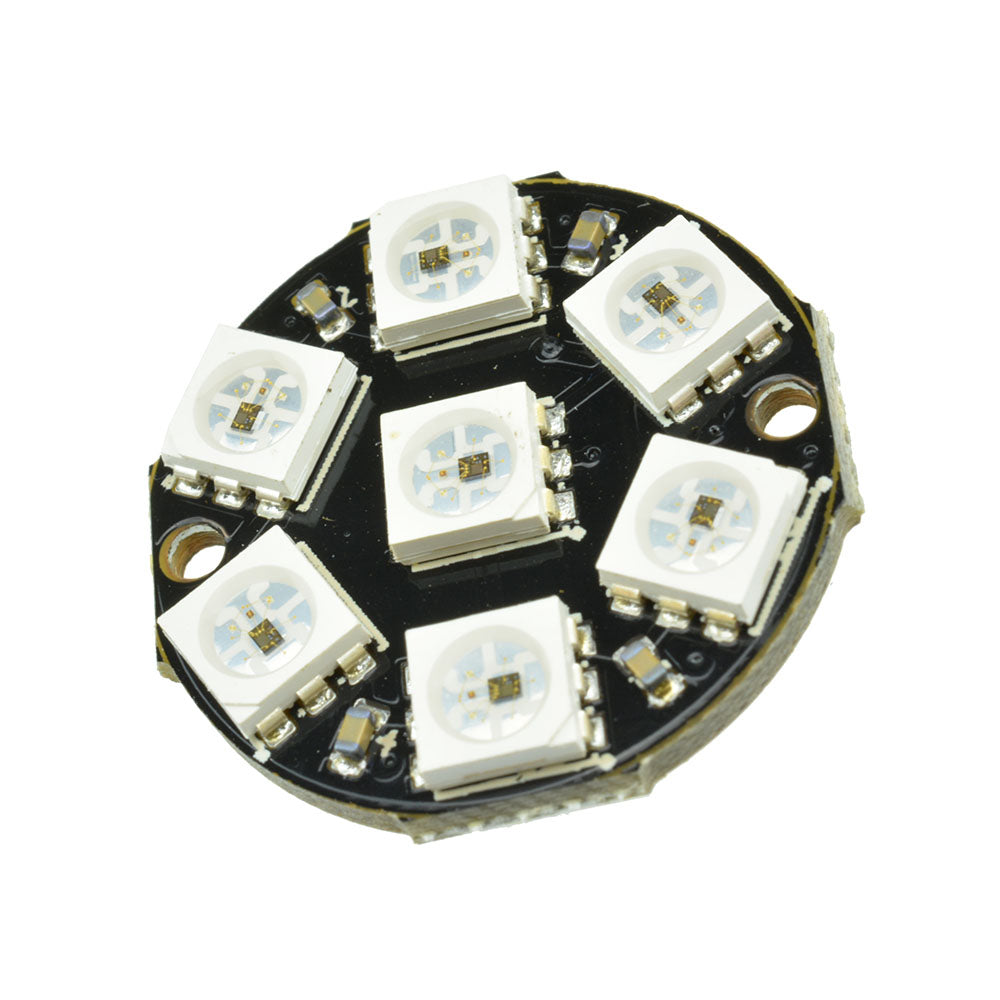

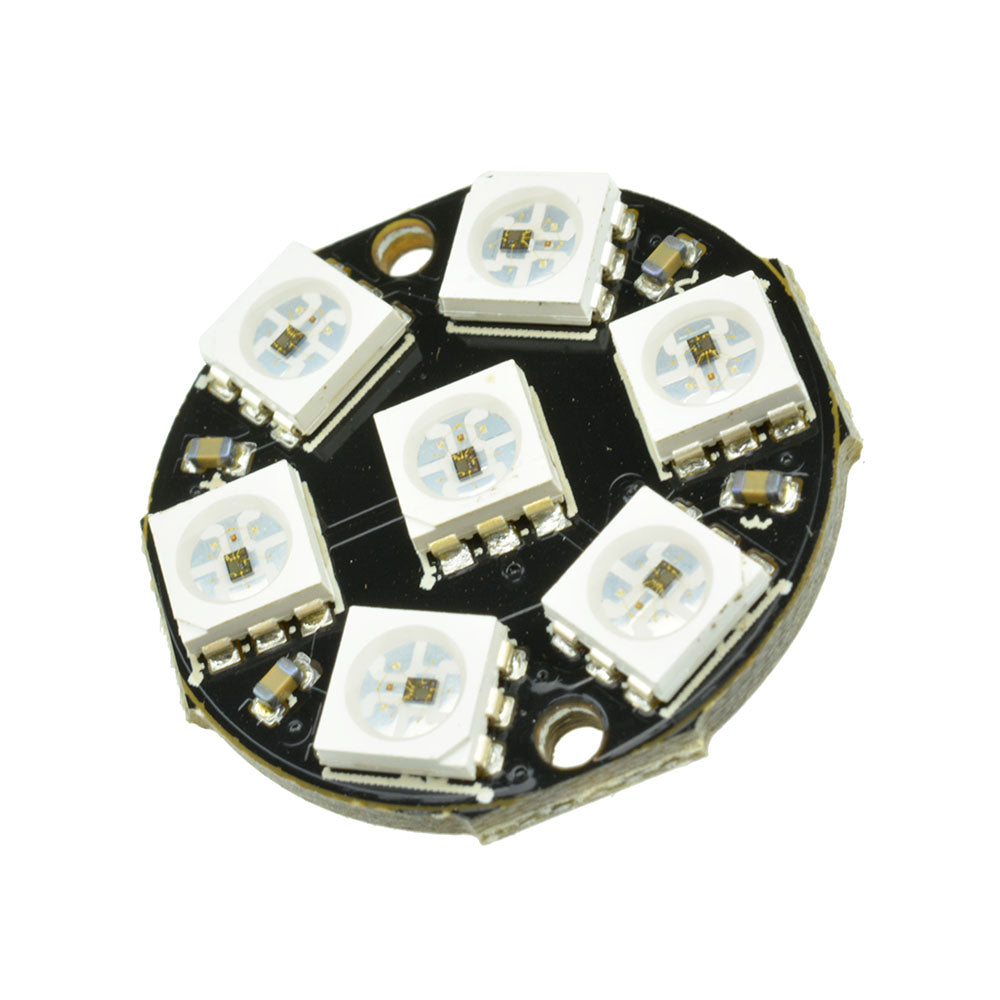

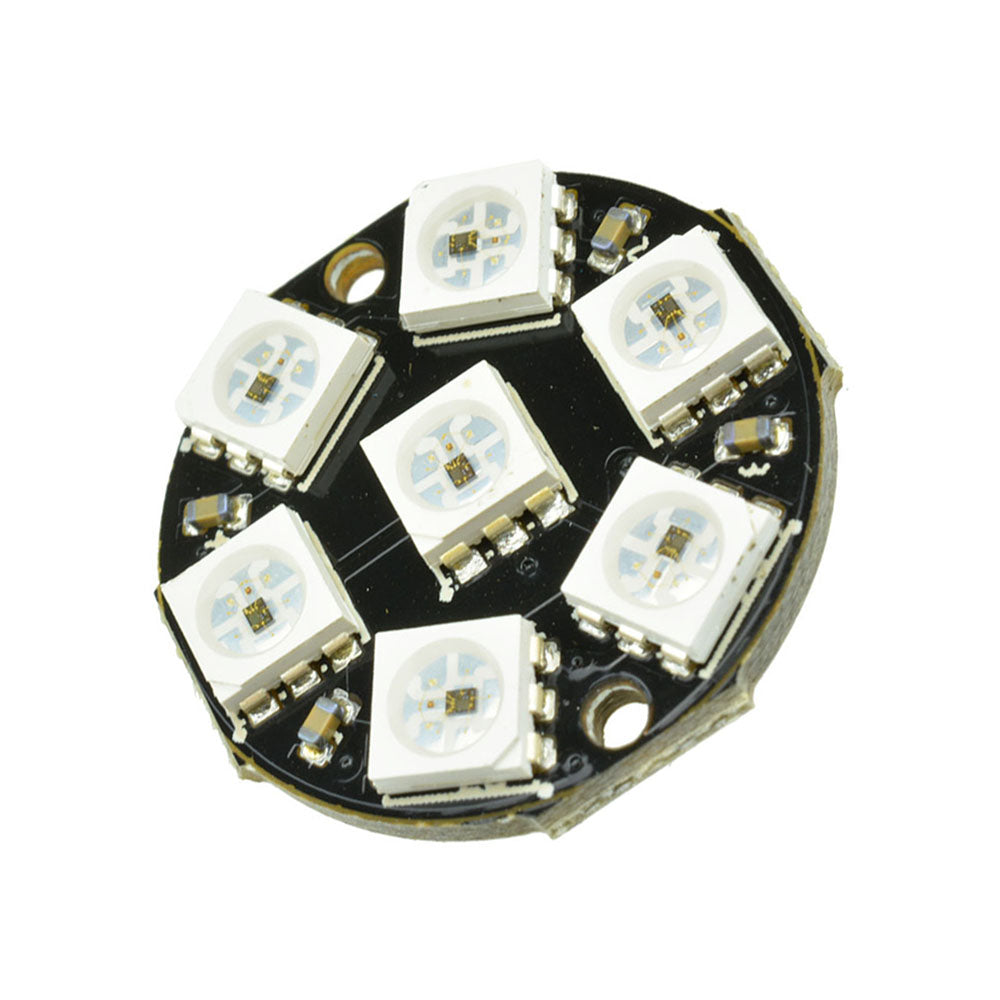

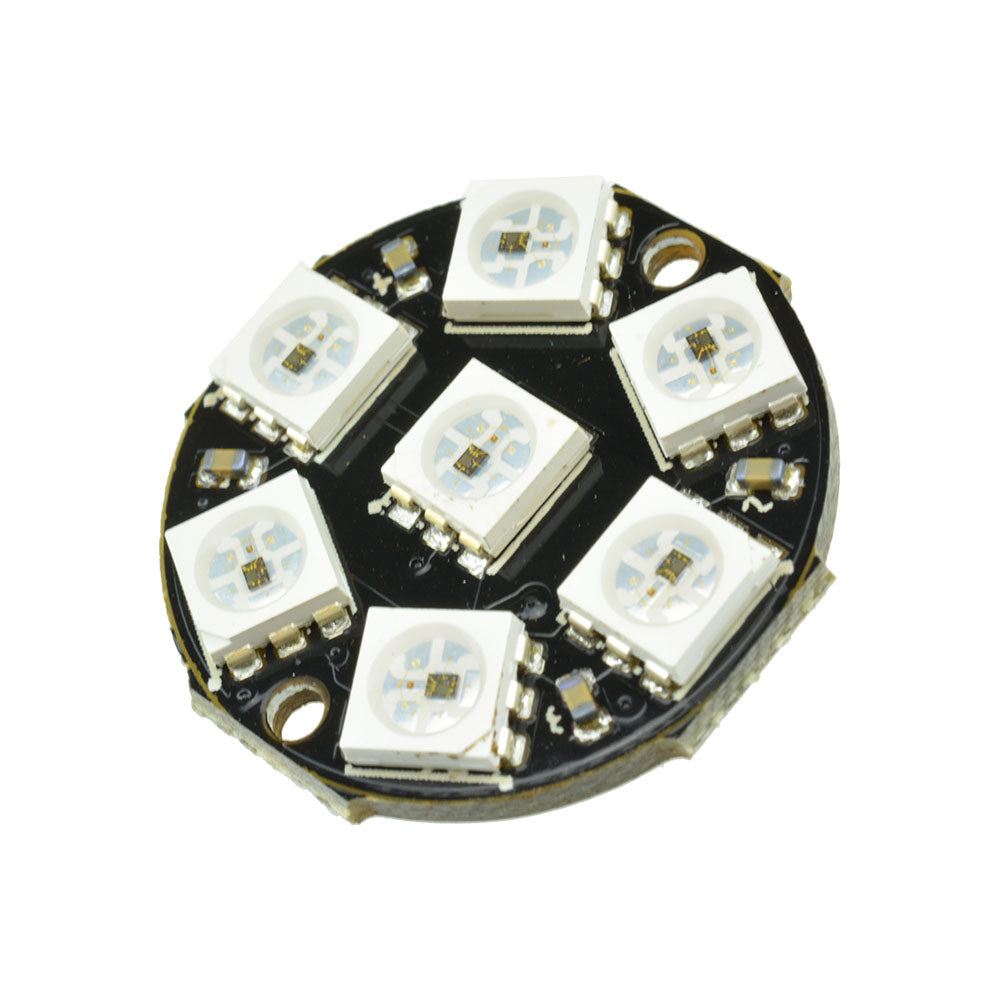

7-Bit 8-bit 12-bit 16-bit 24-bit 60-bit WS2812 5050 RGB Lamp Panel Round LED

7-Bit 8-bit 12-bit 16-bit 24-bit 60-bit WS2812 5050 RGB Lamp Panel Round LED

SKU:030084
Regular price $5.99

Feature:
  • 5050 highlight LED, built-in chip, equipped with one I/O interface which can control several LEDs.
  • Chip has built-in Shaping circuit, the signal distortion will not be cumulative and can be displayed stably
  • RGB 256 level brightness adjustment, 160000 color image display effect, Sweep frequency not less than 400Hz/S
  • serial cascade port, can finish the receiving and decoding of the data by one piece of line.
  • Refresh rate cascade quantity is not less than 512 even in low speed cascade model.
  • The data receiving rate can up to 800Kbps
  • High light LED, light color and brightness are in the same high consistency
Application:
  • With Gorgeous color, this module can be used to decorate dress or or the festival decoration
Parameter:
  • Size: 25mm/45mm/65mm
  • Chip: WS2813 dual-data line led chip, upgrade ws2812b
  • LED: 5050 package, RGB full color, high light
  • Voltage: 5V

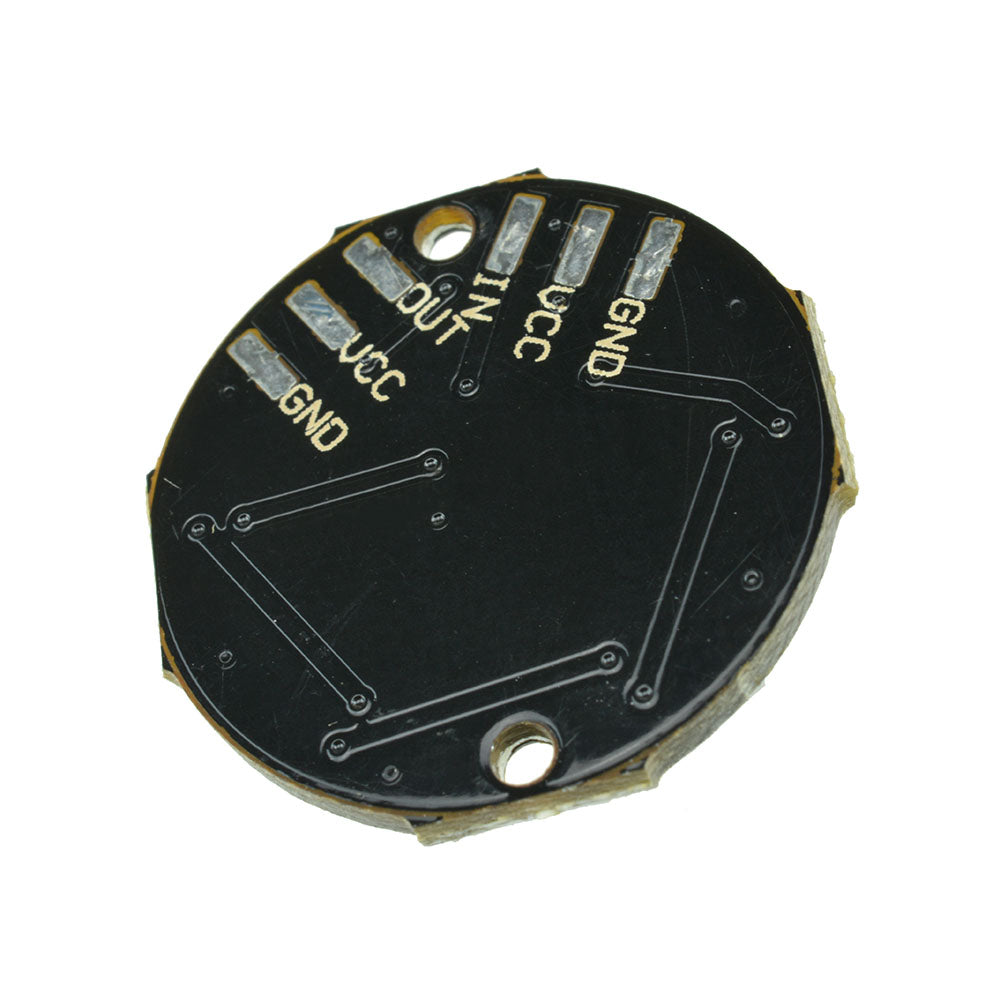

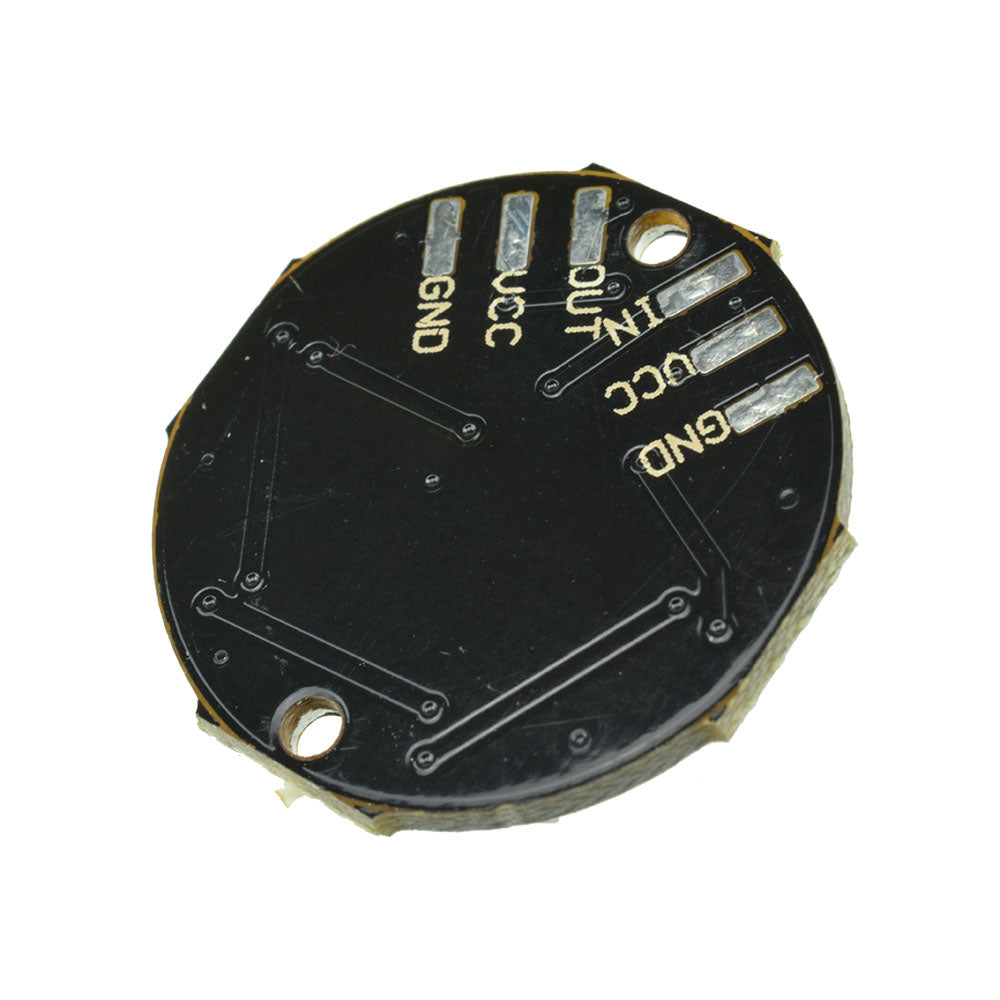

  • Connector: 4PIN JST( male for input and female for output) Red for positive, White for GND, Green/blue for data
  • Platform: rduino Microcontroller with Arduino library
Package Options:
  • 1*WS2812 5050 RGB Lamp Panel Round LED Board
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Feature:
  • 5050 highlight LED, built-in chip, equipped with one I/O interface which can control several LEDs.
  • Chip has built-in Shaping circuit, the signal distortion will not be cumulative and can be displayed stably
  • RGB 256 level brightness adjustment, 160000 color image display effect, Sweep frequency not less than 400Hz/S
  • serial cascade port, can finish the receiving and decoding of the data by one piece of line.
  • Refresh rate cascade quantity is not less than 512 even in low speed cascade model.
  • The data receiving rate can up to 800Kbps
  • High light LED, light color and brightness are in the same high consistency
Application:
  • With Gorgeous color, this module can be used to decorate dress or or the festival decoration
Parameter:
  • Size: 25mm/45mm/65mm
  • Chip: WS2813 dual-data line led chip, upgrade ws2812b
  • LED: 5050 package, RGB full color, high light
  • Voltage: 5V
  • Connector: 4PIN JST( male for input and female for output) Red for positive, White for GND, Green/blue for data
  • Platform: rduino Microcontroller with Arduino library
Package Options:
  • 1*WS2812 5050 RGB Lamp Panel Round LED Board
