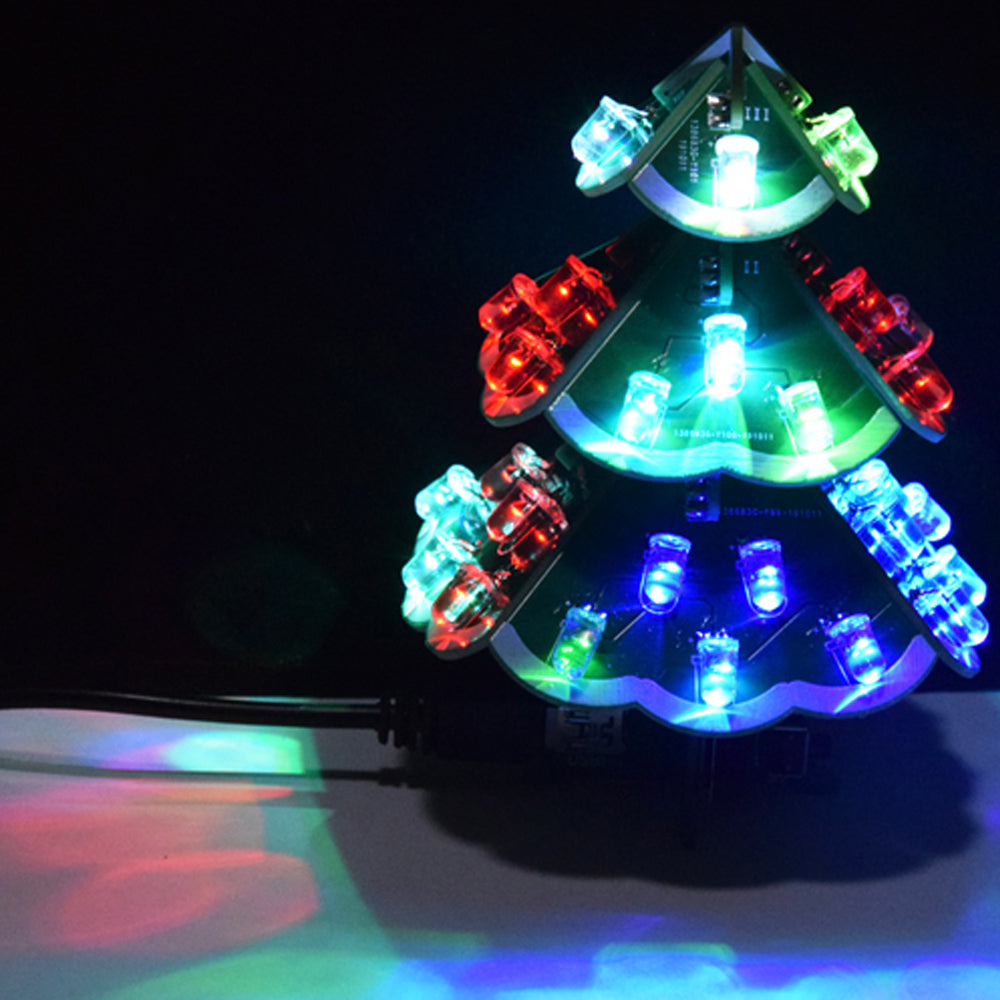

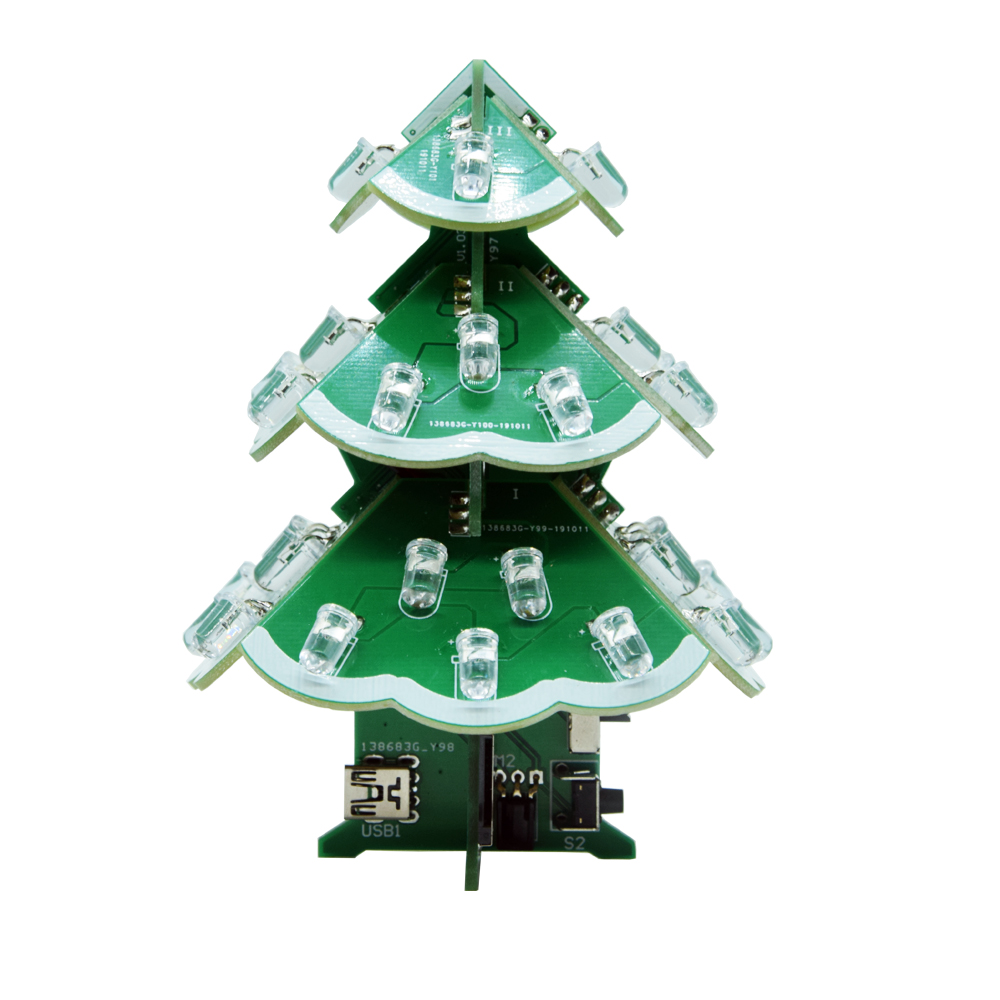

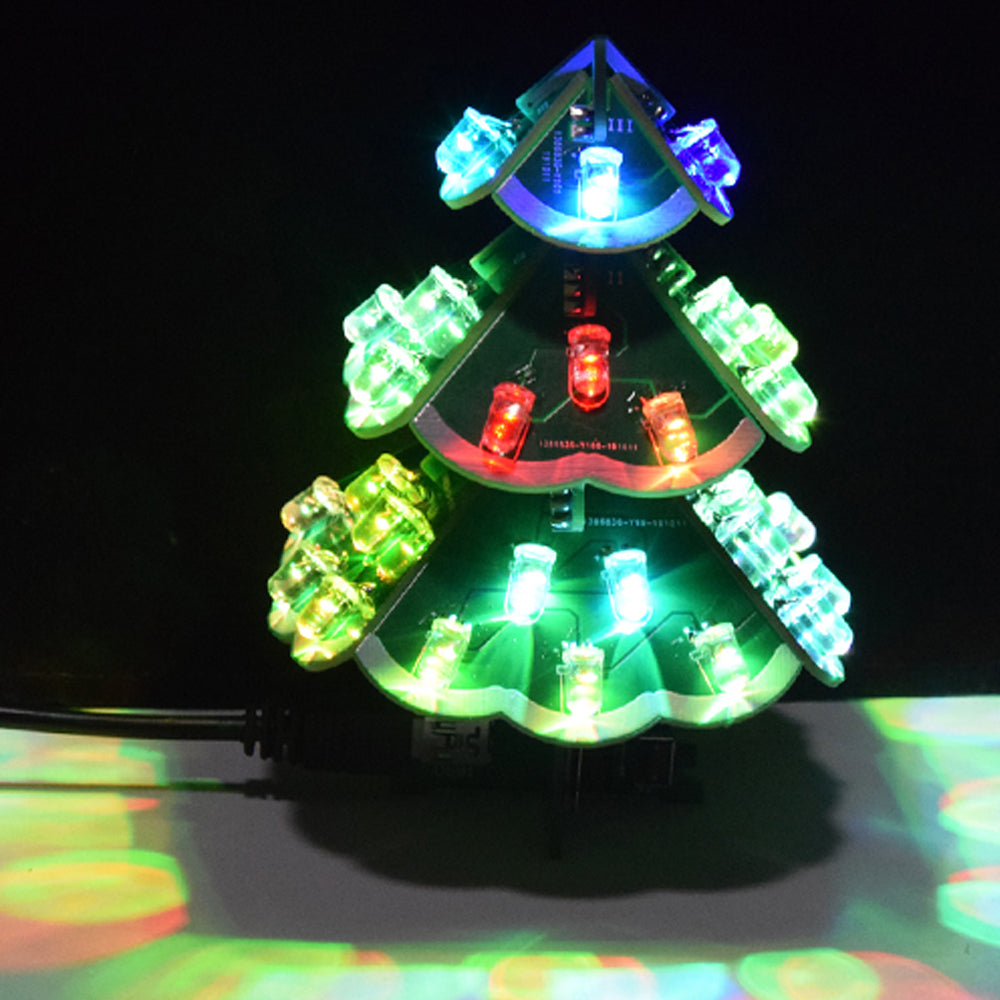

7 Color Colorful Remote Control WAV Music Christmas tree DIY Kit Support TF Card

7 Color Colorful Remote Control WAV Music Christmas tree DIY Kit Support TF Card

7 Color Colorful Remote Control WAV Music Christmas tree DIY Kit Support TF Card

SKU:XD0009
Regular price $13.99 USD

Product introduction:
  • Play music format: WAV
  • Features: you can insert a card to play music
  • Power supply type: DC5V 1A
  • Purpose: decoration, play music
  • Kit Weight: 130g
Package Listing:


Christmas tree kit components list

NO.

Name

Norm

Serial number

QTY

1

Circuit board

6 specifications



15

2

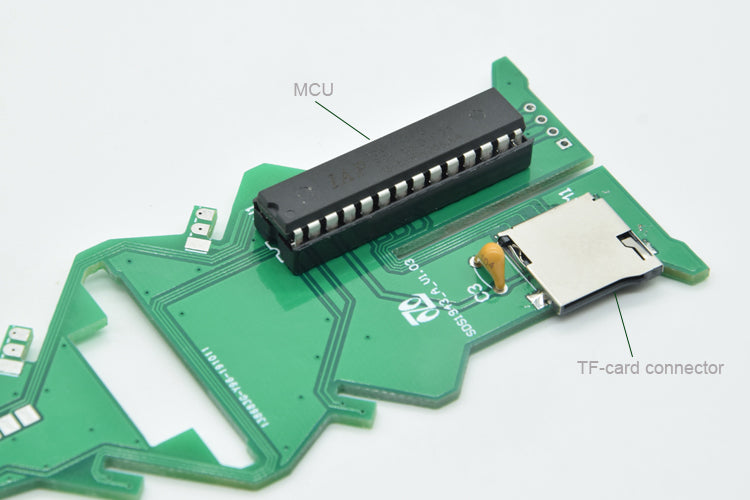

MCU

IAP15W413AS DIP28

U1

1

3

IC Block

28PIN

U1

1

4

Zener tube

AMS1117

VR1

1

5

TF card connector

Patch self-elastic

M1

1

6

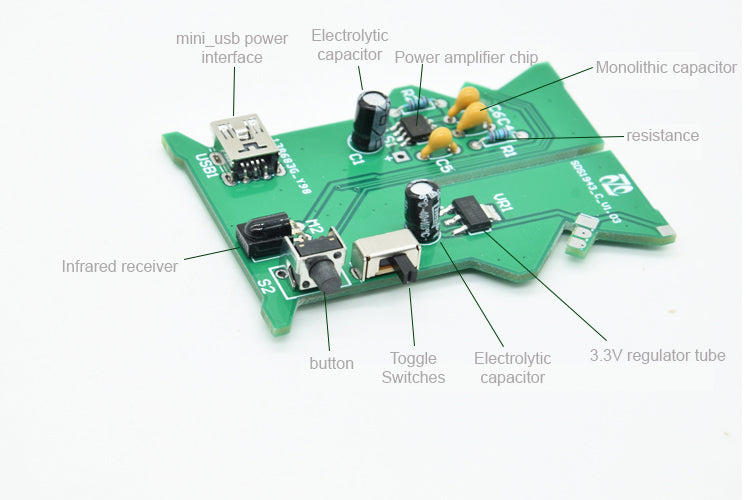

Power amplifier chip

8002A

U2

1

7

Speaker

36mm 8Q 2W

LS1

1

8

LED

5mm colorful flashing LED Straight-Pin



36

9

Resistance

1/6W 20K Metal film resistance

R1, R2

2

10

Electrolytic capacitor

16V100uF ±20% 5*7

Straight-Pin

C1, C2

2

11

Monolithic capacitor

104 Straight-Pin

C3, C4, C 5, C6

4

12

Infrared receiver

Integrated infrared receiver

M2

1

13

Toggle switch

Side toggle switch 5-PIN

S1

1

14

USB Seat

Mini-USB 90 degree

straight-PIN

USB1

1

15

Button

Side press straight-PIN

S2

1

16

Infrared remote control

Infrared remote control



1

17

power cable

Mini-USB cable



1







Total

71


Note: Need Christmas tree kit welding tutorial, contact us!
