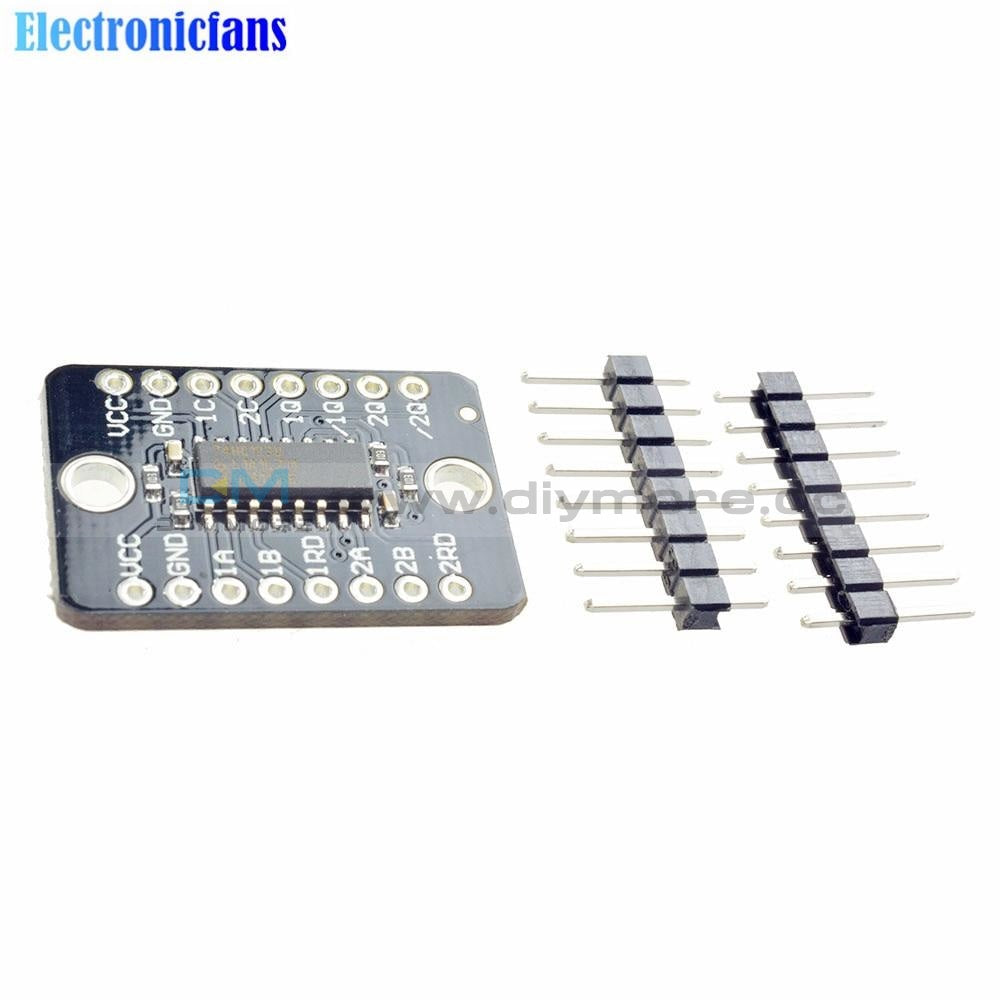

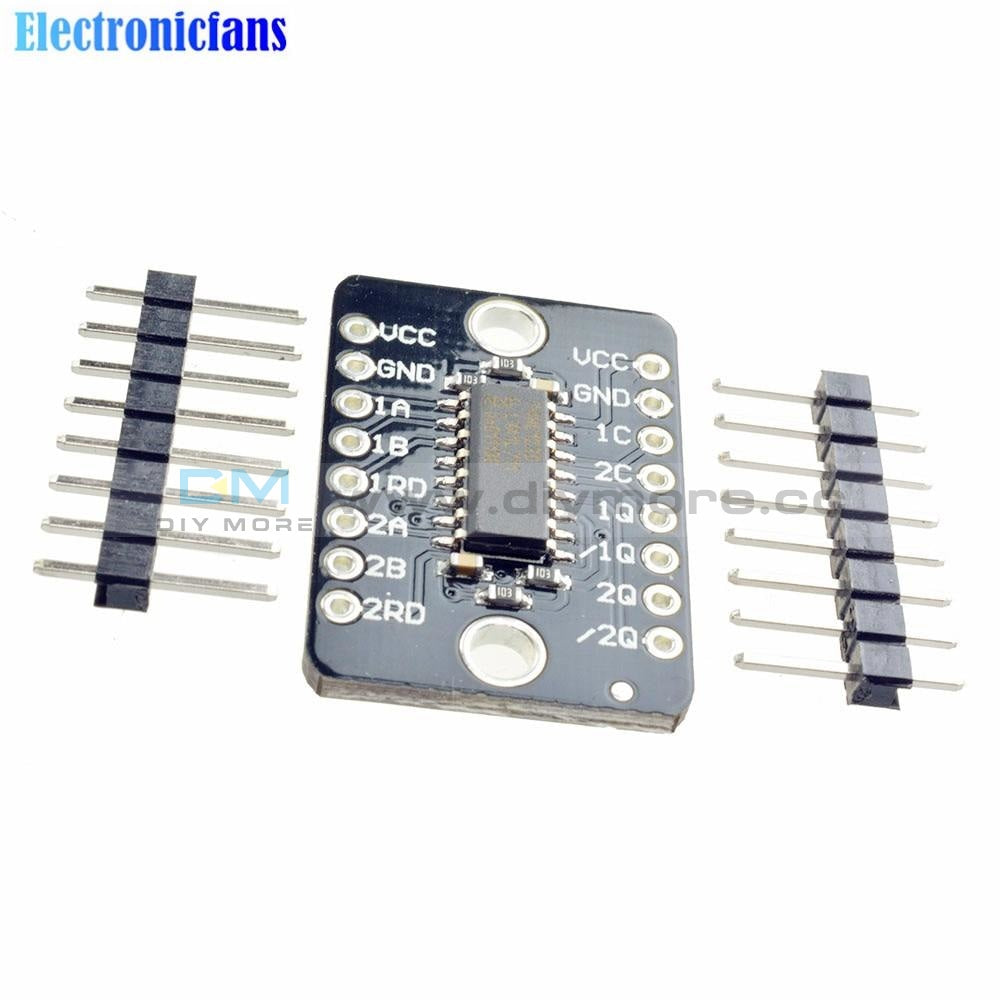

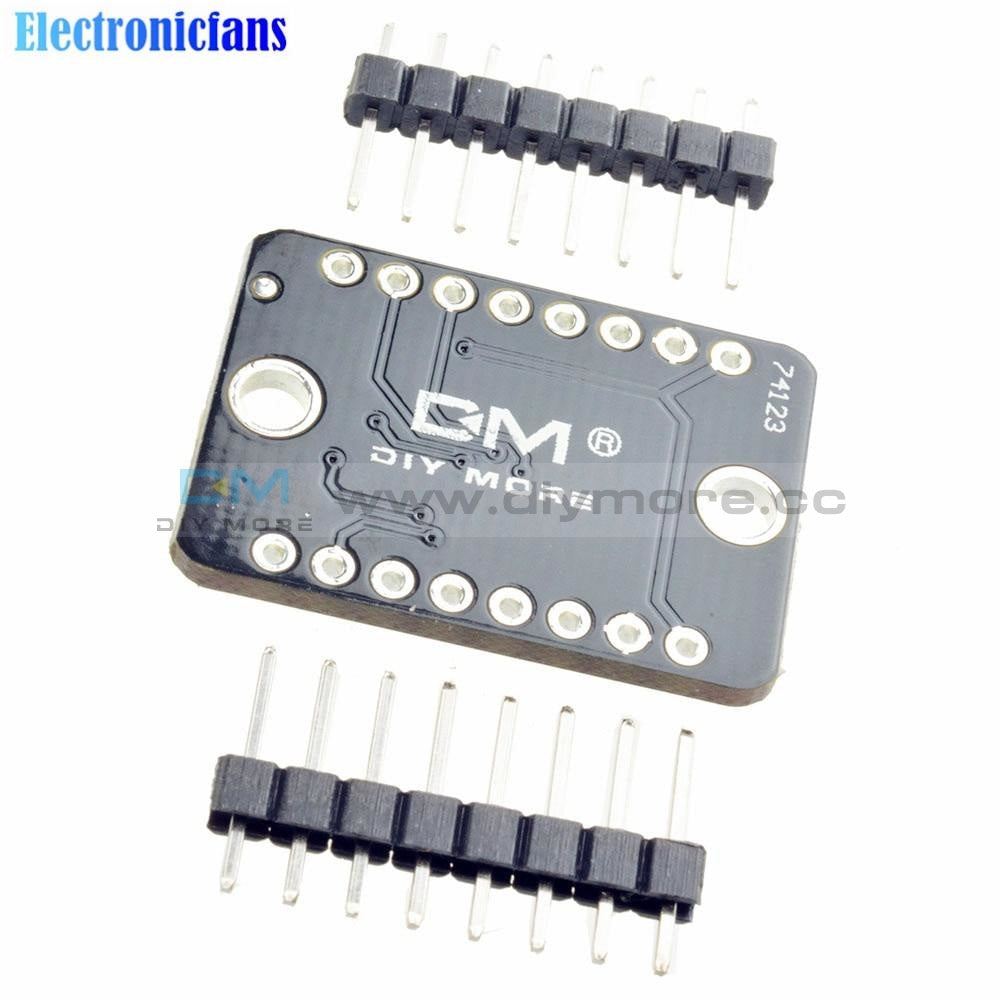

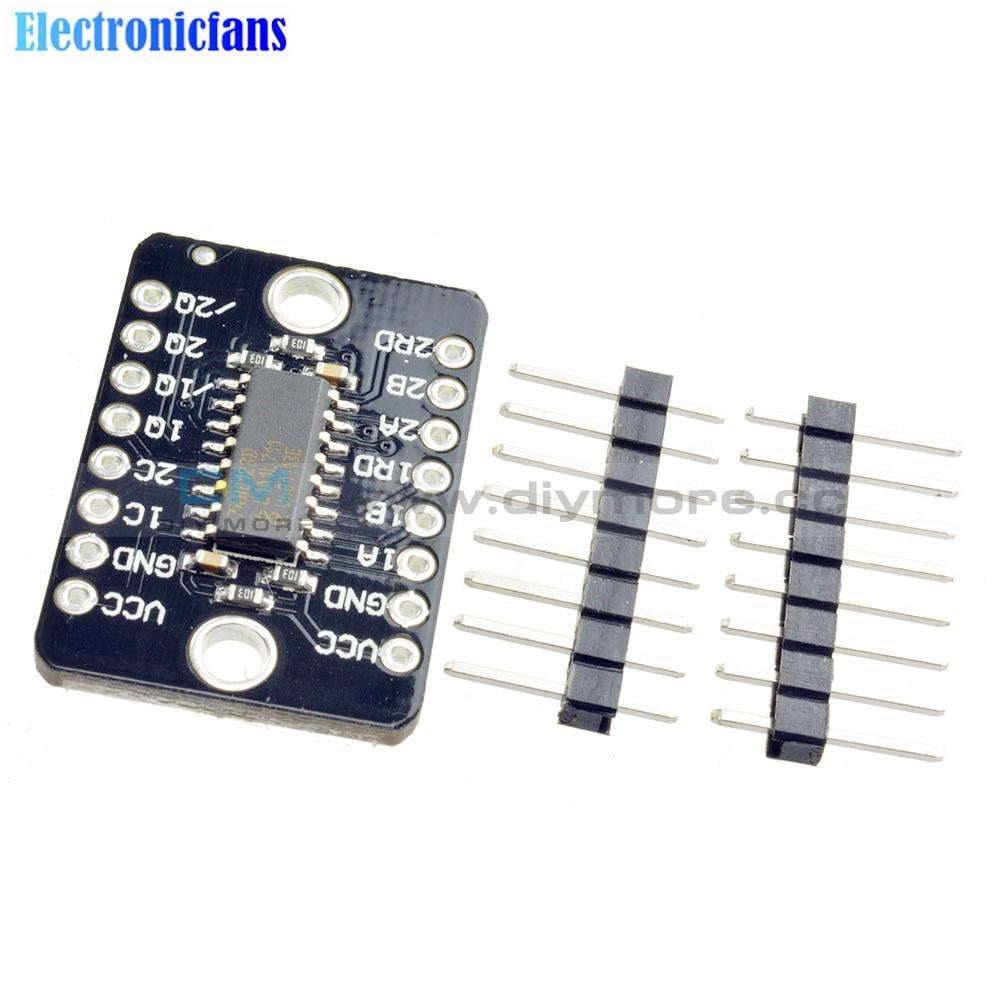

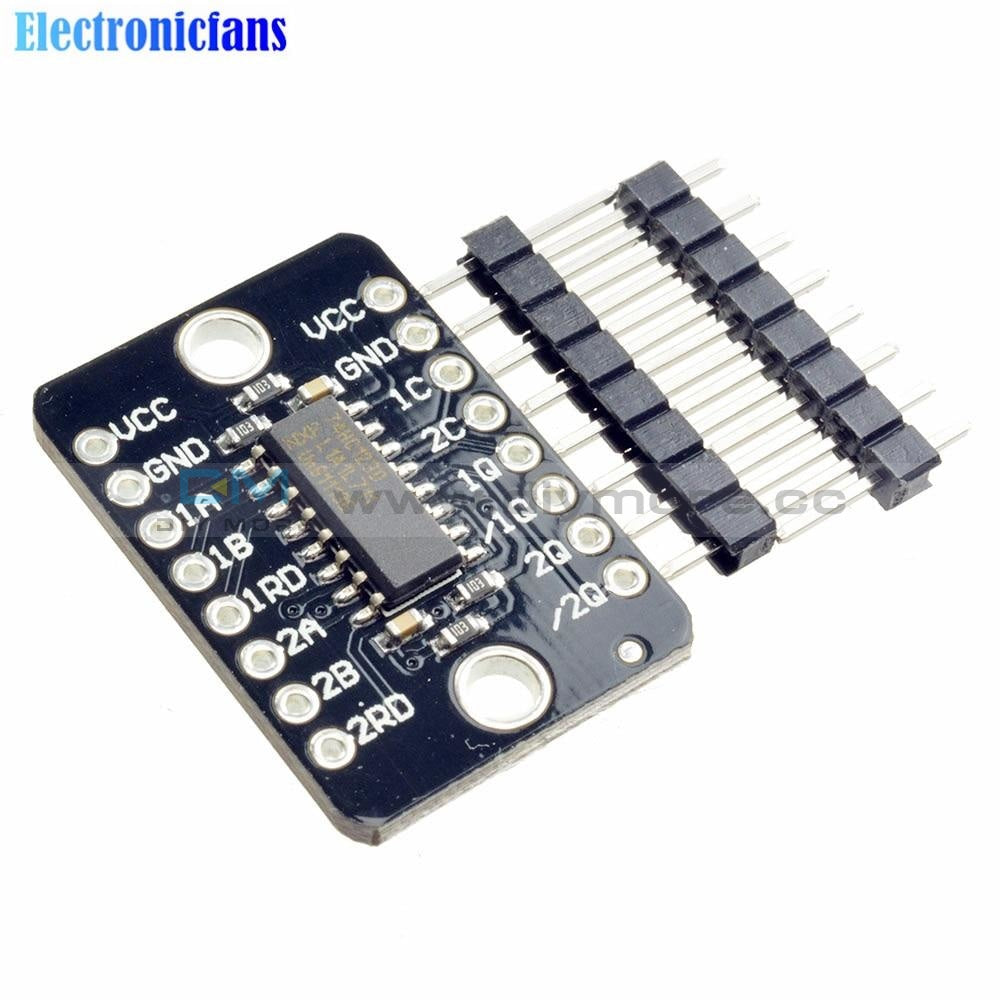

74HC123D Dual Retriggerable Monostable Trigger Multivibrator Reset Module NEW
74HC123D Dual Retriggerable Monostable Trigger Multivibrator Reset Module NEW
SKU:180029
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
FEATURES
· DC triggered from active HIGH or active LOW inputs
· Retriggerable for very long pulses up to 100% duty factor
· Direct reset terminates output pulse
· Schmitt-trigger action on all inputs except for the reset input
· Output capability: standard (except for nREXT/CEXT)
· ICC category: MSI
GENERAL DESCRIPTION
The 74HC/HCT123 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky
TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT123 are dual retriggerable monostable multivibrators with output pulse width control by three methods. The basic pulse time is programmed by selection of an external resistor (REXT) and capacitor (CEXT). The external resistor and capacitor are normally connected as shown in Fig.6.
