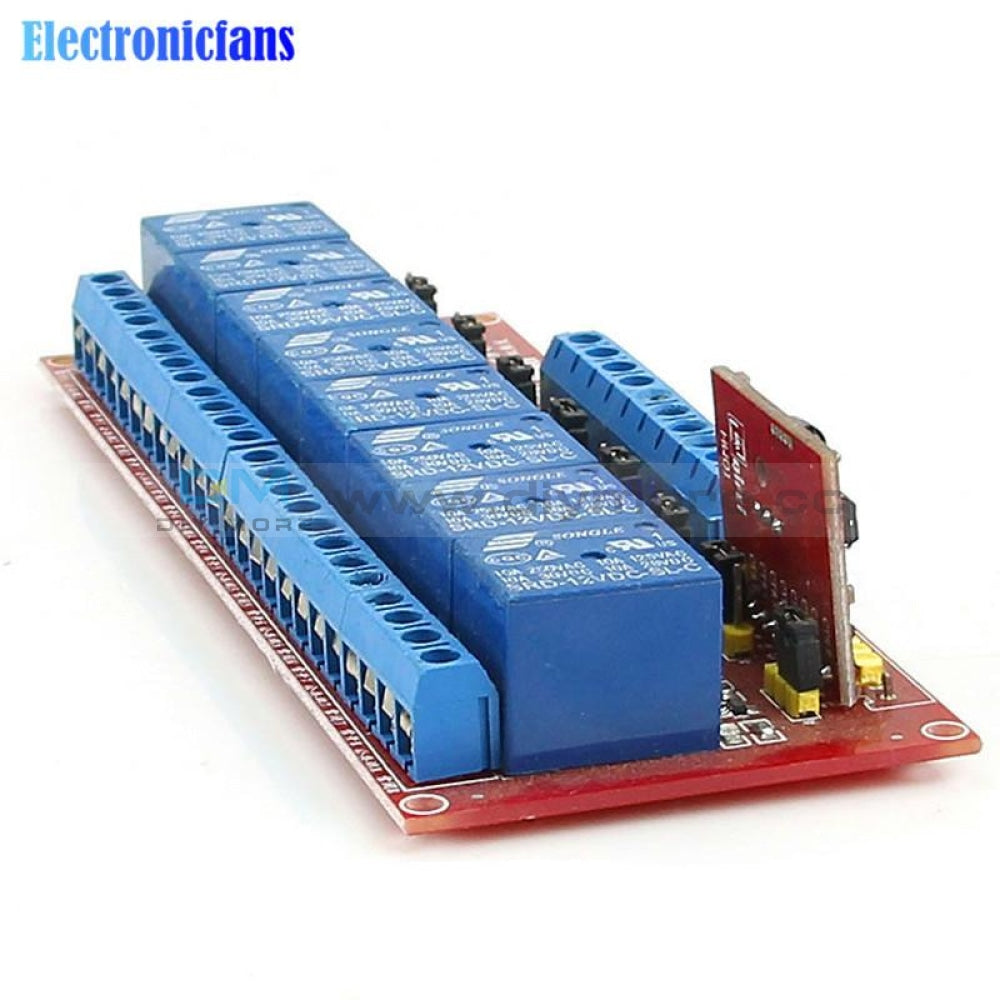

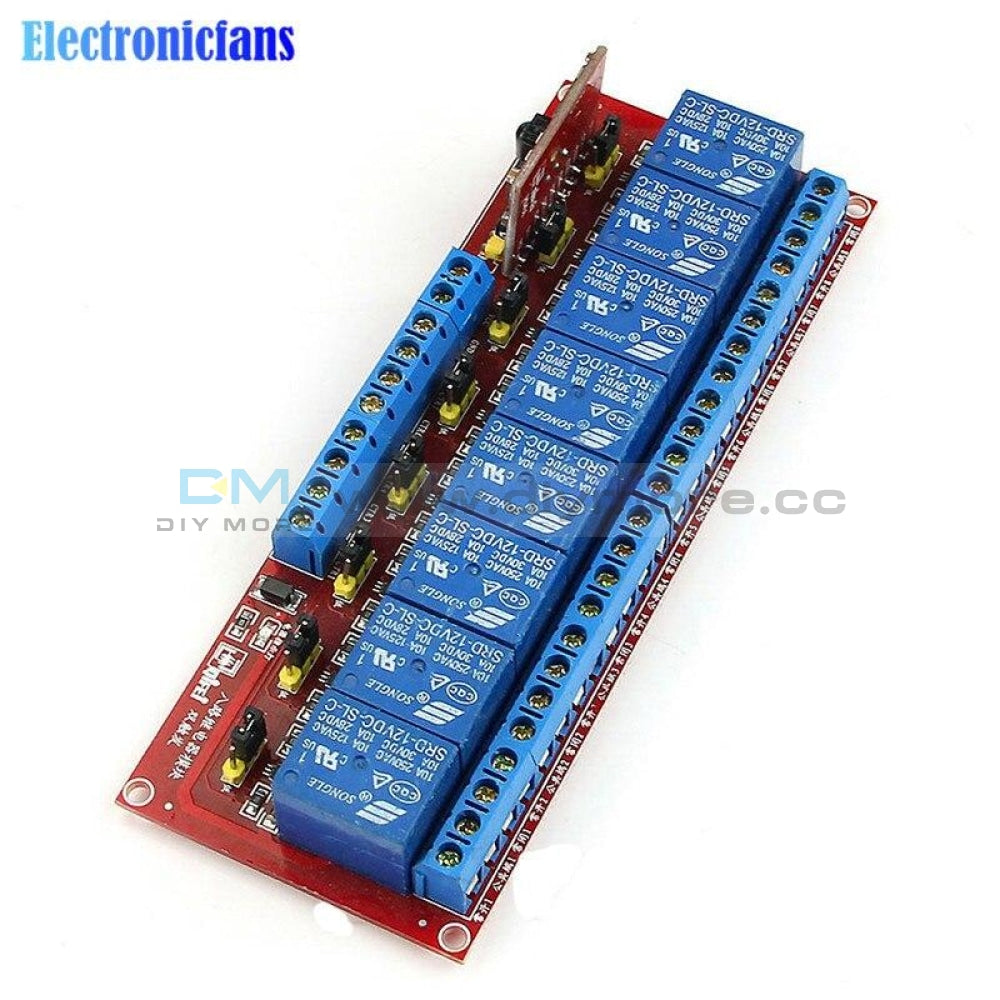

8 Channel DC 12V Multi function Infrared Remote Control Relay Module With Dual Trigger Two way Driver IC Module Bidirectional
8 Channel DC 12V Multi function Infrared Remote Control Relay Module With Dual Trigger Two way Driver IC Module Bidirectional
SKU:100014
Regular price
$12.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Dual Trigger design , using special two-way driver IC design , fly away to ride the world premiere of Electronic Science and Technology;
Anti-interference ability , using the freewheeling diode protection;

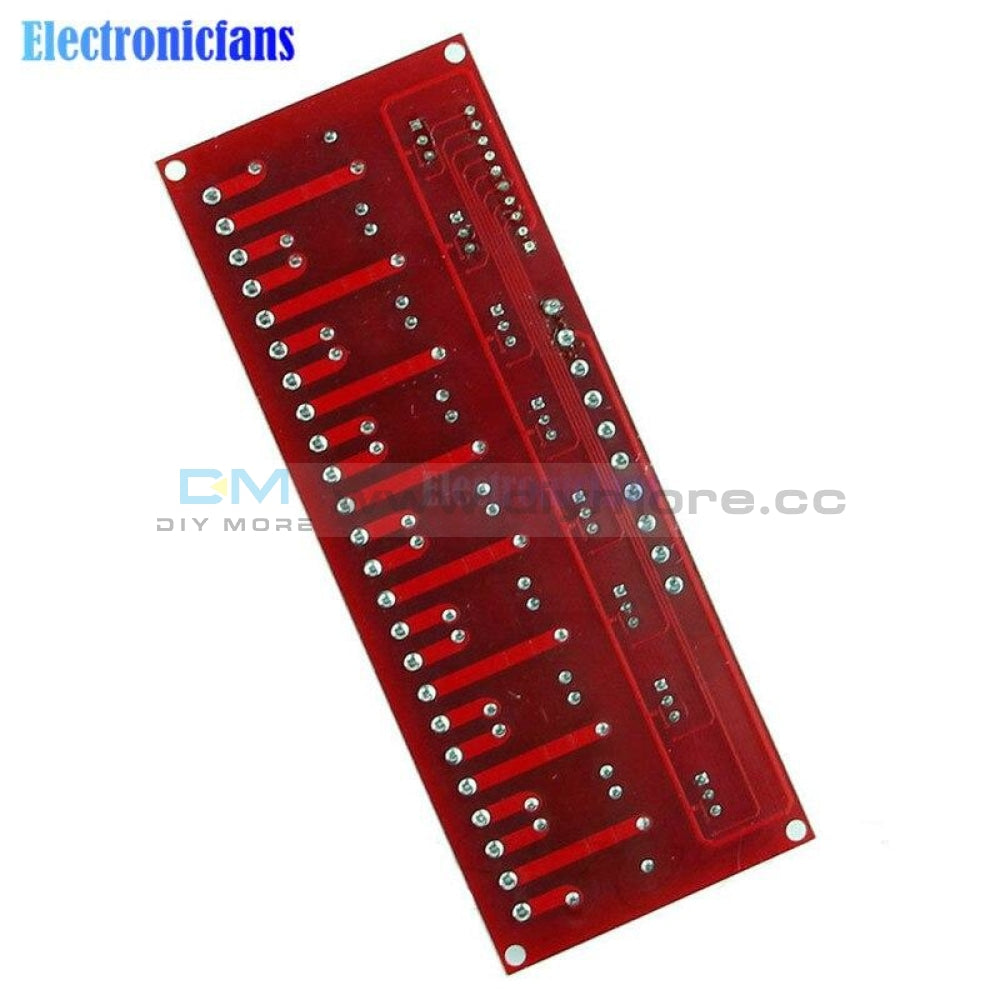

Part of the relay contacts using double-sided bold wiring for a large current through the safe and reliable;
5.08mm high-quality input and output terminals are used , the wiring is more convenient and suitable for PLC control
The inputs can be set high and low trigger control more flexible ;
Each relay has a pull indicator , working status of the relay at a glance;
Each relay output leads to a normally open and normally closed two electric shock, use convenient and flexible ;
With fixed screw holes for easy installation ;
Finished by 100% functional testing and stability testing ;
Specification:
The relay contact capacity: AC250V 10A DC30V 10A;
Power supply: Button Battery (Not Included)
Board Size: (L*W*H)13.50*5.00*2.10cm/5.31"*1.97"*0.83"
The remote control Size:(L*W*H)8.50*4.00*0.60cm/3.35"*1.57"*0.24"
Product wiring as follows:
VCC: input power supply terminal end
GND: input power is grounded end
CTR1-CTR8 trigger signal input terminal , in any way effective ( by a jumper setting can)

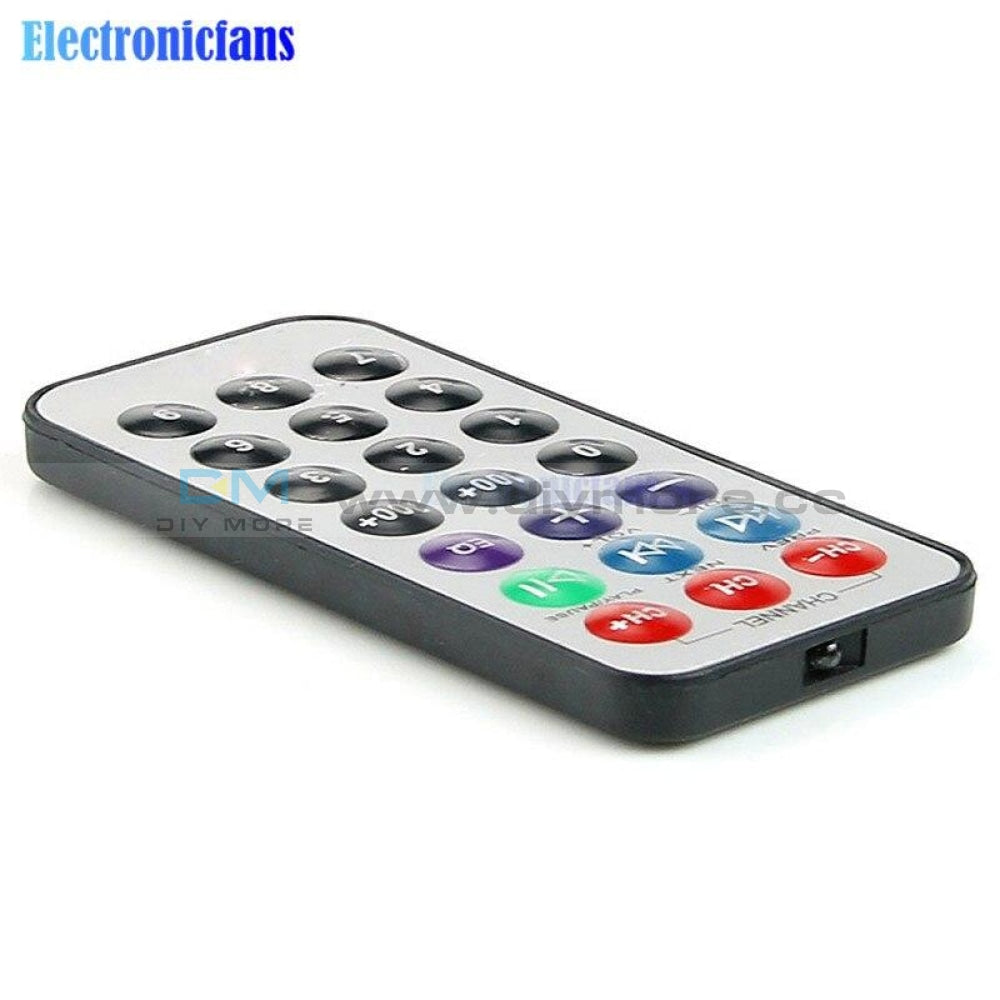

The remote control uses:
Only the numeric keys work, 1-8 keys,Corresponding to the corresponding relay channels 1-8, after pressed the first time relay start work ,After disconnecting relay pressed again.
After the 0 button is pressed, all start to working,
After the 9 button is pressed, all stop working,
Note:
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

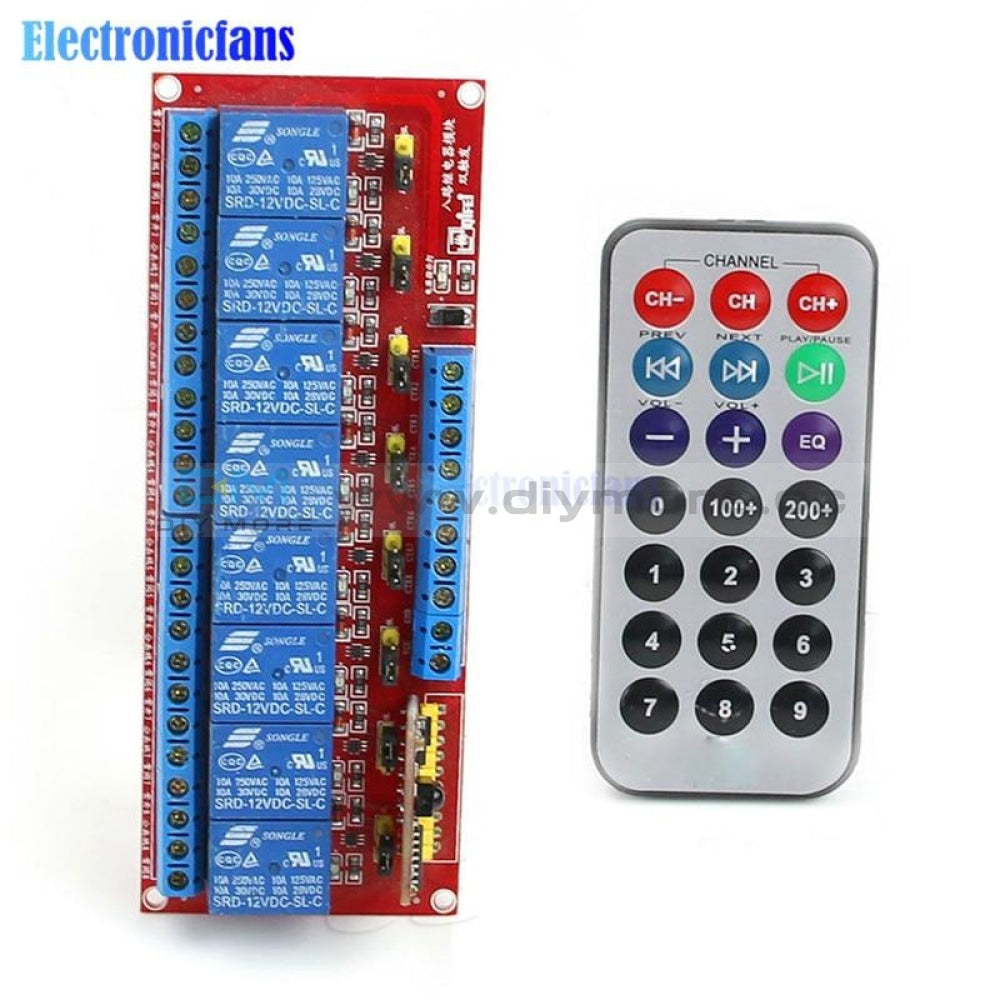

Package:
1pcs * 8-channel relay module
1pcs * The remote control (battery not included)
