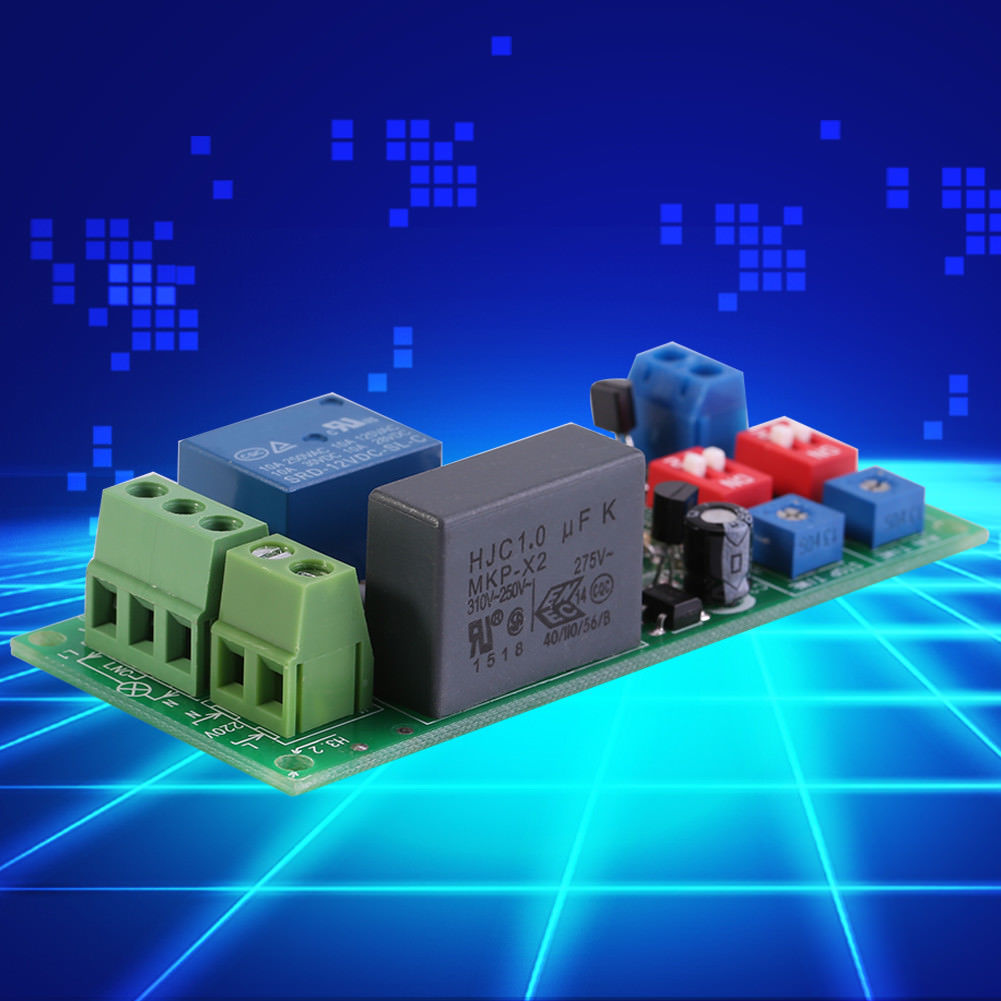

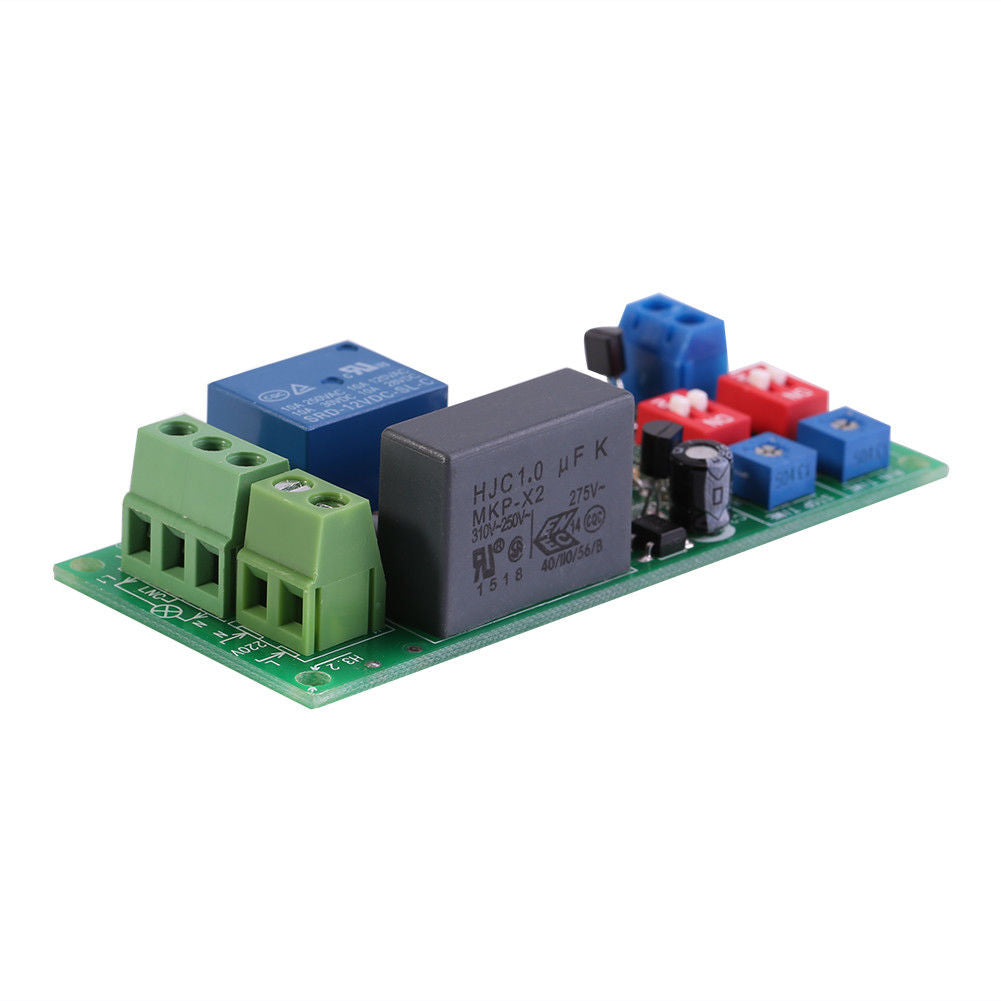

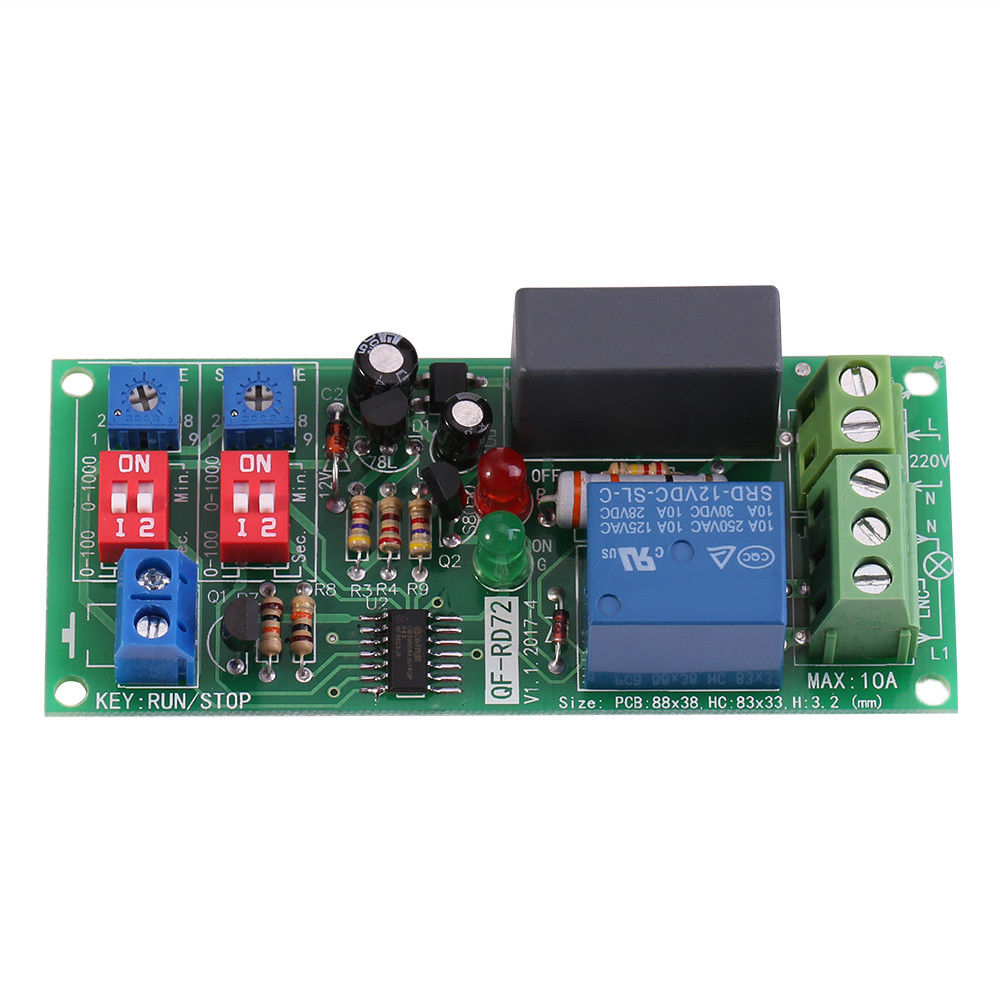

AC110V 120V 220V 230V Cycle Delay Timing Timer Relay Switch Turn ON/OFF Module

AC110V 120V 220V 230V Cycle Delay Timing Timer Relay Switch Turn ON/OFF Module

SKU:040303
Regular price $7.99

Description:
  • This timer relay on off cycle module is designed with high precision. It has a 0.5s~1000min wide adjustable time range, and you can adjust the delay time according to your need both at "RUN" time and "STOP" time, which will surely bring great convenience to you. And the module supports start/stop function, so the relay works according to the setting run and stop time. Besides, you can use this module on timer operating equipment, machine repetitive test circuit and fish tank intermittent pump.
Features:
  • AC 100V~250V voltage, can be used for 100V/110V/ 120V/ 127V/220V/230V/240V power
  • 0.5s~1000min wide adjustable time range, you can adjust the delay time both at "RUN" time and "STOP" time
  • Module enters into an infinite cycle mode when power on, and stops working automatically after the setting time, easy to operate
  • Can be used to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test
  • Suitable for timer operating equipment, machine repetitive test circuit and fish tank intermittent pump
Specifications:
  • Voltage: AC 100V~250V
  • Power: <1.0W
  • Output: Active output, output voltage equals to input voltage.
  • Max. Output Current: <10A

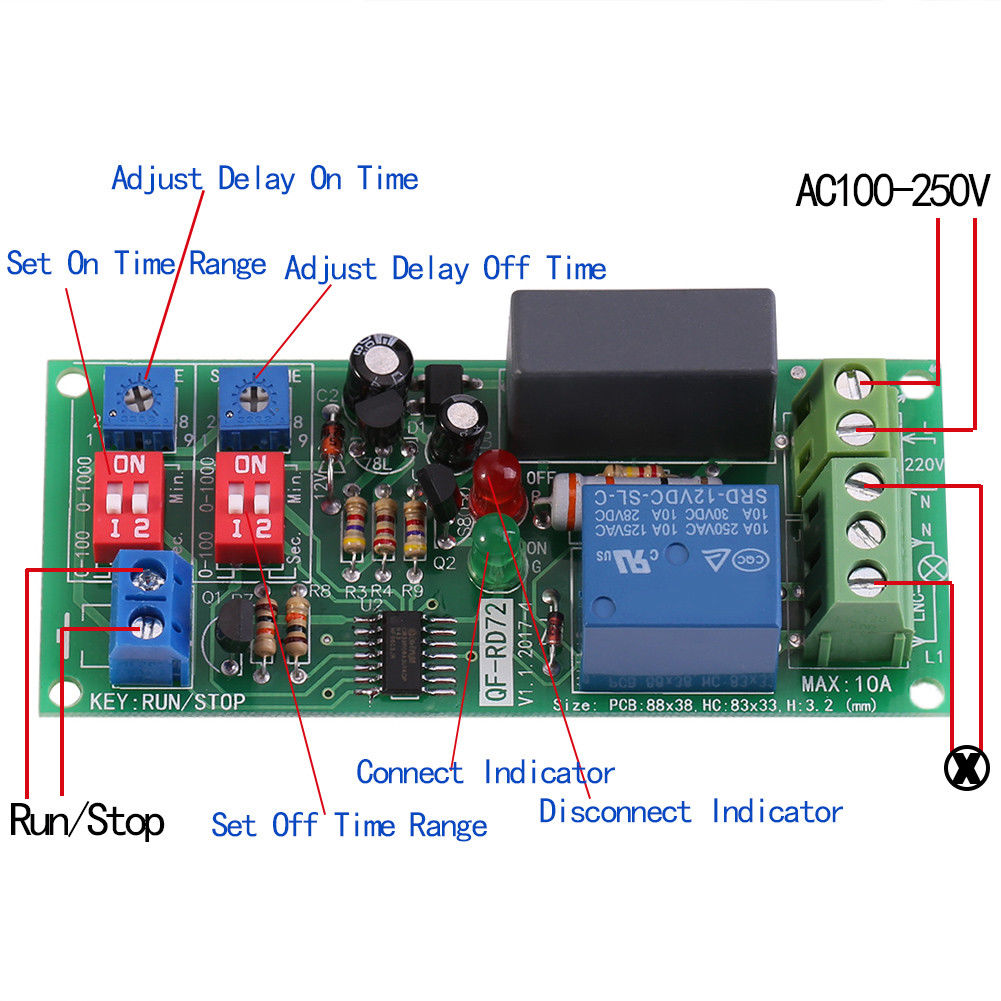

  • Input: Passive switch input, green led lights up after turn on, red led lights up after stop
  • Time Range: 0.5sec. to 1000min.
  • Time Accuracy: Max. range valuex0.001
  • Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop
  • Start input is not necessary. Connect these 2 terminals and then the board will cycle infinitely after power on.
  • Size: 88x38mm/3.46x1.49"
  • Quantity: 1Pc
Note:
  • Manual measuring, please allow 1-2cm error,thank you.
  • Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!

Package includes:

  • 1 x Timer Delay Module
