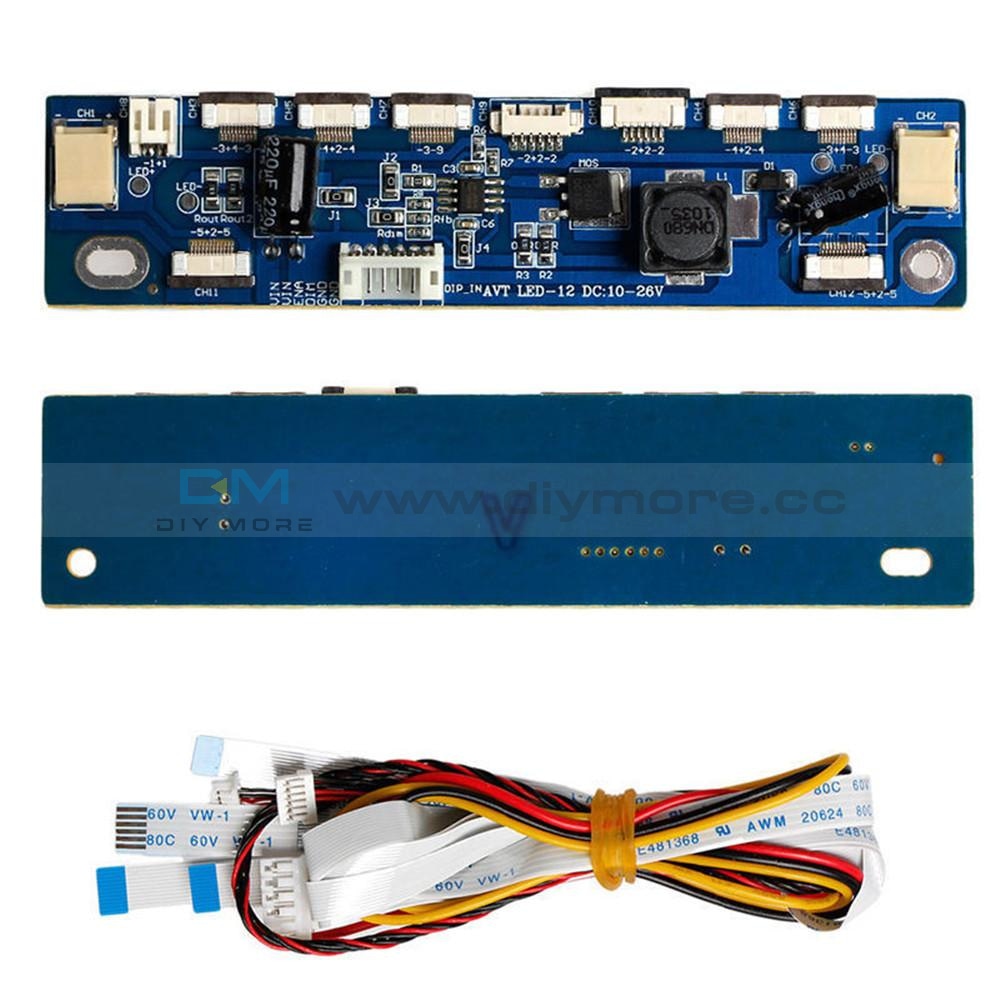

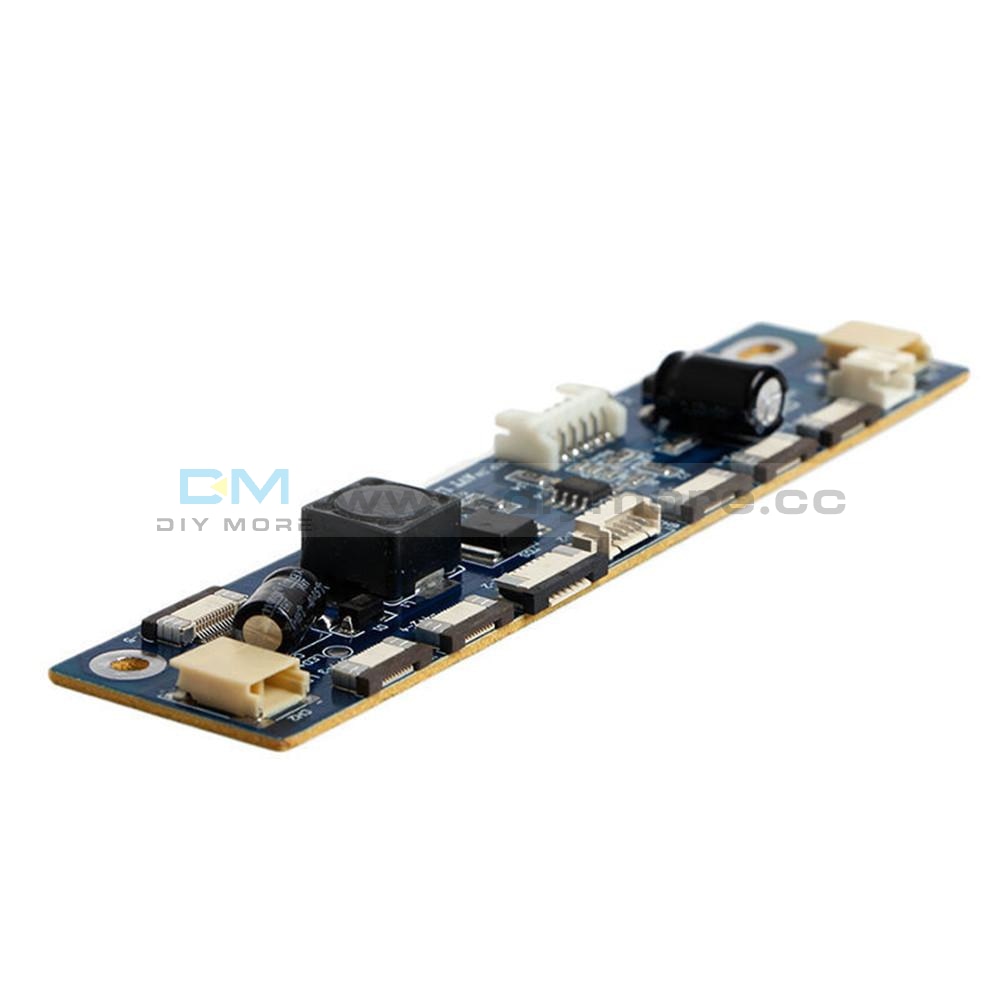

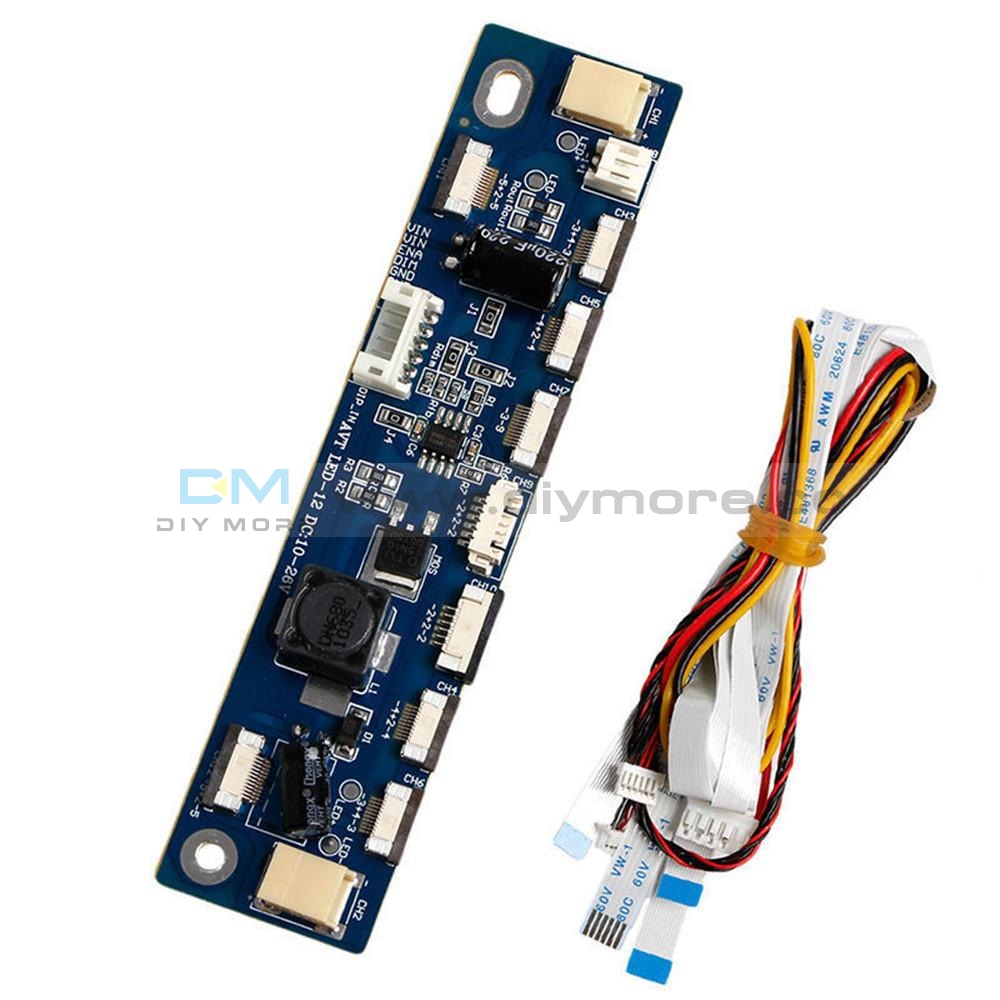

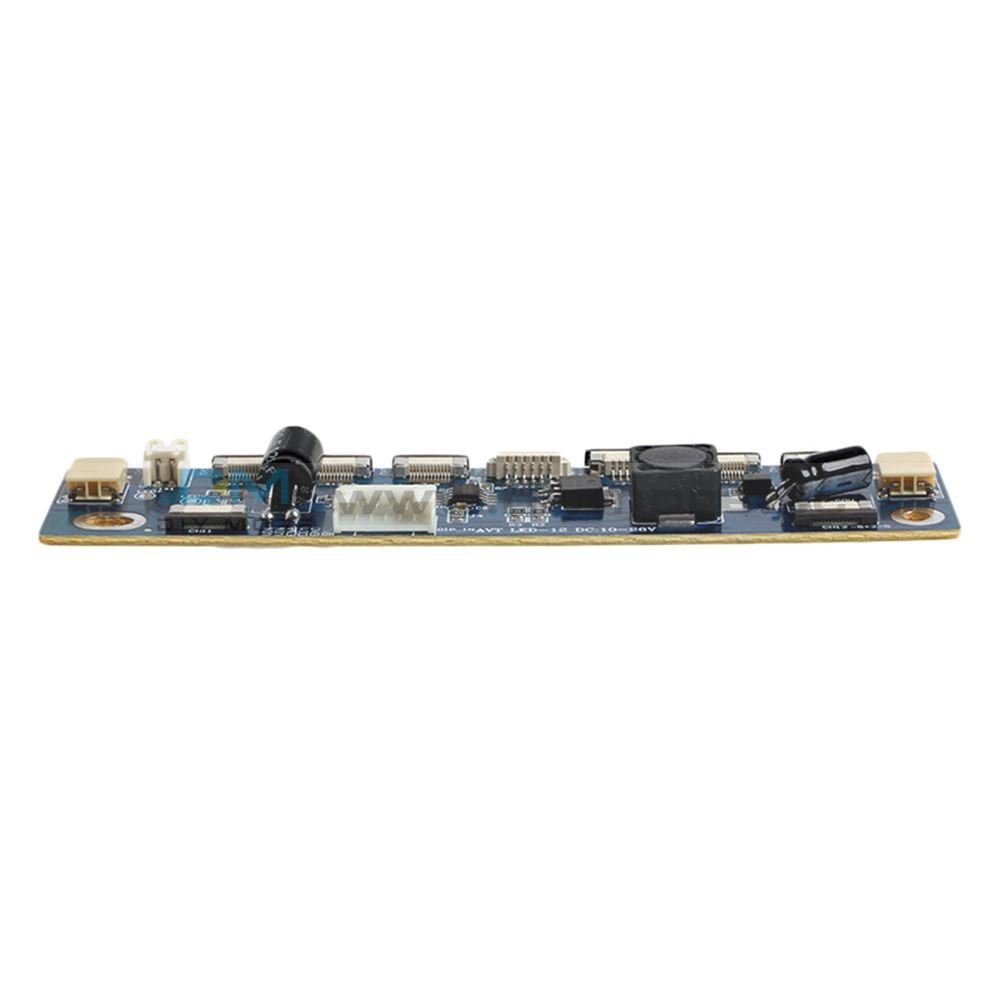

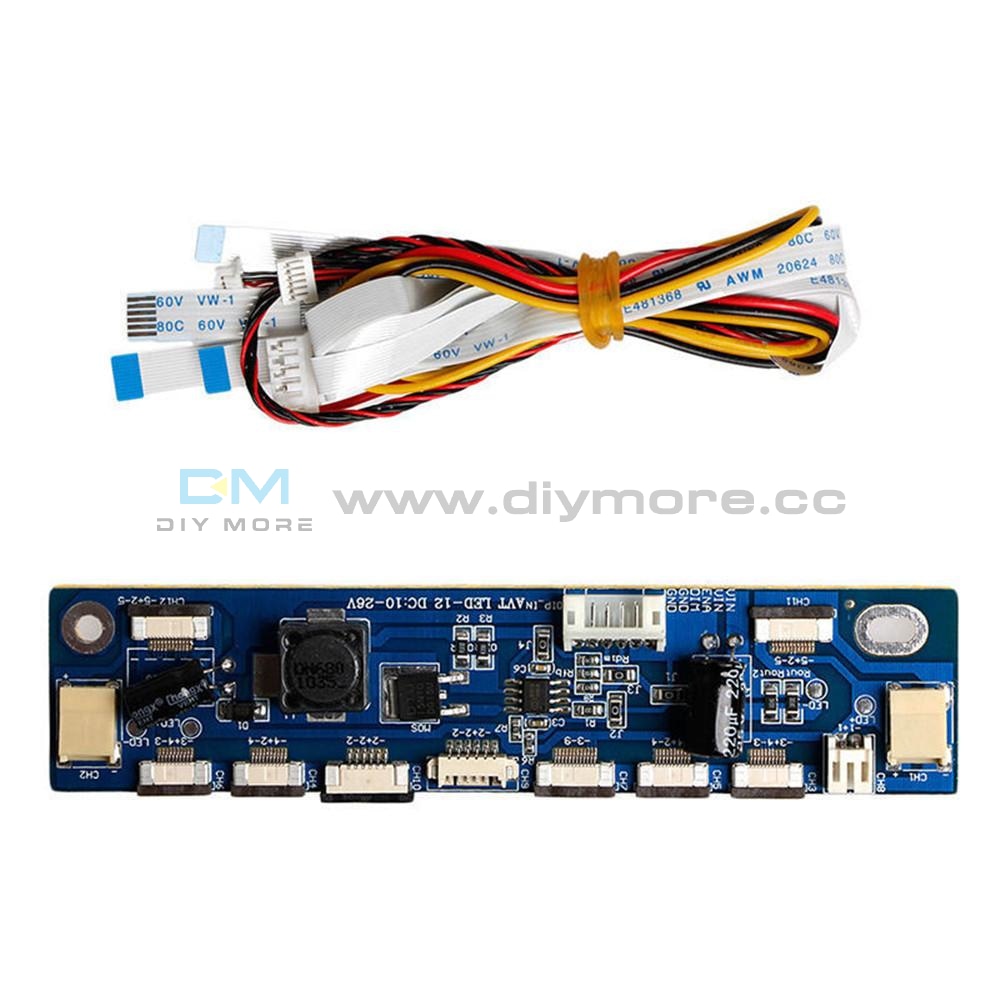

Backlight LED Inverter Tester 12 Connecters Constant Current Board Driver Board

Backlight LED Inverter Tester 12 Connecters Constant Current Board Driver Board

SKU:030262
Regular price $3.59 Sale price $2.99

shipped within one bussiness day

Instructions:
1: Connect the power, ground, and switch signals required by the booster board to the universal LED booster board
VCC Power ON Switch Signal ADJ Brightness Control GND Ground
HINT: Connect the same way as the LCD high voltage board
2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few lines
Line is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition.

【Product Name】Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage board
LED connection must pay attention to the definition of the interface is only positive and negative points, the positive input power supply must not be reversed or wrong, Improper connection caused by the consequences of their own, special reminder, but also understanding
【Size】 12.3cm * 3.1cm

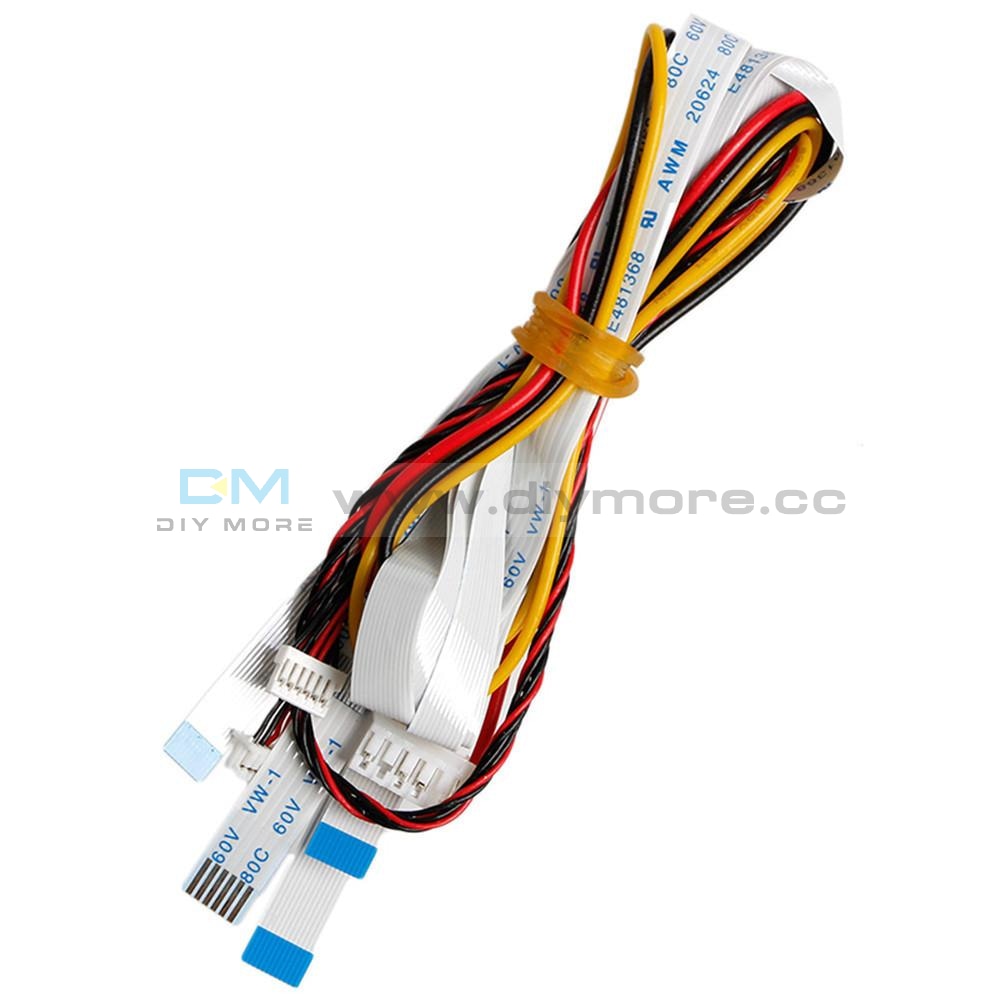

【Annex】 send six LED cable + 1 power supply control line 6P 10p 12P soft row 6P electronic lines

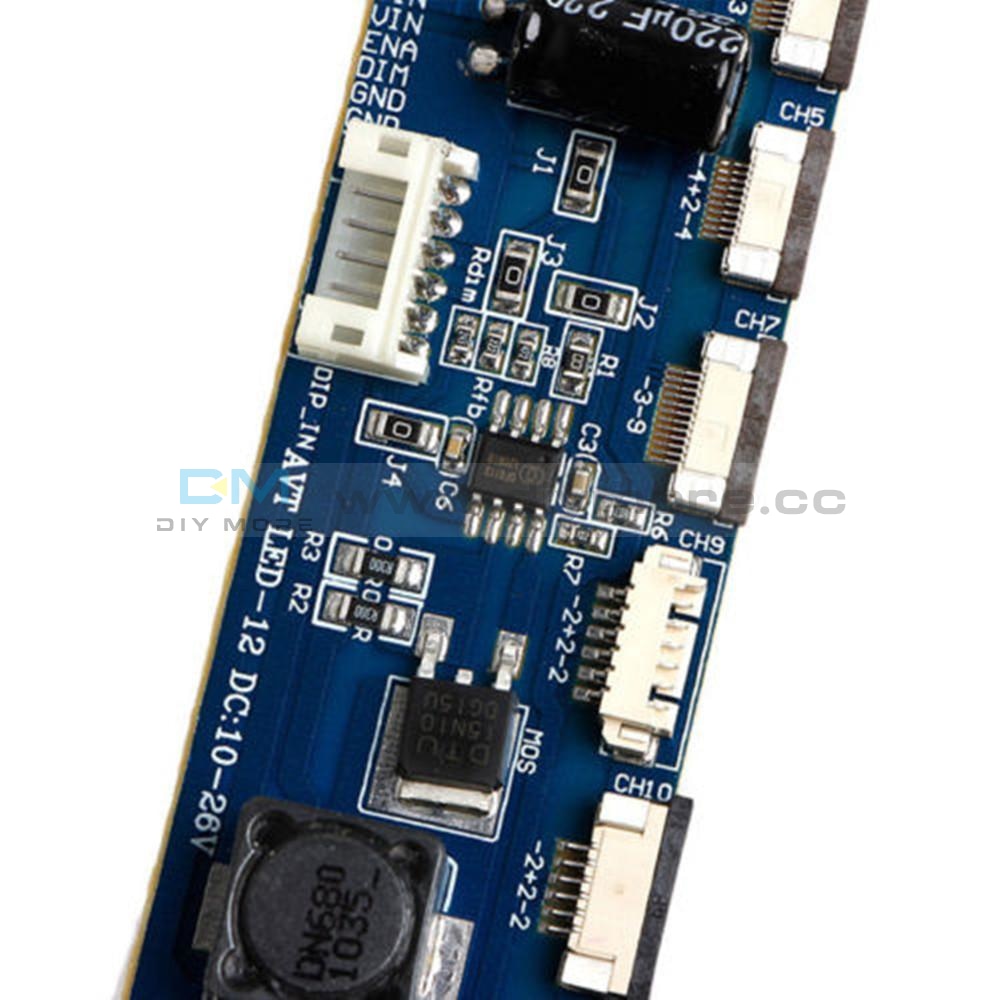

【Interface definition】 Outputs 12 interfaces
    -3 + 4-3
    -4 + 2-4
    + 3-9
    -1 + 1
    -2 + 2-2 electronic wire
    -2 + 2-2FFC
    -4 + 2-4
    -3 + 4-3
    -5 + 2-5 * 2
    Small mouth * 2

Input: Power supply switch signal brightness control ground wire(Same as LCD)
Not all of the interfaces are soldered on, we pre-installed one or more details

Package Included:
1 x Backlight LED Inverter Tester
