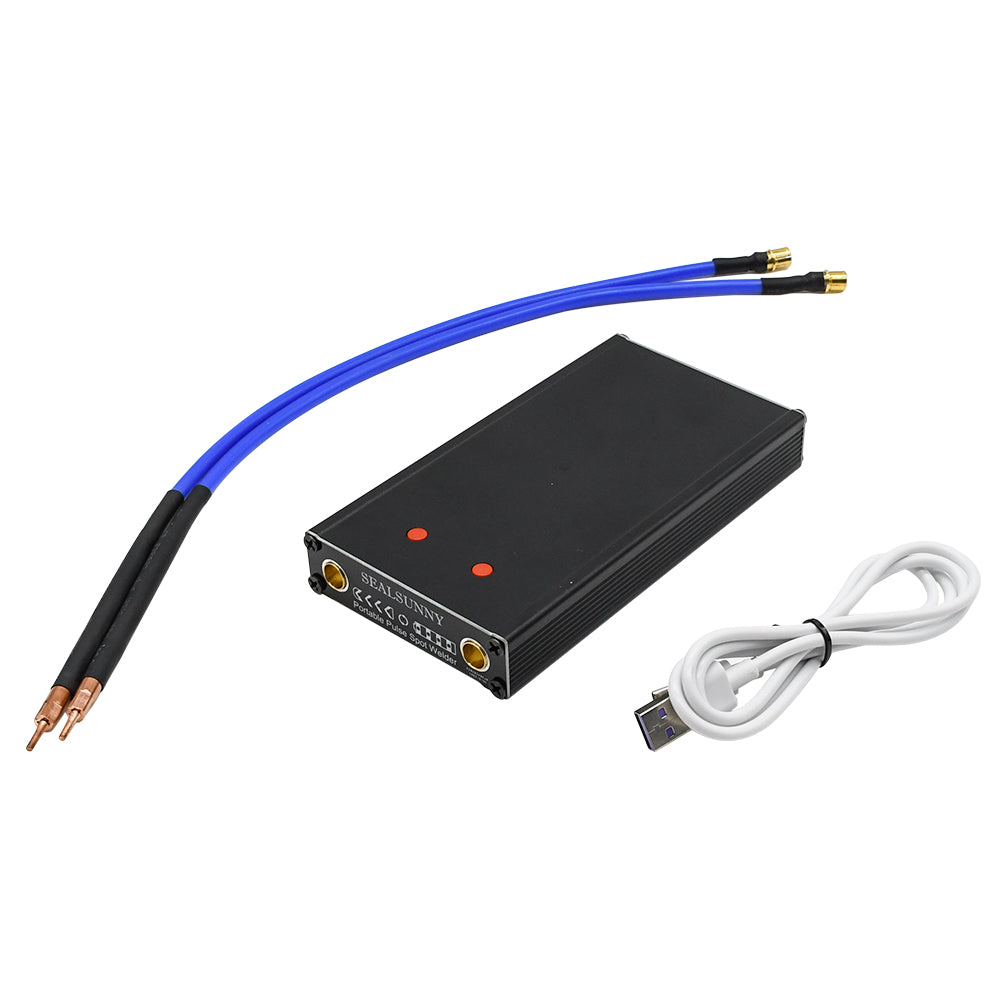

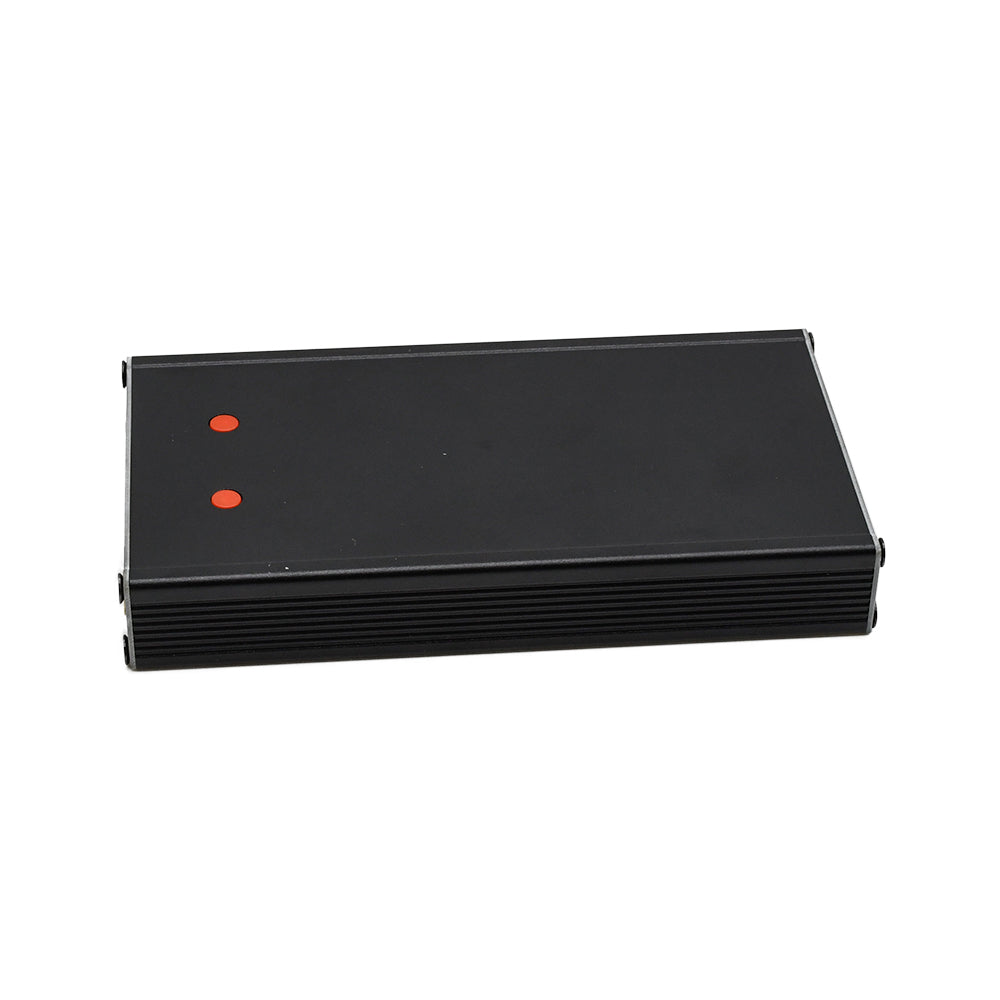

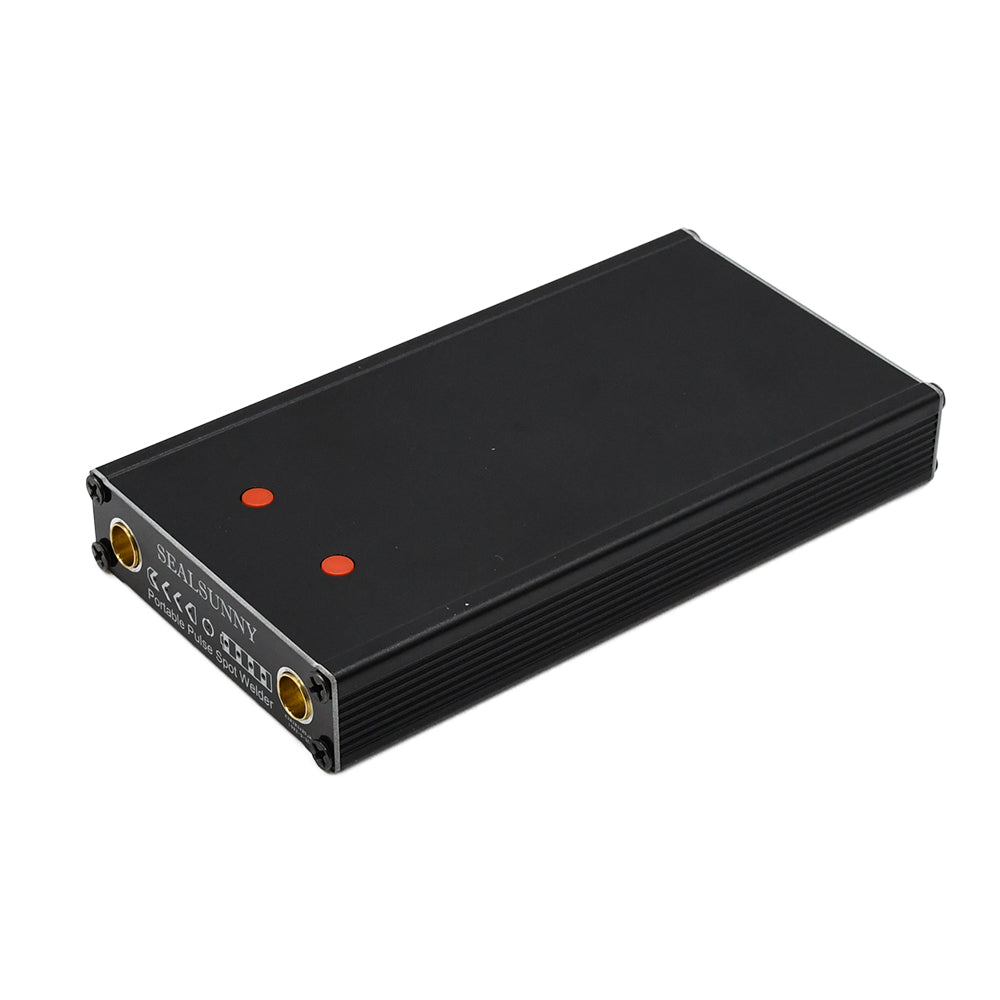

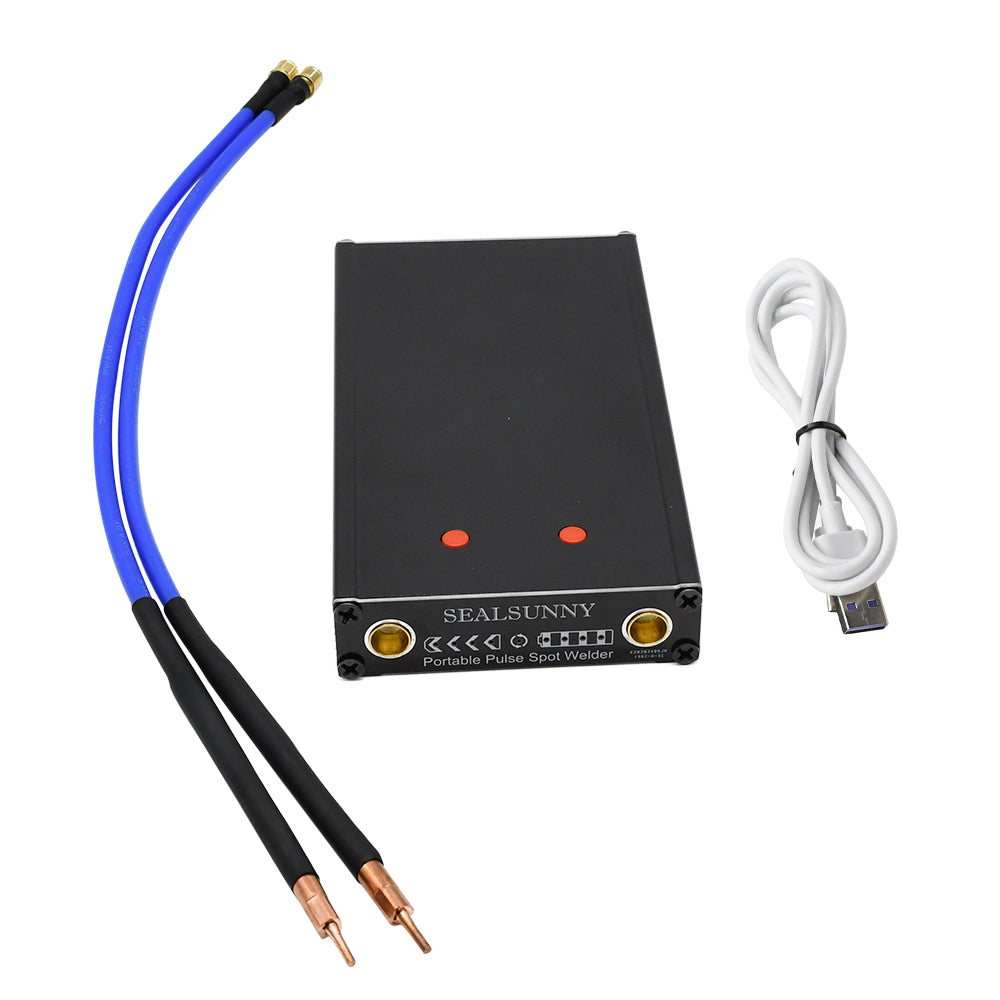

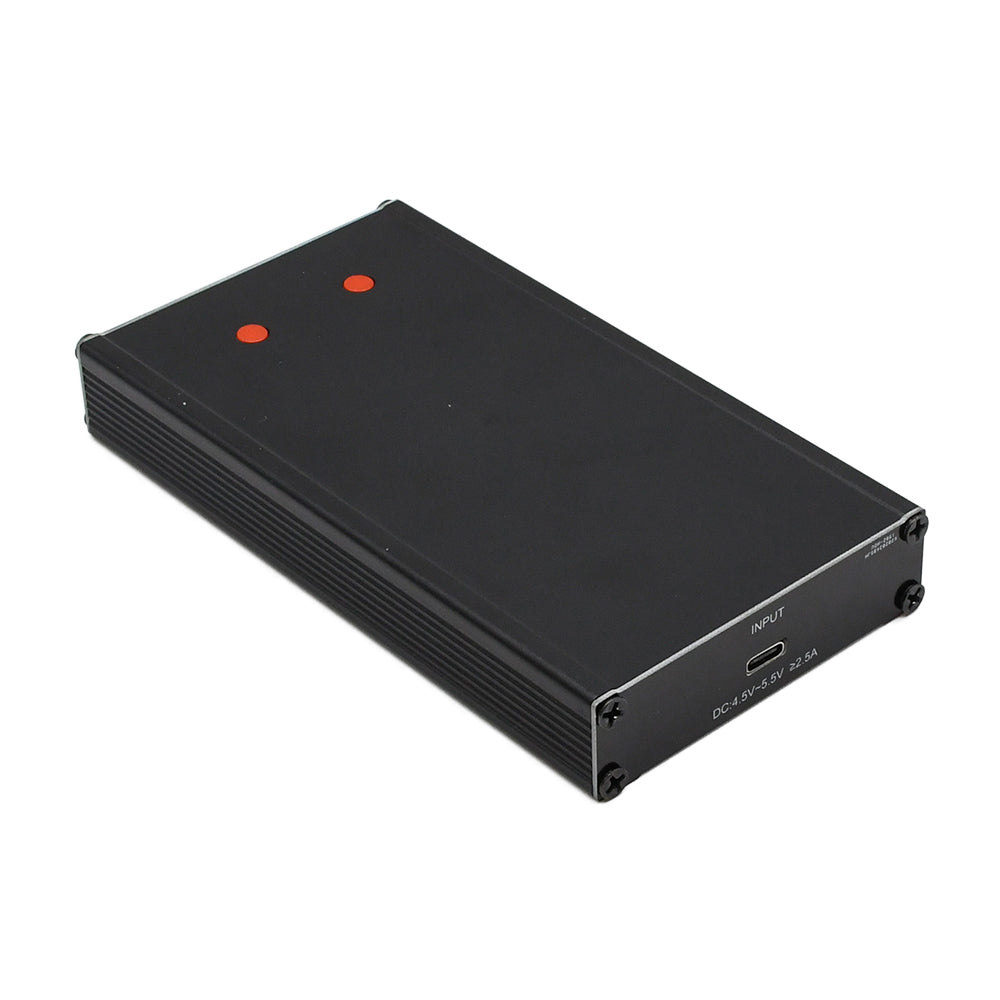

Battery Portable Mini Spot Welder Welding Machine Hand-held Desktop DIY

Battery Portable Mini Spot Welder Welding Machine Hand-held Desktop DIY

SKU:YC0024
Regular price $46.99

1. Introduction
  • This product is suitable for daily or small spot welding/butt welding work in the family. It is automatically triggered without a switch, and the operation is convenient and quick.
2. Parameters
  • Battery capacity: 5AH
  • Output voltage: 4.2V max
  • Output current: maximum 500A
  • Design current: maximum 1000A
  • Input parameters: 5V/2.1A
  • Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel
  • Welding time: several milliseconds
  • Charging voltage: 4.5~5.5V (current≥2.5A)
  • Product size: 150*80*22MM
  • Shell material: hard aluminum alloy
  • Weight: a set of 467g
3. Features
  • ⑴Small size
  • ⑵Simple operation
  • ⑶ Hard appearance
  • ⑷Easy to use
  • ⑸Super current
4. Components introduction

5. How to use

Power on Click button 6
Shut down
Double-click the button6;
Automatically shut down after three minutes of standby
Gear position adjustment Button 7 is gear position adjustment, click to change gears, the cycle is first gear>second gear>third gear>fourth gear>standby
Standby
After the fourth gear, click to enter the standby state;
It enters the standby state without spot welding for more than 30 minutes.
Spot welding After turning on the machine, select the required gear and touch the welding object with the welding pen to spot welding.
Precautions for spot welding a. Please fix the spot welding items in the spot welding mode;
b. Please keep the welding objects in a flat state;
3. Keep cooling time about 10S after welding
6. Matters needing attention
  • ⑴It can be operated while charging, and it will enter standby mode when charging
  • ⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%
  • ⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear gloves to operate
  • ⑷Do not drop, flood, heat and other harmful operations to electronics
  • ⑸The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper
  • ⑹If the spot welding is too long or the shutdown is caused by good contact, just restart it
Package Included:
  • 1PCS*Hand-held desktop mini portable spot welder
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
1. Introduction
  • This product is suitable for daily or small spot welding/butt welding work in the family. It is automatically triggered without a switch, and the operation is convenient and quick.
2. Parameters
  • Battery capacity: 5AH
  • Output voltage: 4.2V max
  • Output current: maximum 500A
  • Design current: maximum 1000A
  • Input parameters: 5V/2.1A
  • Support welding: 0.1-0.2 nickel sheet, iron sheet, stainless steel
  • Welding time: several milliseconds
  • Charging voltage: 4.5~5.5V (current≥2.5A)
  • Product size: 150*80*22MM
  • Shell material: hard aluminum alloy
  • Weight: a set of 467g
3. Features
  • ⑴Small size
  • ⑵Simple operation
  • ⑶ Hard appearance
  • ⑷Easy to use
  • ⑸Super current
4. Components introduction

5. How to use

Power on Click button 6
Shut down
Double-click the button6;
Automatically shut down after three minutes of standby
Gear position adjustment Button 7 is gear position adjustment, click to change gears, the cycle is first gear>second gear>third gear>fourth gear>standby
Standby
After the fourth gear, click to enter the standby state;
It enters the standby state without spot welding for more than 30 minutes.
Spot welding After turning on the machine, select the required gear and touch the welding object with the welding pen to spot welding.
Precautions for spot welding a. Please fix the spot welding items in the spot welding mode;
b. Please keep the welding objects in a flat state;
3. Keep cooling time about 10S after welding
6. Matters needing attention
  • ⑴It can be operated while charging, and it will enter standby mode when charging
  • ⑵It is recommended to charge it once half a year when it is not used for a long time, and the charge is 75%
  • ⑶ Continuous use of the soldering pen will cause hotness, it is recommended to wear gloves to operate
  • ⑷Do not drop, flood, heat and other harmful operations to electronics
  • ⑸The blackening of the tip of the soldering pen will affect the effect, which can be worn off with sandpaper
  • ⑹If the spot welding is too long or the shutdown is caused by good contact, just restart it
Package Included:
  • 1PCS*Hand-held desktop mini portable spot welder
