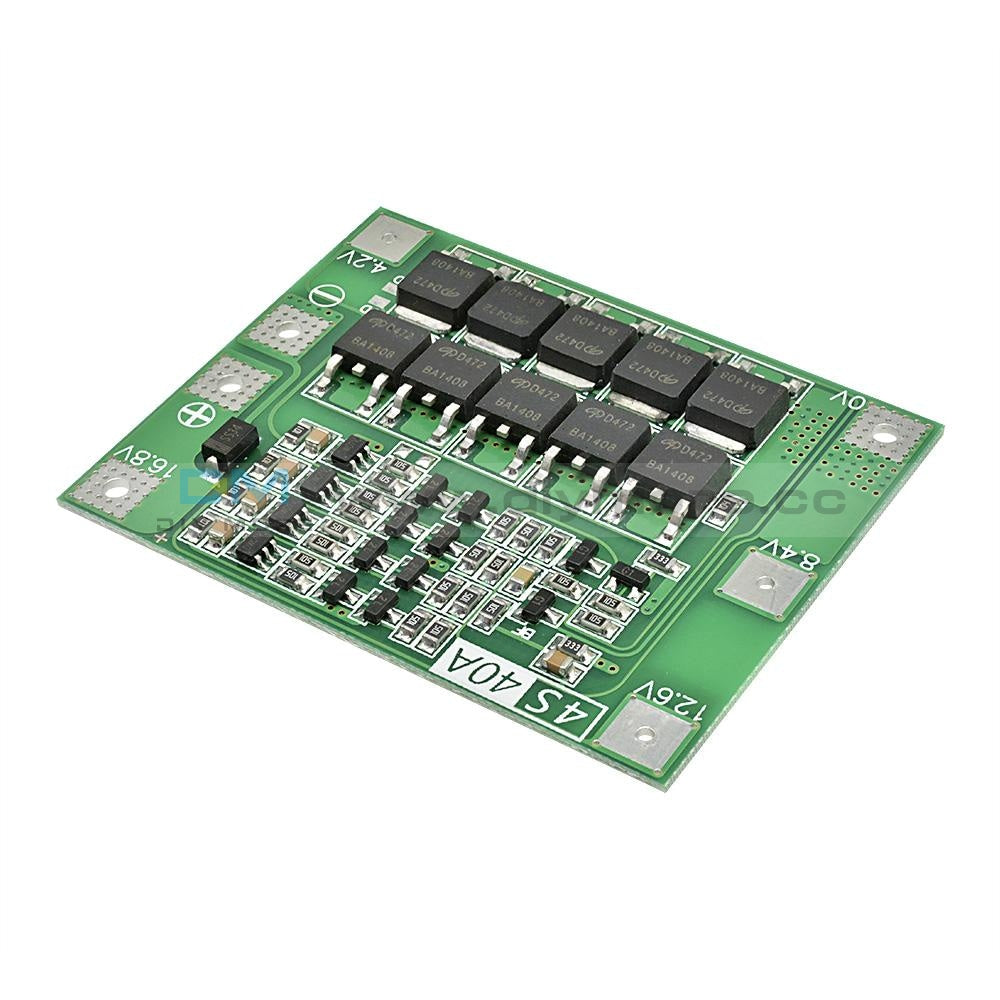

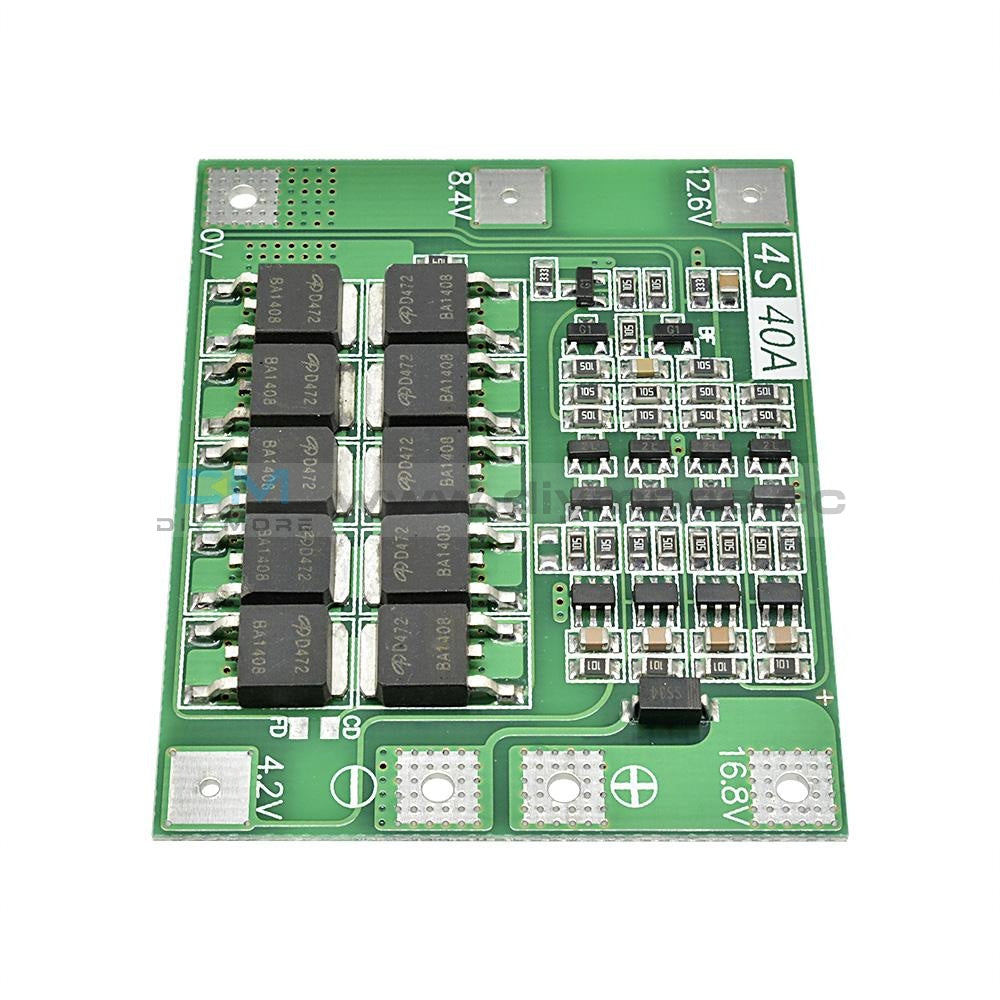

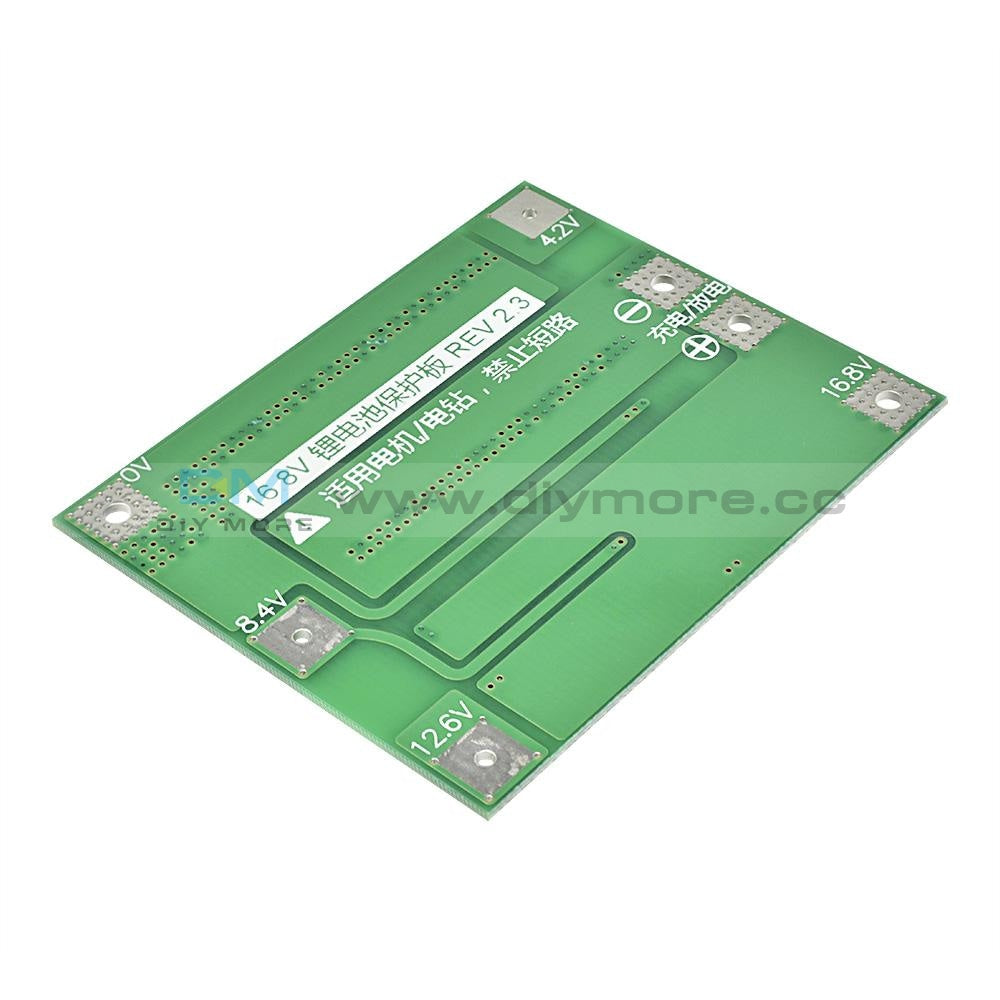

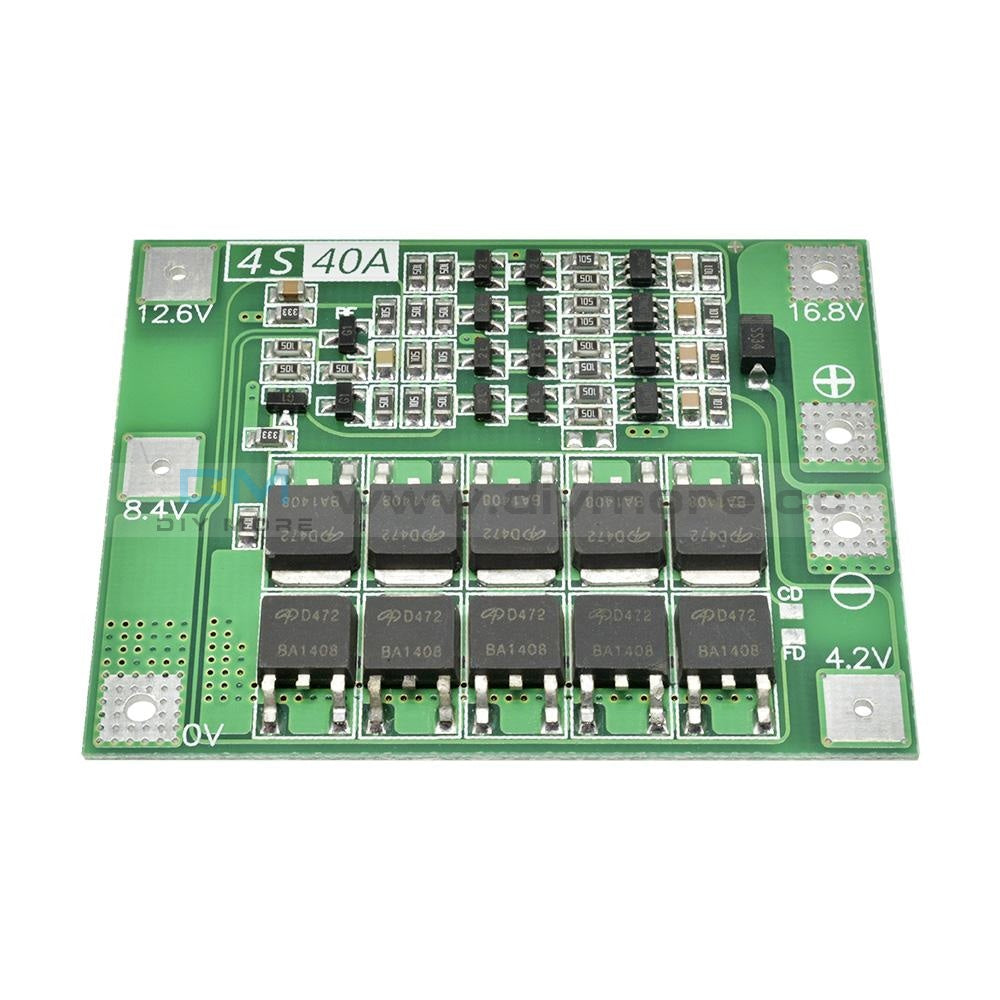

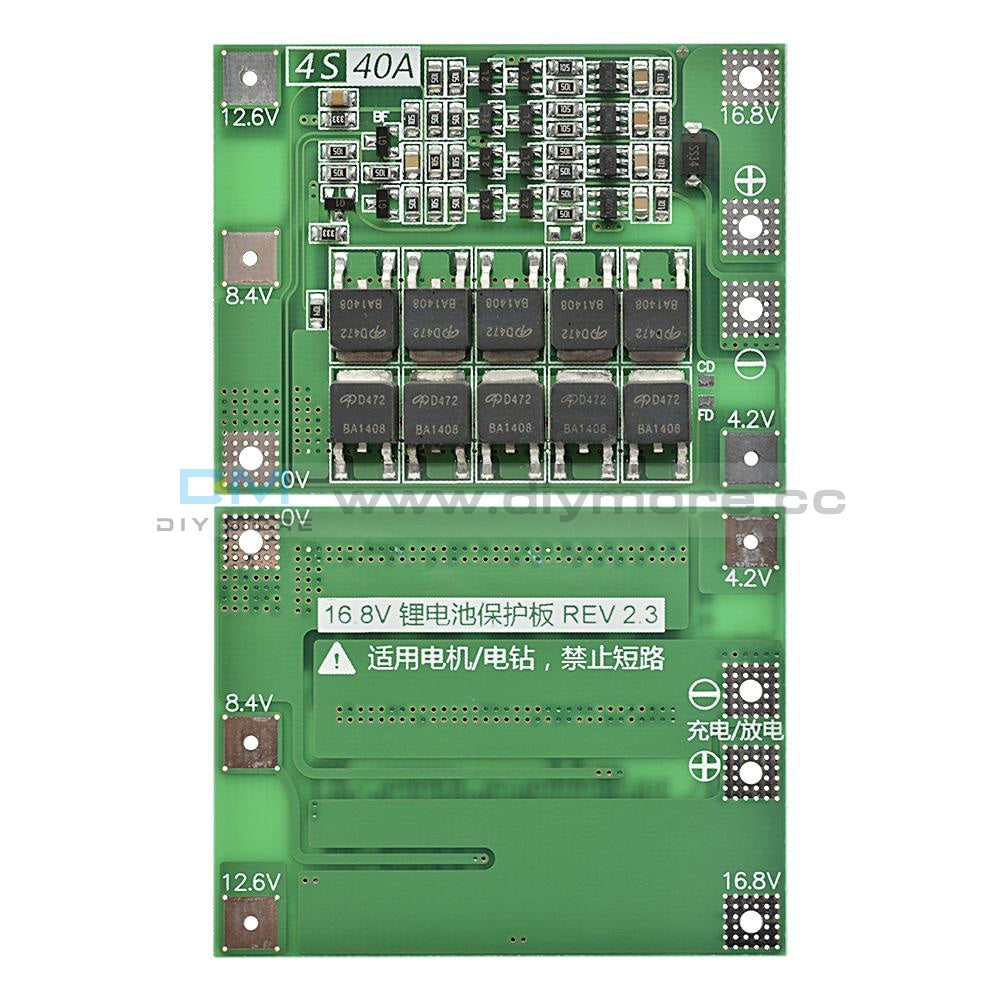

1/5/10Pcs 4S 40A Li-ion Lithium Battery 18650 Protection Board Balance Enhance
1/5/10Pcs 4S 40A Li-ion Lithium Battery 18650 Protection Board Balance Enhance
SKU:X40335- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Charging voltage: 16.8V - 18.1V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A
Note:this item is Balanced version.If you need other Version,please contact us.The 3 version price is different
Standard version: suitable for starting current below 60A, power 100W below the drill.(Not balanced function)
Enhanced version: for starting current below 80A, power 135W below the drill.(Not balanced function)

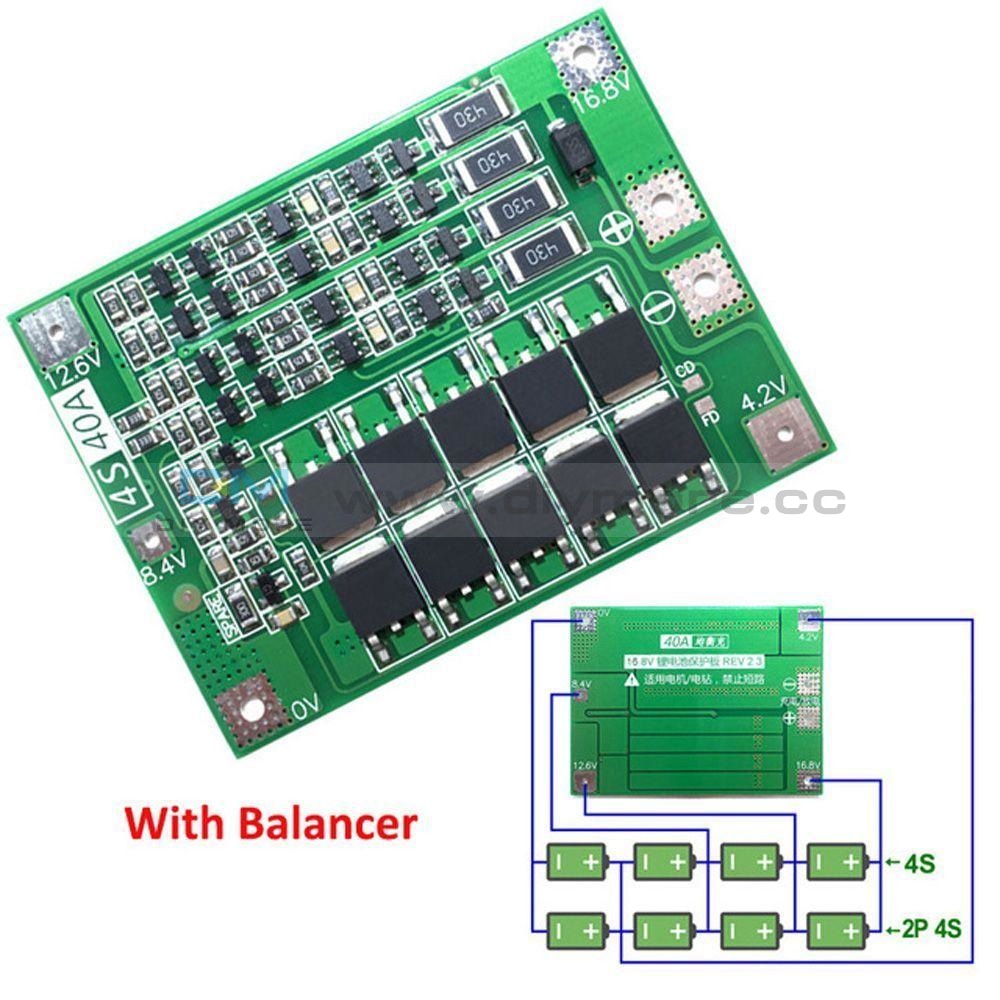

Balanced version: suitable for starting current below 80A, power 220W below the drill.(with balance)
Enhanced version Purchase link:Please click here
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).

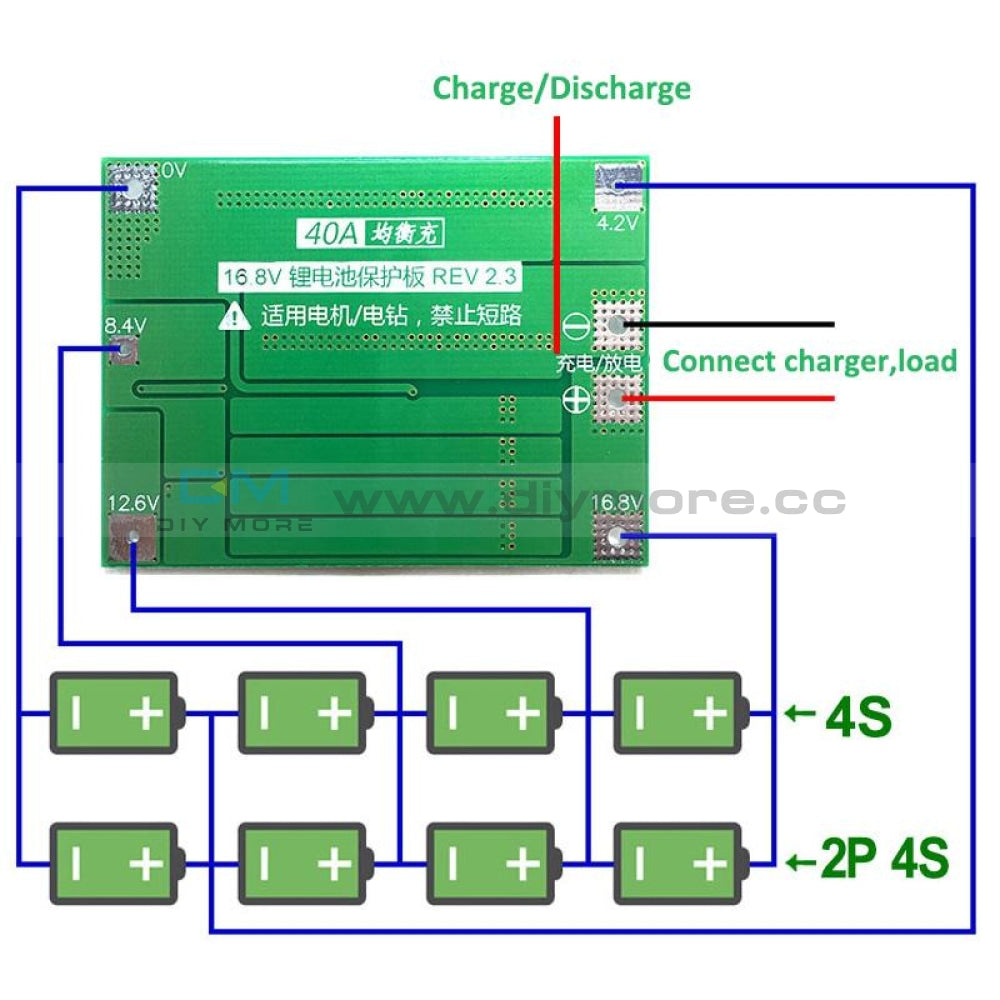

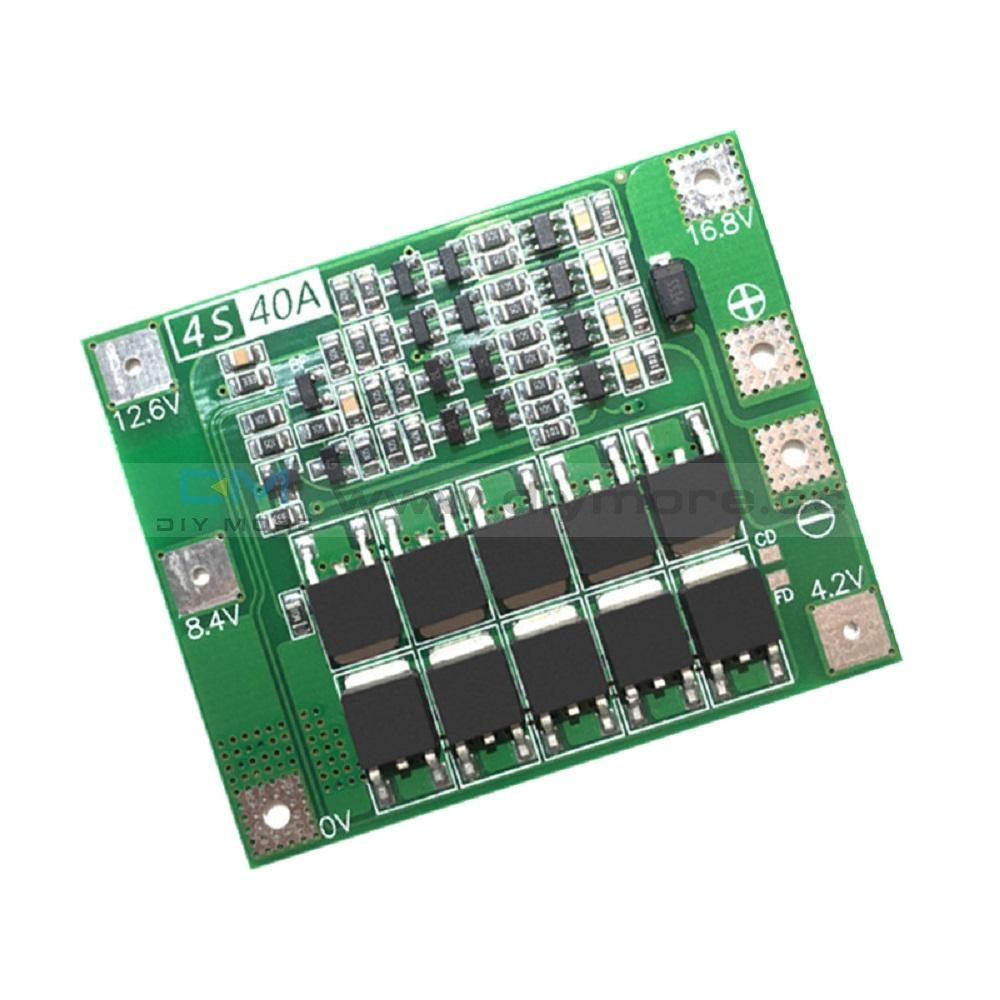

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
Package Include:
1*4S 40A Li-ion Lithium Battery Protection Board
