Bms 7S Lithium Li-ion LiFePO4 Battery Protection Board 24V 20A Battery Balancer Module atmega bms lifepo4 equalizer board

Bms 7S Lithium Li-ion LiFePO4 Battery Protection Board 24V 20A Battery Balancer Module atmega bms lifepo4 equalizer board

SKU:X13020
Regular price $9.99 Sale price $6.99

shipped within one bussiness day

Features:

The protection board is for 7 series lithium batteries, it can be used for ternary lithium batteries, manganese acid lithium batteries, cobalt acid lithium batteries and LiFePO4 batteries.

Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.

Batteries core hardware balanced processing,  proper balanced current, reasonable balanced heat emitting, does not affect performance of battery pack.

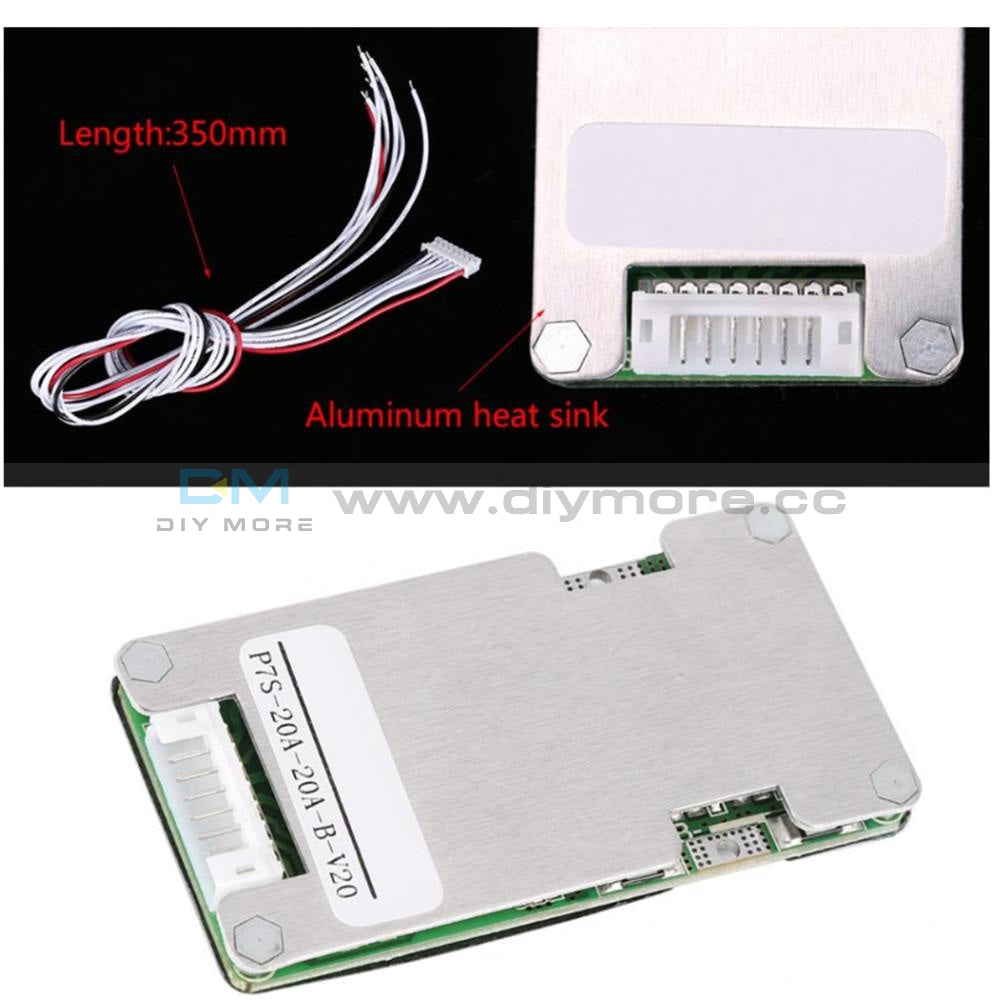

It has aluminum sheet that would enhance heat dissipation for MOS tube, and extend the service life of MOS tube.

Low quiescent power consumption, and overall power consumption is less than 30mA.

Specifications:

Protection

Polymer/Terpolymer/Lithium Manganate

LiFePO4

Single Battery Overcharge Protection Voltage

4.25V±0.025V

3.75V±0.025V

Single Battery Overcharge Protection Recovery Voltage

4.050V±0.025V

3.60V±0.025V

Overcharge Protection Delay

1000ms±lO0ms

1000ms±100ms

Single Battery Over-discharge Protection Voltage

2.75±0.025V

2.10V±0.025V

Single Battery Over-discharge Protection Recovery Voltage

3.00V±0.025V

2.30V±0.025V

Over-discharge Protection Delay

100ms±10ms

100ms±10ms

Discharge Over-current Protection

60A±5A

60A±5A

Discharge Over-current Delay

200ms±20ms

200ms±20ms

Short Circuit Protection

Yes

Yes

Short Circuit Delay

200uS±20uS

200uS±20uS

Short Circuit Protection Recovery

Disconnect Load Release

Disconnect Load Release

Charge Current

5A(adjustable)

5A(adjustable)

Equilibrium Function

Yes

Yes

Equilibrium Current

50~60mA

50~60mA

Equilibrium Accuracy

±25mV

±25mV

Size: 65*33*7mm / 2.56*1.3*0.27"

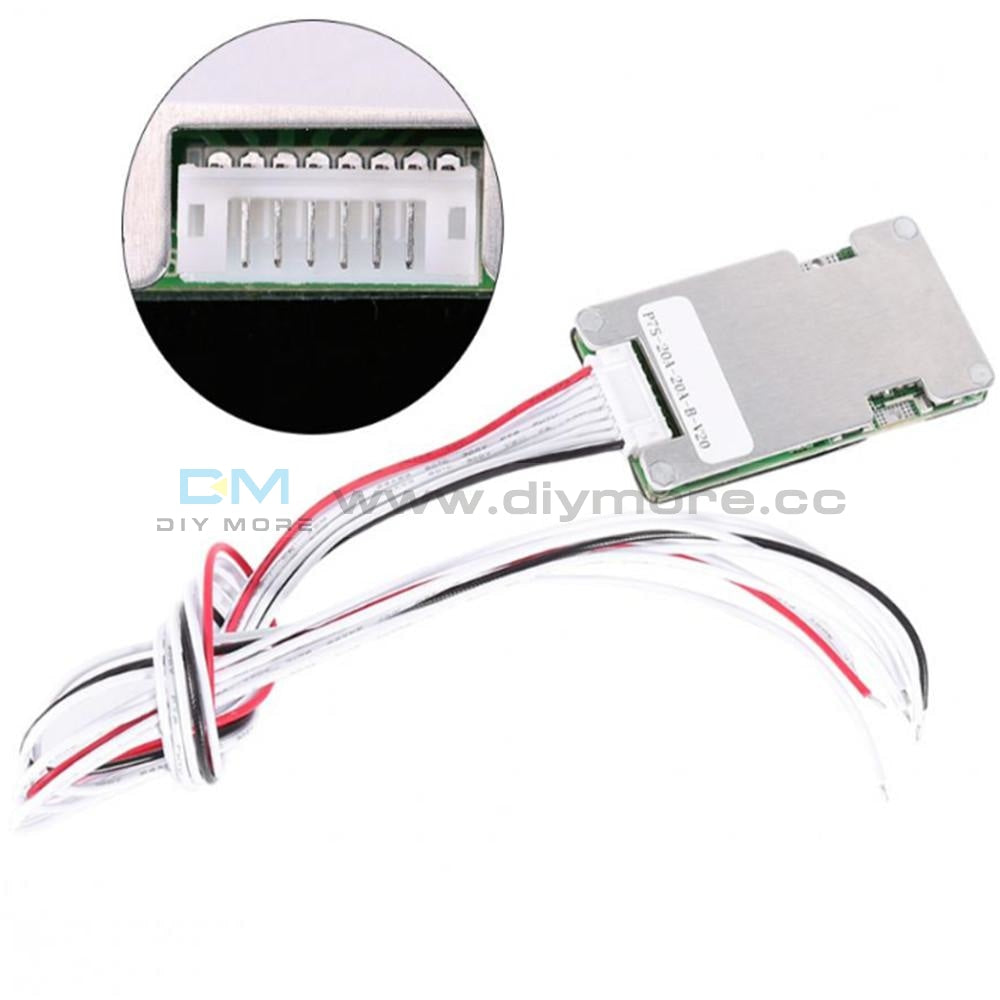

Wire Length: 350mm / 13.77"

Package Includes:

1 x Protection Board
