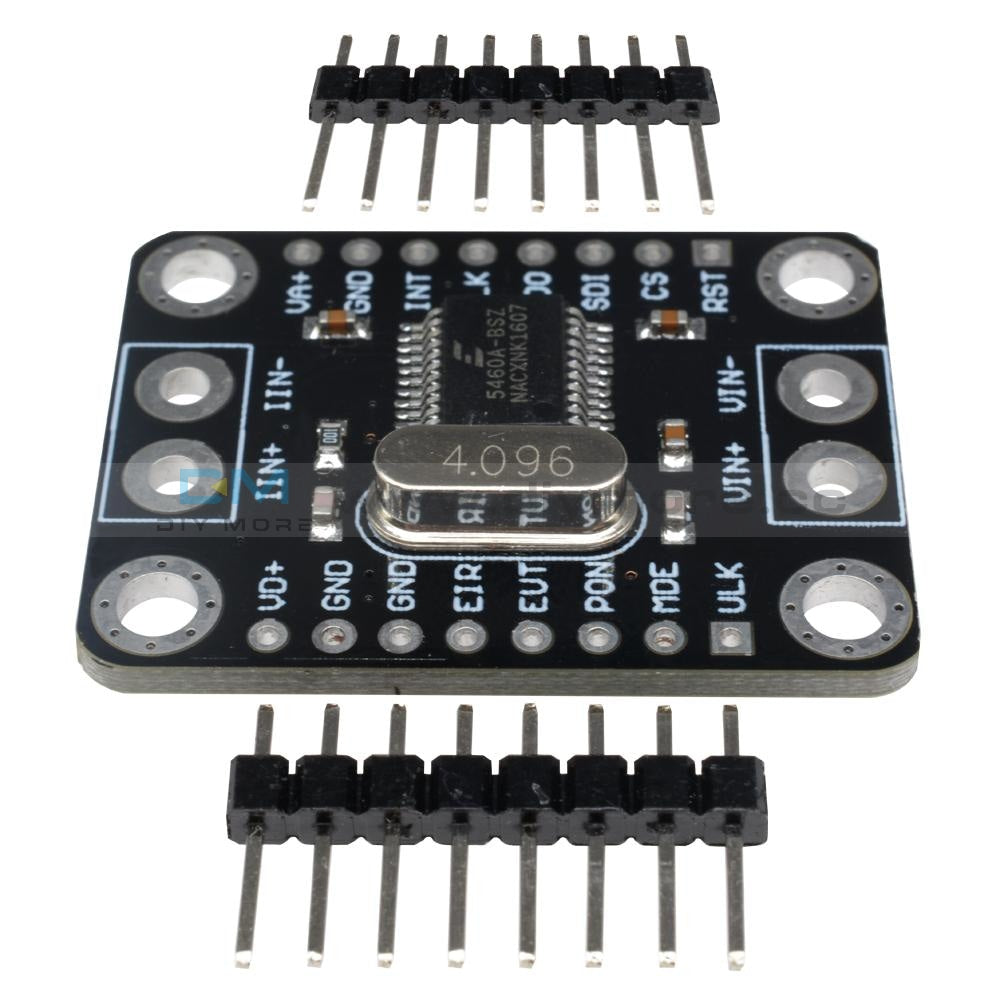

CS5460A Serial Single-phase Bi-directional Power Energy Metering ADC Module

CS5460A Serial Single-phase Bi-directional Power Energy Metering ADC Module

SKU:011623
Regular price $3.59

shipped within one bussiness day

Overview:
  • The CS5460A is a converter that contains two ΔΣ analog-to-digital converters (ADC), high-speed power calculation and a serial interface To-digital converter with a high degree of integration
  • It can be precise measurement and calculation of active energy, instantaneous power, IRMS and VRMS,For the development of single-phase 2-wire or 3-wire meter
  • CS5460A the current can be measured using a low-cost shunt or transformer Voltage is measured with a voltage divider resistor or a voltage transformer
  • CS5460A with the microcontroller to communicate with the bi-directional serial port, the chip pulse input The frequency is proportional to the active energy
  • CS5460A is convenient On-chip AC / DC system calibration.The "bootstrap" feature allows the CS5460A to work independently, After the system power automatically initialized. In the self-boot mode,the CS5460A reads the calibration number from an external EEPROM according to the start instruction
  • The CS5460A operates when using this mode when no additional micro-controller, so when the meter for large quantities Residential energy measurement, can reduce the cost of the meter

Features:
  • Power Data Linearity: Linearity in 1000: 1 dynamic range Is ± 0.1%
  • On-chip functions: can measure power (active), I * V, IRMS and VRMS, with power - pulse conversion function
  • Can be "self-guided" from the serial EEPROM smart, not micro Controller
  • AC or DC system calibration
  • A mechanical counter / stepper motor driver
  • In line with IEC687 / 1036, JIS industry standards
  • Power consumption <12mW
  • Optimized shunt interface
  • V to I phase compensation
  • Single-supply ground reference signal
  • 2.5V on-chip reference voltage (maximum temperature drift 60ppm / ℃)
  • Simple three-wire digital serial interface
  • Watchdog Timer
  • With a power monitor
  • Power supply configuration
  • VA + = +5 V; VA- = 0V; VD + = + 3.3V ~ + 5V

Package Included:
1*CS5460A Power Energy Module


trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
Overview:
  • The CS5460A is a converter that contains two ΔΣ analog-to-digital converters (ADC), high-speed power calculation and a serial interface To-digital converter with a high degree of integration
  • It can be precise measurement and calculation of active energy, instantaneous power, IRMS and VRMS,For the development of single-phase 2-wire or 3-wire meter
  • CS5460A the current can be measured using a low-cost shunt or transformer Voltage is measured with a voltage divider resistor or a voltage transformer
  • CS5460A with the microcontroller to communicate with the bi-directional serial port, the chip pulse input The frequency is proportional to the active energy
  • CS5460A is convenient On-chip AC / DC system calibration.The "bootstrap" feature allows the CS5460A to work independently, After the system power automatically initialized. In the self-boot mode,the CS5460A reads the calibration number from an external EEPROM according to the start instruction
  • The CS5460A operates when using this mode when no additional micro-controller, so when the meter for large quantities Residential energy measurement, can reduce the cost of the meter

Features:
  • Power Data Linearity: Linearity in 1000: 1 dynamic range Is ± 0.1%
  • On-chip functions: can measure power (active), I * V, IRMS and VRMS, with power - pulse conversion function
  • Can be "self-guided" from the serial EEPROM smart, not micro Controller
  • AC or DC system calibration
  • A mechanical counter / stepper motor driver
  • In line with IEC687 / 1036, JIS industry standards
  • Power consumption <12mW
  • Optimized shunt interface
  • V to I phase compensation
  • Single-supply ground reference signal
  • 2.5V on-chip reference voltage (maximum temperature drift 60ppm / ℃)
  • Simple three-wire digital serial interface
  • Watchdog Timer
  • With a power monitor
  • Power supply configuration
  • VA + = +5 V; VA- = 0V; VD + = + 3.3V ~ + 5V

Package Included:
1*CS5460A Power Energy Module
