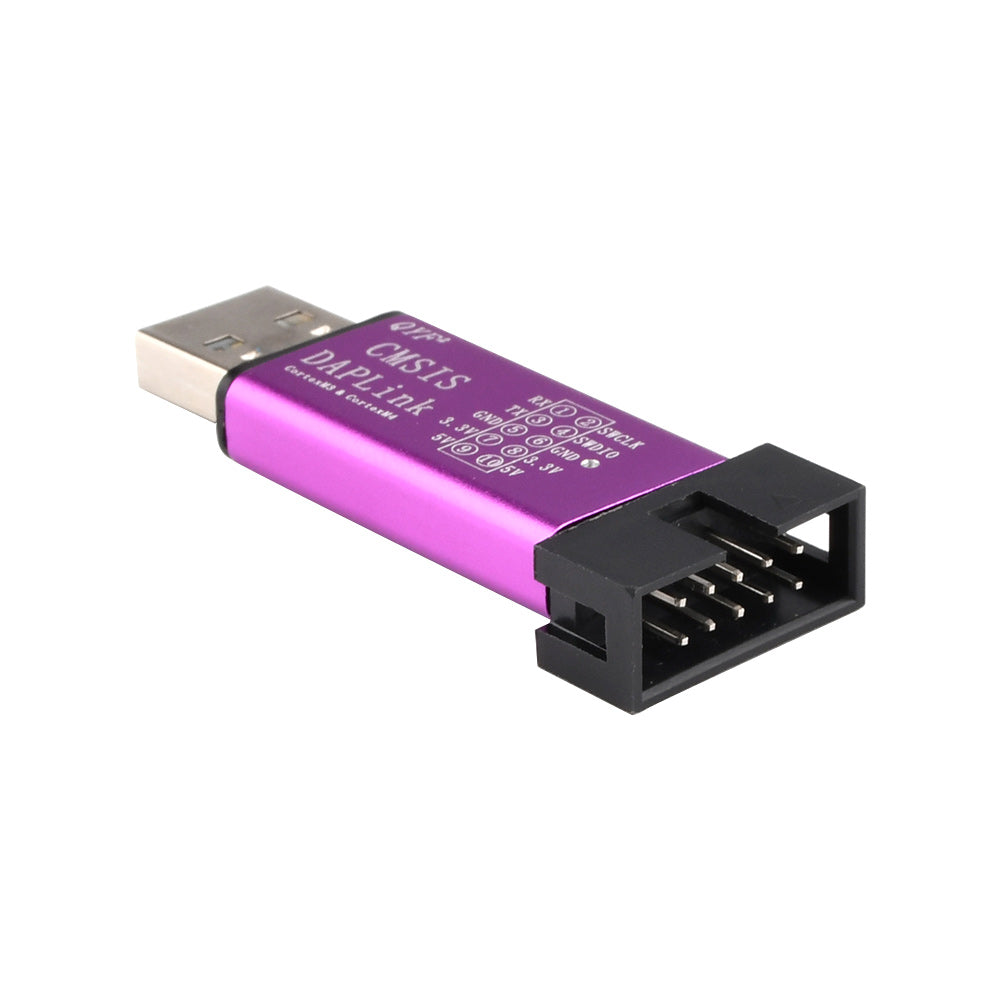

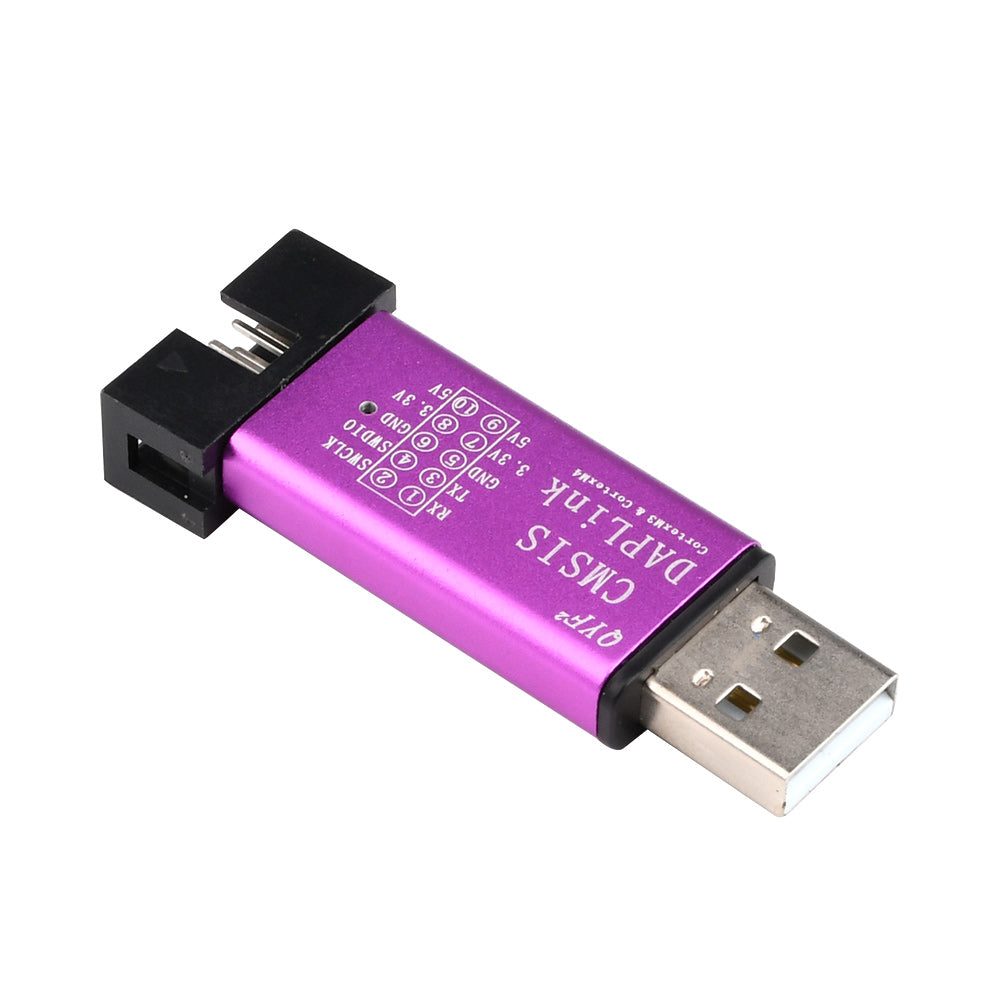

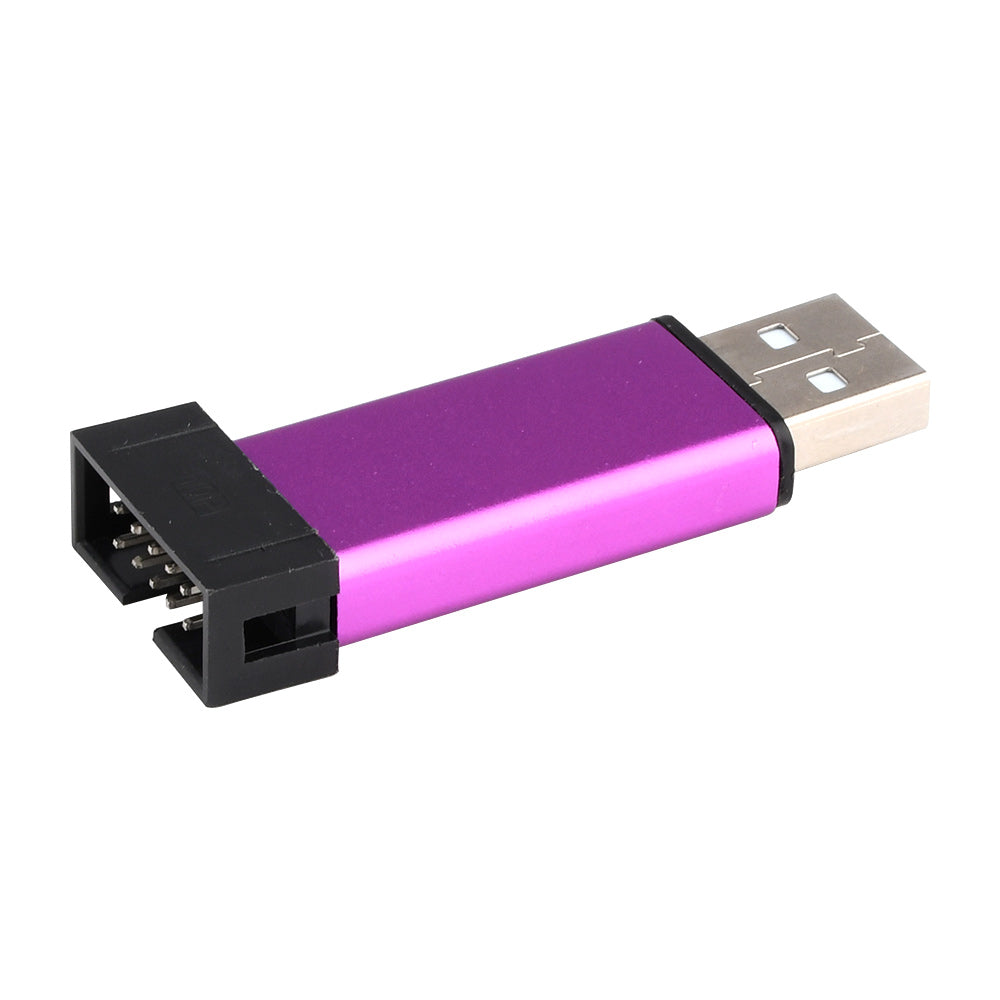

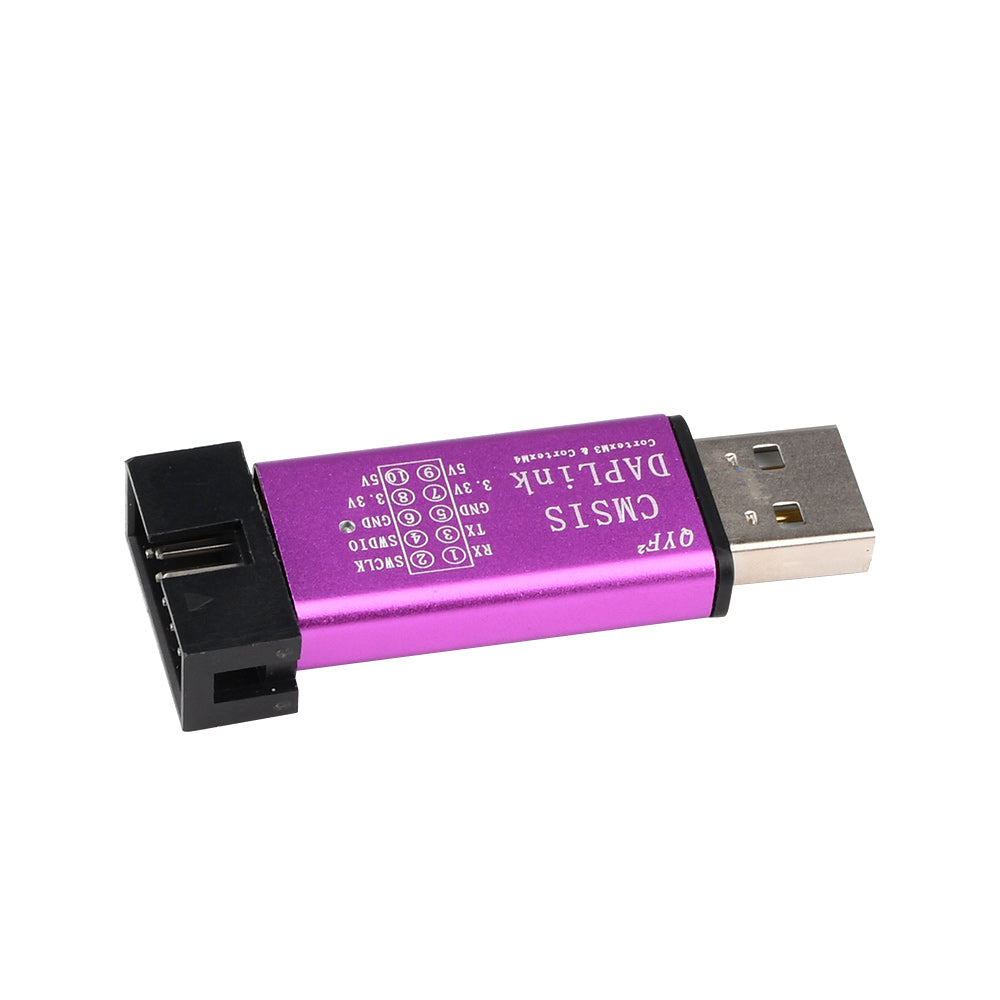

DAPLink Emulator Burner Downloader USB-to-Serial HID Support MDK IAR w/ Line(Random Color)
DAPLink Emulator Burner Downloader USB-to-Serial HID Support MDK IAR w/ Line(Random Color)
SKU:XF0207
Regular price
$8.56
Sale price
$3.83
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
1. Basic features of the product
(1) LINK developed on the basis of CMSIS-DAPLink, without any copyright issues;
(2) HID device, no need to install driver, support WIN10 system;
(3) Support keil MDK, IAR and other common software IDE;
(4) SWD download mode, compatible with most Arm core chips;
(5) A virtual serial port is provided, which can be used as a USB-to-serial device;
(6) A more concise design scheme is adopted, which greatly reduces the cost;
(7) Metal shell, laser marking, clear interface annotation;
(1) LINK developed on the basis of CMSIS-DAPLink, without any copyright issues;
(2) HID device, no need to install driver, support WIN10 system;
(3) Support keil MDK, IAR and other common software IDE;
(4) SWD download mode, compatible with most Arm core chips;
(5) A virtual serial port is provided, which can be used as a USB-to-serial device;
(6) A more concise design scheme is adopted, which greatly reduces the cost;
(7) Metal shell, laser marking, clear interface annotation;

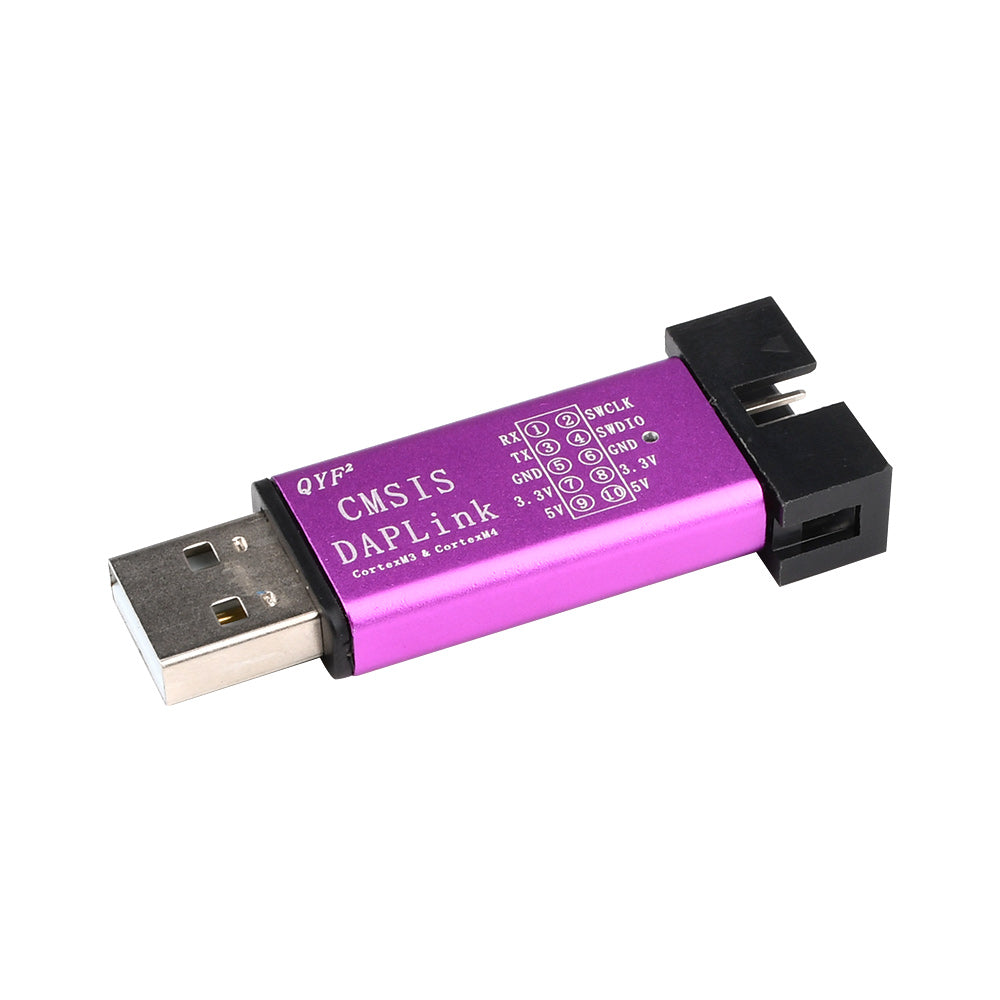

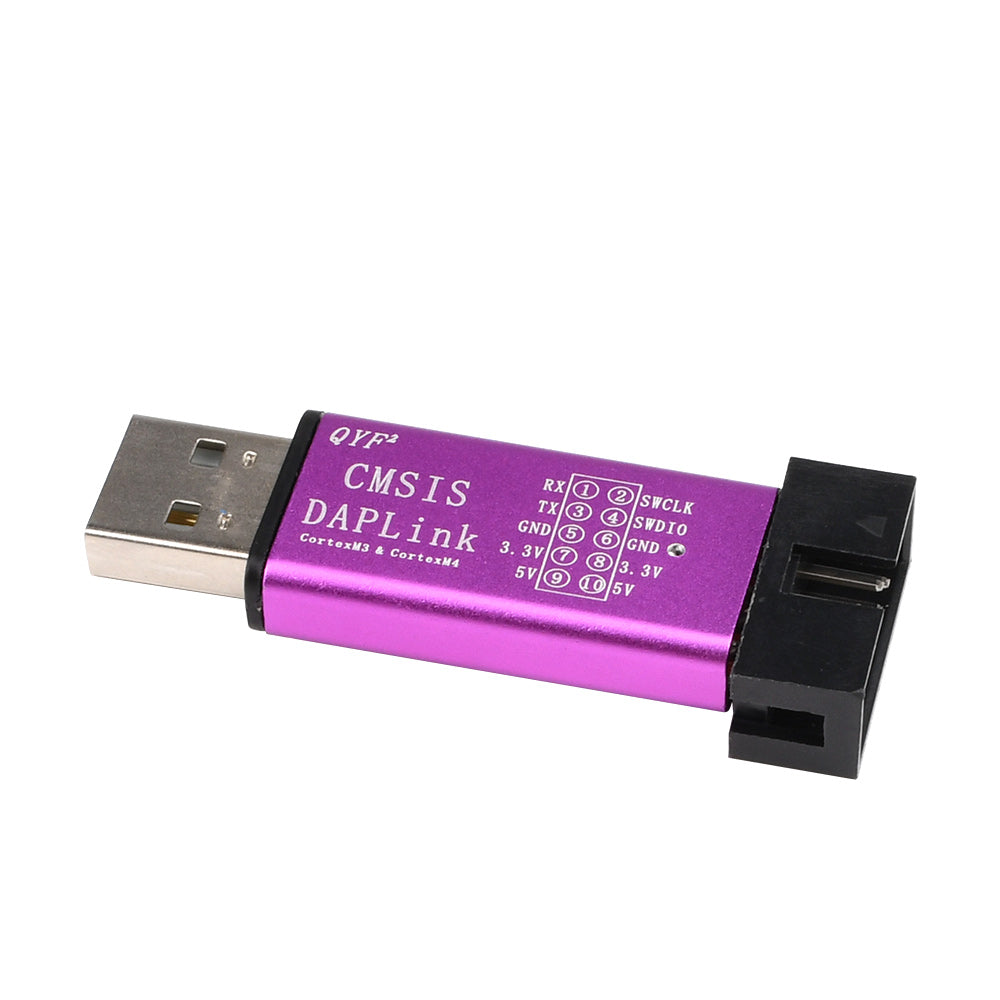

2. Product interface definition:
Rx: virtual serial port receiver SWCLK: SWD clock port
Tx: Virtual serial port sender SWDIO: SWD data port
GND: Ground GND: Ground
3.3V: 3.3V power output (maximum provide 250ma current) 3.3V: 3.3V power supply
5V: 5V power output (host USB power supply) 5V: 5V power supply
Rx: virtual serial port receiver SWCLK: SWD clock port
Tx: Virtual serial port sender SWDIO: SWD data port
GND: Ground GND: Ground
3.3V: 3.3V power output (maximum provide 250ma current) 3.3V: 3.3V power supply
5V: 5V power output (host USB power supply) 5V: 5V power supply
3. How to use
(1) Take the keil development environment as an example;
(2) Open the program, such as the keil project
Select CMSIS-DAP Debgger in the Dubeg attribute card in the options
(1) Take the keil development environment as an example;
(2) Open the program, such as the keil project
Select CMSIS-DAP Debgger in the Dubeg attribute card in the options
Click Setting, you can configure as follows:
It is generally recommended to download the program after stopping the kernel.Flash Download option adds flash algorithm library, stm32 corresponds to stm32, and other companies correspond to algorithm libraries provided by other companies. As shown in the figure below, different companies use different algorithm libraries.
（3）Serial port use Because DAPLink has a virtual serial port and is connected to PA9 and PA10, it can be used directly without additional serial to USB hardware tools, which saves the cost of use and makes it easier to use.

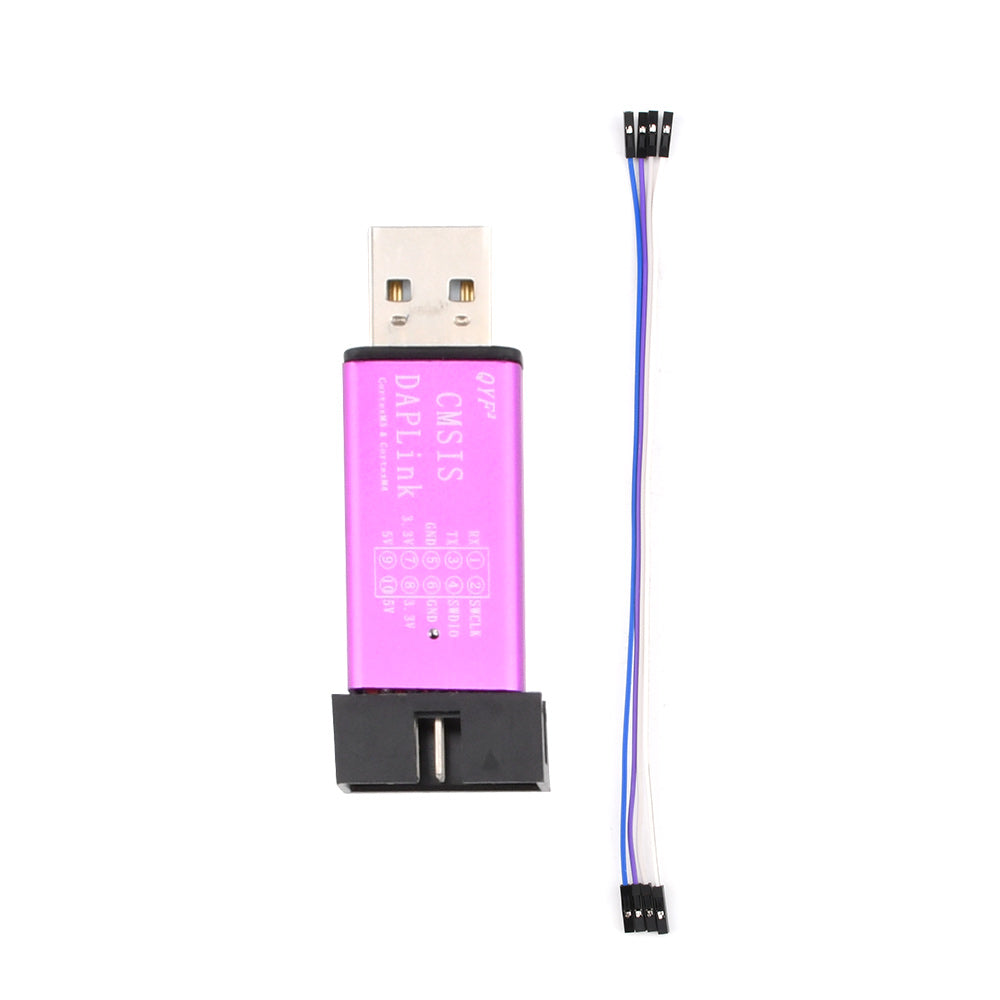

Package Included:
Burner X1 （Random Color）

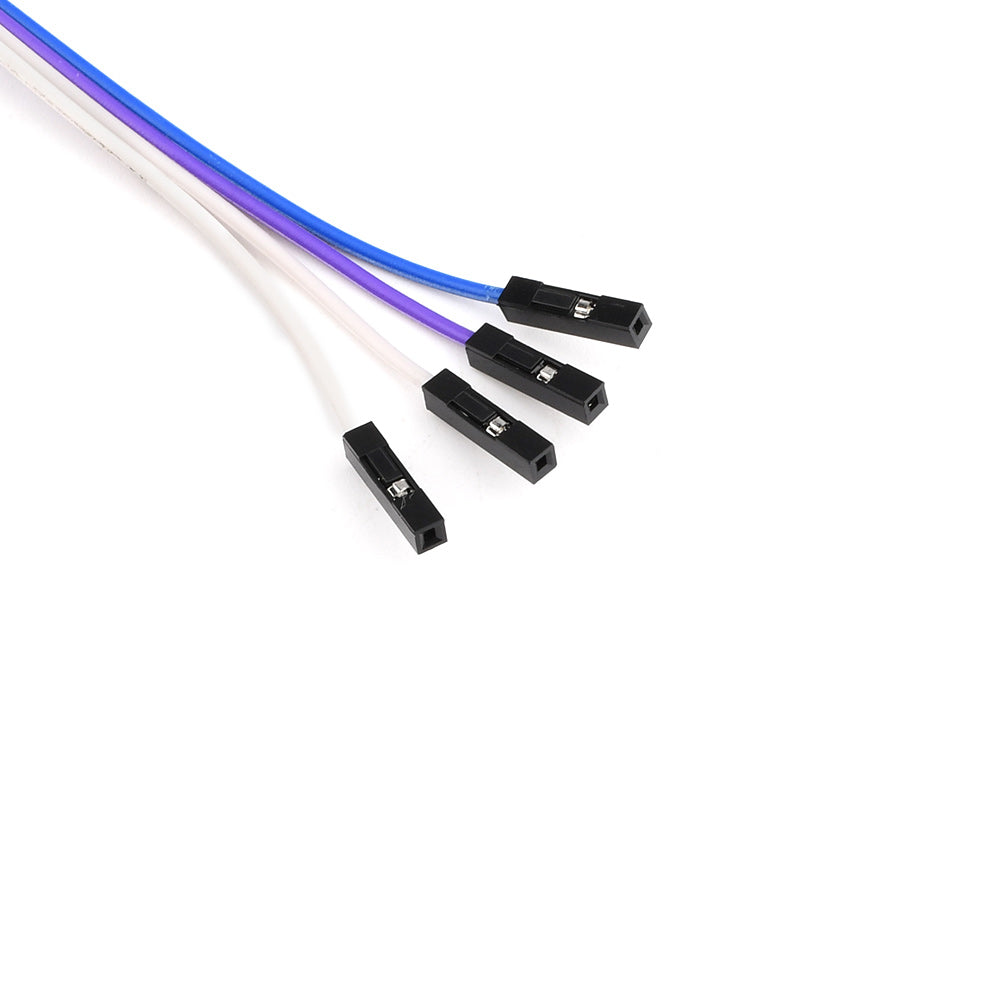

4PIN Dupont Line X1
4PIN Dupont Line X1
