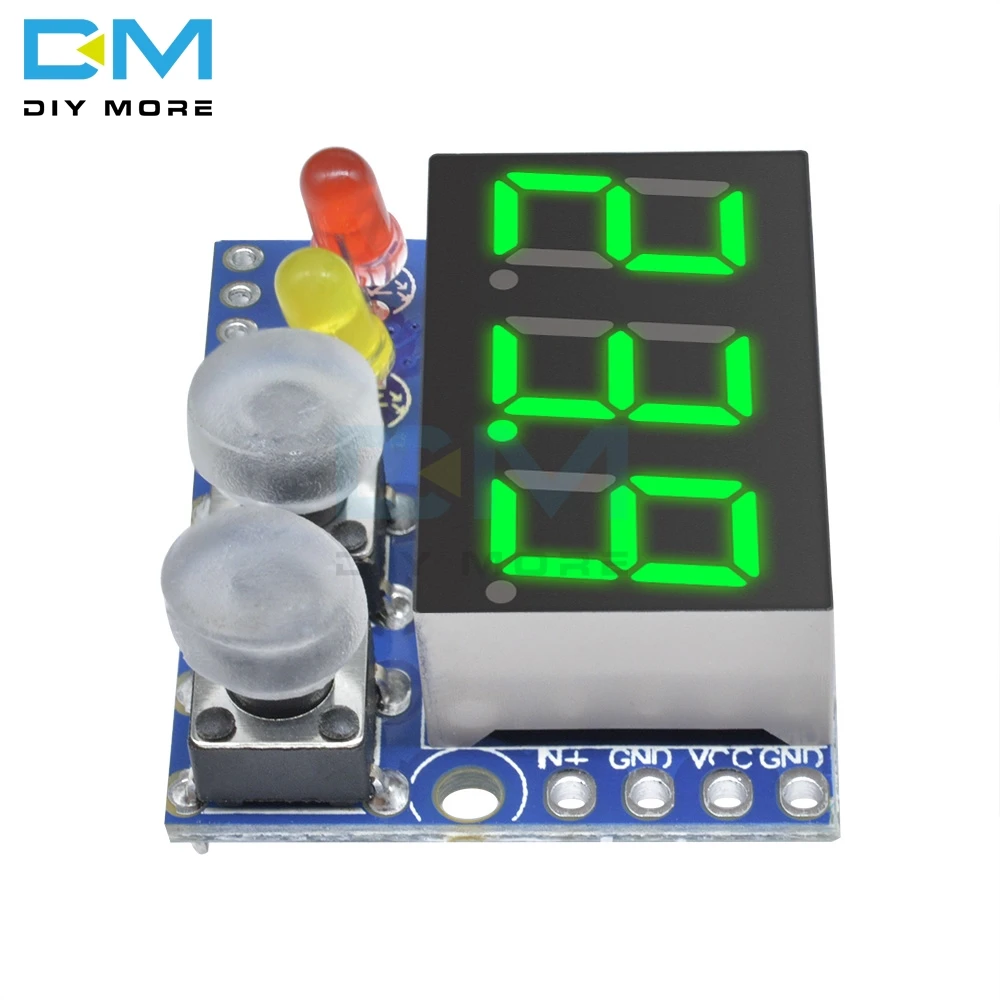

DC 0-99.9V Green LED Panel Digital Voltmeter With Alarm Indicator Voltage Display Meter Module Board
DC 0-99.9V Green LED Panel Digital Voltmeter With Alarm Indicator Voltage Display Meter Module Board
SKU:011850
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
1. Supply voltage: 4-30V
2. Measuring range: 0-100V
3. Upper/Lower limit setting range: 0.1-99.9V
4. Upper/Lower limit output mode: on set range will output high level,otherwise output low level.
5. Minimum resolution: 0.1V
6. Refresh rate: 300mS/times
7. Operating temperature: -40 to +85°
8. Input reverse polarity protection: YES
9. Installation: 2pcs 2mm screws
10. Size: Length 29mm width 23mm height 10mm
Applications:
1. DIY power supply, as the voltage display.
2. Voltage monitoring.
3. The device overvoltage or undervoltage alarm, or overvoltage or undervoltage protection.
4. Battery over-discharge protection.
5. To be more application you develop.
Wiring instructions:
1. As a two-wire meter application, please send a short circuit board R1, connected to the inputs of the input voltage can be displayed. (When using two-wire measuring range do not exceed 30V)
2. As a three-line header using the R1 plate off the table, the ground and power supply voltage connection 4-30V power supply for the header. Indirect ground voltage to be measured and the test voltage input. (Two to the board pads is the same, can according to the actual wiring by one or two will do)
3. Adjust panel potentiometer can display the value of prospective effect.

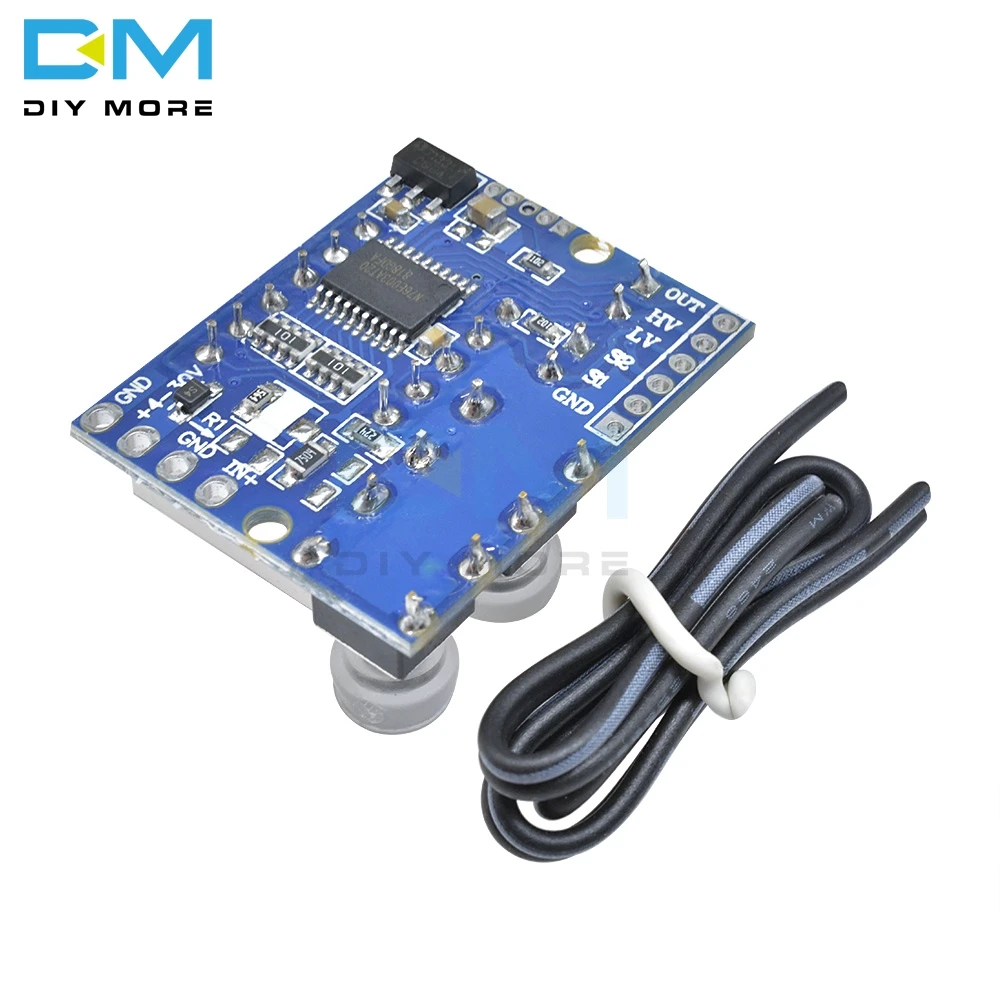

4. 5PIN pin for the expansion of output, K1, K2 for the onboard external key switch lead, as do key-board, the two PIN via an external button, the button functions with the same function button panel. LV as the lower limit alarm output, output low when below the set value. HV upper limit alarm output, the output is higher than the upper limit set at the low value. LV, HV outputs a control signal for driving the driver circuit, please add lights, or relay other loads.
5. Upper and lower limit setting method: two keys are pressed, the red light (HV) is lit, press the + or - key to set the desired alarm limit voltage value. And then pressing both buttons simultaneously, yellow (LV) is lit, press the + or - key to set the lower limit alarm voltage required. And then pressing both buttons simultaneously to exit the setting.
Package include:
1*DC 0-99.9V Green LED Panel Digital Voltmeter Alarm Indicator Voltage Display Meter
Kindly Note:
When applying two-wire, the measurement range and scope of supply is the same, so do not exceed 30V measurements. When measuring voltage exceeds 30V, with a three-wire!
