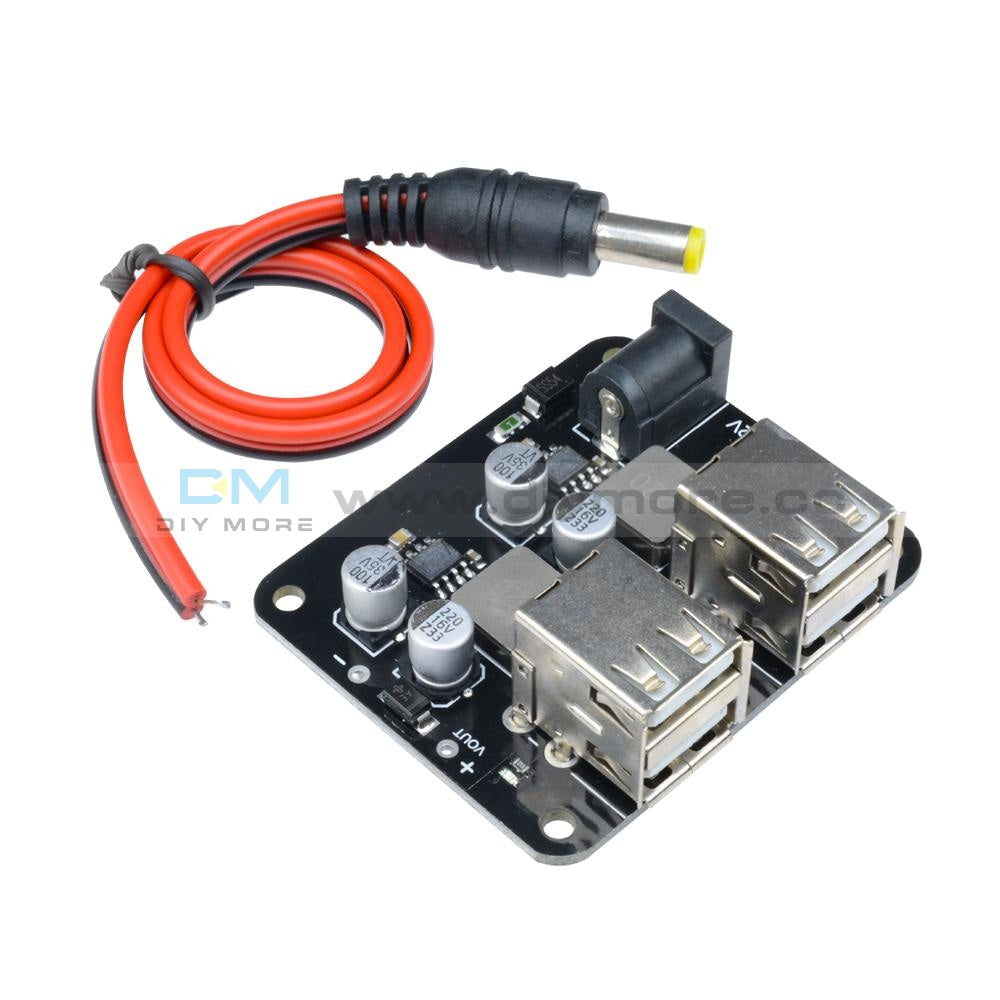

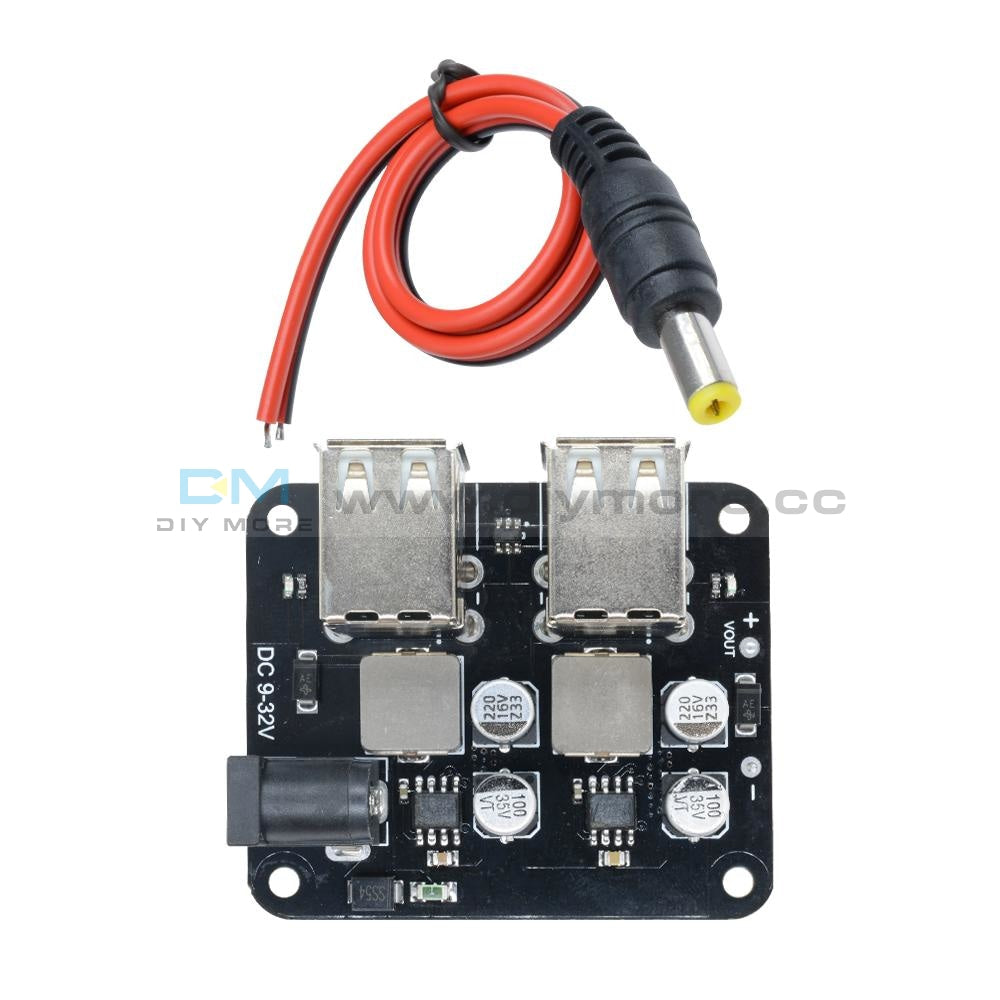

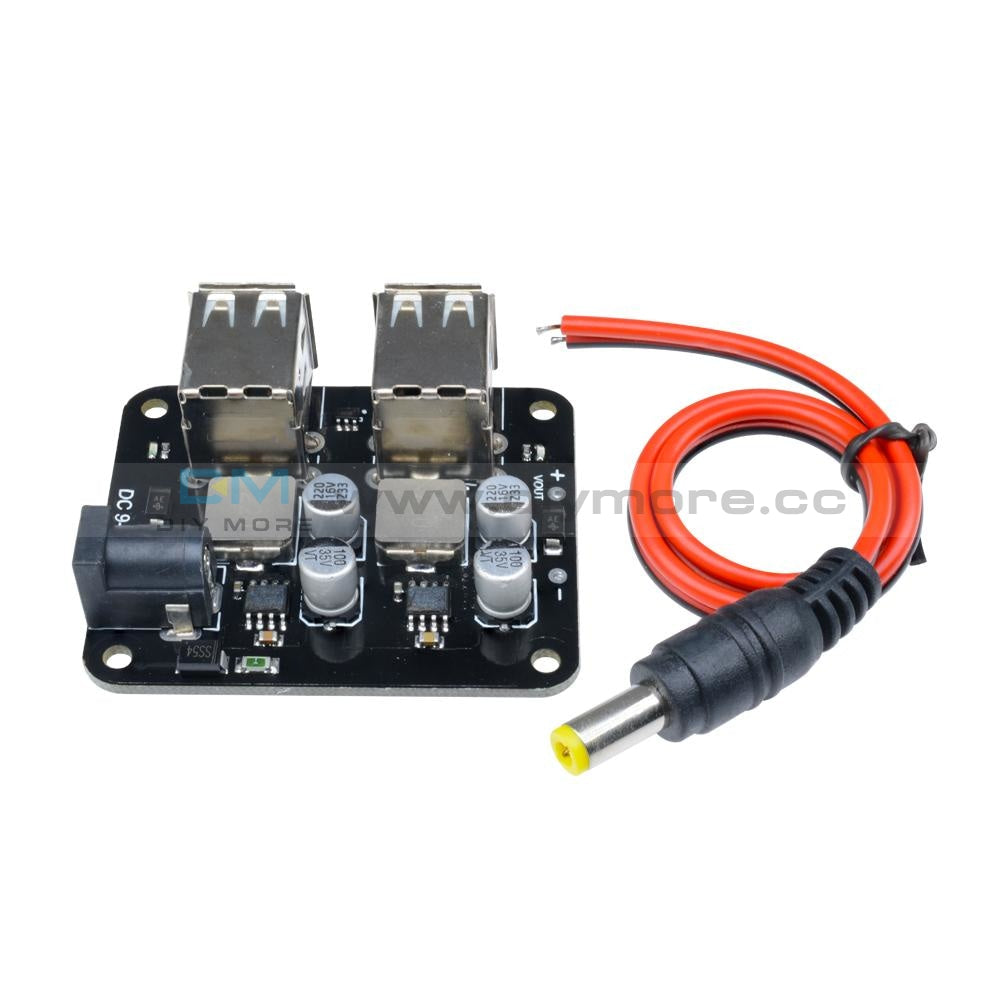

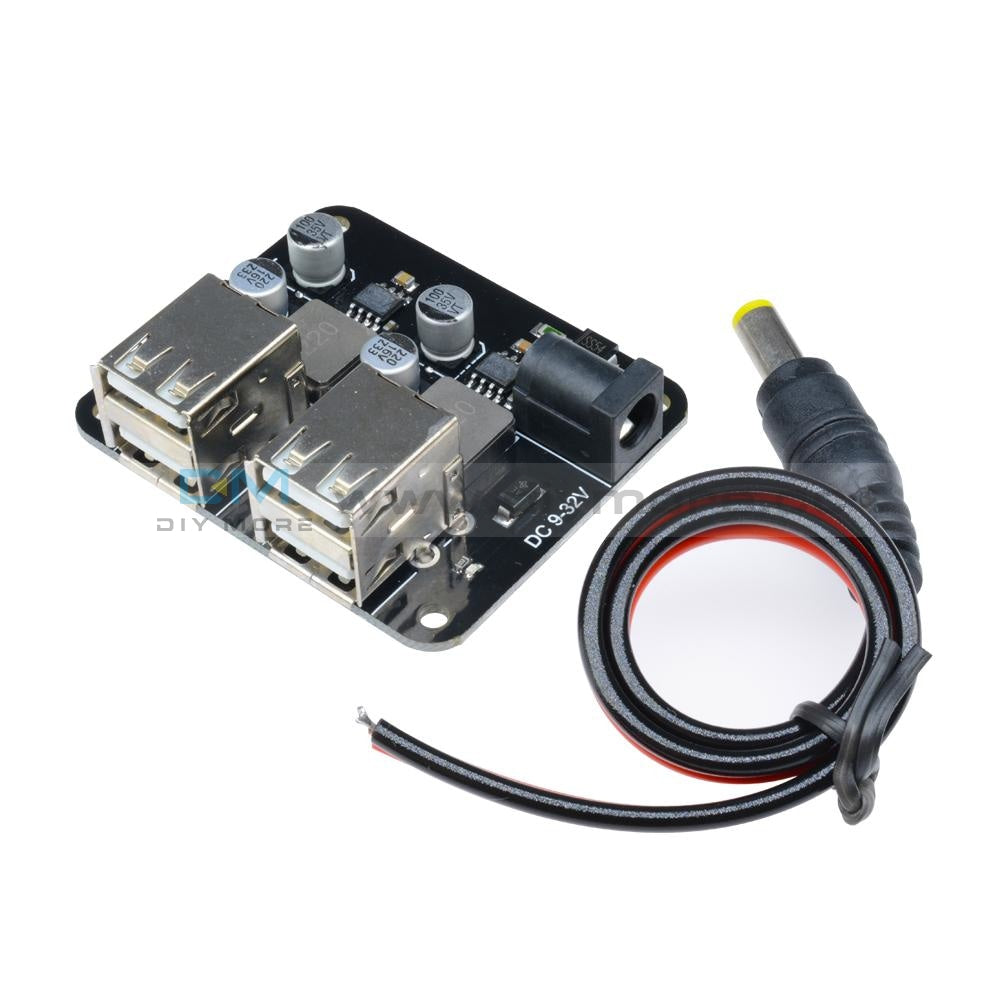

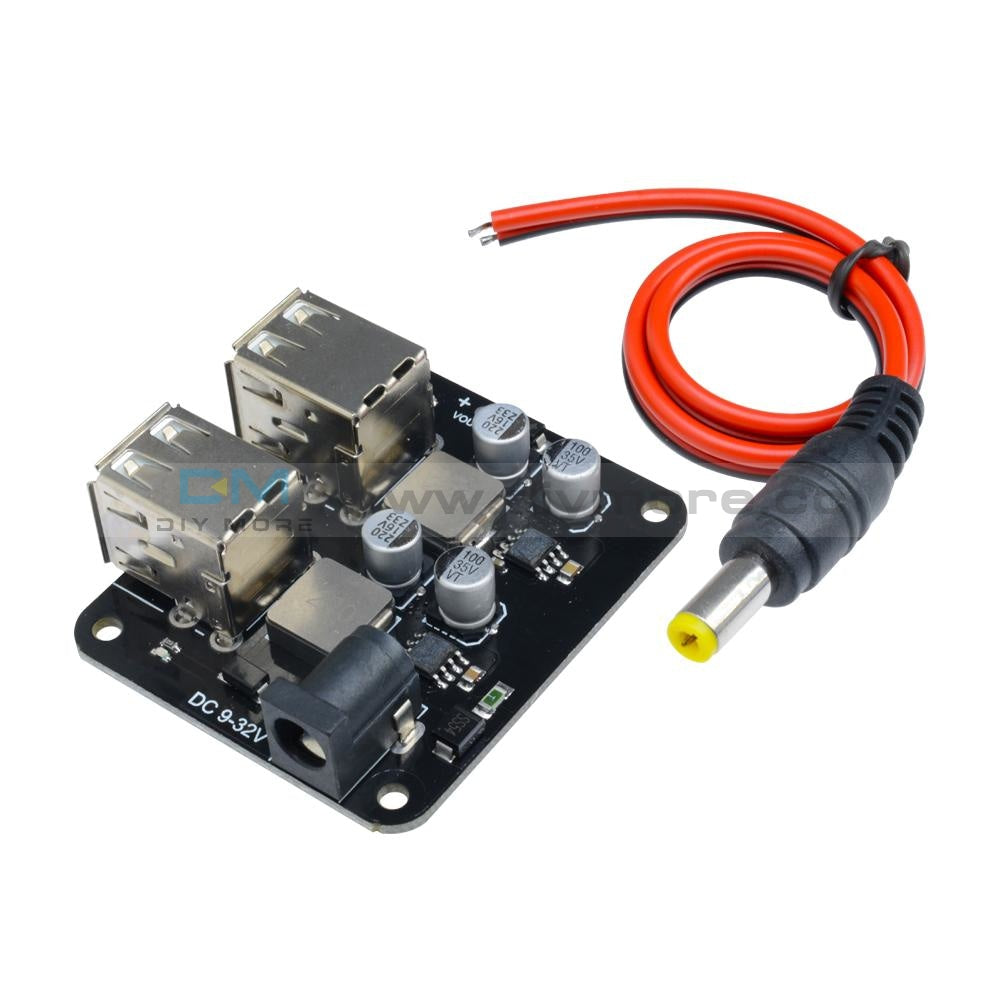

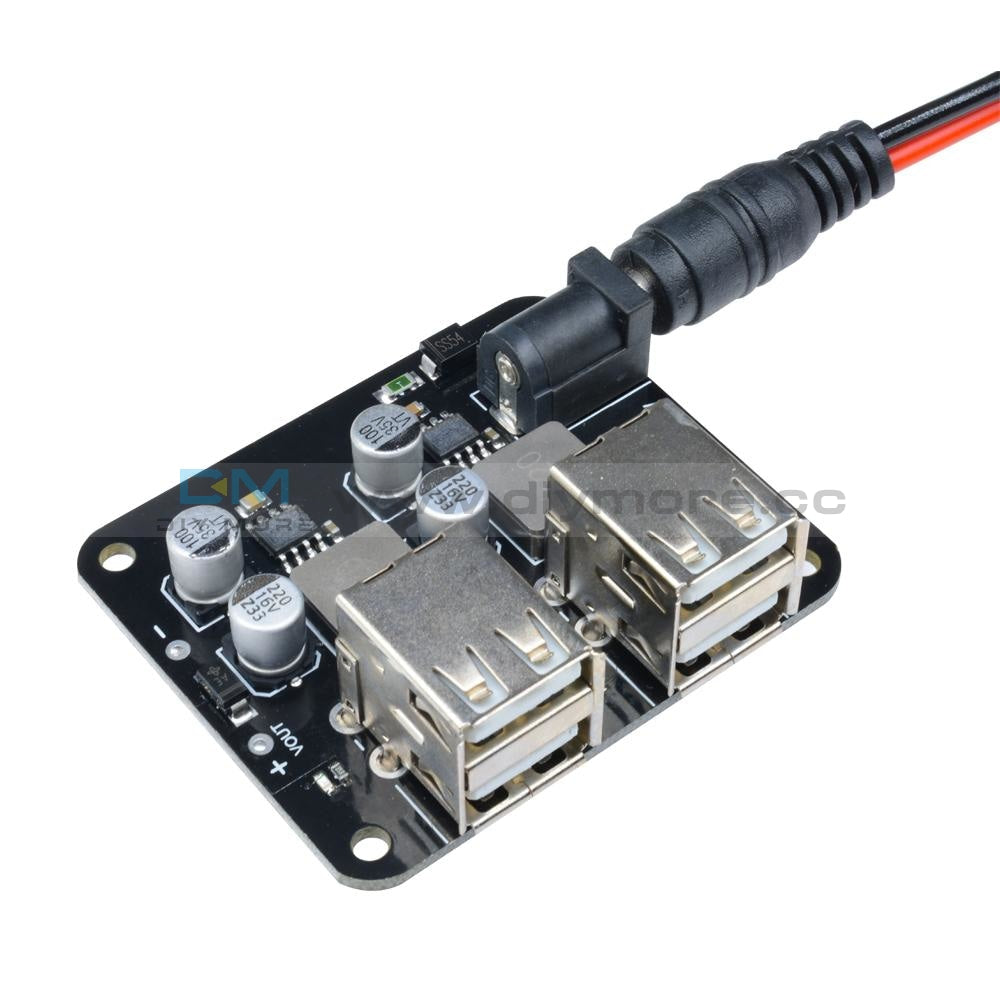

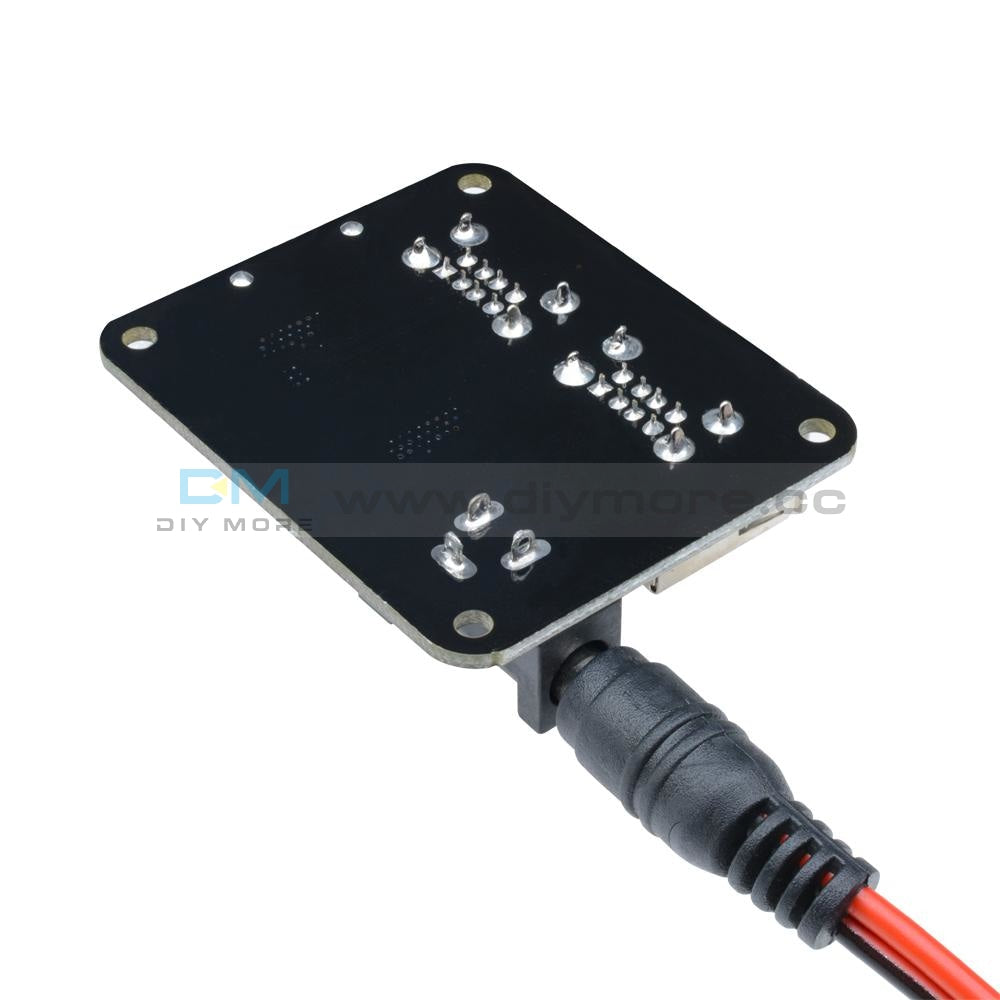

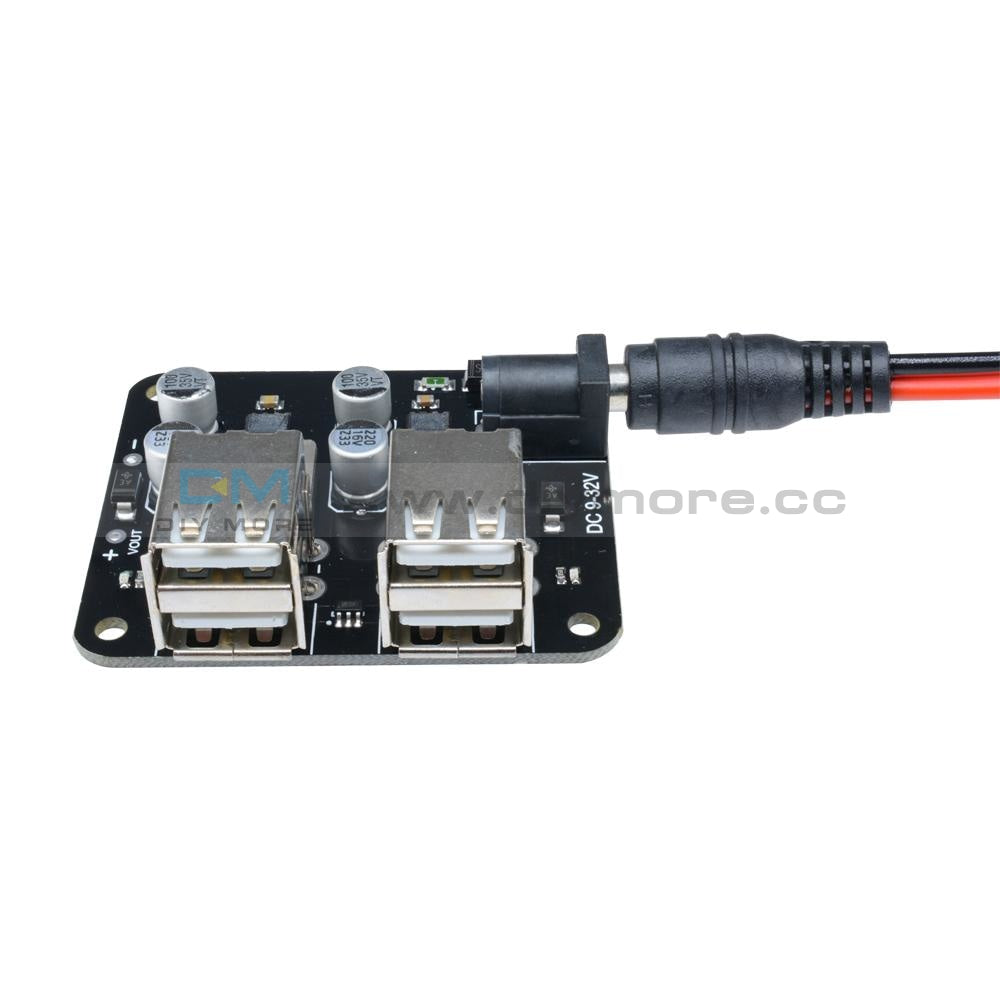

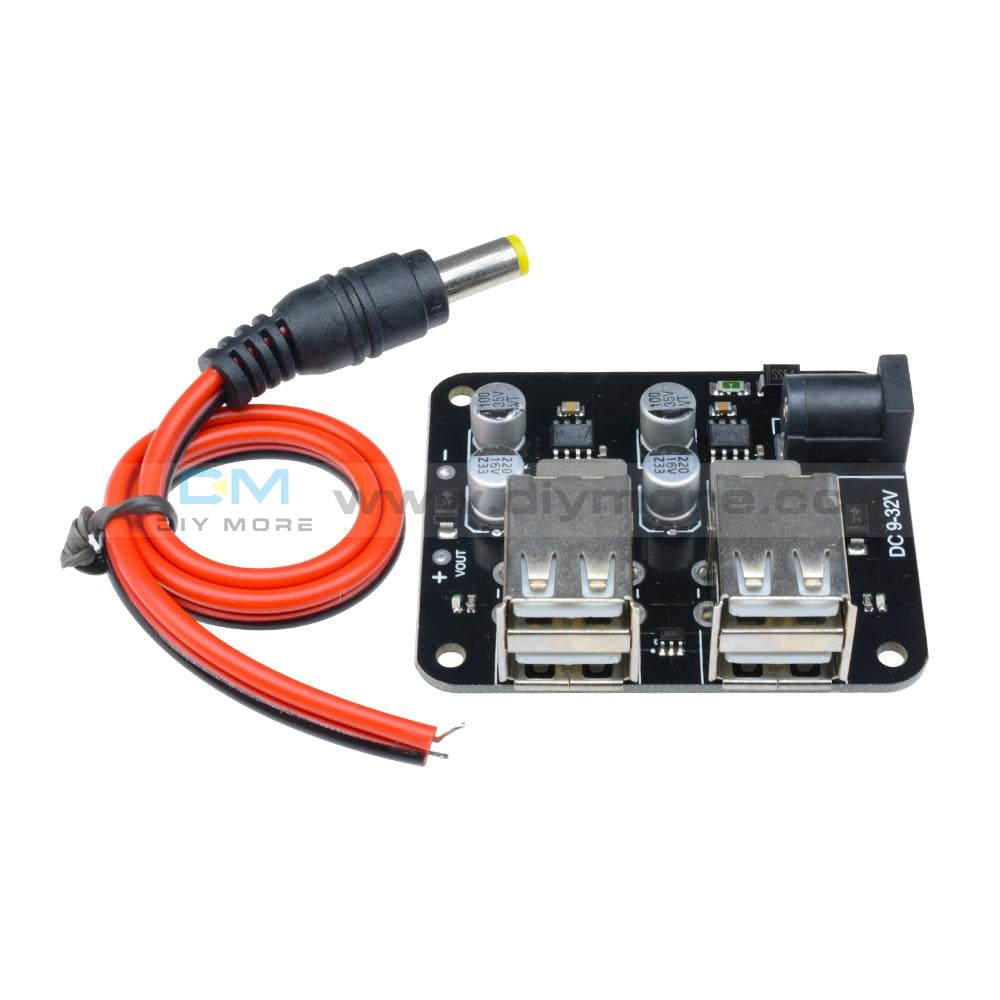

DC 12V 19V 24V to 5V 6A Power 4USB Step Down Buck Module

DC 12V 19V 24V to 5V 6A Power 4USB Step Down Buck Module

SKU:012816
Regular price $4.50 Sale price $3.99

shipped within one bussiness day

Parameters:
Input voltage: DC 9V-32V
Output voltage: 5.1V
Output current: 3A*2. Two circuits, each with 2 USB, each channel supports a maximum of 3A; the total maximum current of the module can reach 6A.

Module size:
Bare board size: 55*46*20mm (length * width * height)
Bare board net weight: about 28g
Fixed hole spacing: 47*38mm
Input wiring method: 5.5*2.1 female seat, inside and outside negative. It can be equipped with a male head of 5.5*2.1cm. Compatible with 5.5*2.5cm, but it is tight. Note that the input does not have reverse connection protection, and the positive and negative poles cannot be reversed.

Main protection features:
No-load current <2mA
Output overcurrent protection (more than 3.5A protection)
Input overvoltage protection (does not start above 32V, ultimate withstand voltage 45V)
Input undervoltage protection (about 8V)
Output short circuit protection (short circuit off output)
Output overvoltage protection (if the chip is out of control, the output voltage is too high, it will be limited to 6V)
Input reverse connection protection
Input 5A fuse

Support mobile phone charging protocol:
Divider1/Divider2/Divider3 charging protocol (for Apple)
D+/D– set 1.2V mode (for Samsung)
BC1.2 DCP and CTIS YD/T 1591-2009 charging agreement
Special reminder: QC Qualcomm fast charge is not supported, VOOC fast charge of OPPO/VIVO is not supported, and SCP/FCP Huawei fast charge is not supported.

Package Included:
1*DC 12V 19V 24V to 5V 6A Power Step Down Buck Module
