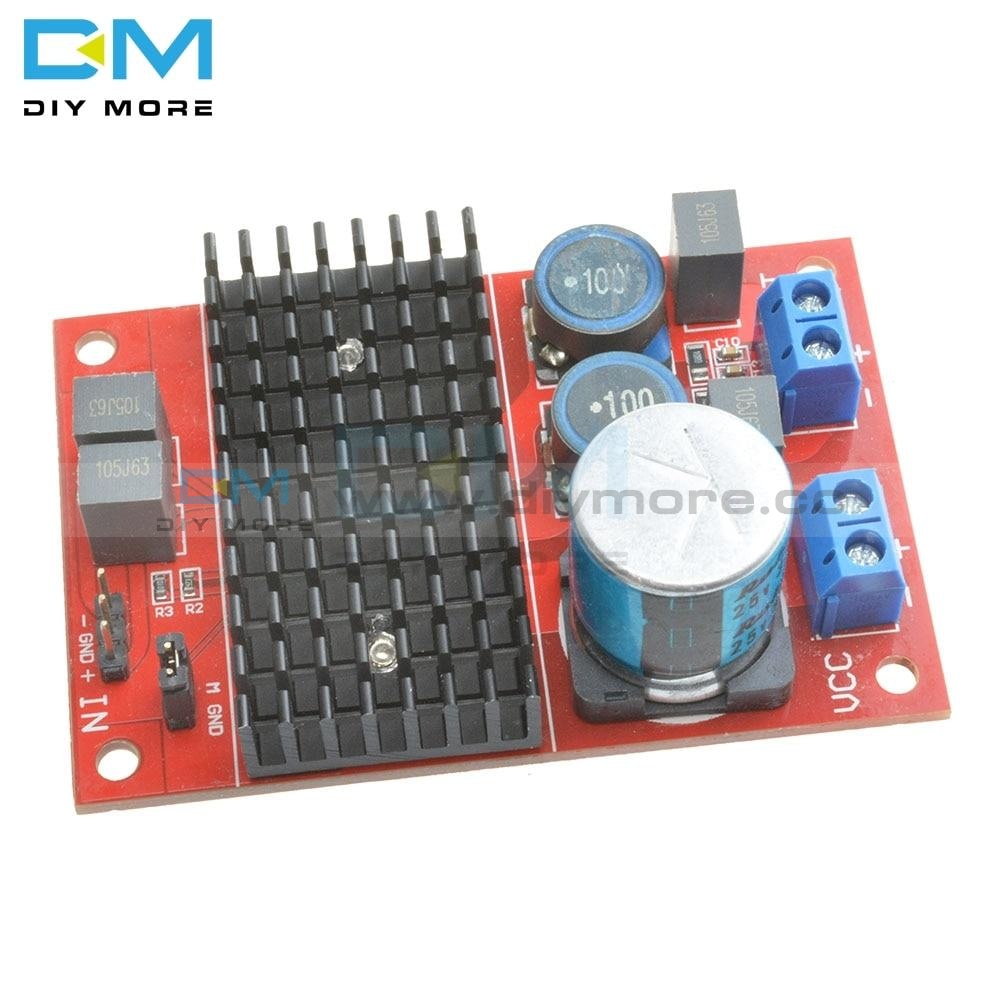

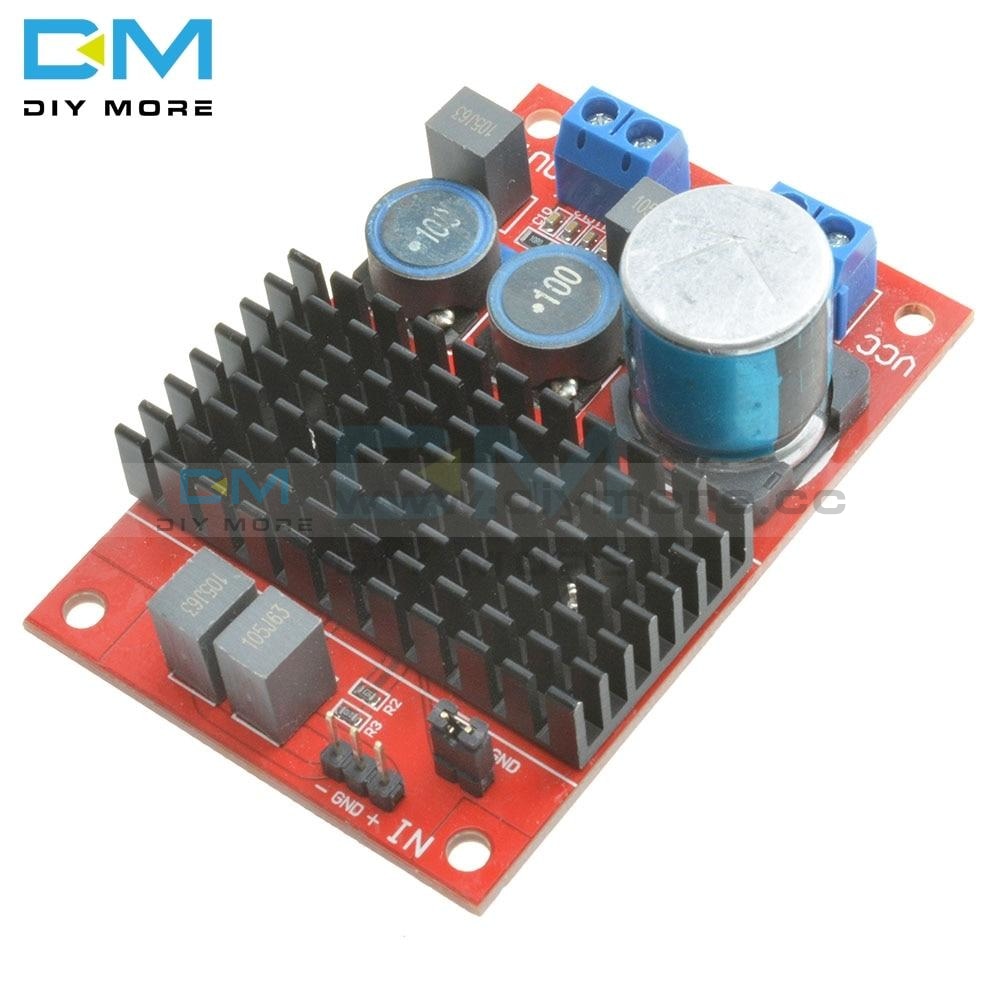

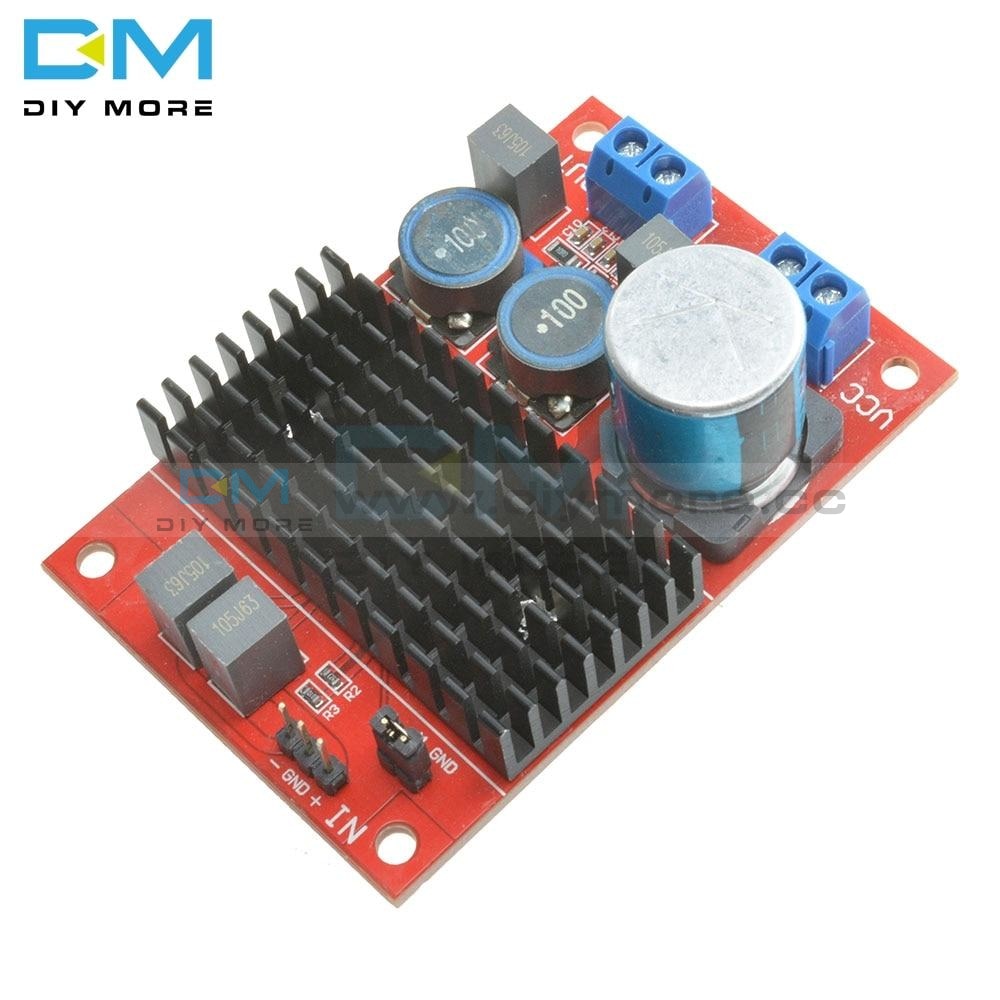

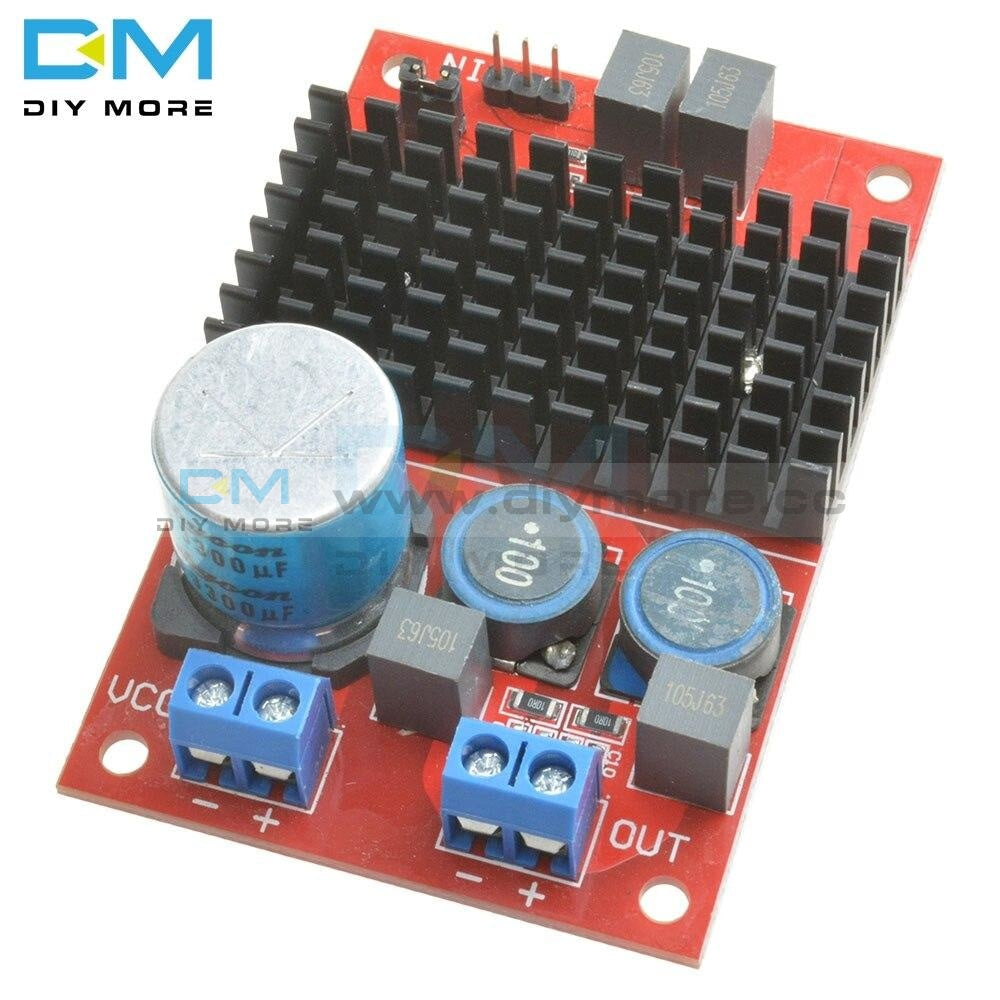

DC 12V 24V TPA3116 Mono Channel Digital Power Audio Amplifier Board BTL Out 100W Module 3300/25V Filter Capacitor DIY KIT

Dc 12V 24V Tpa3116 Mono Channel Digital Power Audio Amplifier Board Btl Out 100W Module 3300/25V

DC 12V 24V TPA3116 Mono Channel Digital Power Audio Amplifier Board BTL Out 100W Module 3300/25V Filter Capacitor DIY KIT

SKU:011369
Regular price $11.99 USD

Features:

Small size design, BTL output, the maximum output power 100w, can drive 2 ohm speakers, be balanced (differential) input, external heat sink chip work more stable.

Signal input mode can be selected according to the following two needs:

Balanced input signal (differential): Signal + Signal -, GND (ground).

Unbalanced inputs (single-ended): - end and GND (ground) short circuit, the signal input from the + terminal.

Imported Brands 3300 / 25V filter capacitor

Board size: 75mm * 50mm

Operating Voltage: DC 12v-24v

Maximum output power: 100w (2 ohm speakers connected)

Board overall height: 25mm

Package Contents:

1x Amplifier
