DC 12V M452 Digital LCD Temperature&Humidity Controller SHT20 Sensor 12V -220V

DC 12V M452 Digital LCD Temperature&Humidity Controller SHT20 Sensor 12V -220V

SKU:X13320
Regular price $13.99

Note:

  • M452 temperature and humidity dual output controller LCD display
  • This product is a high-precision dual-output automatic identification mode. The product uses a high-precision SHT20 temperature and humidity sensor with ultra-wide temperature and humidity control! The LCD display shows clear readings no matter day or night. It can be used normally in various temperature control fields.

Product information:

  • Product name: M452 temperature and humidity dual output controller LCD display version
  • Working voltage: DC12V
  • Maximum output power: AC16V/320W AC110V-220V/2500W
  • Temperature range: -40℃-120℃
  • Humidity range: 0%-100%
  • Accuracy: 0.1℃

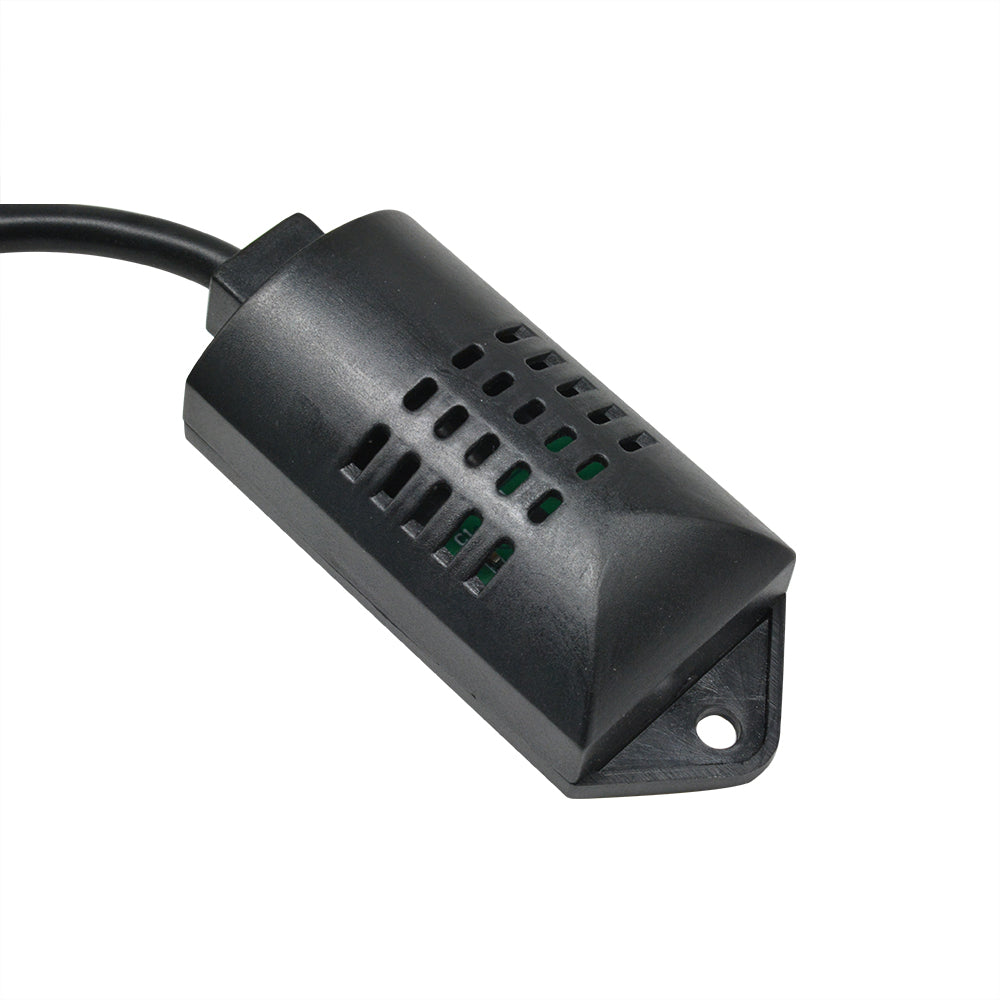

  • Measurement input: SHT20 sensor, about 1Meter
  • Control mode: heating/cooling/humidification/dehumidification
  • Installation aperture: 2.5mm
  • Shell material: ABS material
  • Appearance size: 60mm*45mm*31mm (length*width*height)

Note:

  • Working voltage: DC12V
  • Maximum output power: AC16V/320W AC110V-220V/2500W
  • Instructions
  • ▲=up=starting temperature   ▲<▼=heating mode
  • ▼=down=stop temperature    ▲>▼=cooling mode
  • △=up=start humidity              △<▽=dehumidification mode
  • ▽=down=stop humidity          △>▽=humidification mode
  • ▲Click display/long press to set the starting temperature.
  • ▼Click display/long press to set the stop temperature.
  • △Click display/long press to set the starting humidity.
  • ▽Click display/long press to set stop humidity.
  • When the relay works, the words out1 and out2 will appear on the LCD
  • out1 indicates the temperature relay indication signal
  • out2 indicates the humidity relay indication signal
  • "℃" temperature signal
  • "%" Humidity signal
  • Simultaneously press the ▼△ key for about three seconds, the word 8888 appears, which means that the factory settings are restored

Package include

  • 1*M452 temperature and humidity dual output controller LCD display
