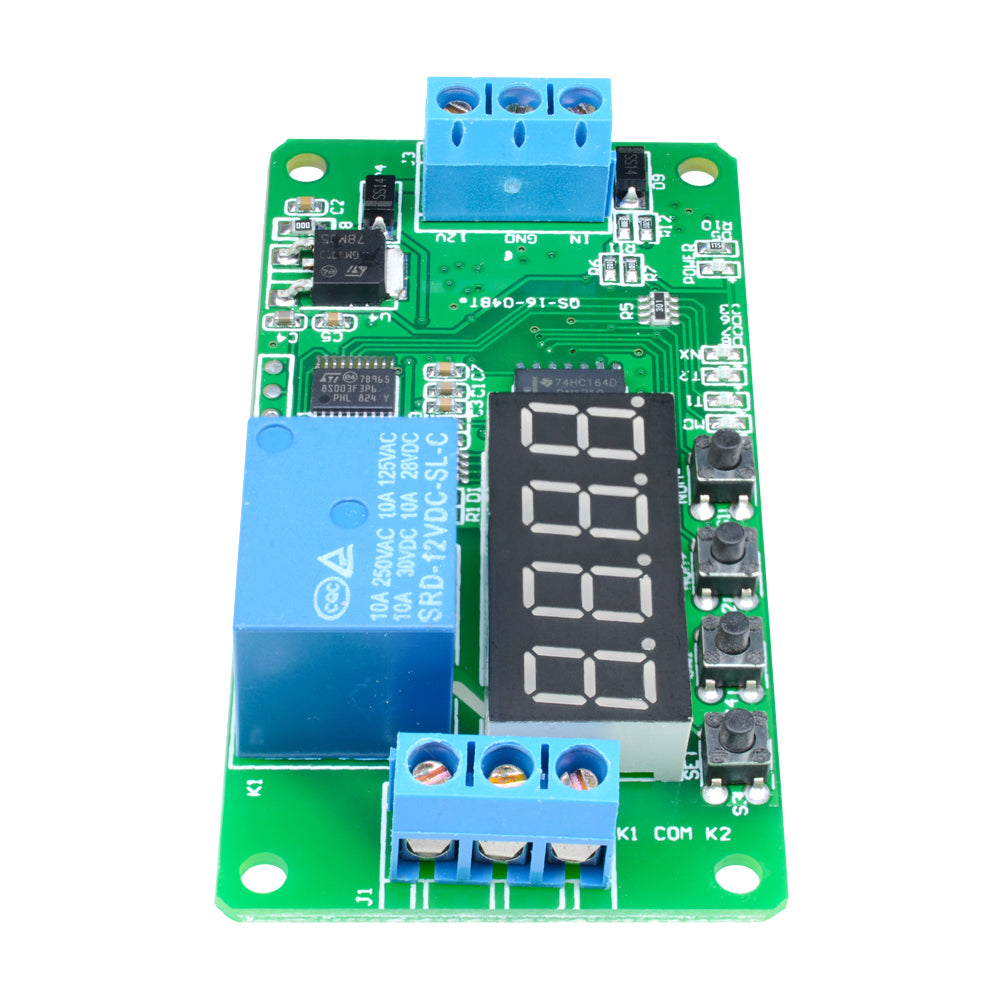

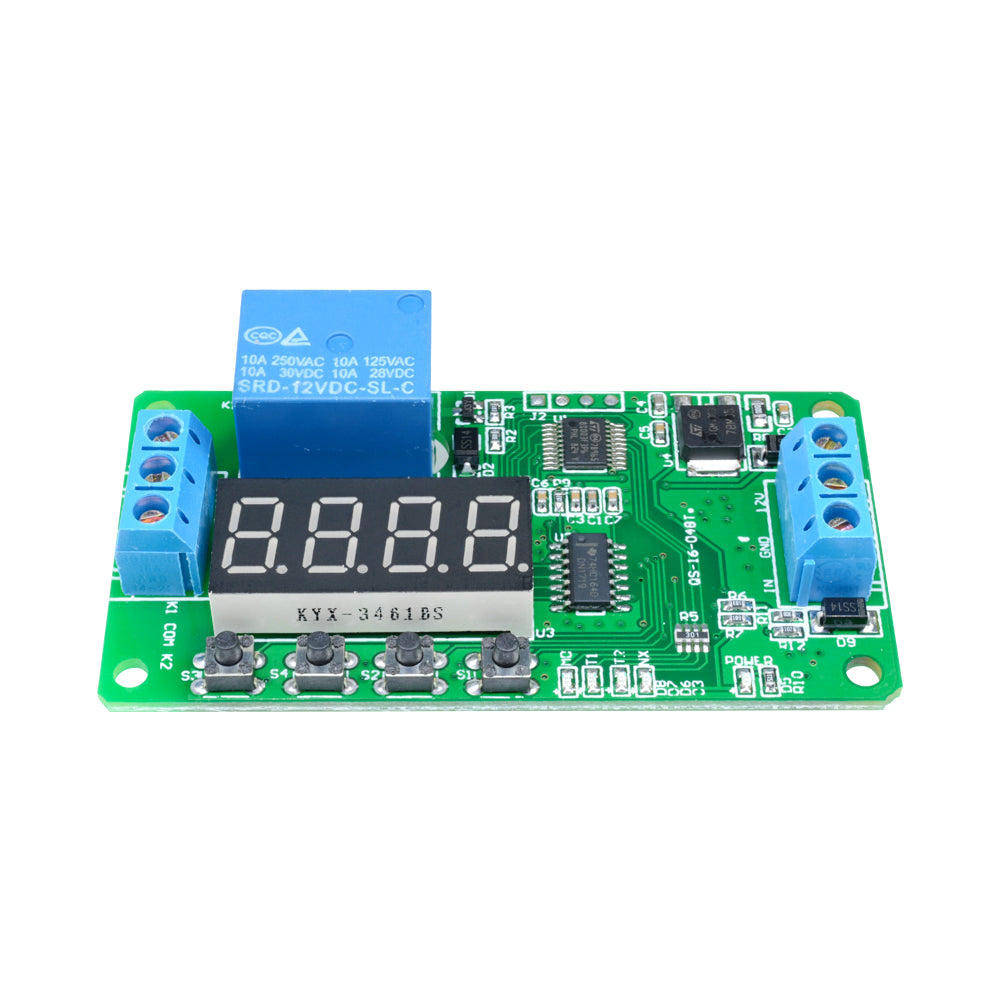

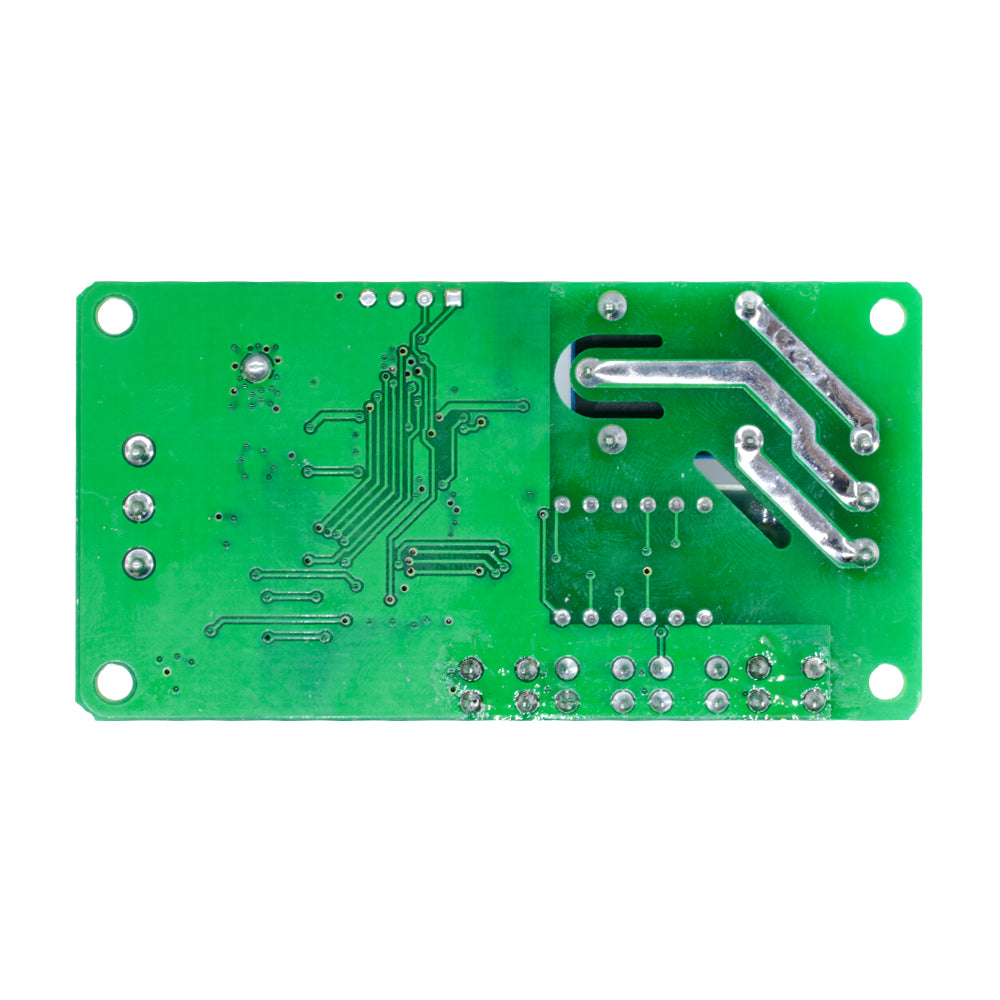

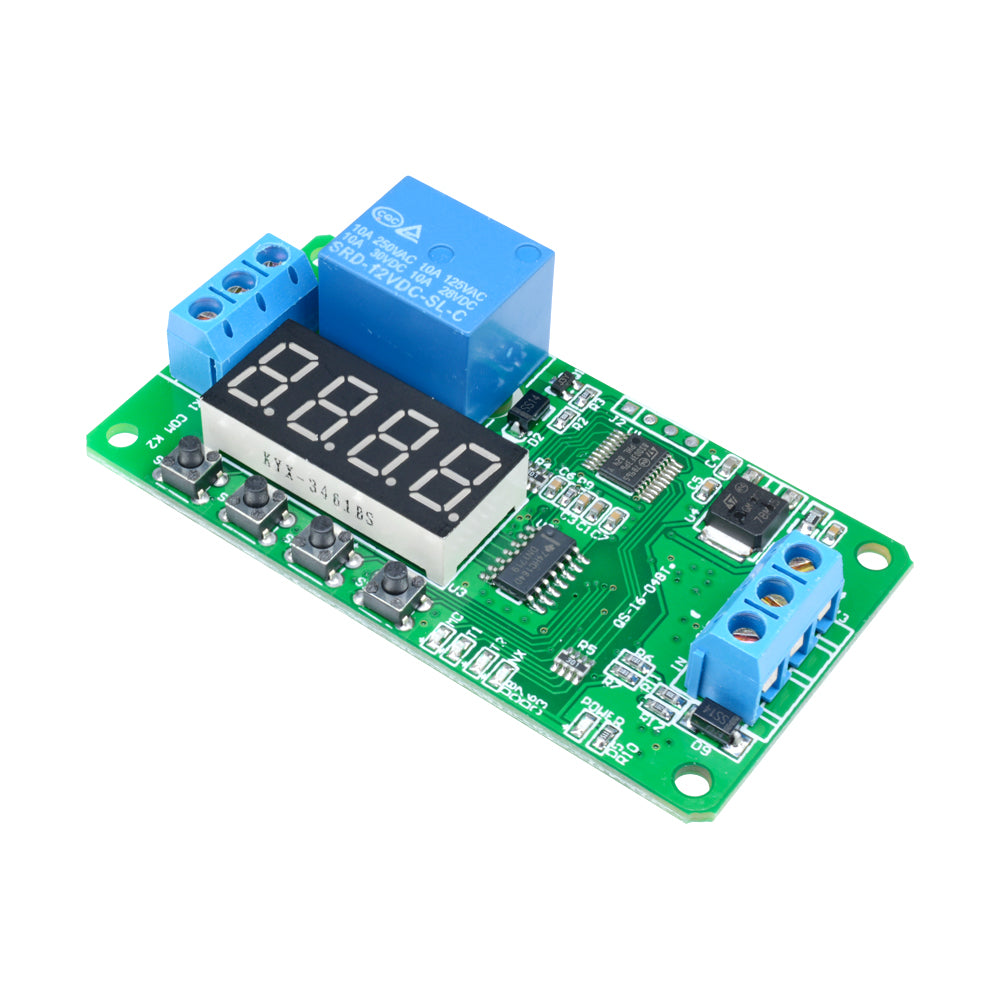

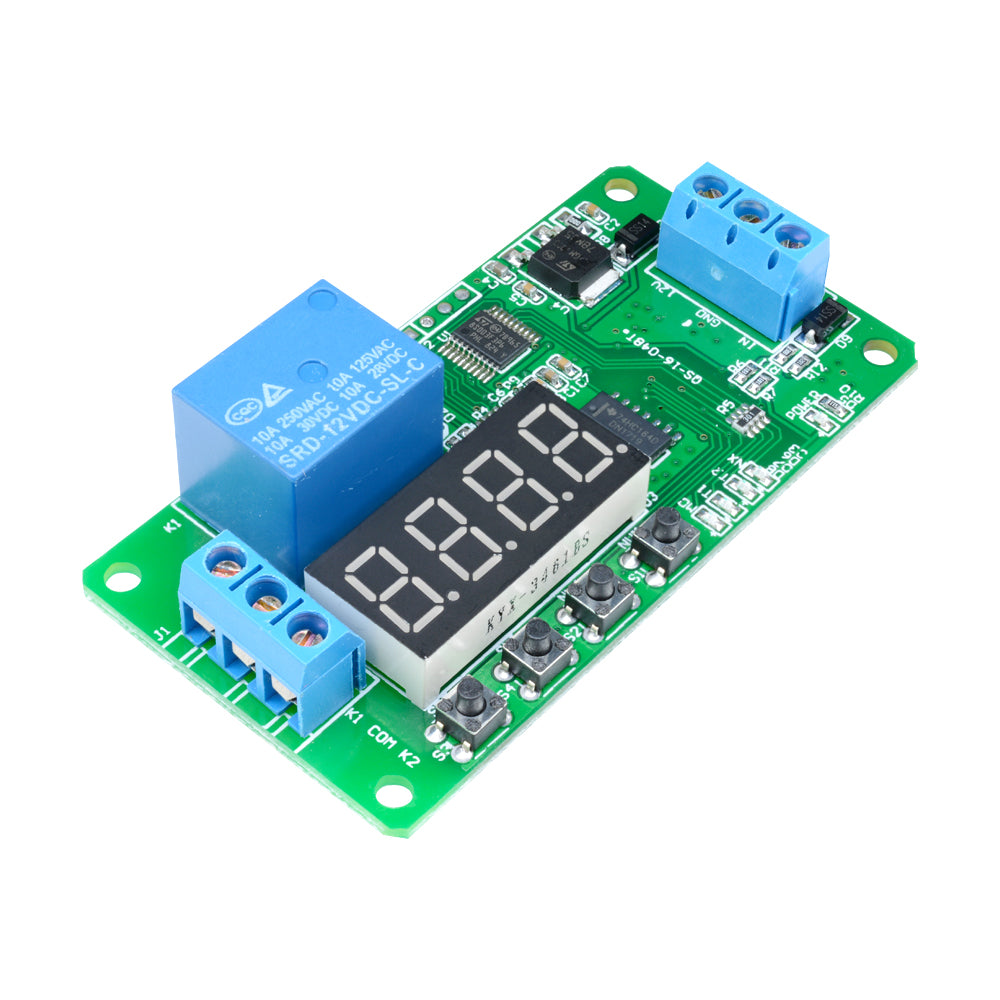

DC 12V PLC Self-lock Multifunction Timer Delay Relay Cycle Control Switch Module

DC 12V PLC Self-lock Multifunction Timer Delay Relay Cycle Control Switch Module

SKU:011864
Regular price $7.99

Feature:
  • 18 kinds of module functions to meet the needs of more application
  • Low level triggered, opto-isolated inputs
  • Increasing the supply anti-reverse feature, power will not damage the module wrong
  • Using high-quality power supple modules, discrete power supply before replacing the system more stable and reliable
  • Increasing in aytomatic power saving feature, users can independently set
Specification:
  • Dimension: 75x44x16mm
  • Voltage: DC 12V
  • Applications: Home lighting system, Remote control switch, Remote locking, Smart Home / Home, Automation, DC 12V LED lighting, Fluorescent lamp, 12V DC Motor, Fluorescent lamp, Automotive electronics, Industrial automation and control
Connections:
  • Module control side: there are 3-wire interface, all interfaces are terminal
  • DC +:12V positive
  • DC-: power in negative
  • CH1: Input Detection Interface
  • Relay outputs: a 3-wire interface, all interfaces are terminal
  • NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)
  •  COM: Relay Common Interface
  • NC: Normal closed (before relay closes, this pin short-connect with COM. after relay closes, the pin is not connected )
Package included:
  • 1 x Multi-function Time Delay Relay
