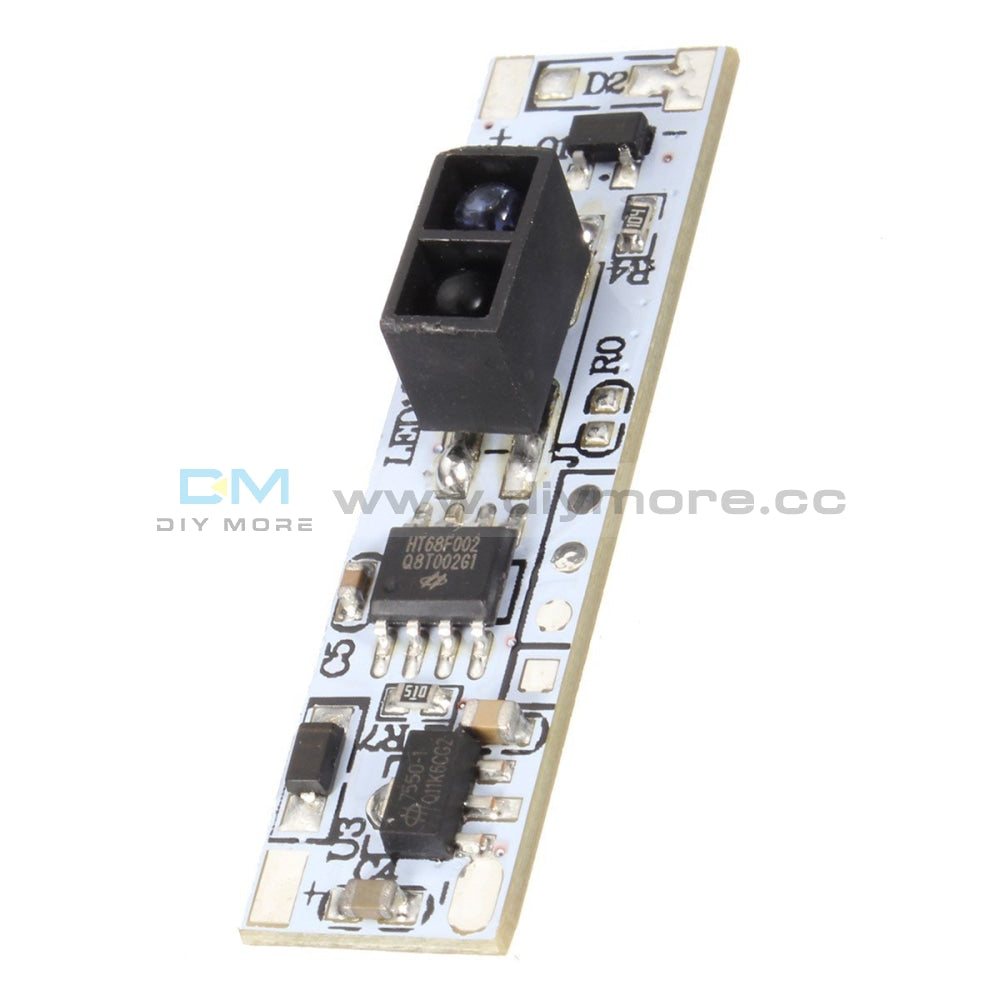

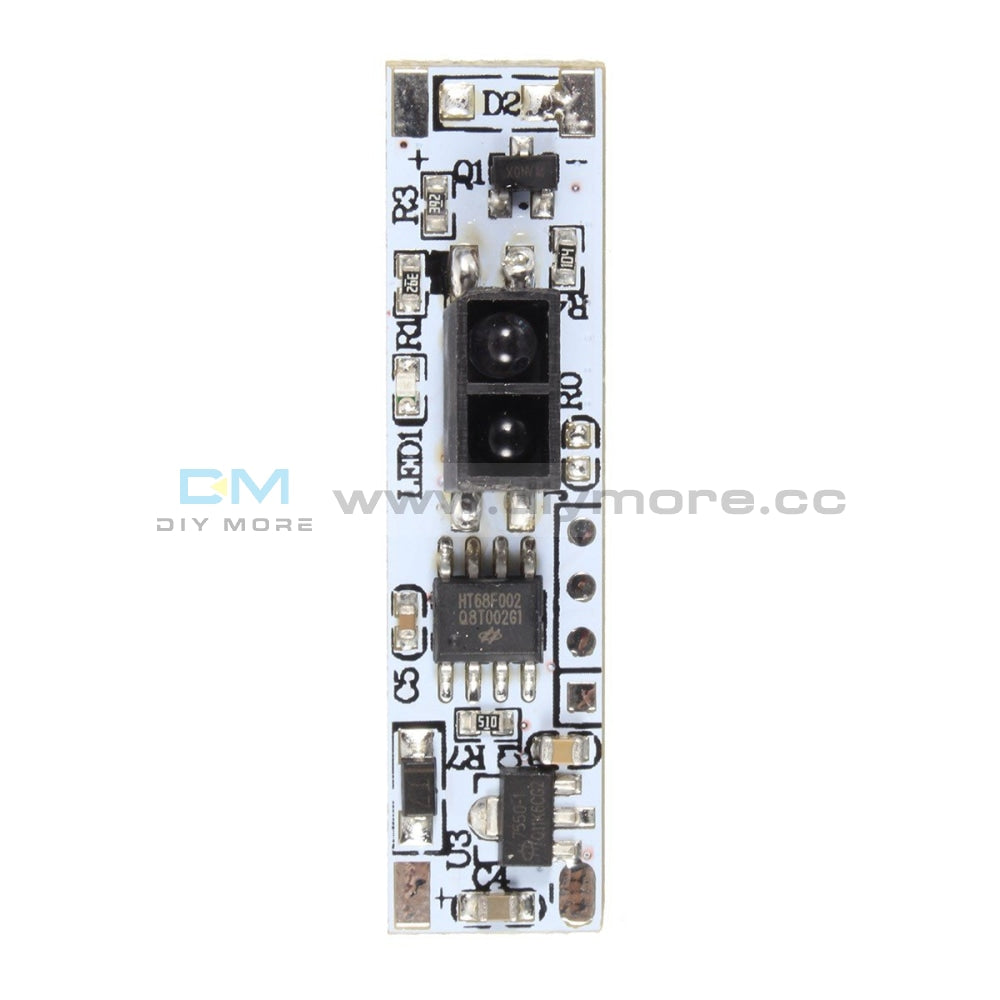

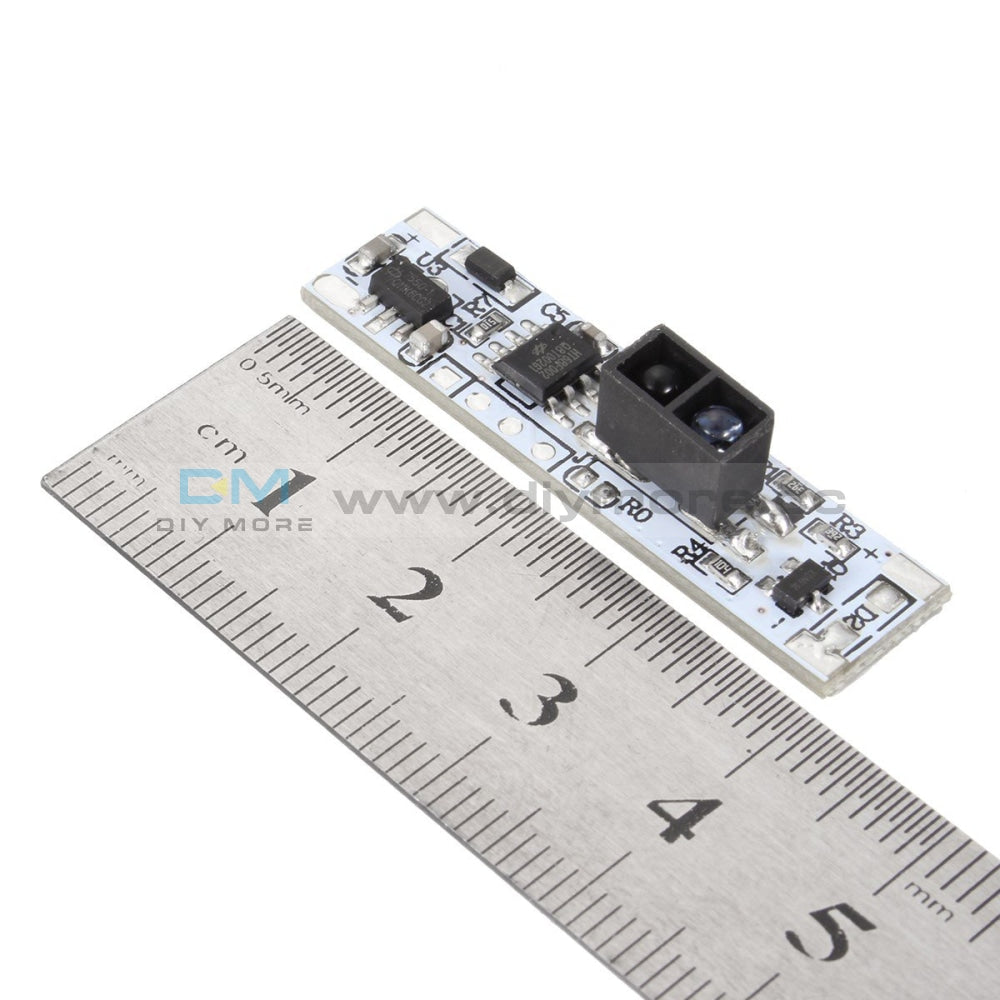

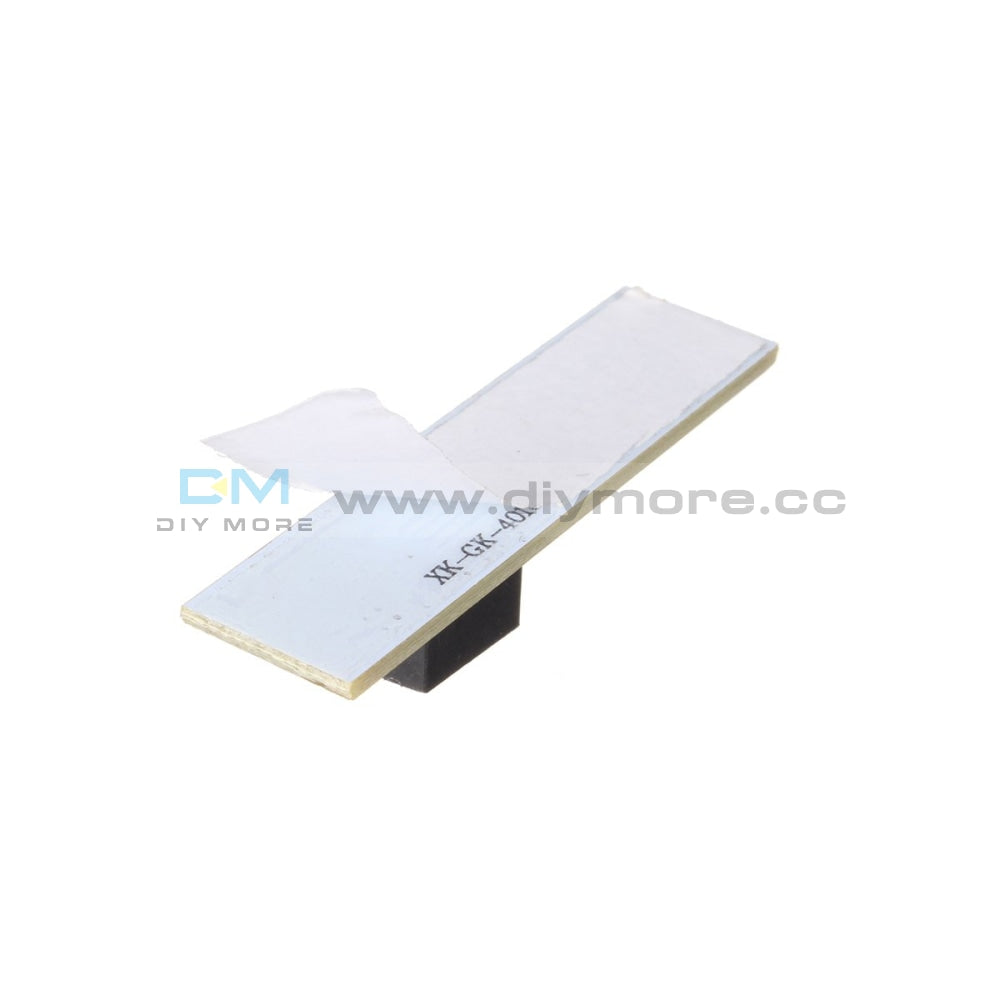

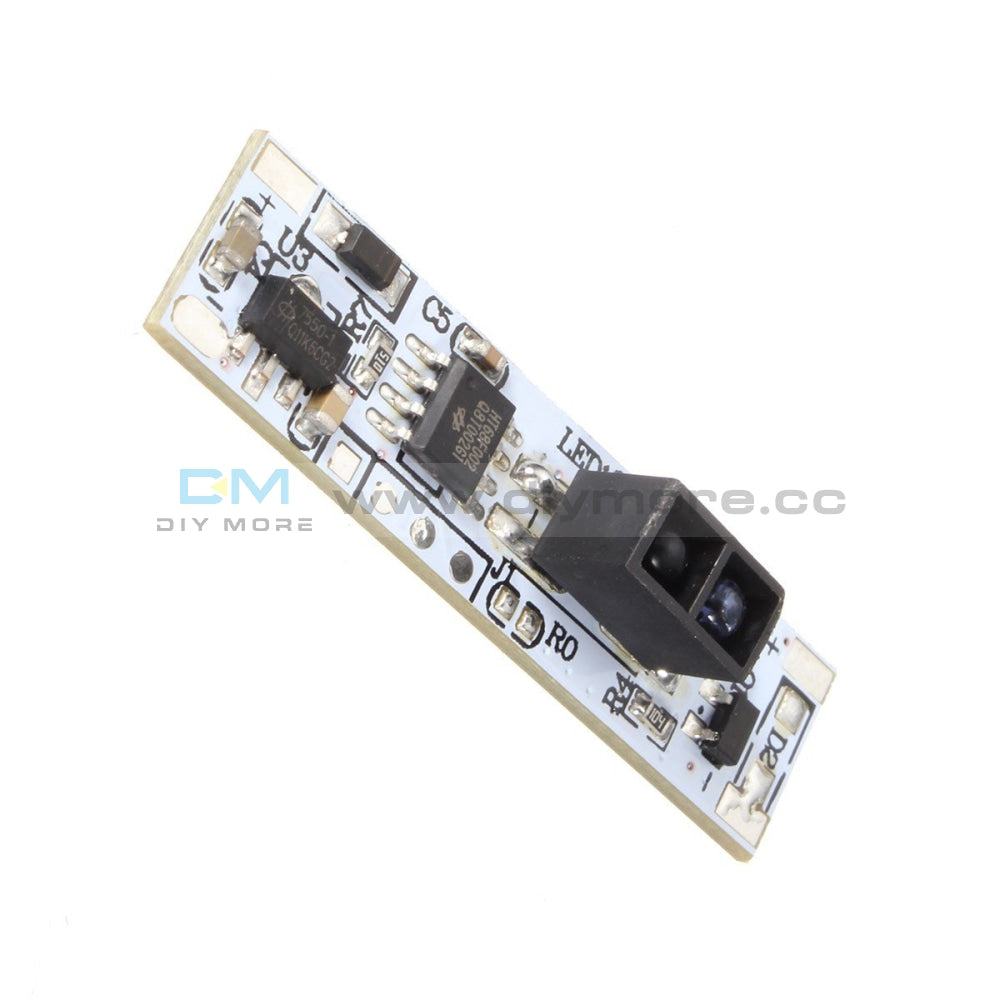

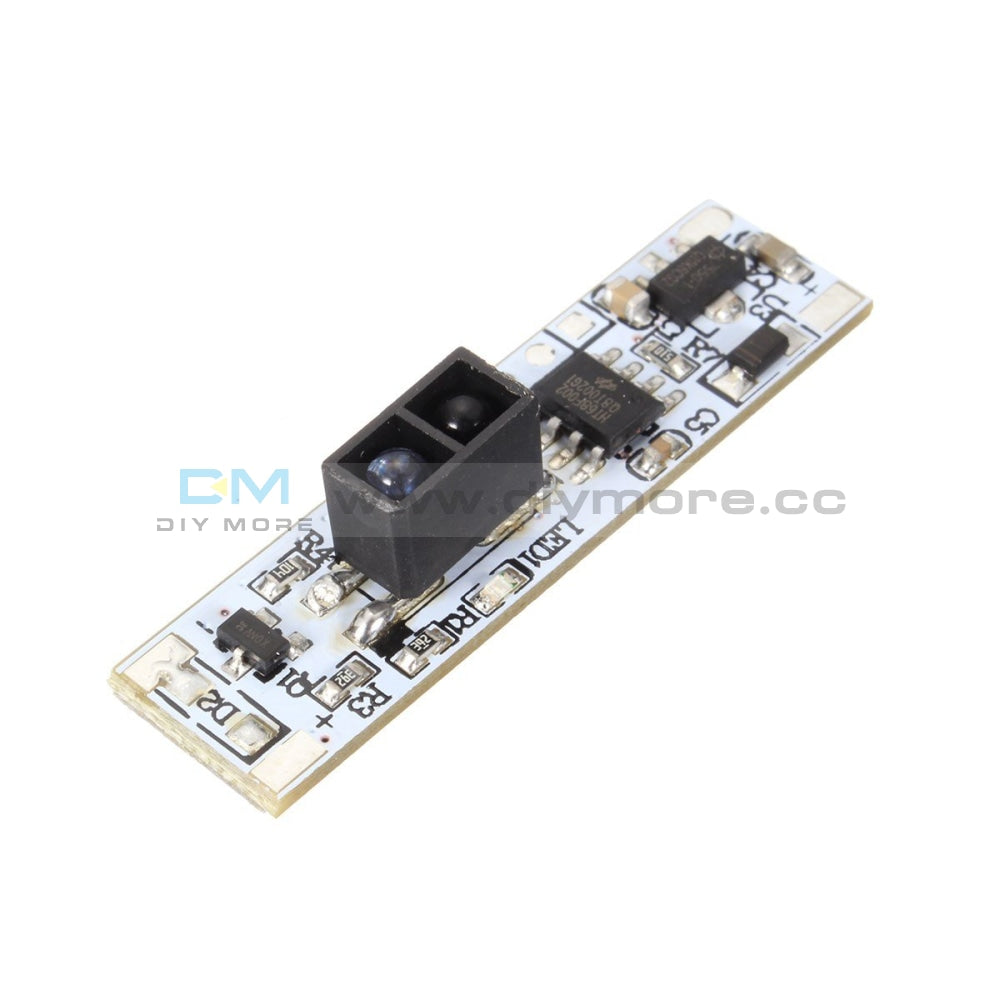

DC 12V XK-GK-4010A Sweep Hand Sensor Switch Module Short Distance Scan Sensor
DC 12V XK-GK-4010A Sweep Hand Sensor Switch Module Short Distance Scan Sensor
SKU:012291
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature：
Model: XK-GK-4010A
Operating voltage:
Input: 12 V
output: 12 V
Output type: Double output
Detection range: adjustable 10-50 MM
Detection principle: distance
Power load: 36 W
Delayed off time: none
Field of application: DC, constant pressure
Load current: 3A optional
Standby current: 10mA
VIN: 12V
Feature:
The use of electrical appliances, such as small household appliances, KTV VOD system,
Automotive industrial application systems and other electrical devices wide range of guests can accept custom special features;
The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and other non-metallic medium, stable performance!
Instructions:
AC use: Need to apply reactive rectifier for it is DC, constant pressure.
During installation, make sure that the medium insulation and tactile surface are tightly coupled and fixed!
There shoule no gap! Installed and then power, wait 3 seconds after initialization, it may be normal operation!
2. Recommended method of installation:
The first, the shell design a card slot, the touch button can be put in firmly locked.
The second, the use of hot melt adhesives, the touch button and shell close to the adhesive hot melt can be used to live.
The third, the use of double-sided adhesive, directly touch the stickers inside the shell.
Package include:
1 X K-GK-4010A Sweep sweep hand switch sensor
Model: XK-GK-4010A
Operating voltage:
Input: 12 V
output: 12 V
Output type: Double output
Detection range: adjustable 10-50 MM
Detection principle: distance
Power load: 36 W
Delayed off time: none
Field of application: DC, constant pressure
Load current: 3A optional
Standby current: 10mA
VIN: 12V
Feature:
The use of electrical appliances, such as small household appliances, KTV VOD system,
Automotive industrial application systems and other electrical devices wide range of guests can accept custom special features;
The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and other non-metallic medium, stable performance!
Instructions:
AC use: Need to apply reactive rectifier for it is DC, constant pressure.
During installation, make sure that the medium insulation and tactile surface are tightly coupled and fixed!
There shoule no gap! Installed and then power, wait 3 seconds after initialization, it may be normal operation!
2. Recommended method of installation:
The first, the shell design a card slot, the touch button can be put in firmly locked.
The second, the use of hot melt adhesives, the touch button and shell close to the adhesive hot melt can be used to live.
The third, the use of double-sided adhesive, directly touch the stickers inside the shell.
Package include:
1 X K-GK-4010A Sweep sweep hand switch sensor
