DC 15~26V Adjustable Voltage Current Signal Generator Analog Simulator Output

DC 15~26V Adjustable Voltage Current Signal Generator Analog Simulator Output

SKU:X13040
Regular price $16.99

shipped within one bussiness day

Main characteristics:
1. Standard version rated power supply voltage range: DC 15~26V
2. Upgraded rated power supply voltage: DC 15~26V power supply (terminal power supply), can also be powered by MICRO USB interface (power supply voltage range: DC 4~6V, so you can use mobile phone charger, computer USB, charging treasure power supply )

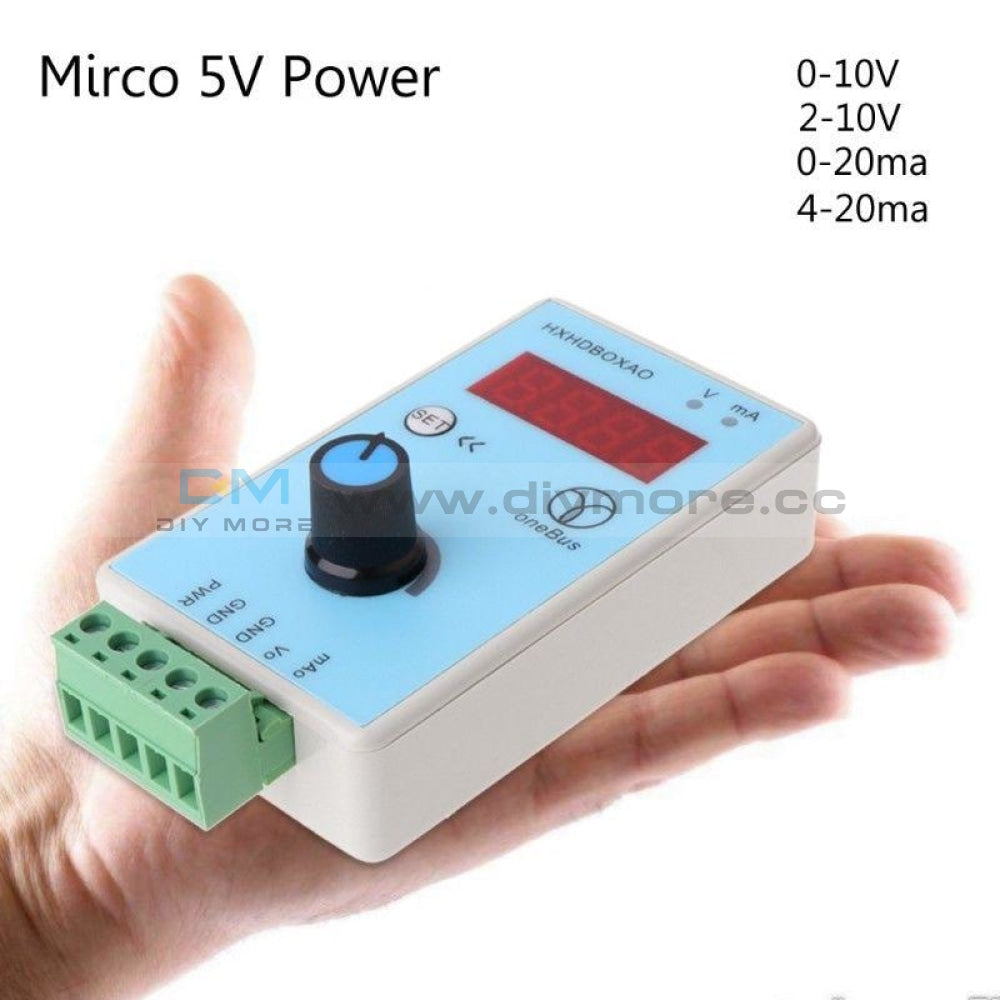

3.1 analog output, you can choose to use voltage type (output range: 0/2-10V) or current type (output range: 0/4-20mA)
4. Voltage type output load impedance requirement ≥ 2KΩ, current type output load impedance requirement ≤ 500Ω
5. Voltage type, current type output and display one-button switching

Note: The product does not have a USB cable, and the ordinary Android USB cable can also be used.

Second, the indicator light, signal description

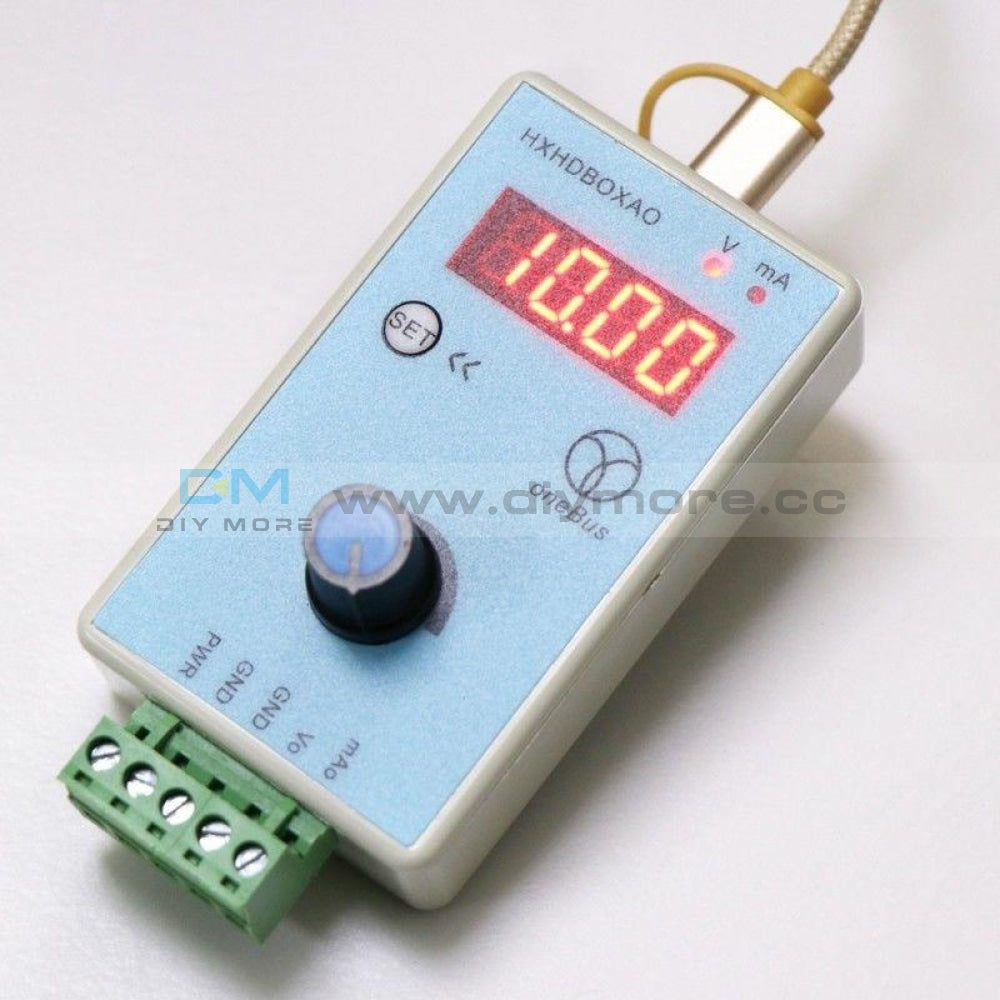

1. Indicator Description V (red): On, the output is 0-10V voltage signal; flashing, output 2-10V voltage signal. mA (green): On, output 0-20mA current signal; flashing, output 4-20mA current signal

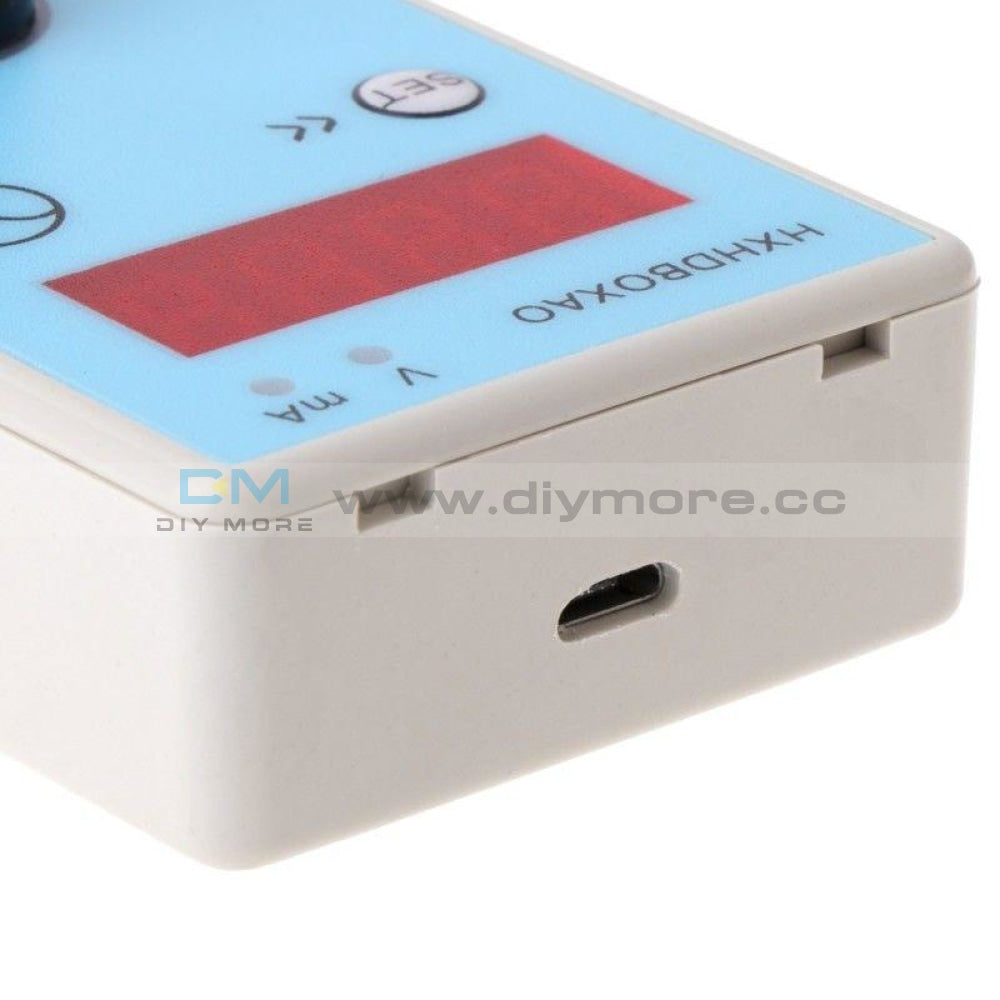

2. Port signal description Signal Description Another USB port for the upgraded version of the MICRO USB interface (extended version).
Power supply voltage range: DC 4~6V, so you can use mobile phone charger, computer USB, charging treasure power supply.

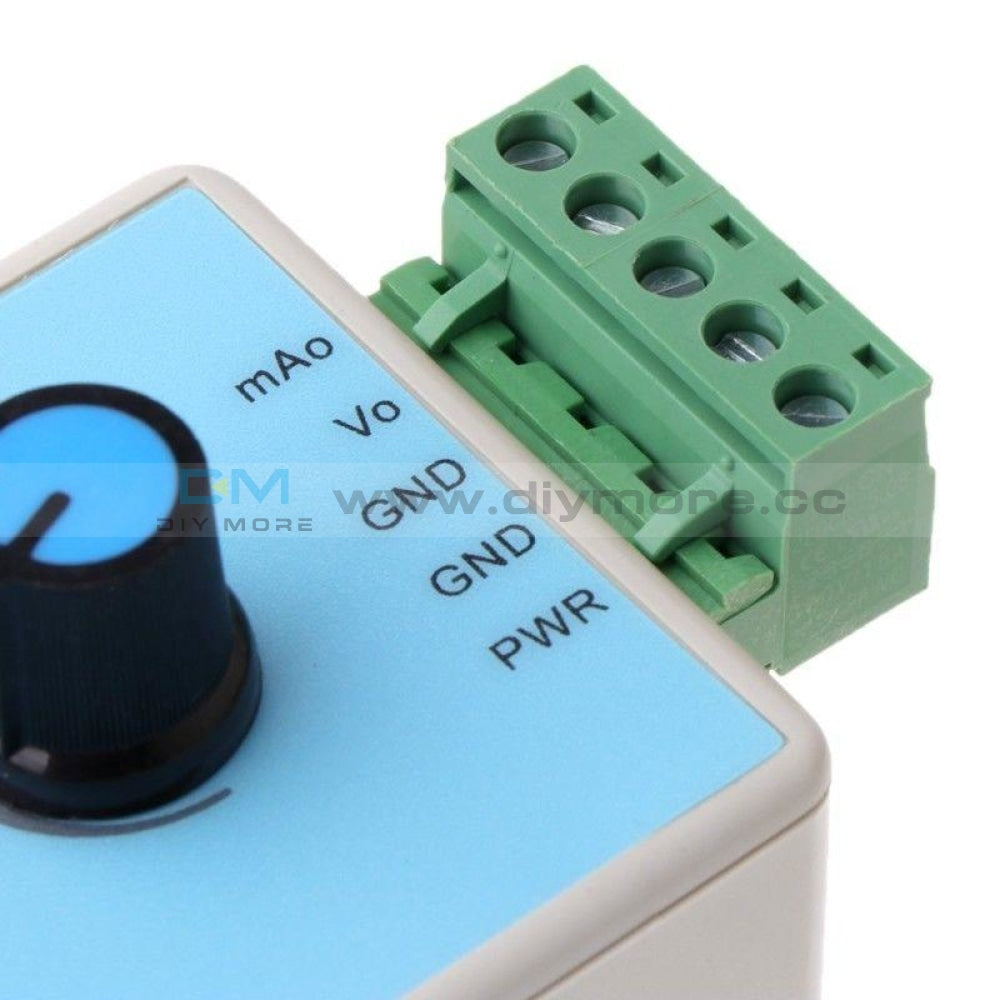

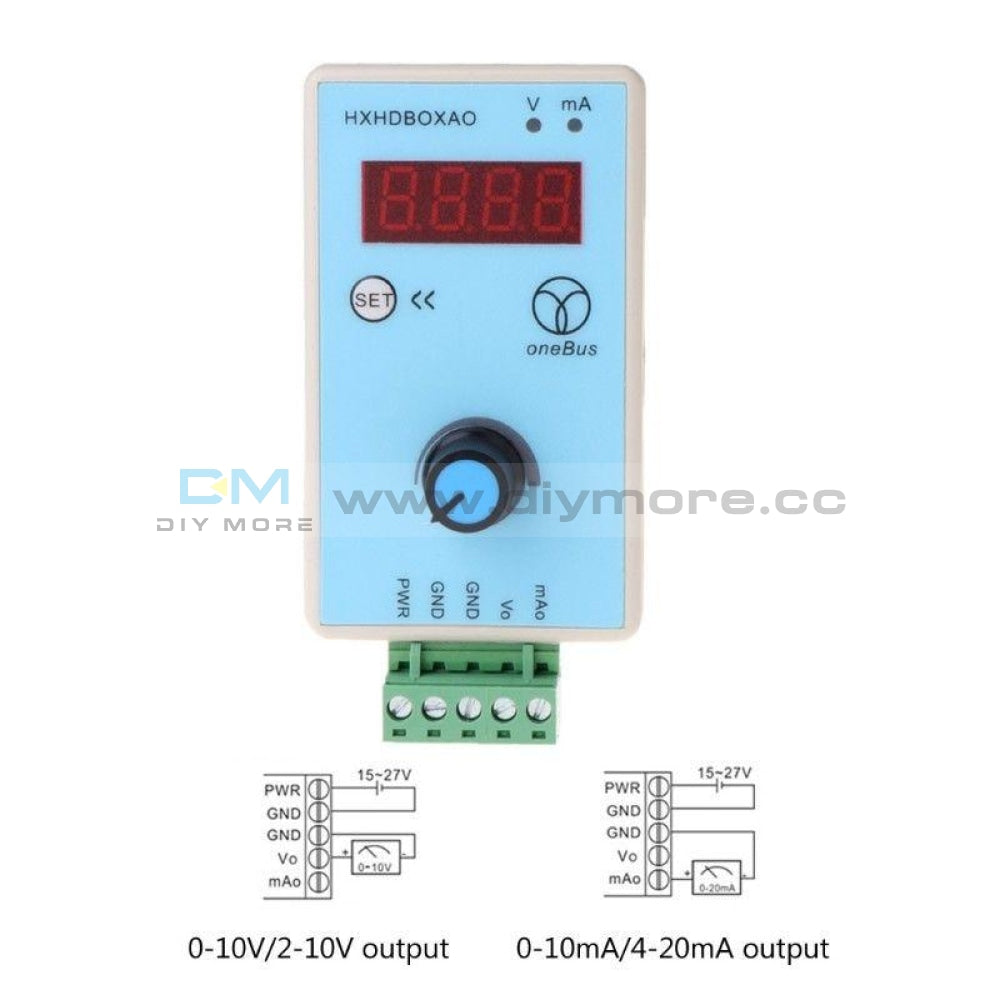

PWR is connected to DC 15~27V power supply GND power supply and signal ground GND power supply and signal ground Vo voltage type analog output interface mamo current type analog output interface

Paket Included:
1* Current Signal Generator Analog Simulator
