DC 3.3V 3.7V 5V 6V to 12V Step-up Power Supply Boost Voltage Regulator Converter
DC 3.3V 3.7V 5V 6V to 12V Step-up Power Supply Boost Voltage Regulator Converter
SKU:012306
Regular price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

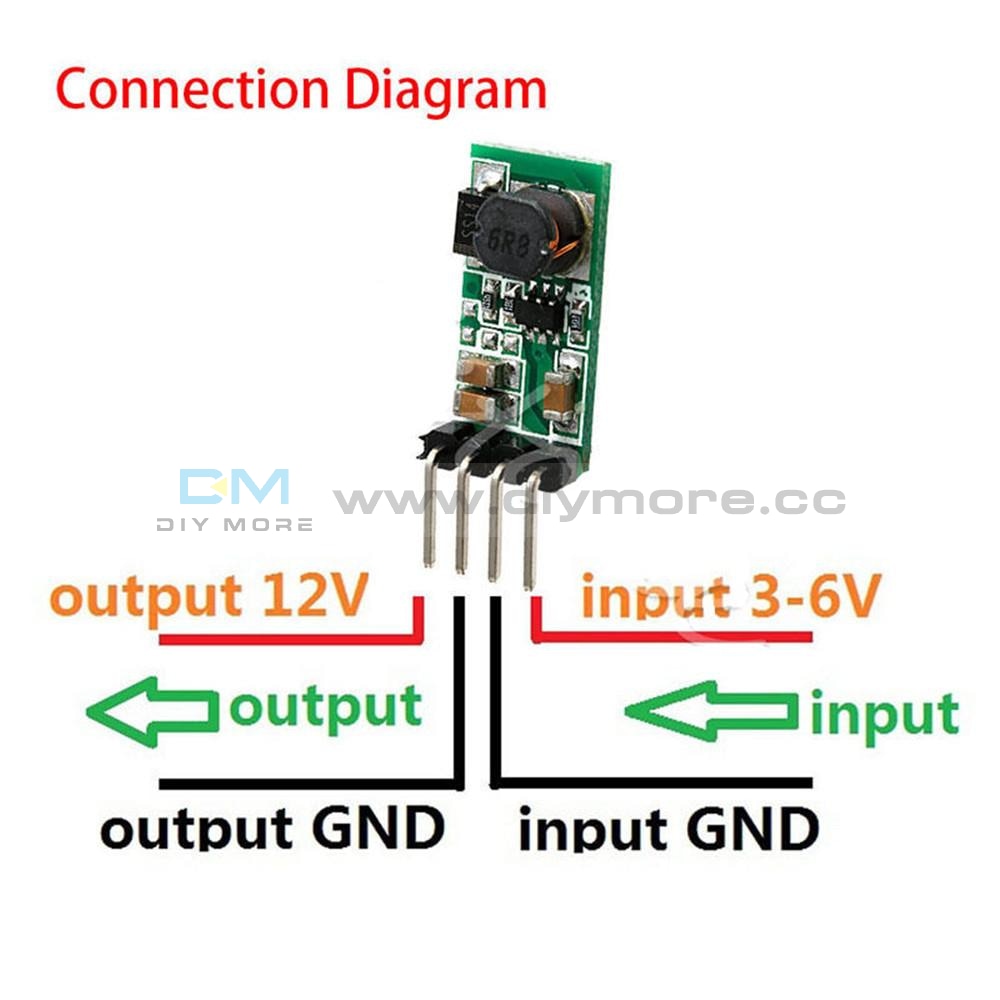

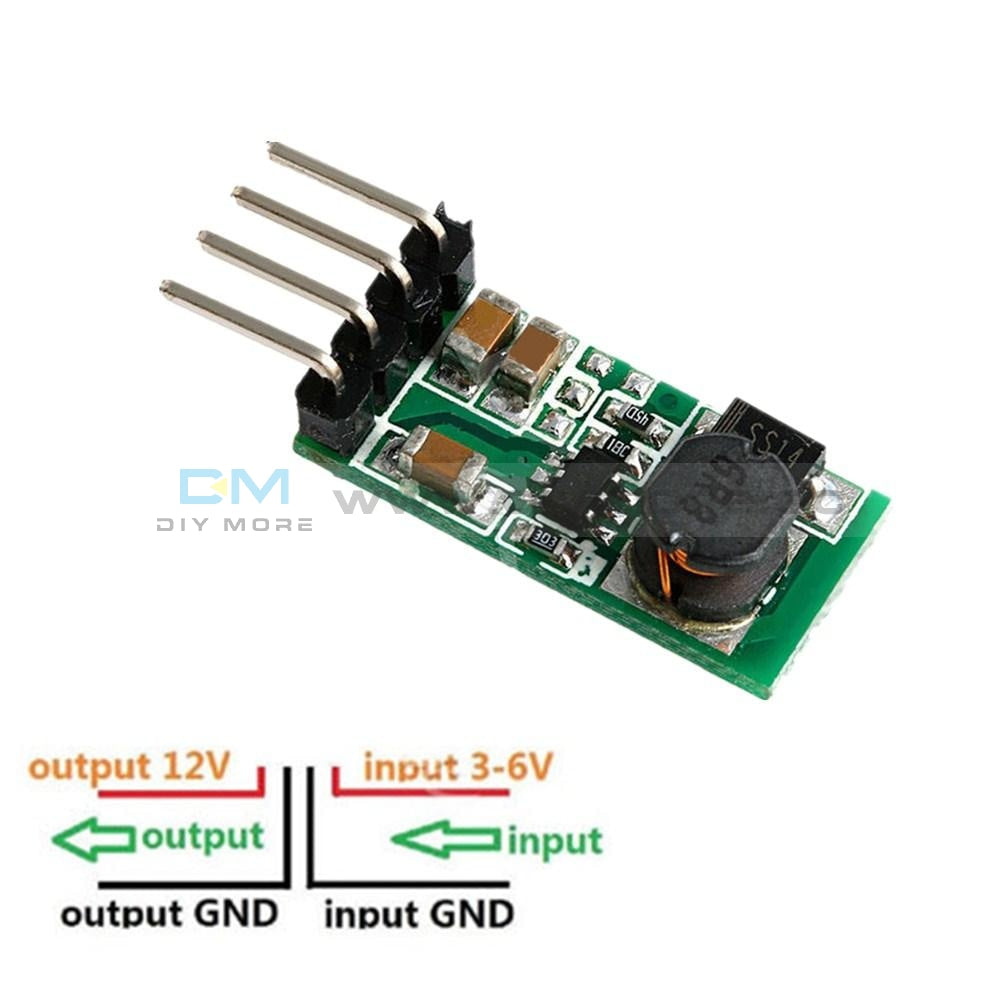

Wiring Diagram:
Features:
Start Voltage 2.8V, Output Current 50MA
Input 3V 1A; Output 12V 220MA
Input 3.3V 1A; Output 12V 250MA
Input 3.7V 1A; Output 12V 280MA
Input 4.5V 1A; Output 12V 340MA
Input 5V 1A; Output 12V 370MA
Input 6V 1A; Output 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC Modbus RS485
VCR
PDA
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Size(not include pin):(L*W) 2.05*1.00cm/0.81"*0.39"(Approx.)
Attention:
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Package Include:
1 x DC 3.3V 3.7V 5V 6V to 12V Boost Converter
Features:
- Input voltage 3~6V, output 12V
- Maximum input current : 1.2A
- Long-term work Current : 1A
- Conversion efficiency : 80-90%
- 1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A.
- But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 ℃.
- The power MOSFET wake up when the junction emperature drops 30 ℃ under the OTP threshold temperature
Start Voltage 2.8V, Output Current 50MA
Input 3V 1A; Output 12V 220MA
Input 3.3V 1A; Output 12V 250MA
Input 3.7V 1A; Output 12V 280MA
Input 4.5V 1A; Output 12V 340MA
Input 5V 1A; Output 12V 370MA
Input 6V 1A; Output 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC Modbus RS485
VCR
PDA
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Size(not include pin):(L*W) 2.05*1.00cm/0.81"*0.39"(Approx.)
Attention:
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Package Include:
1 x DC 3.3V 3.7V 5V 6V to 12V Boost Converter
