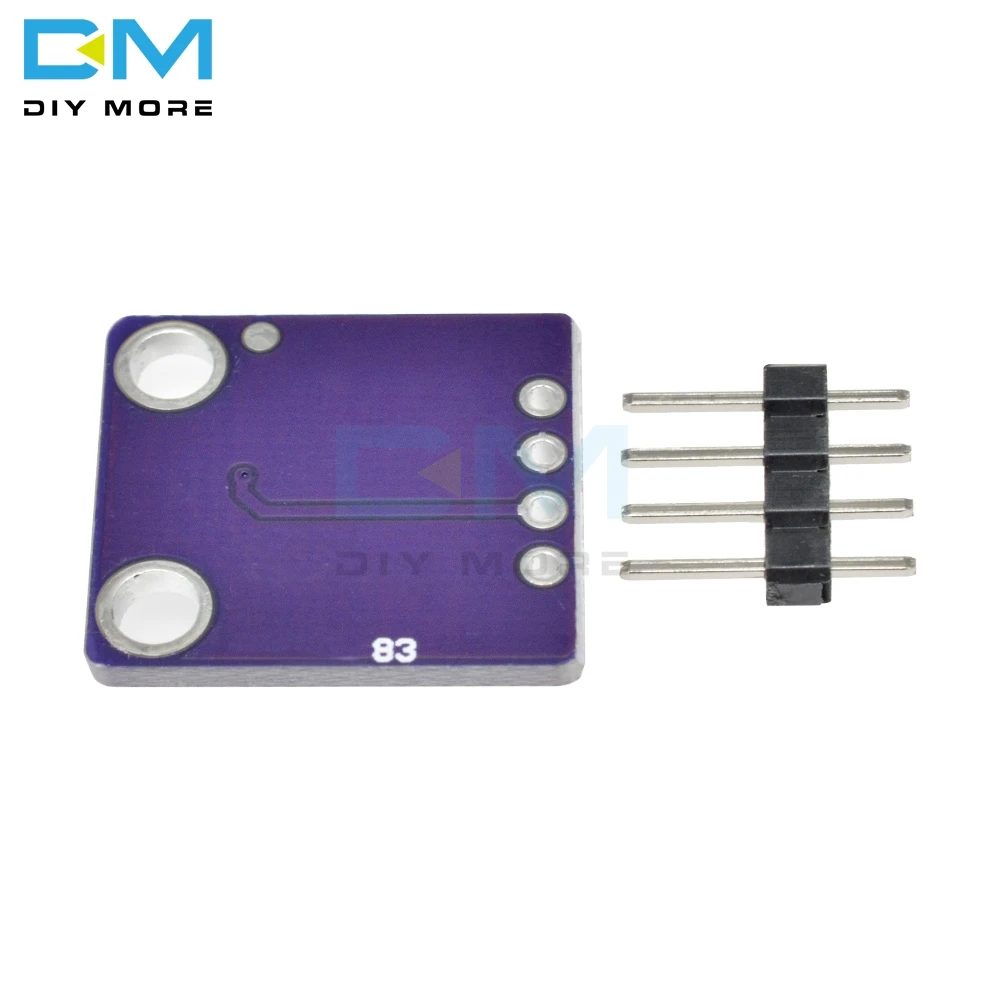

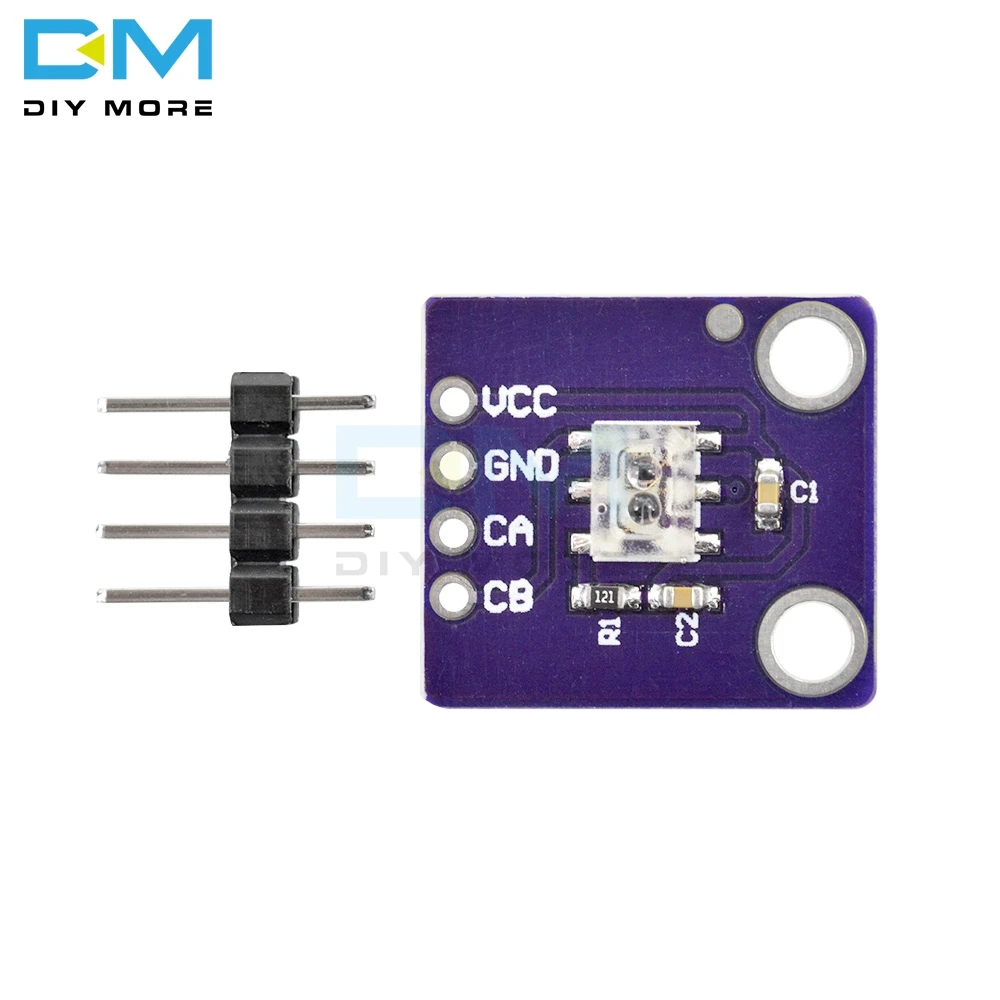

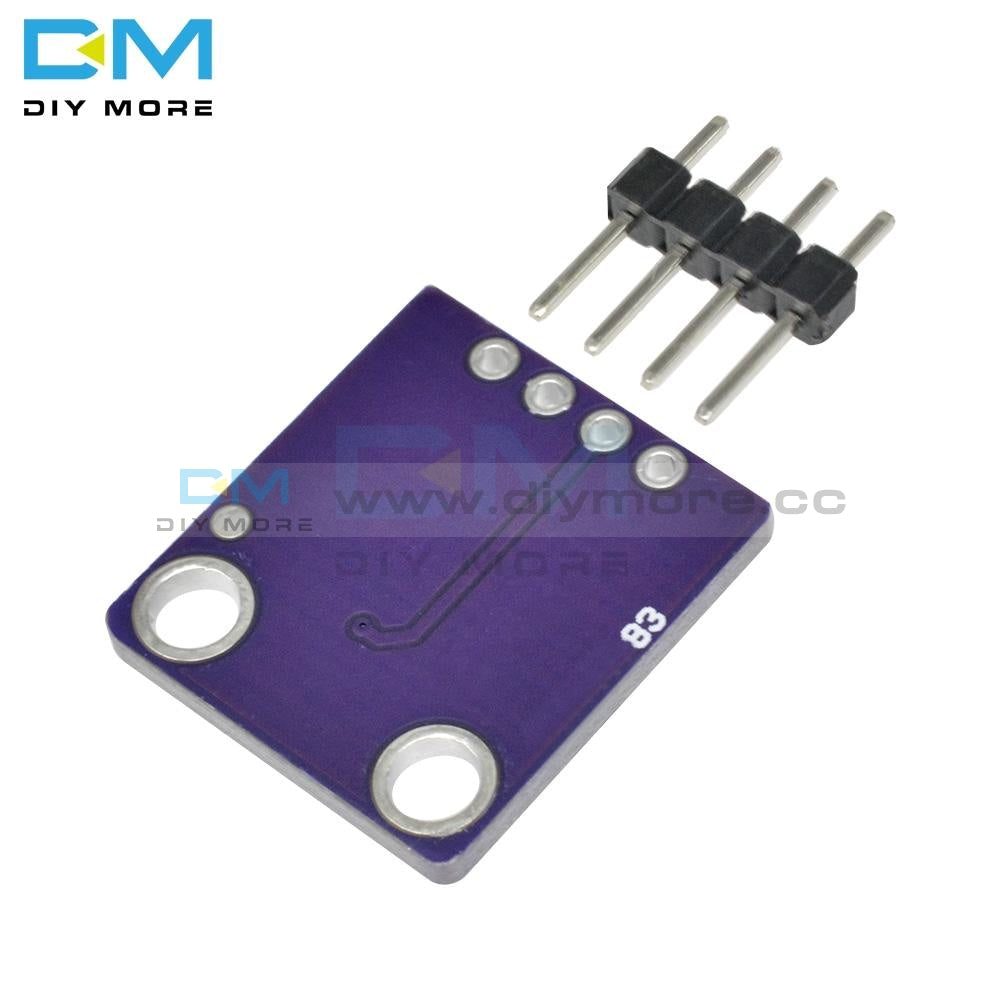

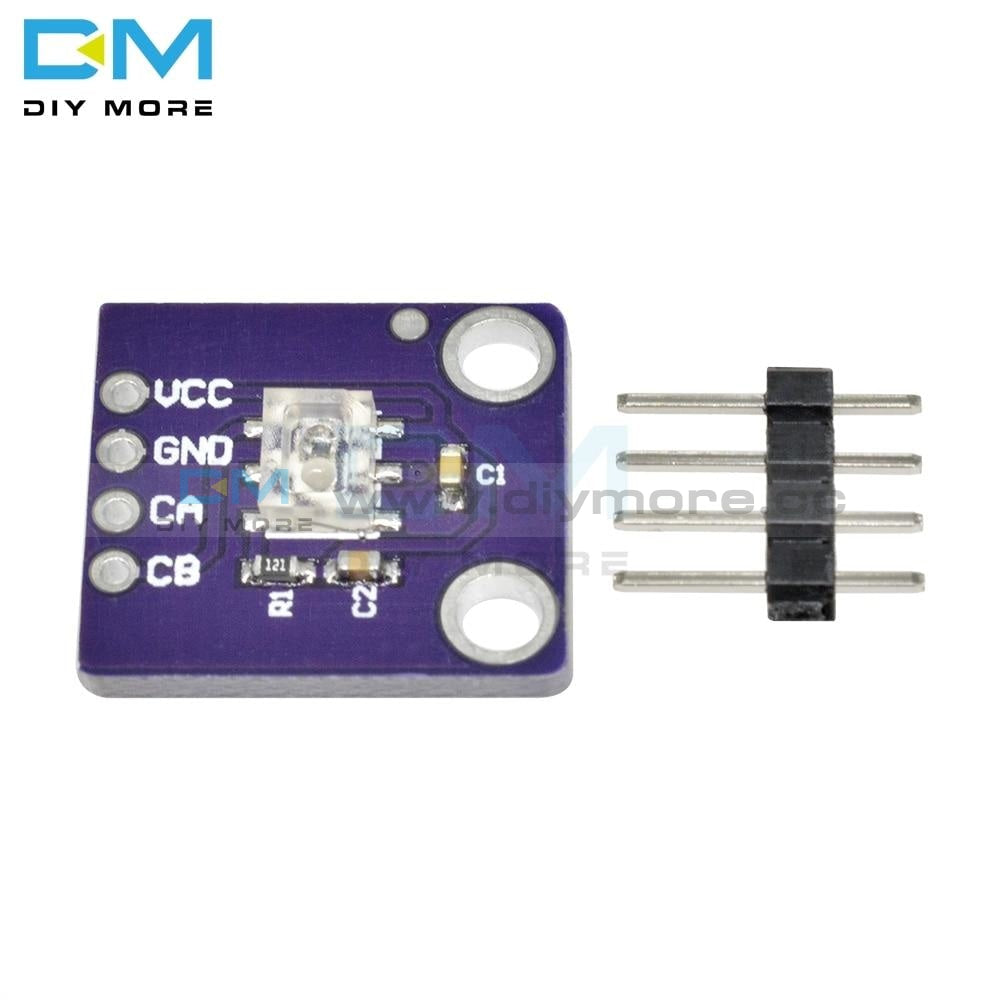

DC 4.5V-5.5V CJMCU-83 AEDR-8300 2 Channel Optical Encoder Module Encoder Reflective Two Channels Optical Encoder Winder 15KHz
DC 4.5V-5.5V CJMCU-83 AEDR-8300 2 Channel Optical Encoder Module Encoder Reflective Two Channels Optical Encoder Winder 15KHz
SKU:X13760
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features
The AEDR-8300 is currently the smallest optical encoder product for motion control applications using reflective technology. When used with a code wheel or linear bar, it can convert rotary or linear motion into a digital output. It consists of an LED illumination source, a detection IC with a photodiode, and a lens.
The AEDR-8300 Series can output TTL level compatible quadrature signals, so it can interface directly with most signal processing circuits.
• Reflective technology
• Surface mount small outline
Leadless package
• Single channel incremental output
• Two channel quadrature for for
Direction sensing
• TTL compatible output
• Single 5V supply
• -20oC to 85oC absolute operating
Temperature
• Encoding resolution options:
36, 75, 150, 180 (lines / inch) or
1.42, 2.95, 5.91, 7.09 (lines / mm)
Product Parameters
Module supply voltage: DC4.5V-5.5V
Working environment temperature: 0 °C ~ 85 °C
Maximum counting frequency: 15KHz Counting frequency = speed (r/m) * N / 60
Module size: 18.5mm*16.4mm*3.45mm with two M3 mounting holes
