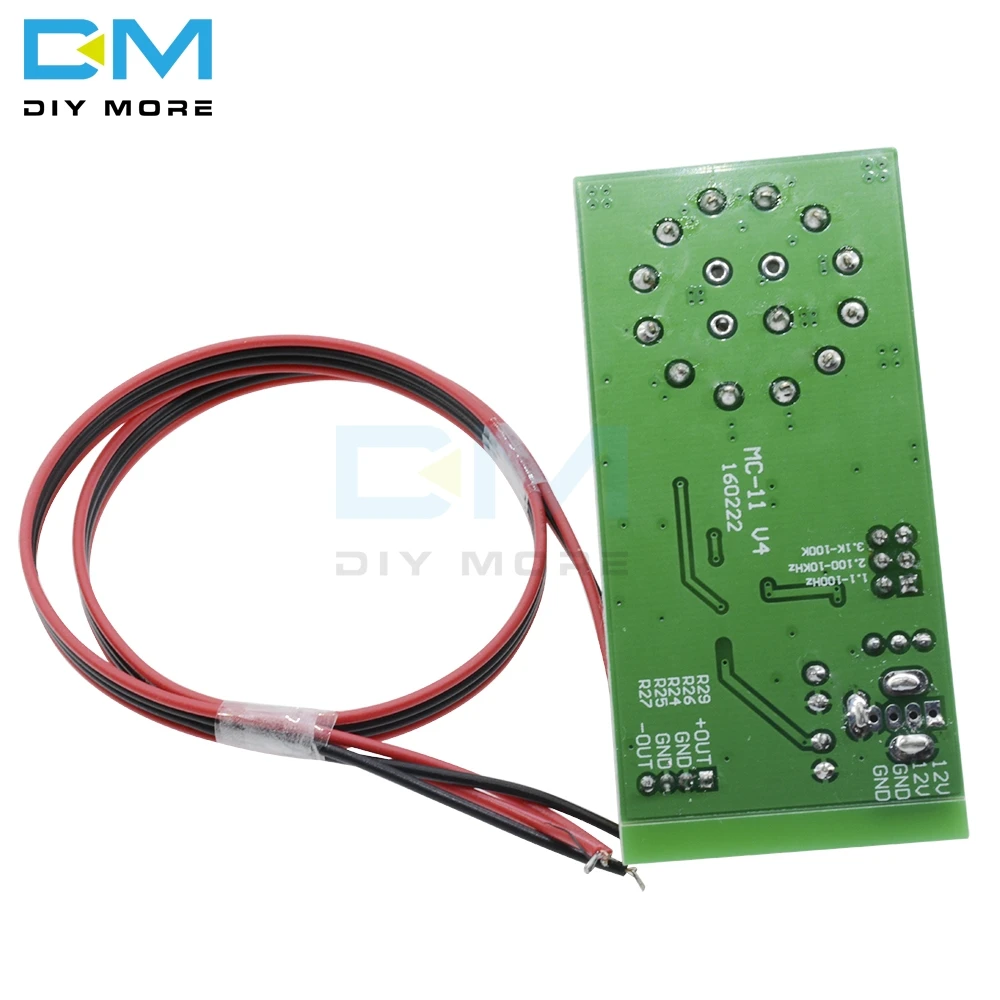

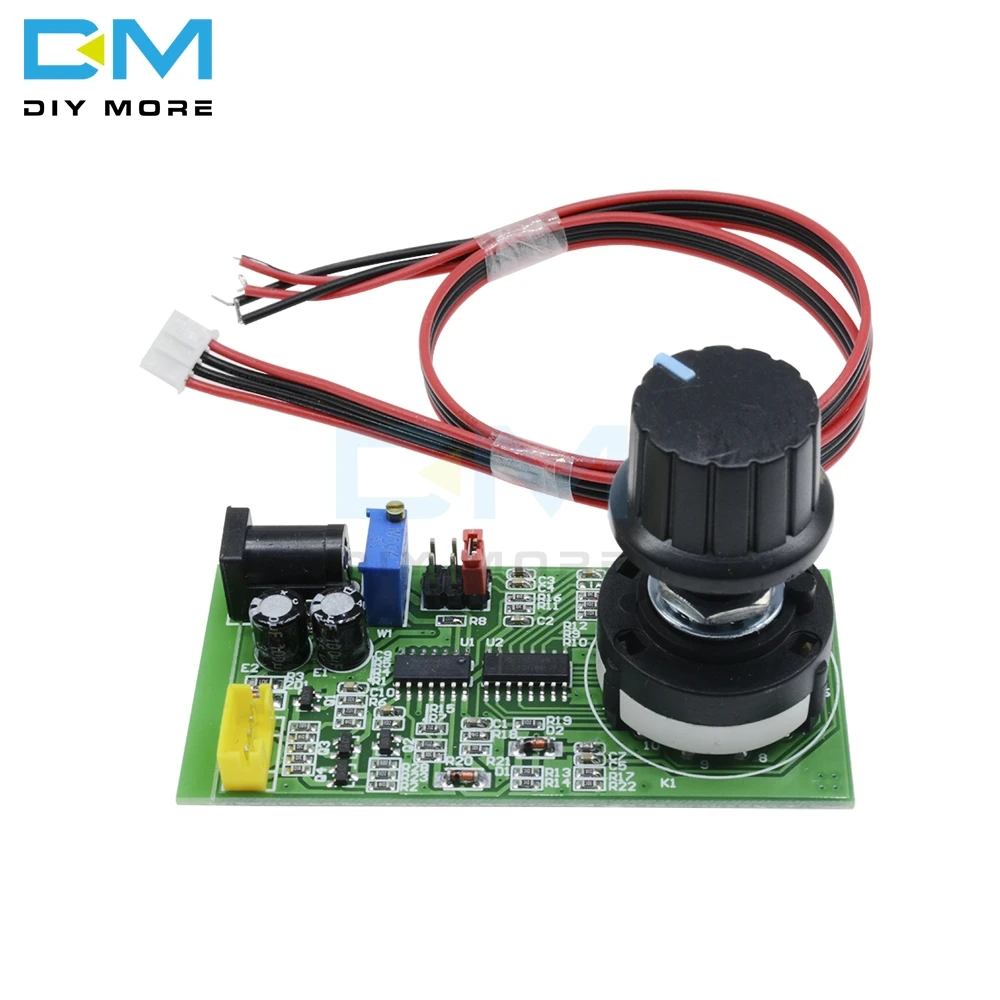

DC 5V 12V 1Hz-100KHz Frequency Modulation Signal Source Pulse Polarity Output PWM Square Wave Generator Module Control Board
DC 5V 12V 1Hz-100KHz Frequency Modulation Signal Source Pulse Polarity Output PWM Square Wave Generator Module Control Board
SKU:012277
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
Size:3.5x7cm
Power Supply:DC 5-12V
Pulse Output Signal Amplitude: 5-12 Vpp 50mA (pulse amplitude is less than the input voltage 0.3V)
Output Pulse Polarity:
Positive Pulse Output (from low to high rise + OUT)
Negative Pulse Output (dropped from high to low -OUT)
Frequency Adjustment Range:
1Hz—100Hz
100Hz—10KHz
1KHz—100KHz
Pulse Width Modulation: A total of 11 stalls
0 output low, off state
1-9 output were 10% -90%
10 output high. Normally open
(Such as the selection of a negative output, the function of all the contrary)
Apply For:a square wave signal generator, frequency source,and a variety of needs and frequency modulation
use the pulse width control device
Package:
1 * 1Hz-100KHz DC 5-12V Frequency Signal Source Pulser PWM Square-wave Generator
