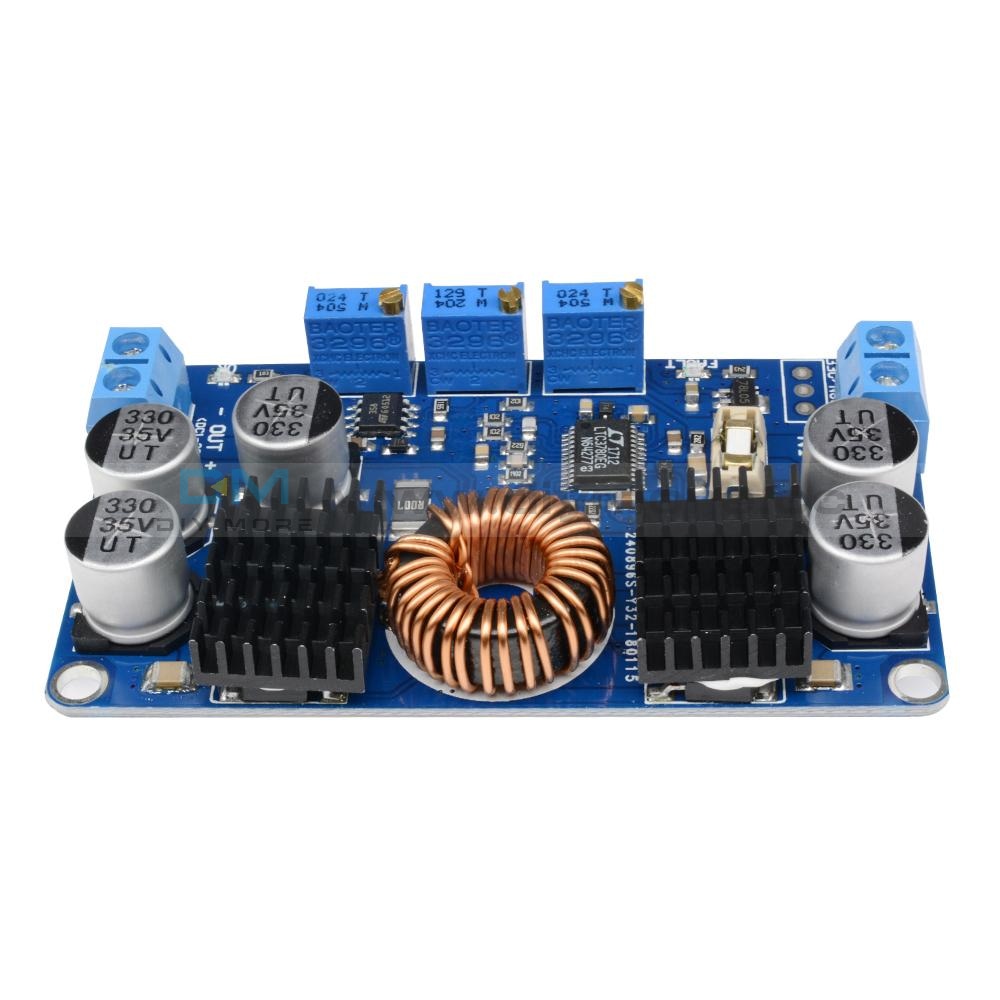

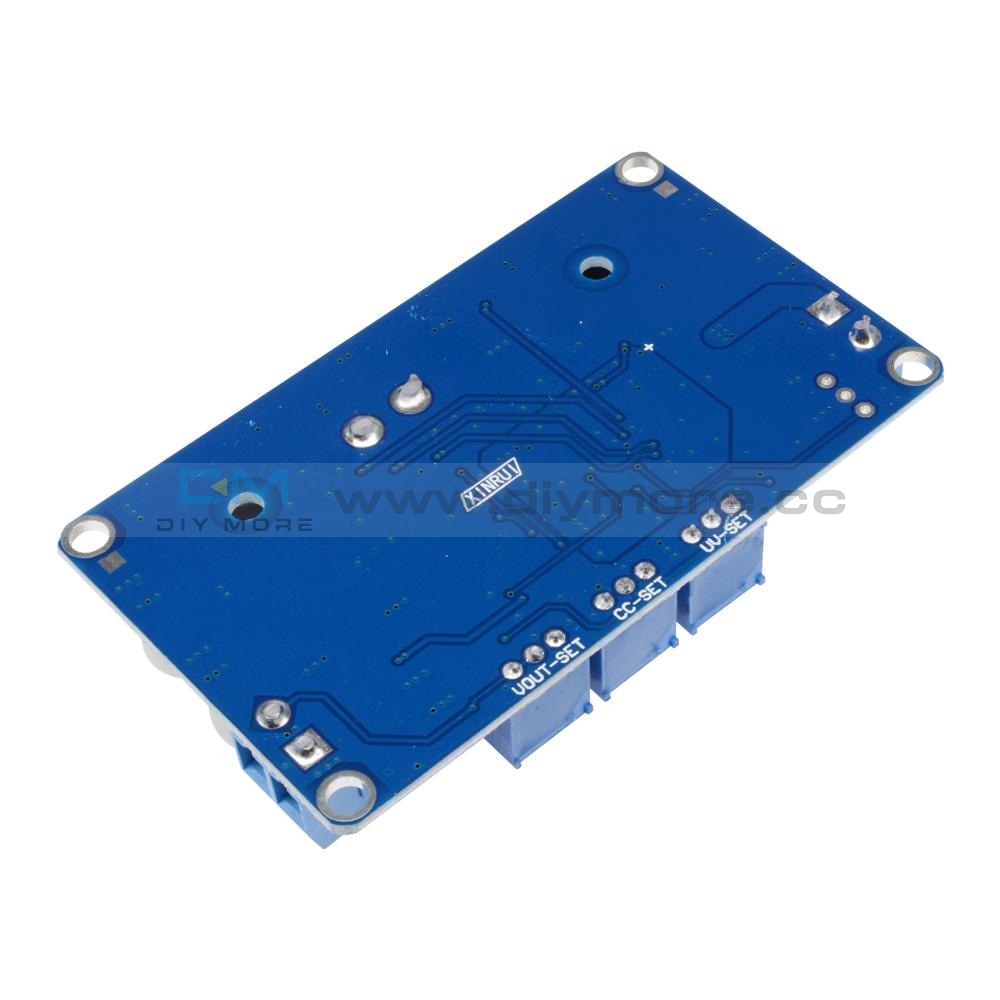

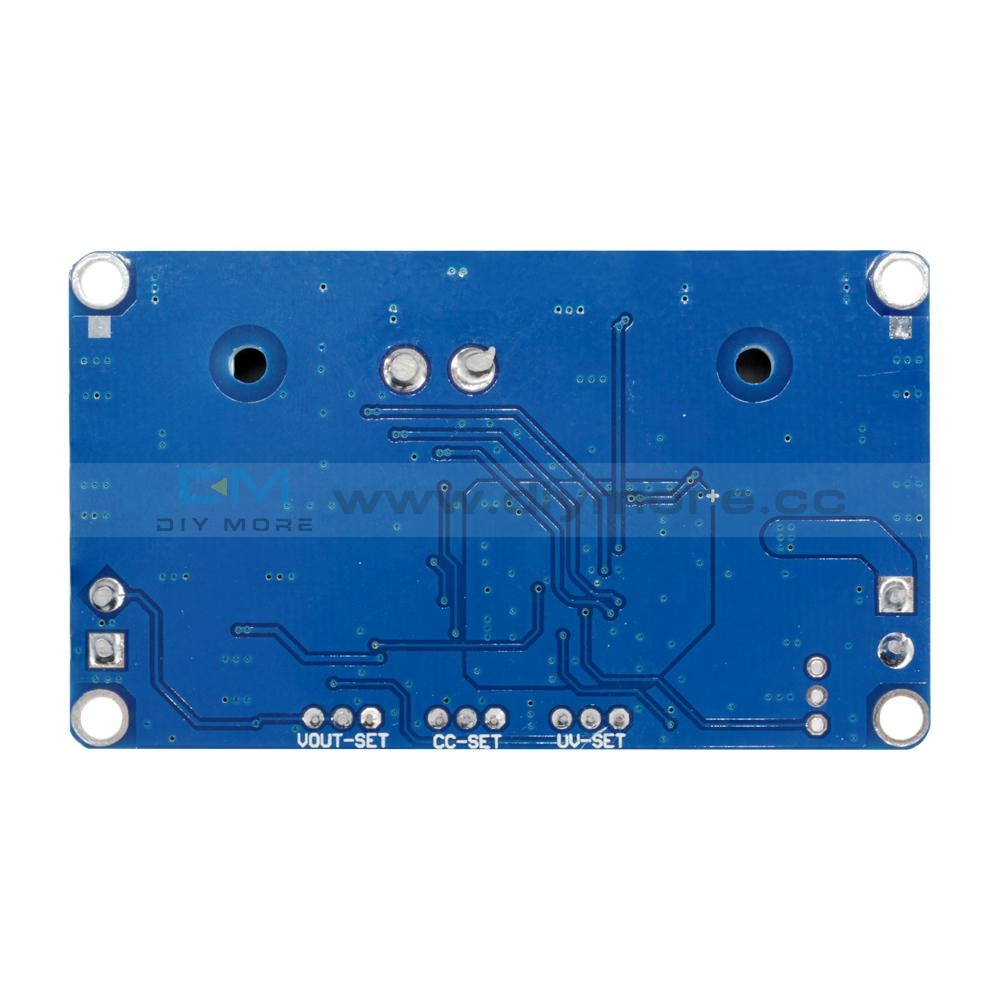

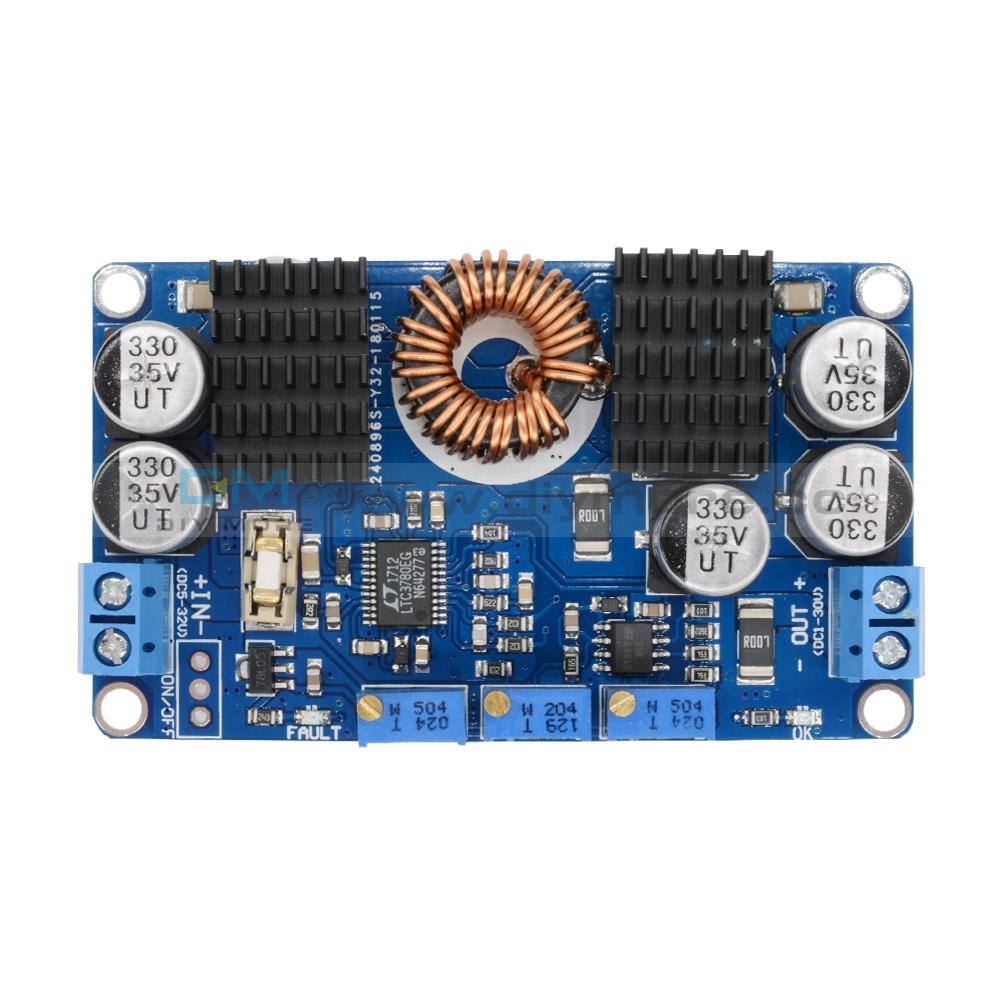

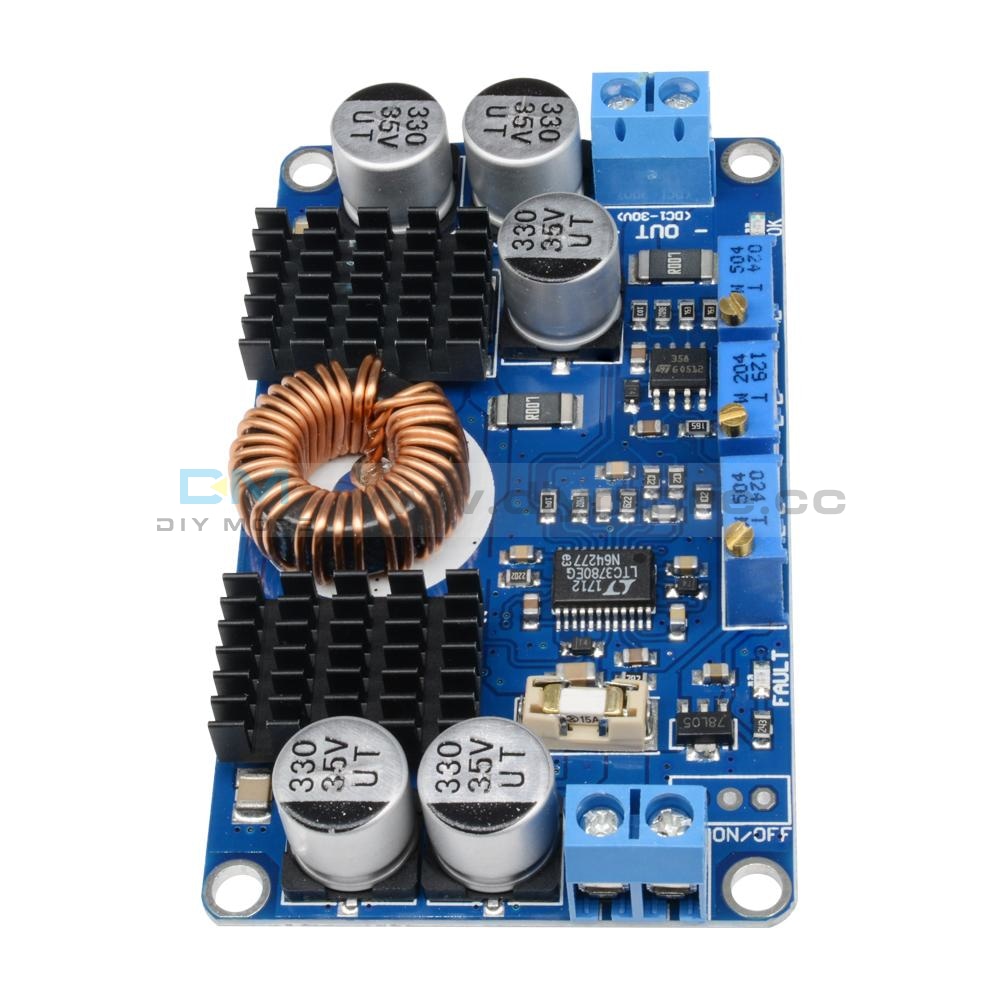

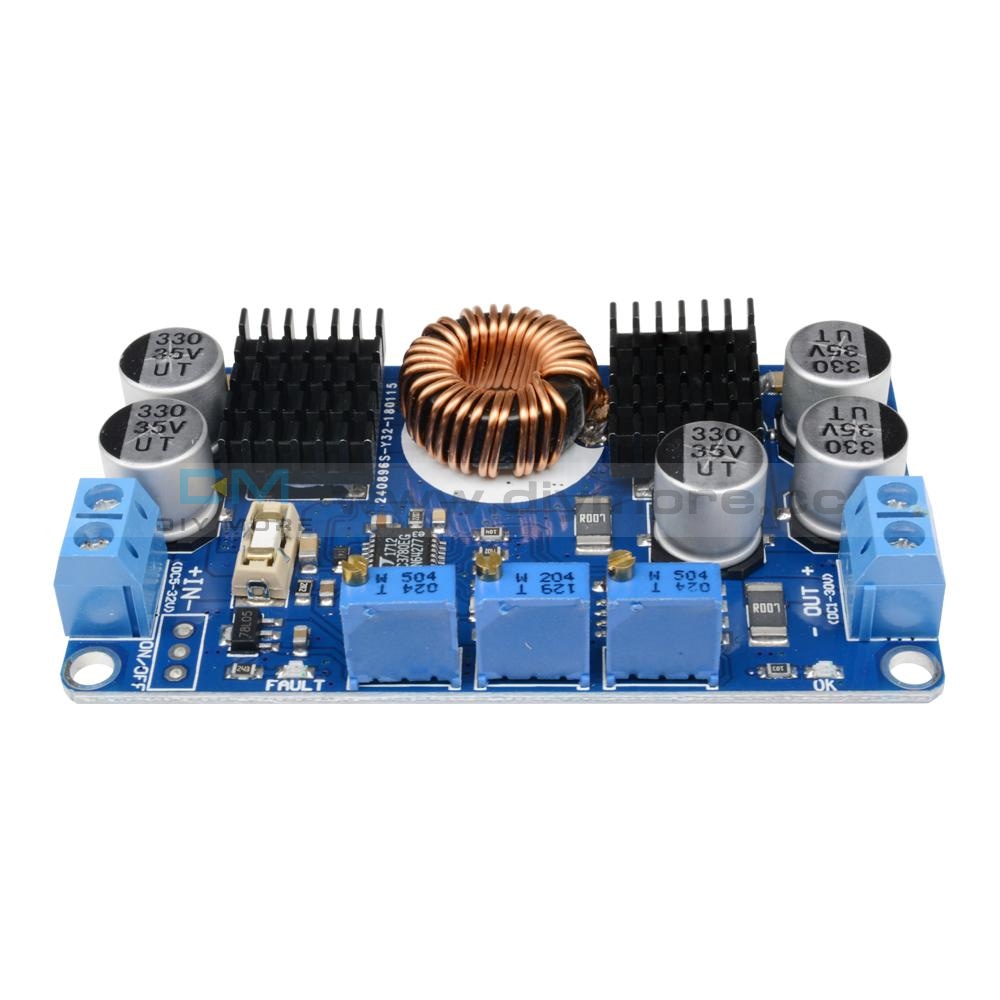

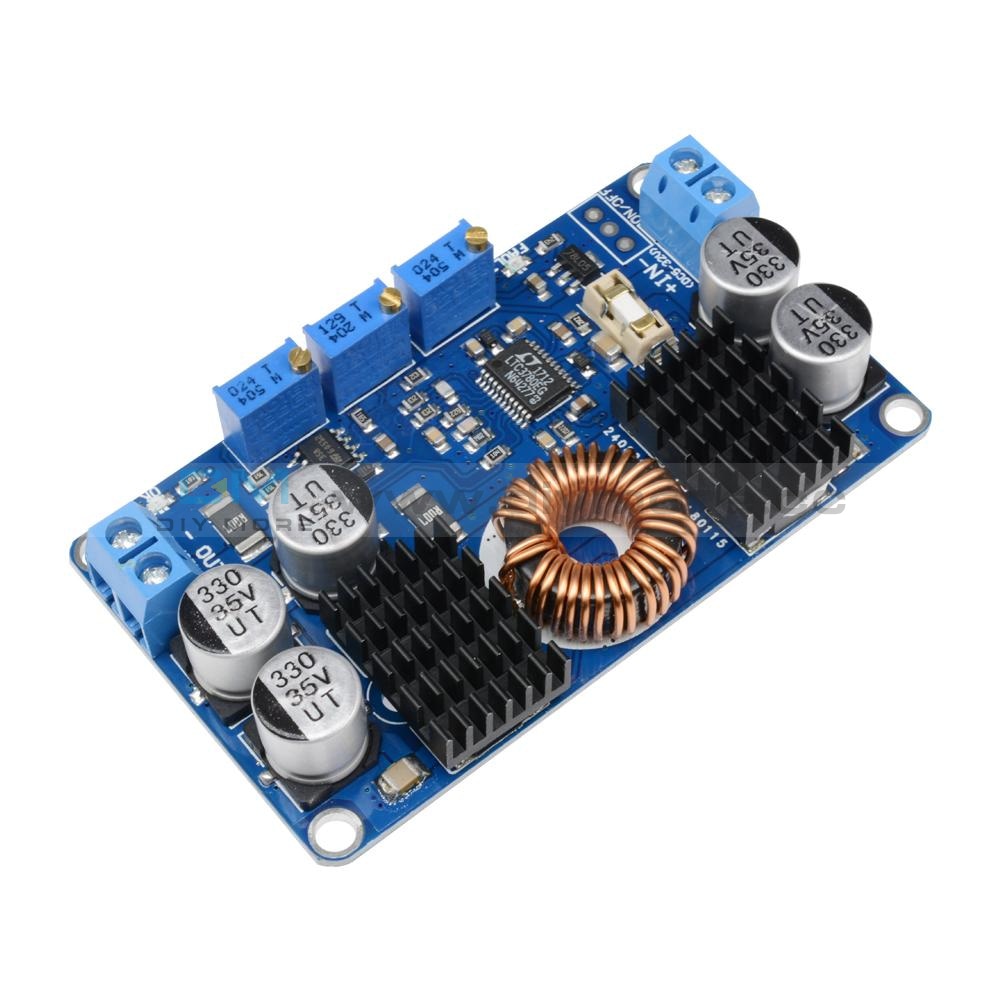

DC 5V-32V to 1V-30V 10A LTC3780 Automatic Step Up Down Regulator Charging Module

DC 5V-32V to 1V-30V 10A LTC3780 Automatic Step Up Down Regulator Charging Module

SKU:011083
Regular price $11.59

shipped within one bussiness day

Descriptions:
  • The power supply is a kind of high-efficiency voltage automatically regulator.
  • Whatever is the input voltage value,the output voltage can be maintained constant.
  • For example,set the output to 12V, then the variation of the input voltage in the range of 5-32V,
  • the output voltage in the 12V invariant.
  • This module has a perfect protection function, and can be widely used in notebook power,
  • vehicle power supply, solar charge etc.

Advantages:
  • The input uses replaceable fuse to protect power supply and equipment;
  • The whole electrolysis use patch, low resistance, high frequency capacitor
  • ,to make the ripple down to the freezing point;
  • Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging)
  • The output has error indicating lamp,it will light when the output voltage drift too serious,
  • short circuit and other fault;
  • Inductor use iron silicon aluminum, 0.8 double winding, generate less heat.

Parameters:
  • Input voltage: DC5-32V;
  • Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
  • Output current: 10A (MAX) ,long term within 8A
  • Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
  • Output ripple: 50mV (12V turn to 12V, 5A measured)
  • Short circuit protection:YES
  • Input reverse connection protection: No
  • Output prevent reverse connection protection: No
  • Operating temperature range: -45 ~ +85 ℃

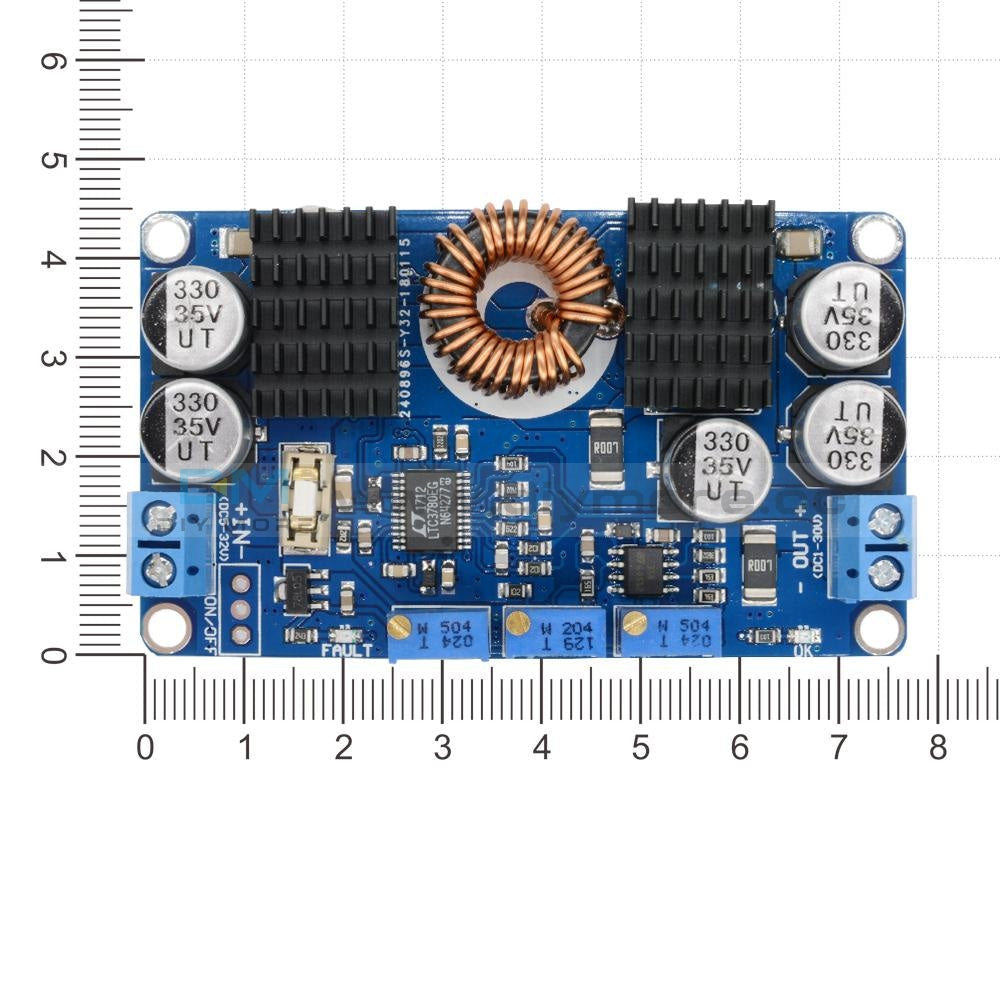

  • Size: 77.6*46.5*15mm (including the bottom surface of the radiating aluminum)

Package Included:
1*LTC3780 10A Automatic Step Up Down Module
