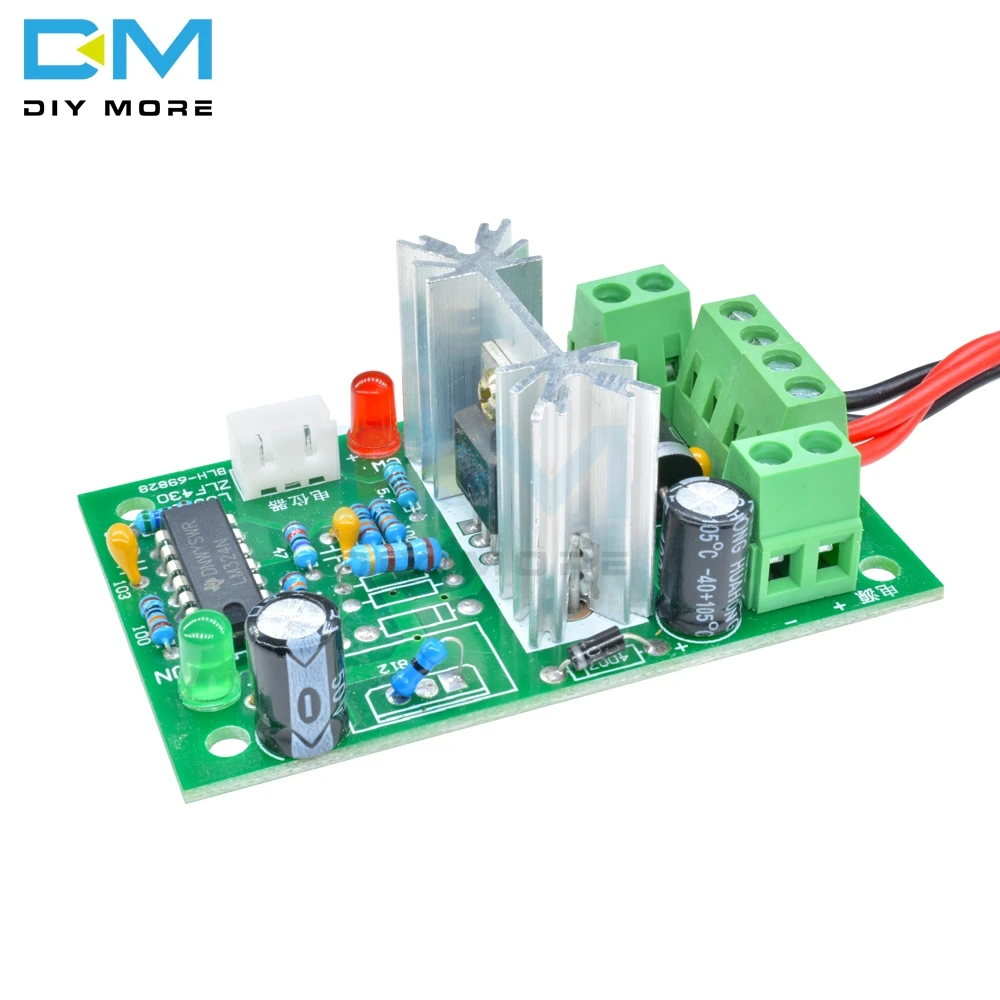

DC 6-30V 6A Motor Speed Controller Reversible PWM Control Forward/Reverse Switch Board 6V-30V 12V 24V Max 10A Module

Dc 6-30V 6A Motor Speed Controller Reversible Pwm Control Forward/reverse Switch Board 6V-30V 12V

DC 6-30V 6A Motor Speed Controller Reversible PWM Control Forward/Reverse Switch Board 6V-30V 12V 24V Max 10A Module

SKU:010587
Regular price $3.21

shipped within one bussiness day







Specification:

Brand new, Unused, High quality
Material: Plastic, metal
High efficiency, high torque, low heat generating
Control the speed of a DC motor with this controller
With reverse polarity protection, high current protection
Input: DC 6~30V
Output: Max 80W
PWM range: 10% ~ 95%
Current: Max 10A (Recommend you to use in 6A)
With potentiometer

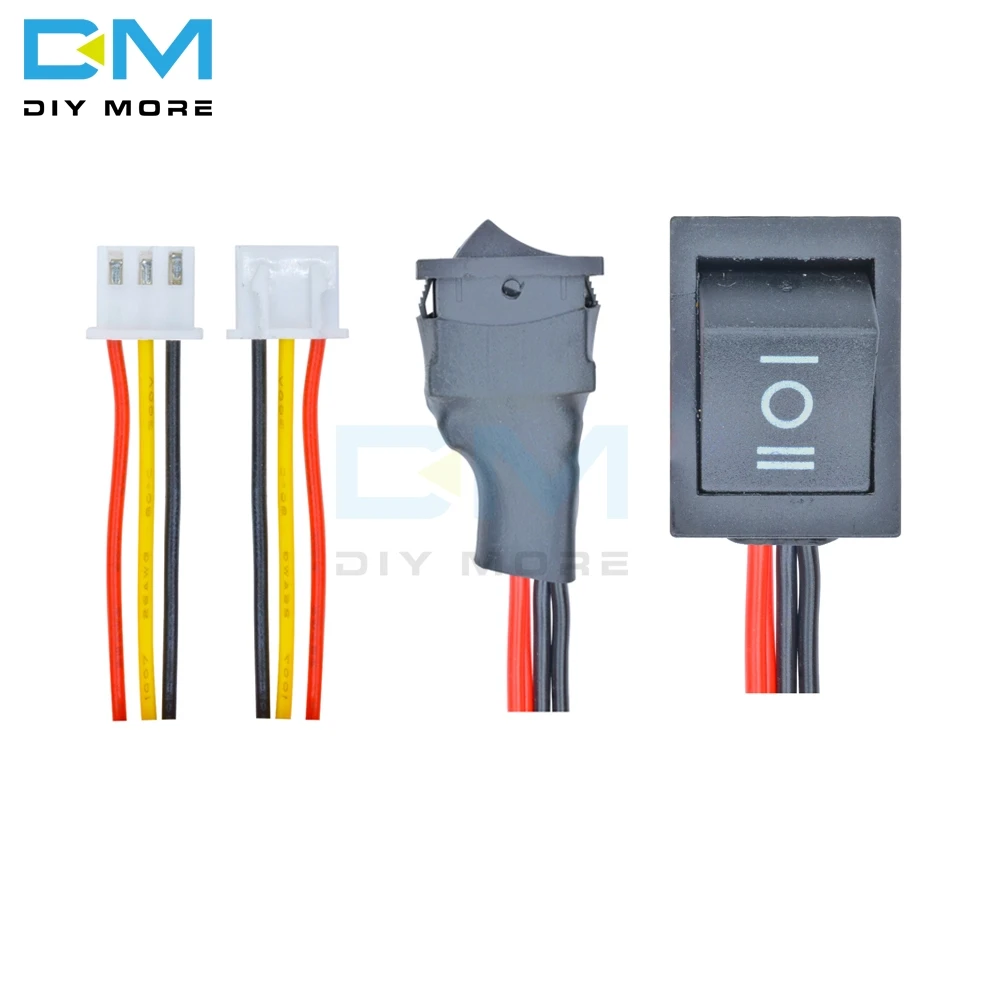

With reversible switch
All tested before shipment


Operating Instruction:

1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a DC power supply(the DC supply voltage range is more than 6V and less than 30V). Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged.
2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent with the expectative one, you can adjust the sequence of lines or switch position to change the direction.
3. Adjust the switch. Positive inversion switch is used to control the motor speed direction. When the switch is located on the zero position, the motor stops rotating.
4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output duty ratio of the regulator, then motor speed change.


Package Included:

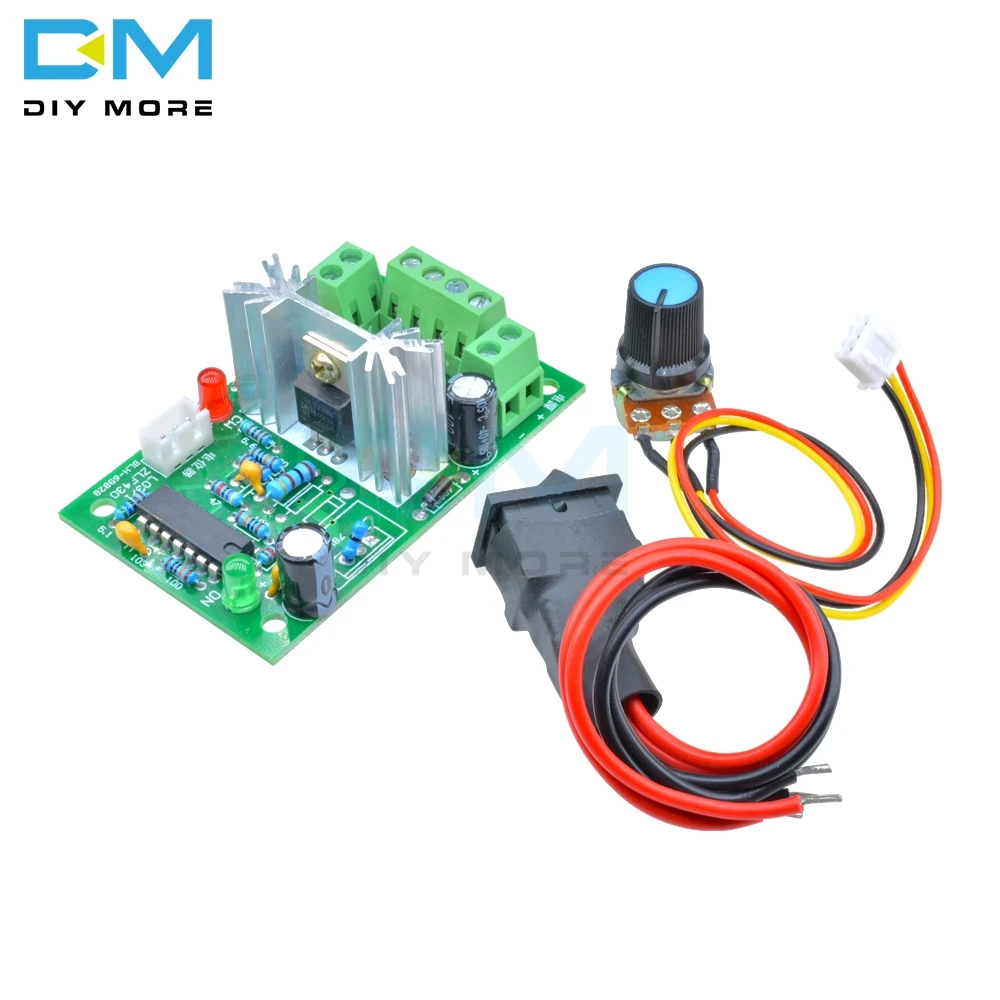

1 x 6-30V DC Motor Speed Controller Reversible PWM Control Forward Reverse Switch











trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155







Specification:

Brand new, Unused, High quality
Material: Plastic, metal
High efficiency, high torque, low heat generating
Control the speed of a DC motor with this controller
With reverse polarity protection, high current protection
Input: DC 6~30V
Output: Max 80W
PWM range: 10% ~ 95%
Current: Max 10A (Recommend you to use in 6A)
With potentiometer
With reversible switch
All tested before shipment


Operating Instruction:

1. Connect it to the power, ensure the positive inversion switch located in the middle of the zero, and connected with a DC power supply(the DC supply voltage range is more than 6V and less than 30V). Warning: do not reverse the positive and negative terminals of DC power source, otherwise regulator may be damaged.
2. Connect it to the motor, the motor line can be positive or negative, when the running direction is not consistent with the expectative one, you can adjust the sequence of lines or switch position to change the direction.
3. Adjust the switch. Positive inversion switch is used to control the motor speed direction. When the switch is located on the zero position, the motor stops rotating.
4.Adjust the potentiometer knob. Adjusting potentiometer knob can change output duty ratio of the regulator, then motor speed change.


Package Included:

1 x 6-30V DC Motor Speed Controller Reversible PWM Control Forward Reverse Switch
