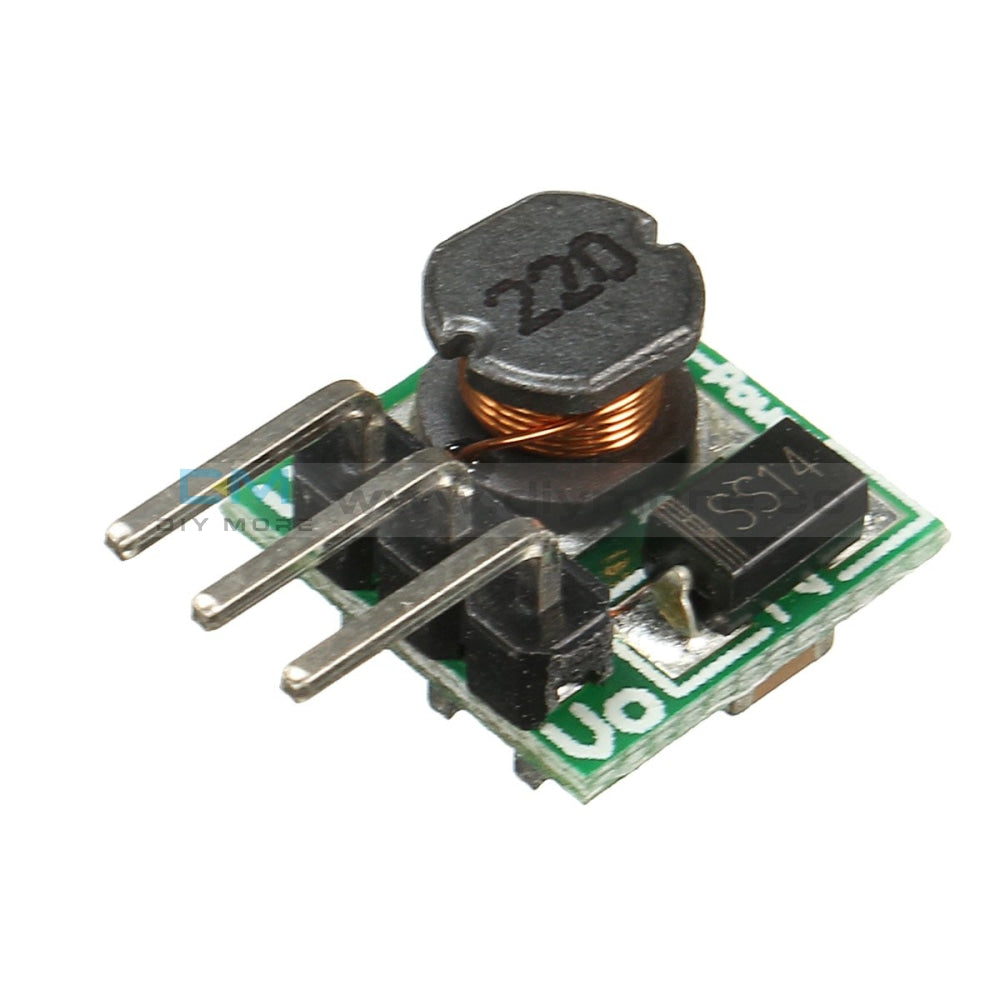

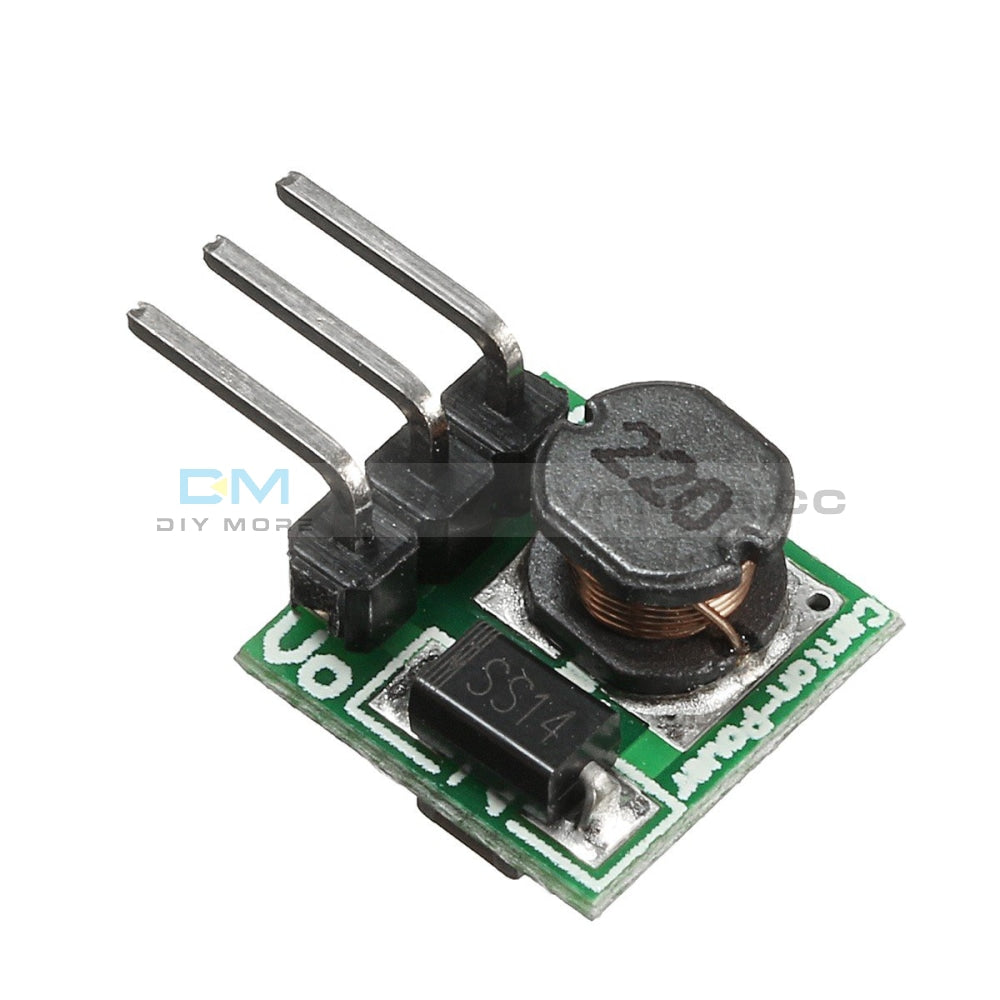

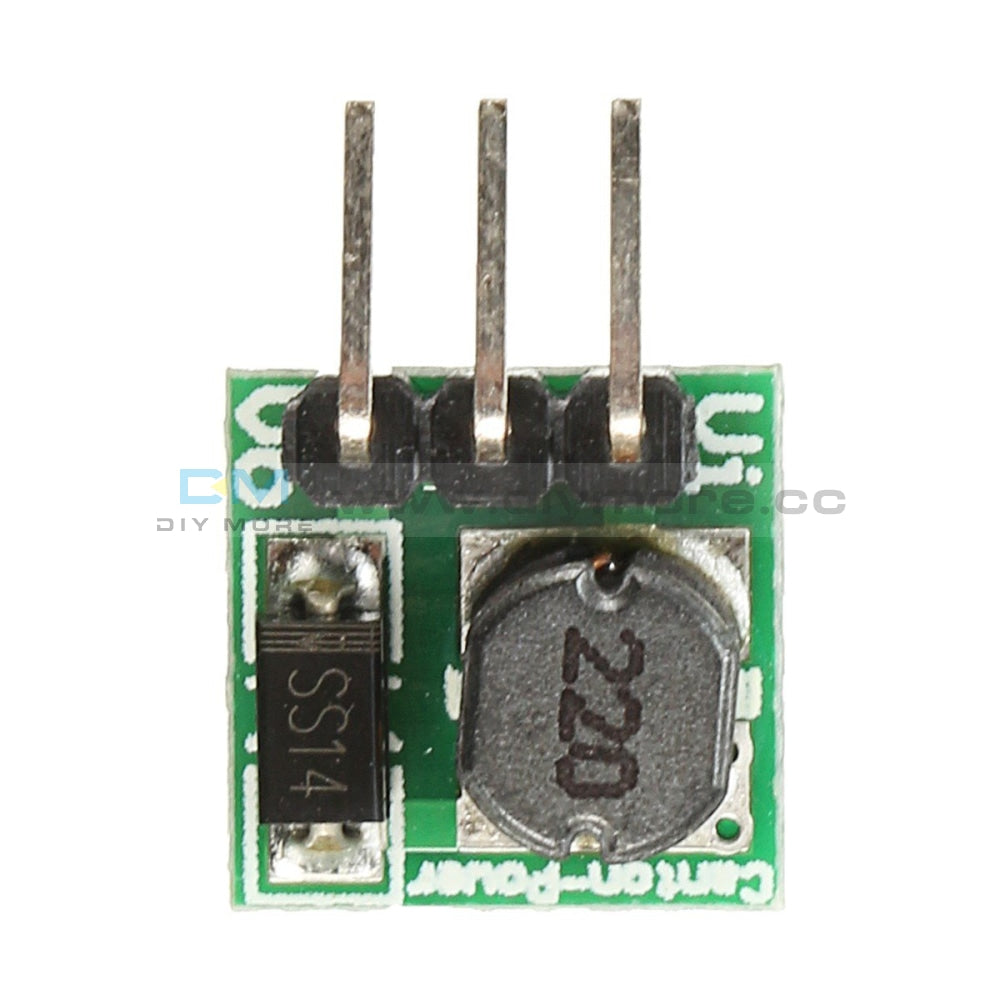

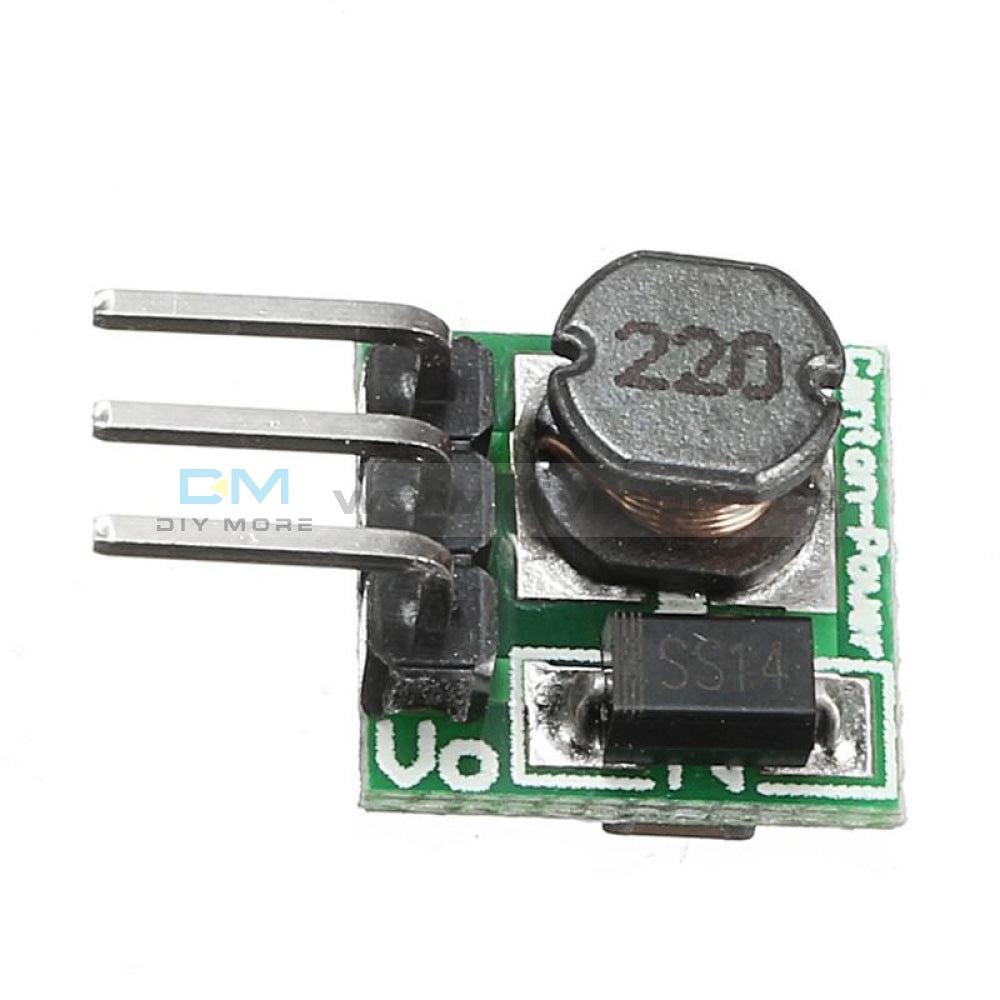

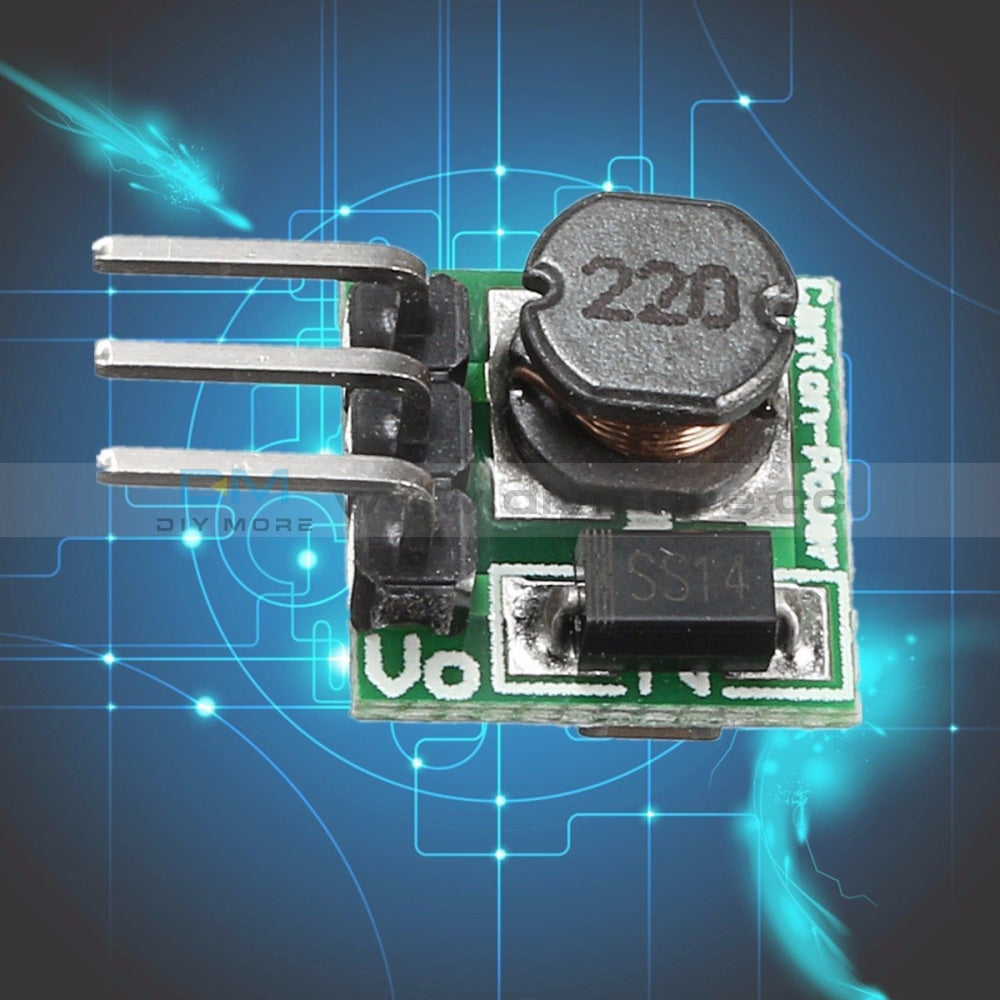

DC-DC 0.8-3.3V to 3.3V Step up Boost Power Module Voltage Converter Mini Arduino
DC-DC 0.8-3.3V to 3.3V Step up Boost Power Module Voltage Converter Mini Arduino
SKU:012305
Regular price
$3.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Technical specifications:
Attention:
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than output power, because the power consumption of the module itself
Package Included:
1x 3.3V Set Up Boost Power Module
- Size: approx. 1x1x0.7 cm / 0.39x0.39x0.28 ''
- Pin Pitch: 2.54mm / 0.1 "
- Input voltage: 0.8-3.3 V
- Output voltage: 3.3 V
- Maximum Exit Current: 500 MA
- Voltage Start: 0.8 V, Output Current: 10mA
- Input:1-1.5 V; output: 3.3 V, 50-110mA
- Input:1.5-2 V; output: 3.3 V, 110-160mA
- Input: 2-3 V; output: 3.3 V, 160-400mA
- Input greater than 3 V, output 3.3 V 400-500mA
- Module Boost dc-dc working frequency 150 kHz, efficiency is normal 85%
Attention:
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than output power, because the power consumption of the module itself
Package Included:
1x 3.3V Set Up Boost Power Module
