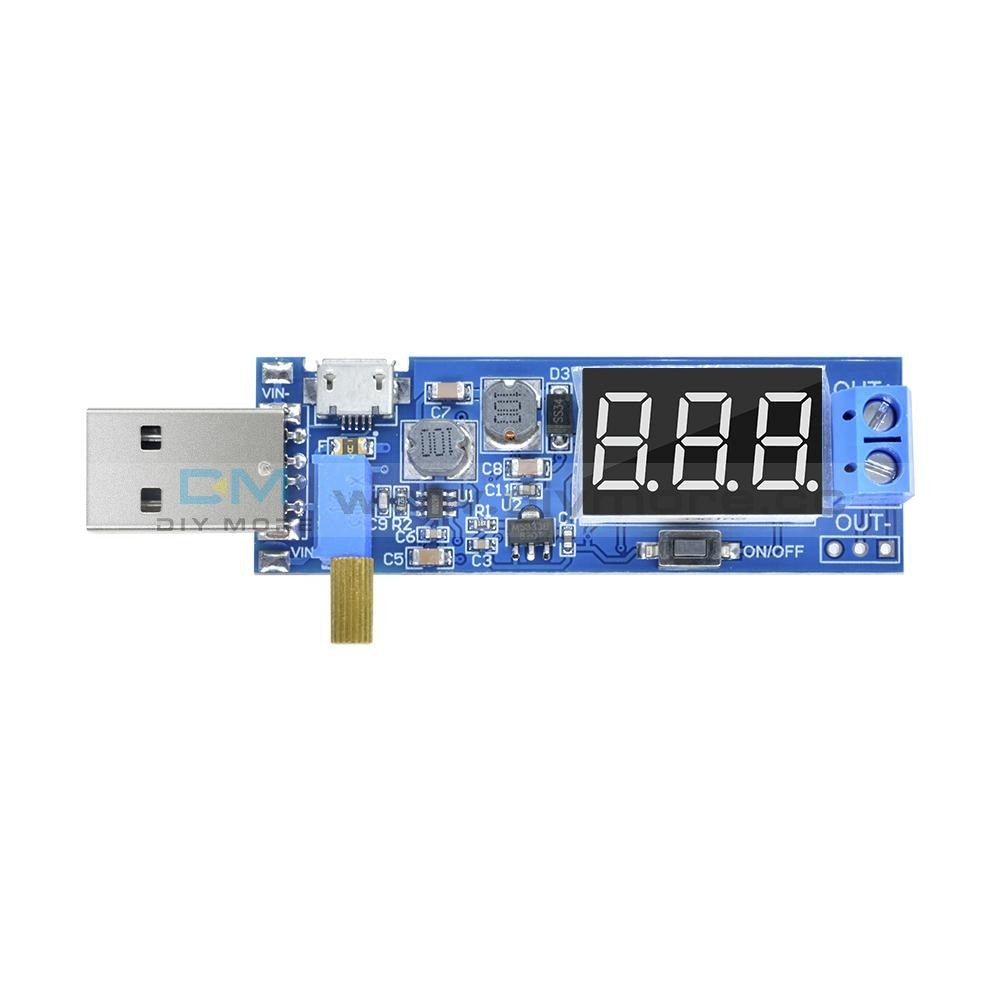

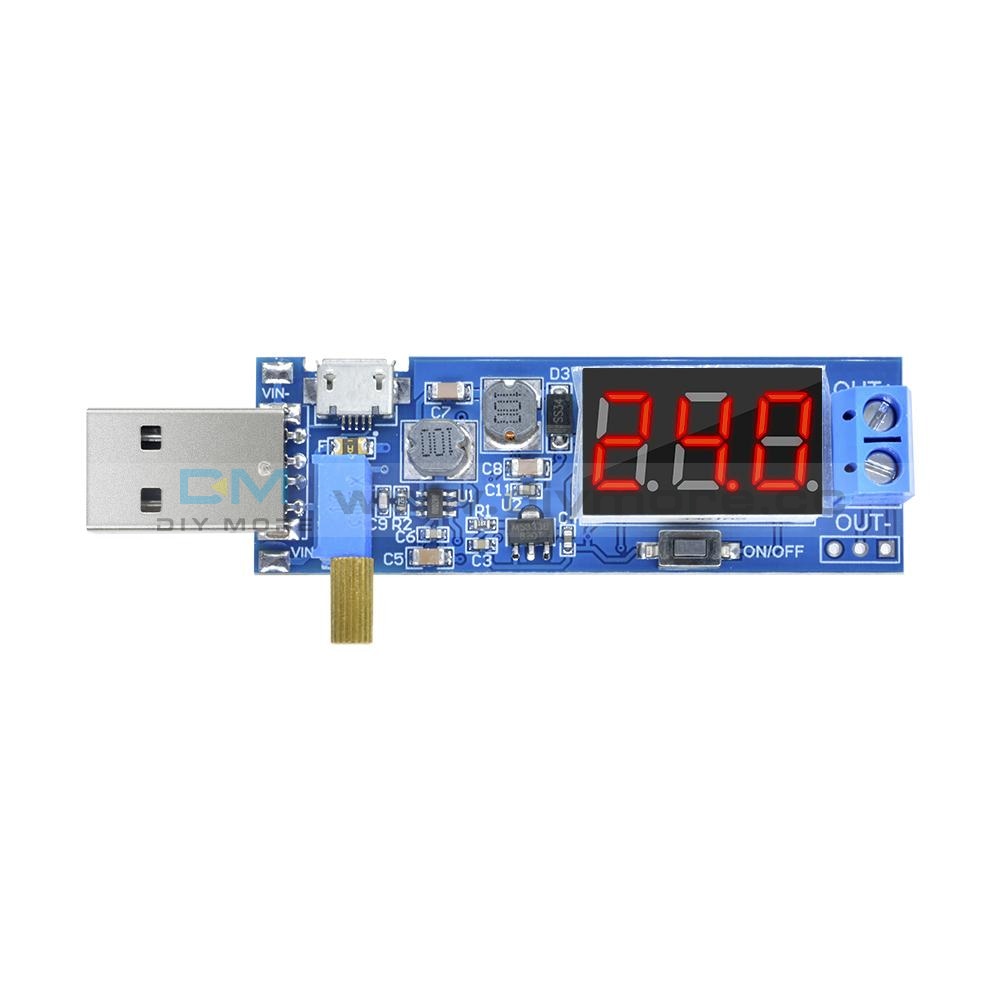

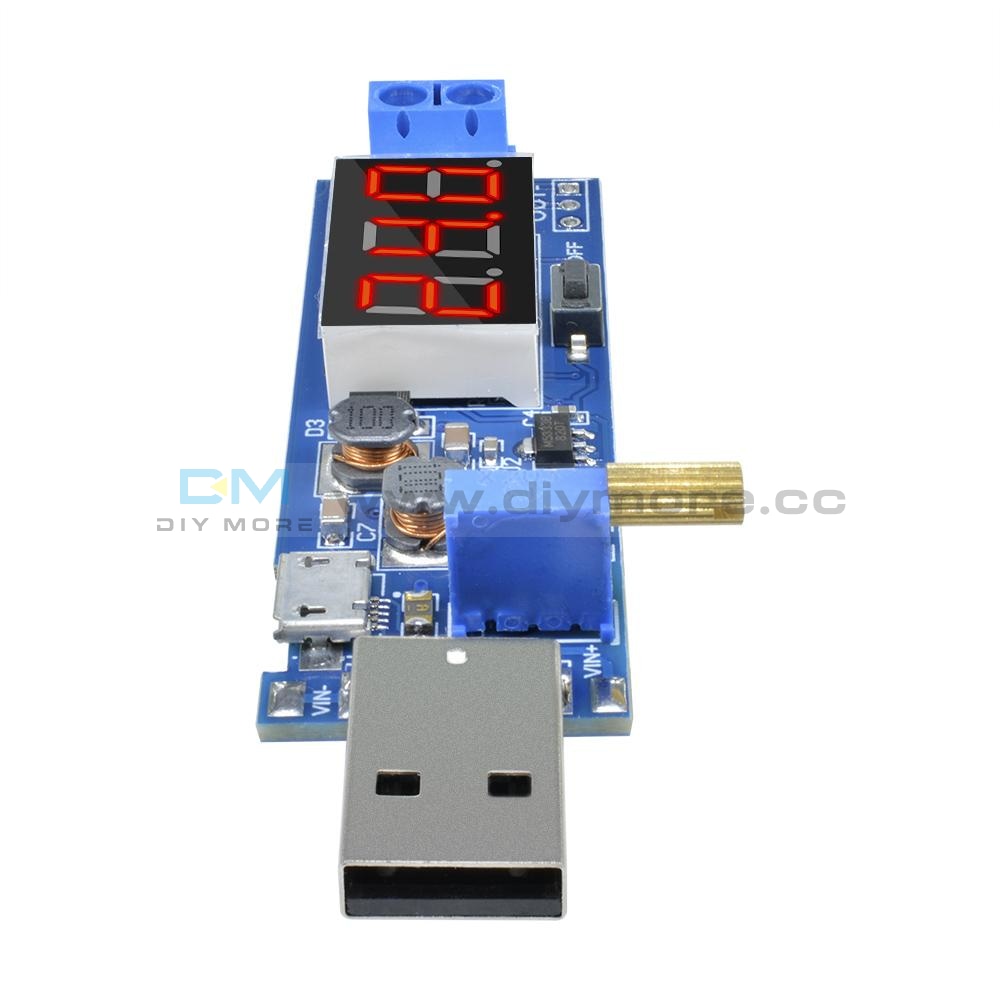

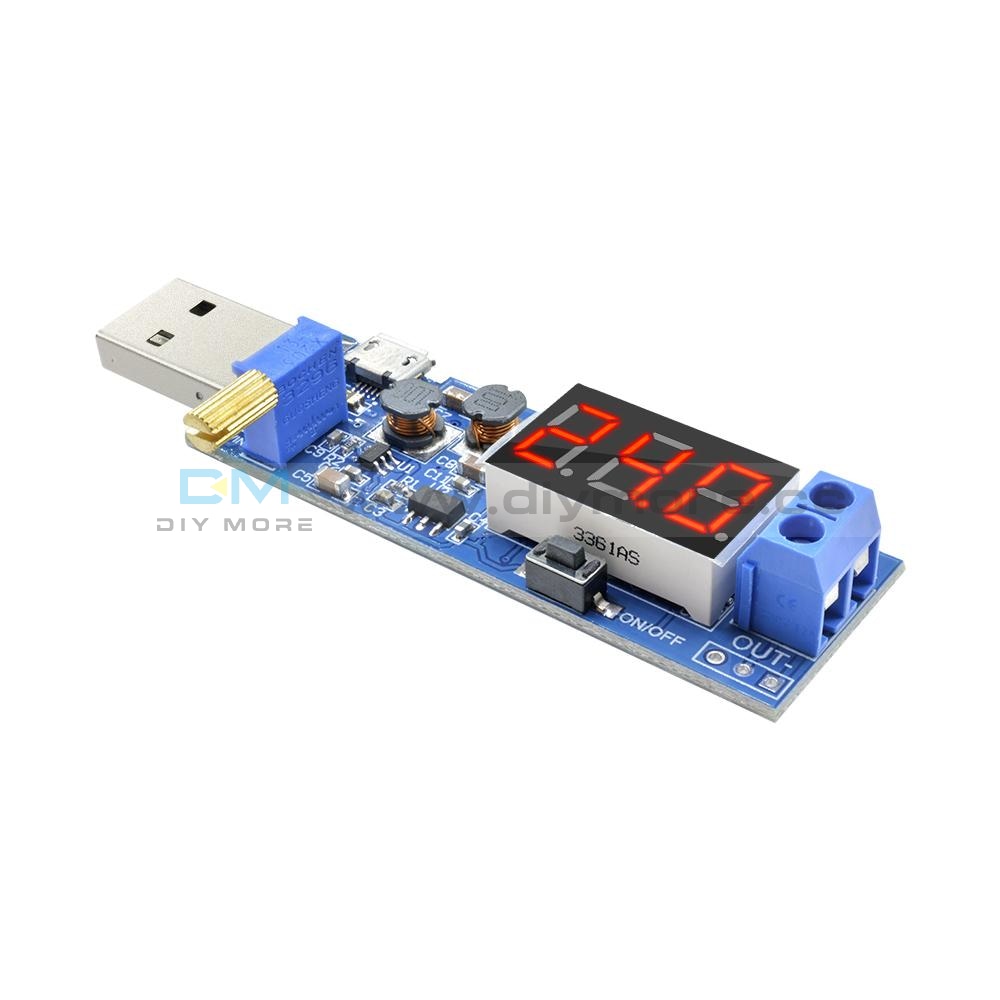

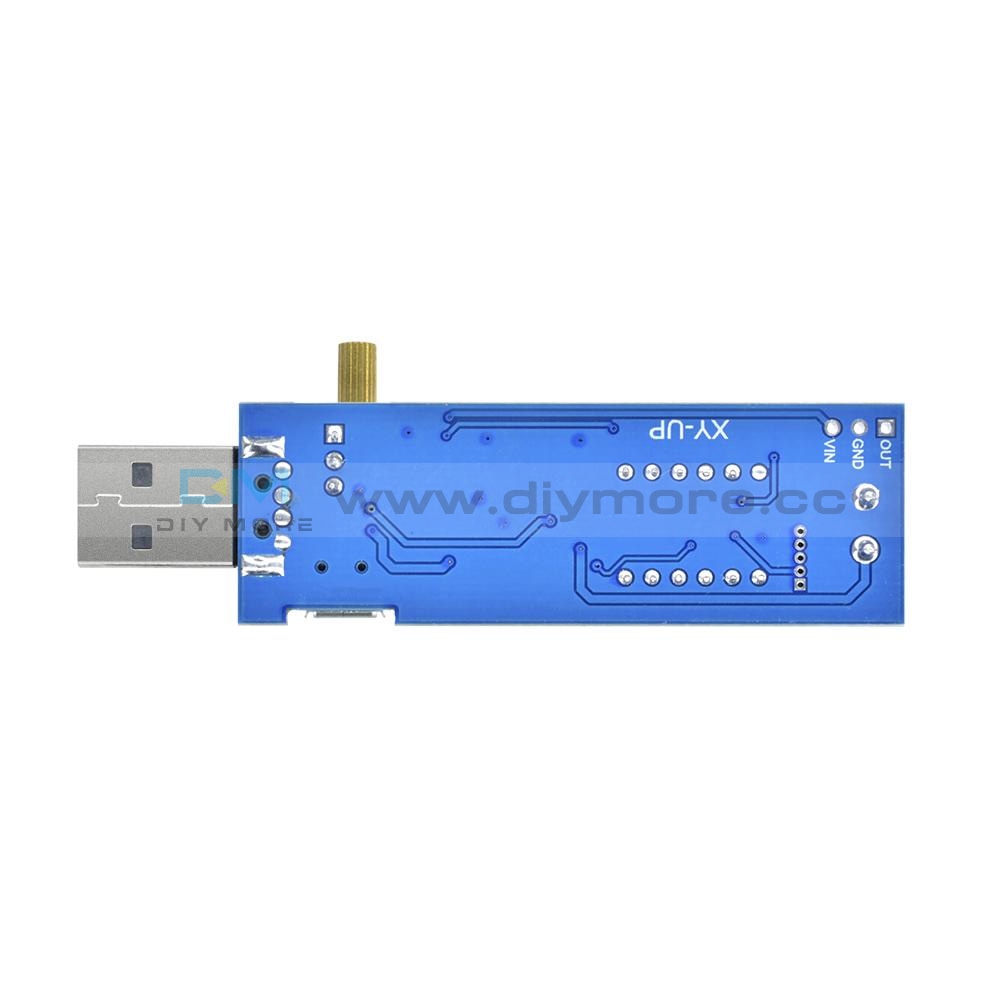

DC-DC 5V to 1.2V-24V USB Converter Step UP/Down Power Supply Module
DC-DC 5V to 1.2V-24V USB Converter Step UP/Down Power Supply Module
SKU:X13001- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Technical engineers,after-sales engineers,are you still worried about the collocation of 3.3v,5v,12v,24v power?This product easily solves your problem with a variety of power supplies.This power is very convenient to use, you just plug in USB or micro USB can output 1.2V to 24V of adjustable voltage, power 3W,very suitable for technical engineer research and development, debugging instrumentation,after-sale engineers to repair the power supply of instrumentation,very convenient.
Module Highlights:
1.Very convenient to use, plug in USB or micro USB can output 1.2v-24v adjustable voltage
2.One-click on and off output
3.Digital can be closed
4.Multi-circle Precision adjustable potentiometer adjustment
5.Before the electric power storage state
Specifications:
Input voltage:DC 3.5-12V
Output voltage:DC 1.2-24V
Output power:
Input 1.2-2V,output power within 2W
Input 2V-20V,output power within 3W
Input 20V-24V,output power with in 2.5W
Display:3Bit digital tube display
One button to turn off the output
Supply ON/OFF display screen
Support low power mode
Support sleep mode
Support both standard USB and Micro USB and pads input voltage;
Potentiometer with rotating handle.
Use steps:
1.Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;
2.Turn ON display screen;
3.Adjust potentiometer to get the required voltage;
4.Connect load.
Application:
1.Ordinary power supply
2.Battery charger
3.LED drive power
4.Instrument voltage display
5.Test meter
6.Circuit test
7.Power conversion
Size:6.4x2.2cm/2.52x0.87inch
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3mm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1pcs x USB Step UP/Down Power Supply Module
