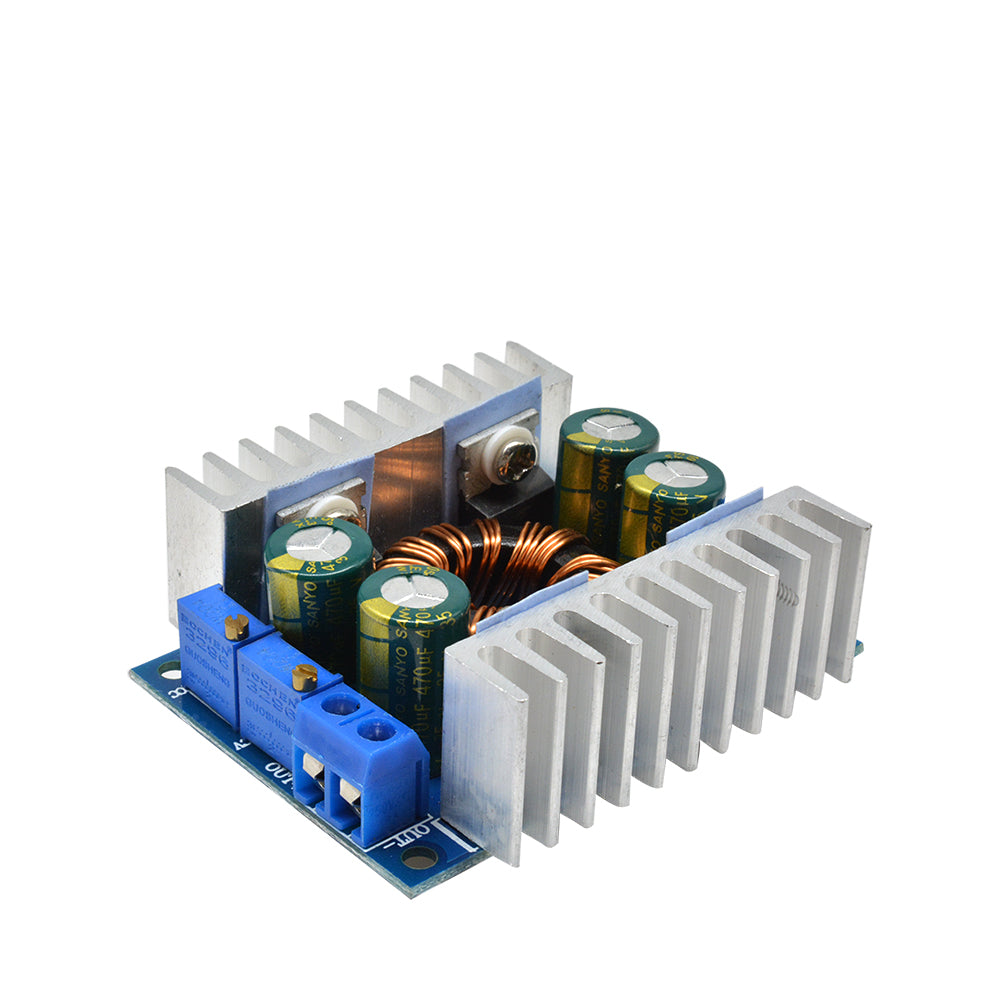

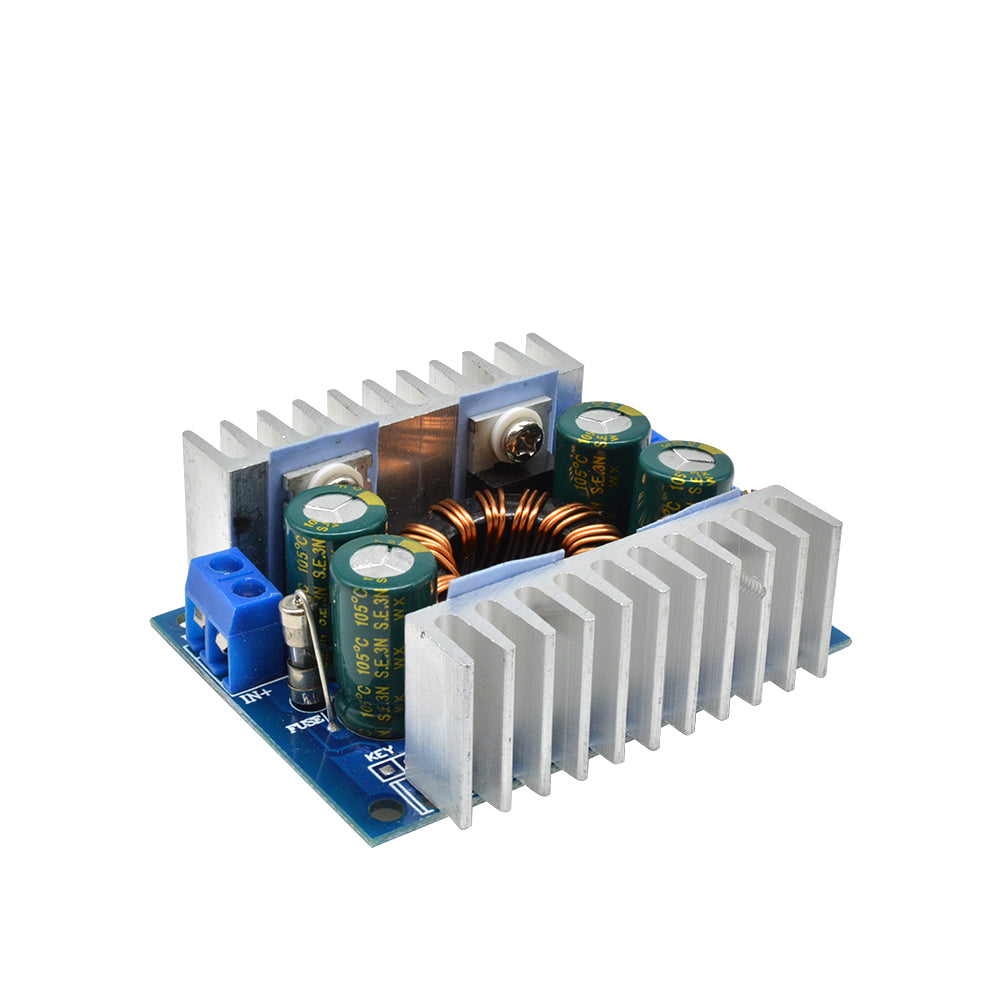

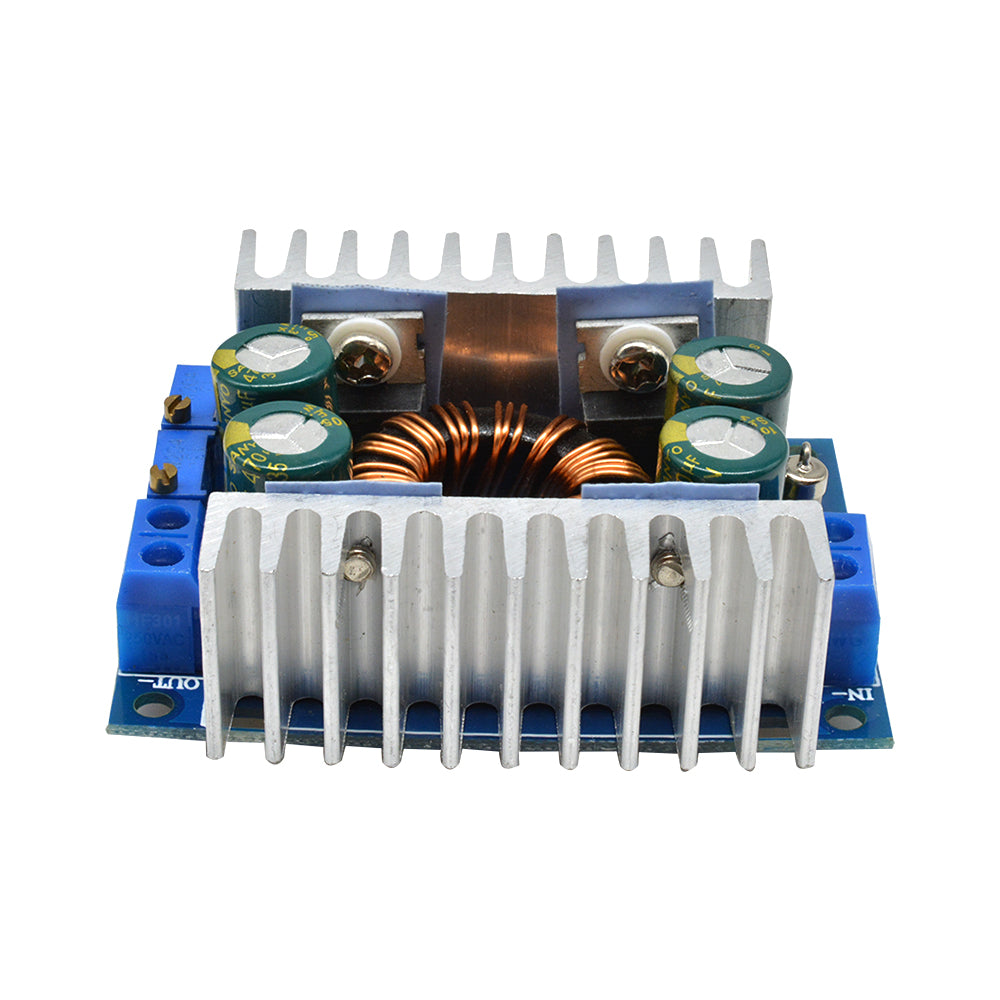

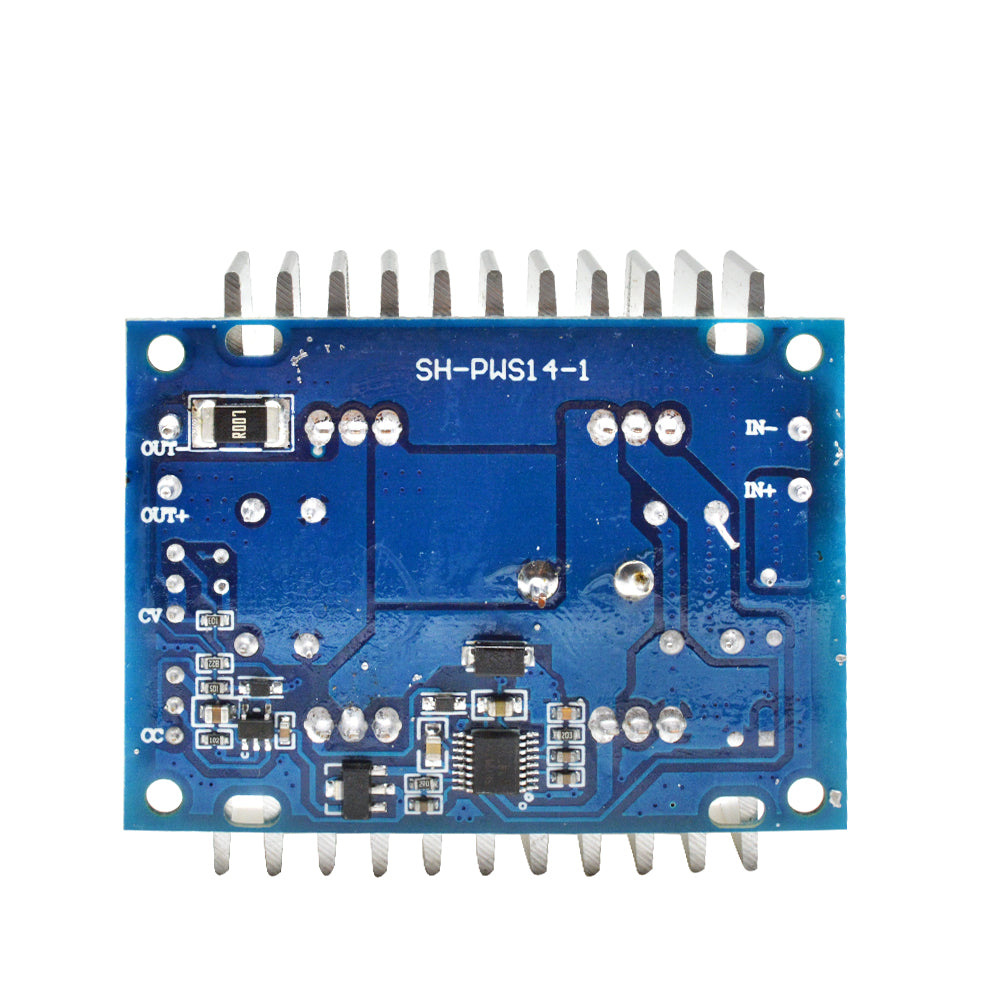

DC-DC 8A Automatic Adjustable Constant current Voltage
DC-DC 8A Automatic Adjustable Constant current Voltage
SKU:012846
Regular price
$9.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Module parameters:
- Input voltage: DC5-30V
- Input current: 8A (MAX) for peak 10A (6A working for a long time)
- Quiescent current: 4mA (different working voltage will cause errors)
- Output voltage: 1.25-30V continuously adjustable
- Output current: 10A (MAX) (5A internal heating for a long time)
- Output current range: 0.2-10A
- Working temperature: -40 to +85 degrees
- Working frequency: 150KHz
- Conversion efficiency: 91% typical (12V to 12V5A) maximum 93%
- Overcurrent protection: there
- Short circuit protection: (limited protection)
- Over temperature protection: (automatically reduce the output voltage after overheating)
- Input reverse polarity protection: None, (if necessary, please input the diode in series)
- Output anti-refill: Yes, no need to charge and block diode.
- Connection: terminal output, (IN is input, OUT is output)
- CV potentiometer adjustment, according to your load requirements, the output voltage is set to the voltage value you need.
- The CC potentiometer is located counterclockwise for about 30 turns (that is, the output current is set to the minimum), connected to the LED,
- The potentiometer CC is tuned to the required current. After charging the battery, the battery is completely discharged,
- Then output, adjust to the current CC you want,
- (Be sure to fully discharge the battery before allowing the transfer, because the battery power remains more,
- The charging current is small. )
- Please do not use short-circuit current transmission mode, the circuit structure of the module cannot be short-circuit transmission mode
- 1 automatic step-up and step-down adjustable power supply module"
