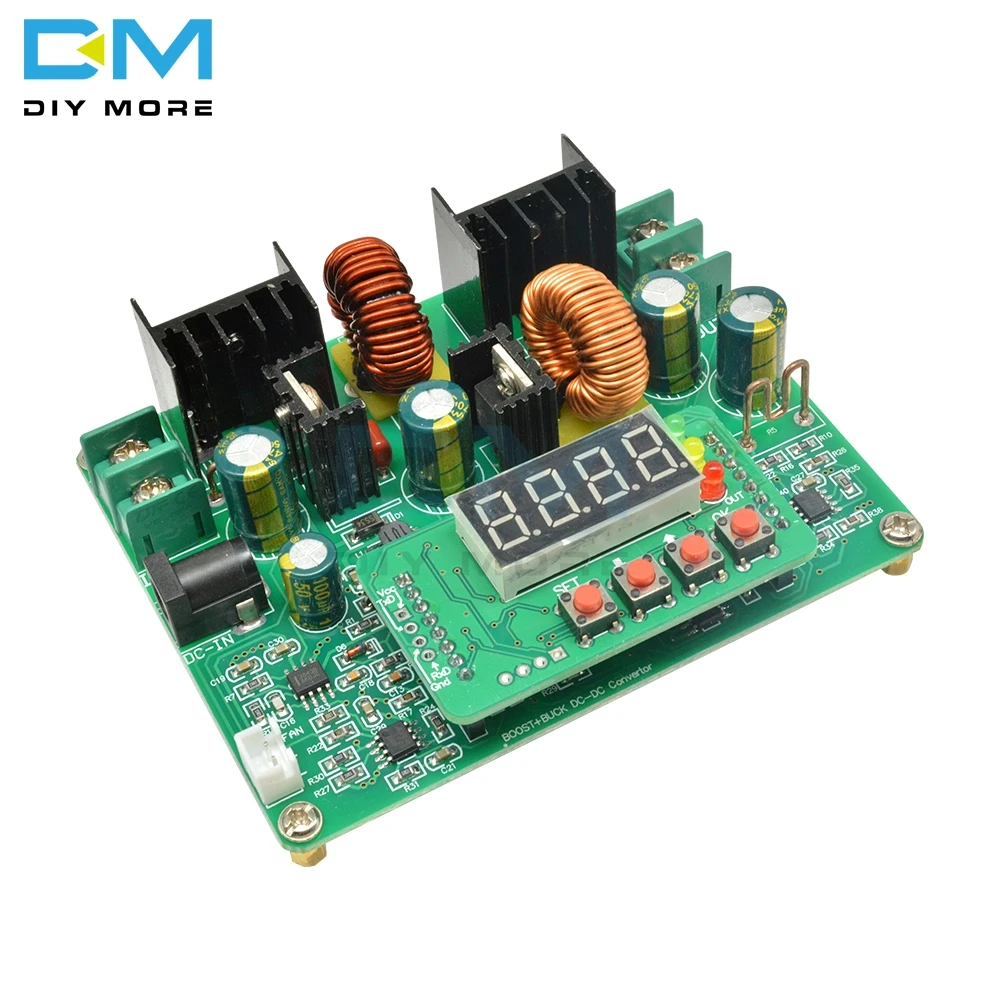

DC-DC Digital Boost and Buck Module
Item Size(L*W*H):10 x 8 x 3.5 cm
Input Voltage: DC 10~40 V
Input Current: 0~8 A
Output Voltage: DC 0~38 V
Output Current: 0~6 A
Voltage Resolution: 0.01 V
Current Resolution: 0.001 A
Power Resolution: 0.001 W
Capacity Resolution: 0.001 AH
Conversion Efficiency: up to 92%(max)
Working Temperature: -40 ~ +85°
Working Frequency: 150 KHz
Features:
1.Small size, high power, high efficiency, easy to use.
2.With memory function, it can save 10 groups of parameters which are free to retrieve.
3.With advanced microprocessors, it allows precise adjustment of output voltage and current.
4.Can set whether automatically output after power on.One key to save current voltage and current values.
5.With the indicators of output "OUT", constant voltage "CV" and constant current "CC", you can check the operating state in real time.
6.4-digits digital display shows output voltage, current, power, capacity and other parameters in real time by automatic or manual way.
7.Constant voltage and constant current state. It can ensure the stability of the output voltage, even when the input voltage is higher or less than the output voltage.
Package Included:
Item Size(L*W*H):10 x 8 x 3.5 cm
Input Voltage: DC 10~40 V
Input Current: 0~8 A
Output Voltage: DC 0~38 V
Output Current: 0~6 A
Voltage Resolution: 0.01 V
Current Resolution: 0.001 A
Power Resolution: 0.001 W
Capacity Resolution: 0.001 AH
Conversion Efficiency: up to 92%(max)
Working Temperature: -40 ~ +85°
Working Frequency: 150 KHz
Features:
1.Small size, high power, high efficiency, easy to use.
2.With memory function, it can save 10 groups of parameters which are free to retrieve.
3.With advanced microprocessors, it allows precise adjustment of output voltage and current.
4.Can set whether automatically output after power on.One key to save current voltage and current values.
5.With the indicators of output "OUT", constant voltage "CV" and constant current "CC", you can check the operating state in real time.
6.4-digits digital display shows output voltage, current, power, capacity and other parameters in real time by automatic or manual way.
7.Constant voltage and constant current state. It can ensure the stability of the output voltage, even when the input voltage is higher or less than the output voltage.
Package Included:
1 x Boost and Buck Module
Note:
Manual measuring, please allow 1 ~ 2 cm error, thanks.
