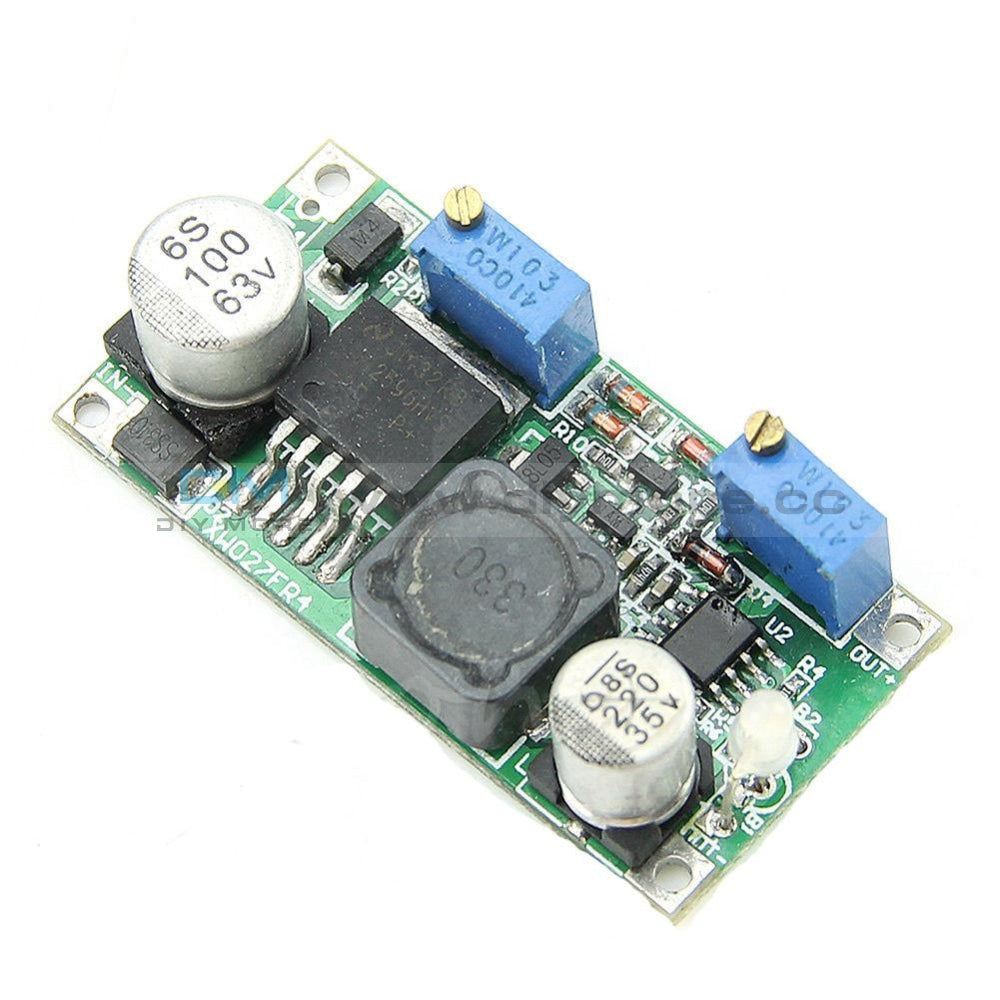

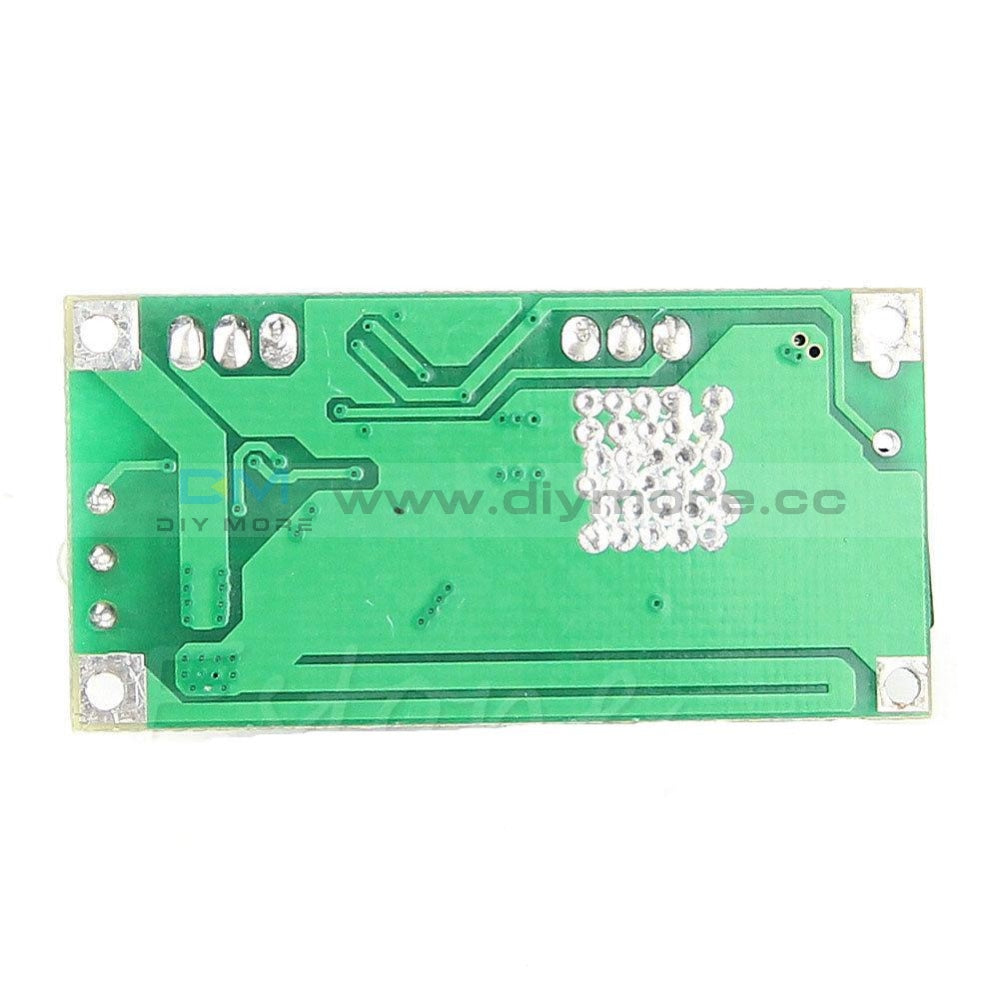

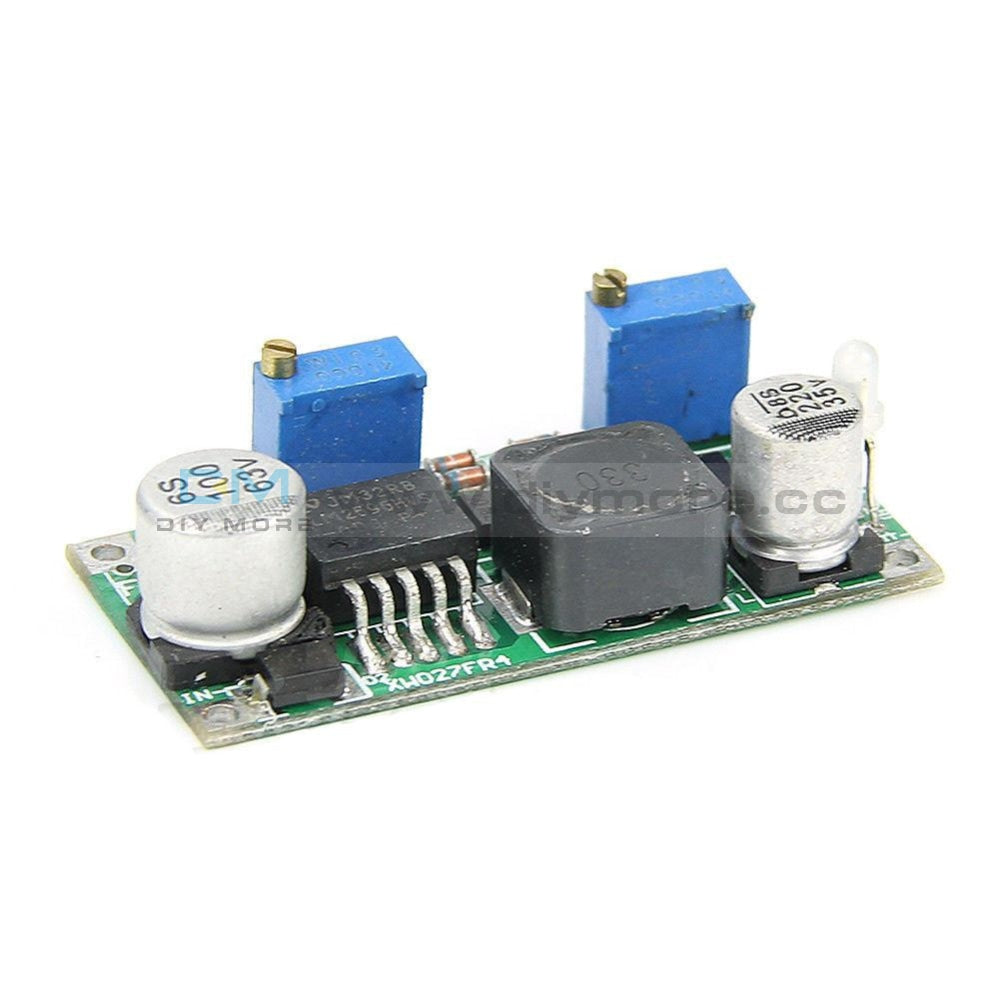

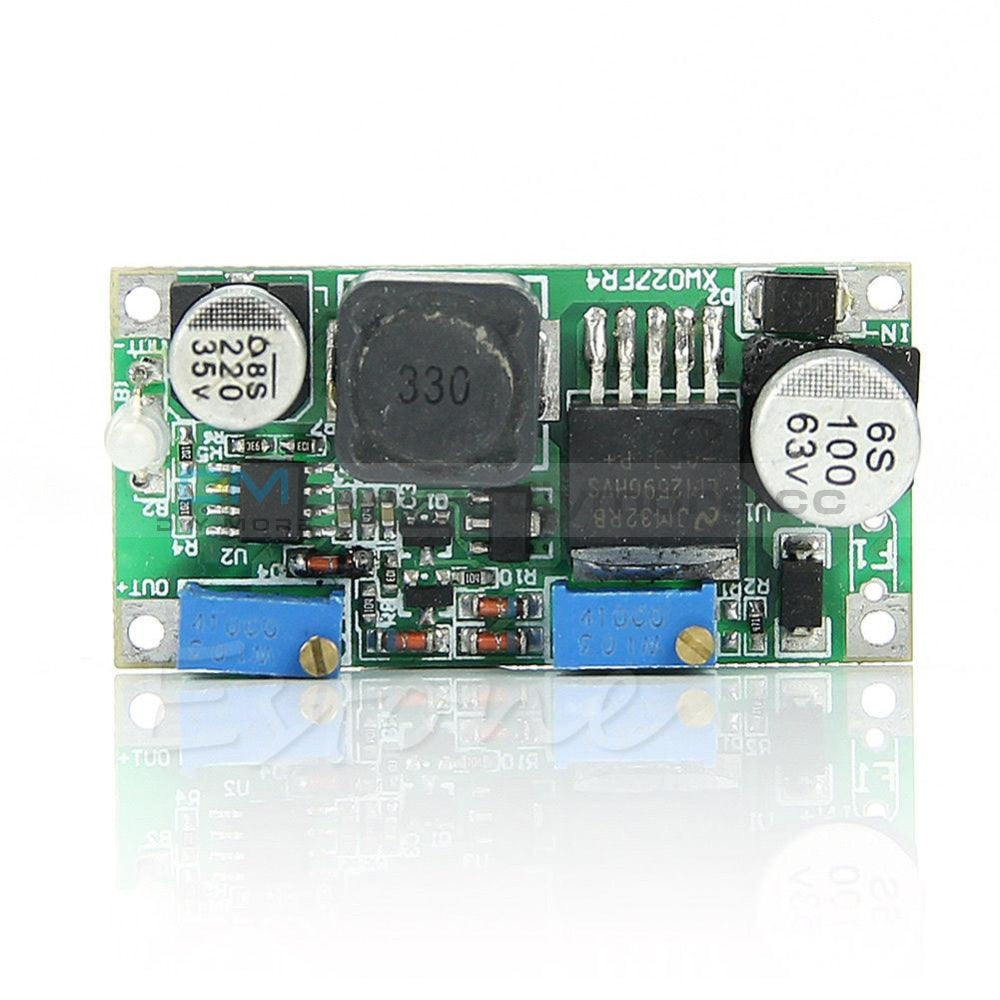

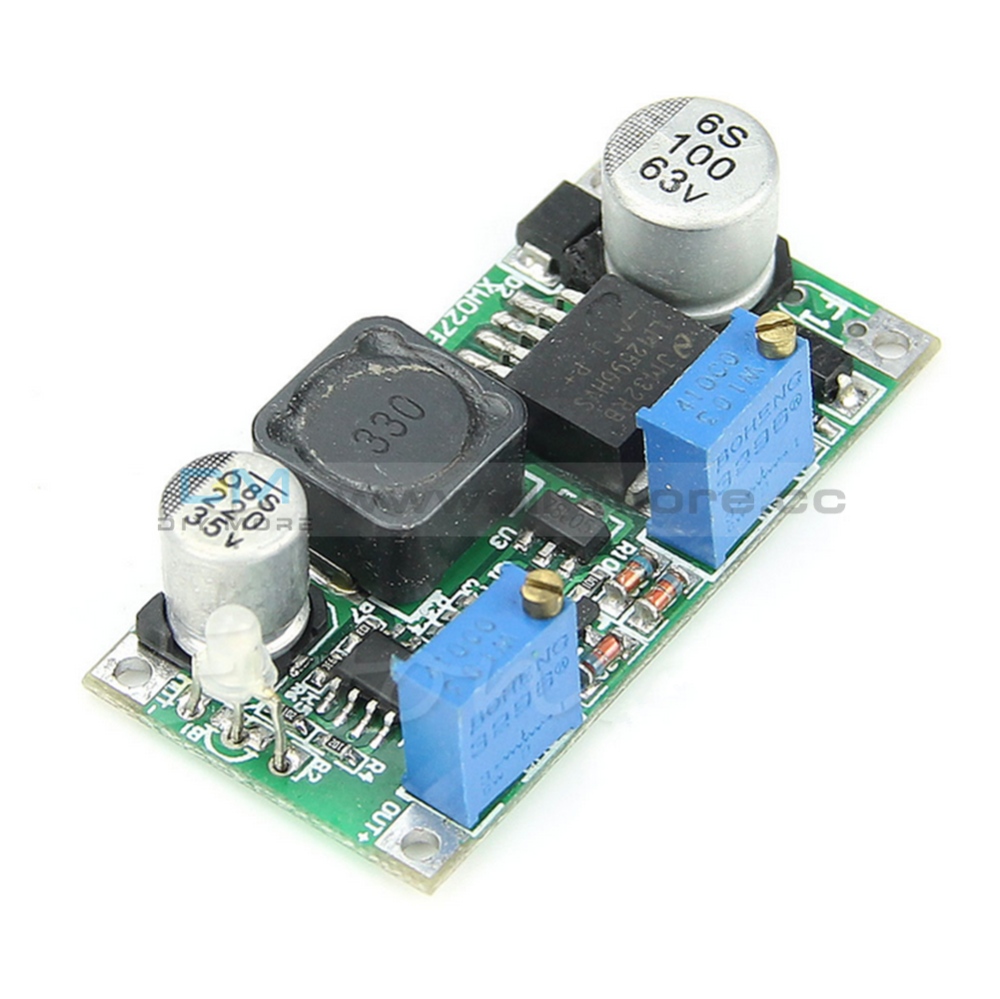

DC/DC LM2596 HV S 60V 3A Buck Constant Current/Voltage CC CV Step-Down

DC/DC LM2596 HV S 60V 3A Buck Constant Current/Voltage CC CV Step-Down Module

SKU:011543

$4.99

Description:

100% brand new and high quality
Type: DC/DC Constant Current / Constant Voltage
Size: (L*W*H)4.80*2.40*1.4cm/1.89"*0.94"*0.55"
Input Voltage: 5V-57V input voltage must be higher 2V than the output voltage
Output Current: rated current 2.5A/ 3A MAX ( Heat-sink Needed)
Output Voltage: 1.25-30V (Adjustable)
Output Power: 15w max at maximum voltage
Output short circuit protection: Yes, constant current (constant current setting values)
Input reverse polarity protection: Yes,
Constant current range: 0.2-3A (adjustable, default transferred 1A)
Turn lamp current: constant current value * (0.1), turn the lamp current constant current value Linkage

Benefits:

Stepless adjustment of the output voltage
Stepless adjustment of the output current
LED indicator, Red under load / Green on load free
Multiturn potentiometer with long life
Up to 1.5V (Typ. 1.16V) difference between the input and output voltages
Up to 2.5A output current
Very low power consumption at idle, about 10mA (0.01)
Temperature protection
Input voltage to 60V
High stability of the output voltage
High efficiency
No need additional cooling to 2.2A
High frequency DC/DC conversion, leading to size reduction of the device

Application:

Charger for all batteries in the range 1.23V ~ 28V, only set the precise battery voltage and charging current
High conversion when used in car
Adjustable laboratory voltage source
LED driver with constant current
Dimming devices
Laboratory power supply

Note:

Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package included:

1Pc x DC/DC Constant Current / Constant Voltage Module
