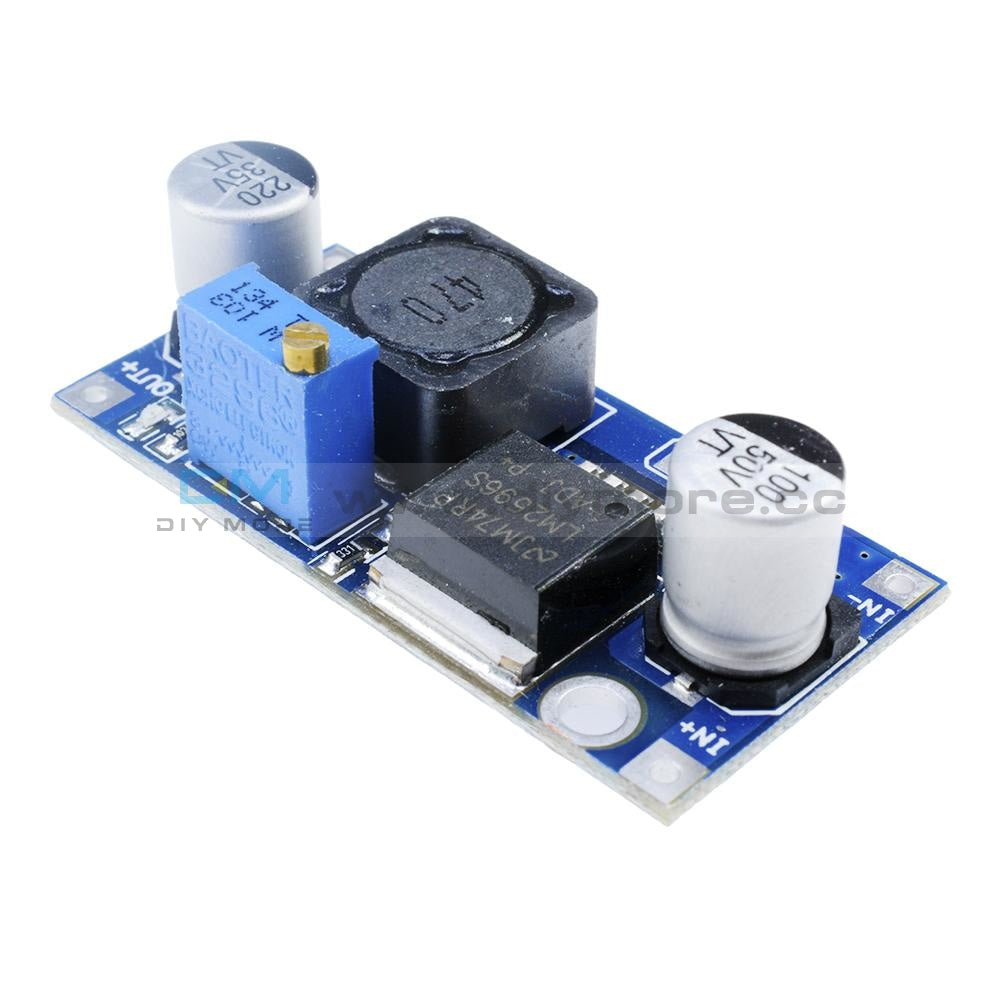

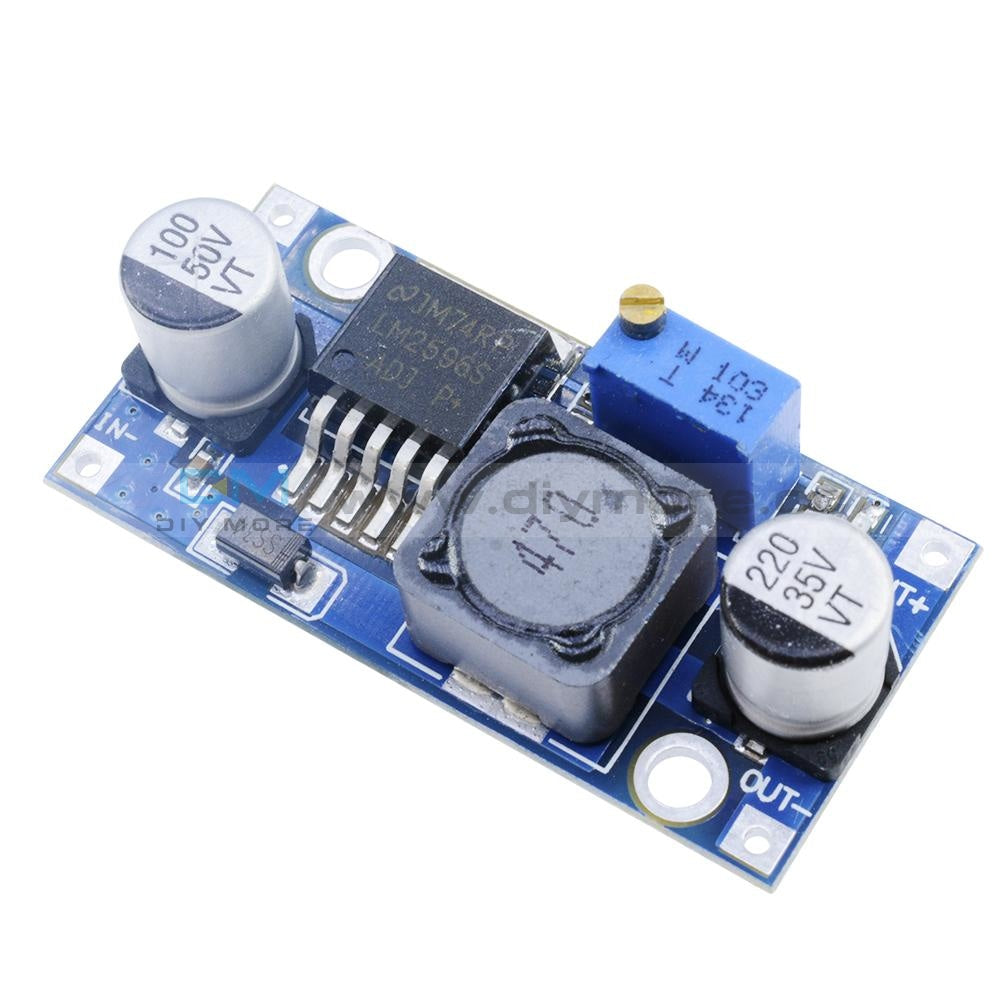

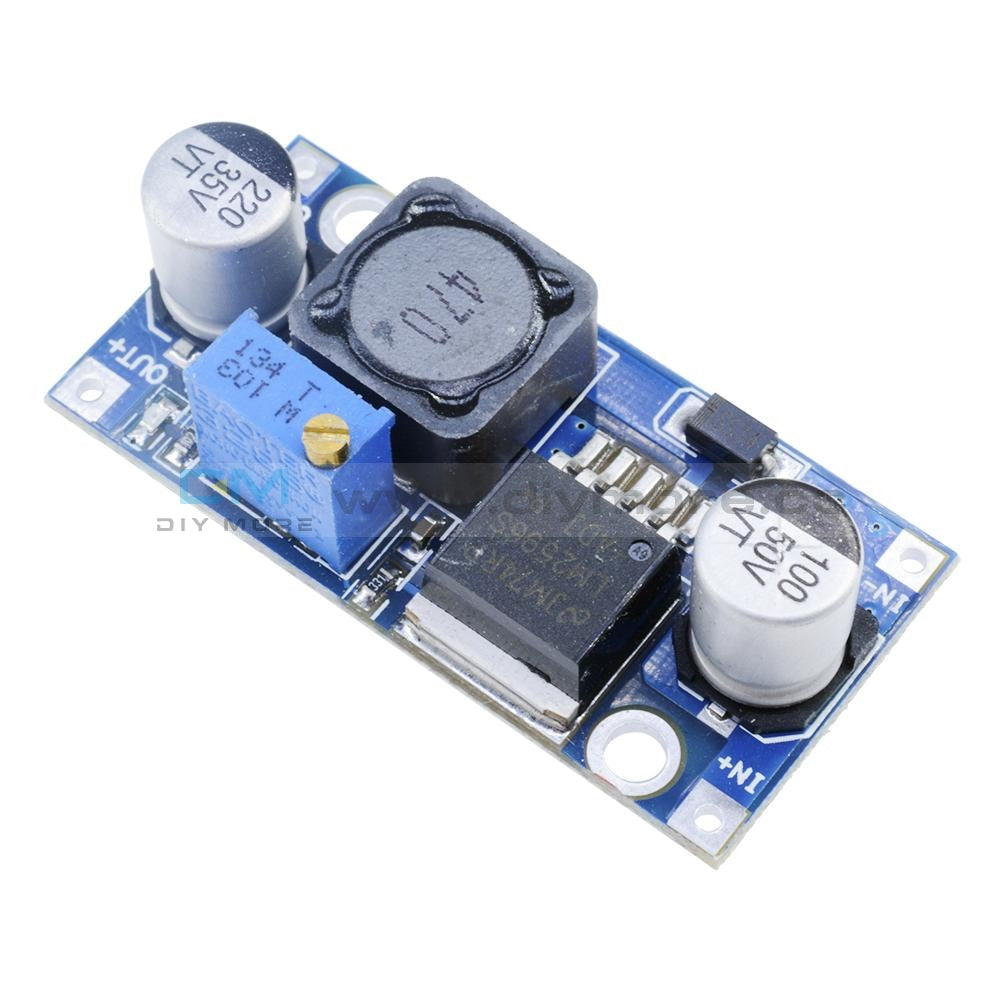

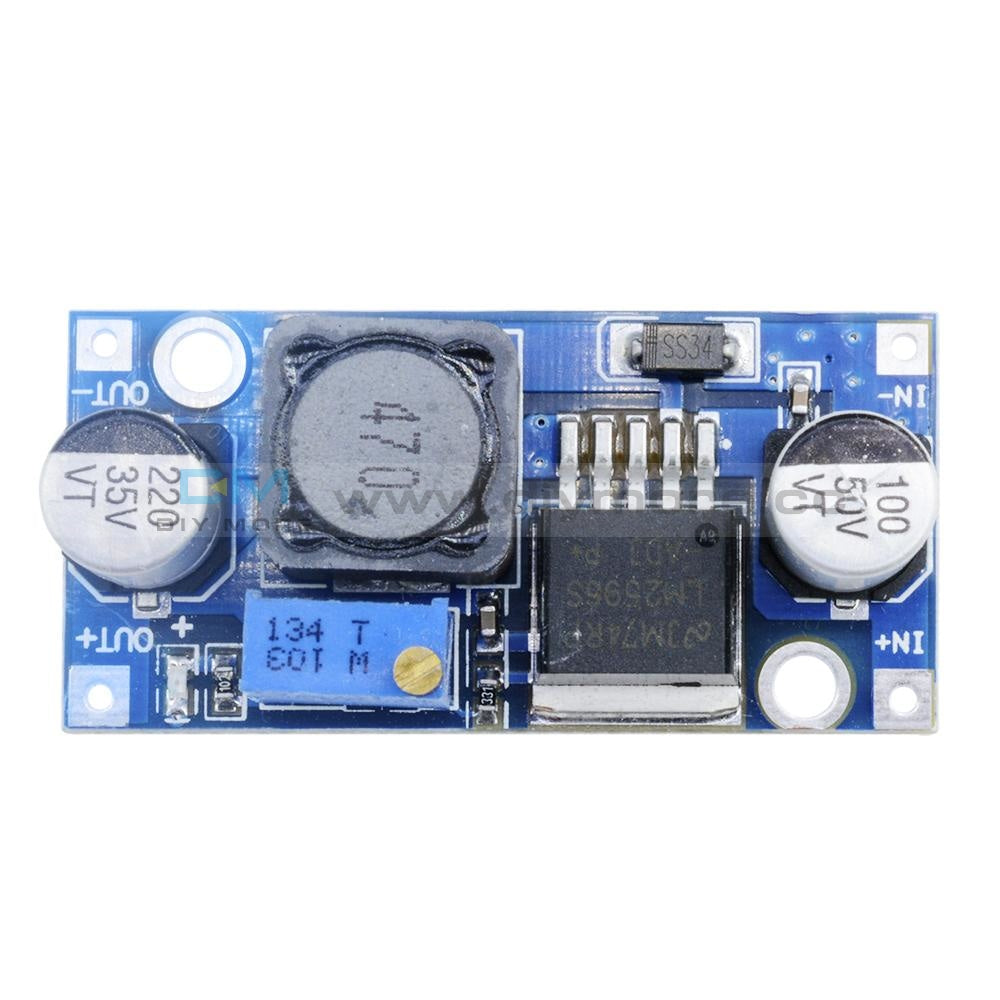

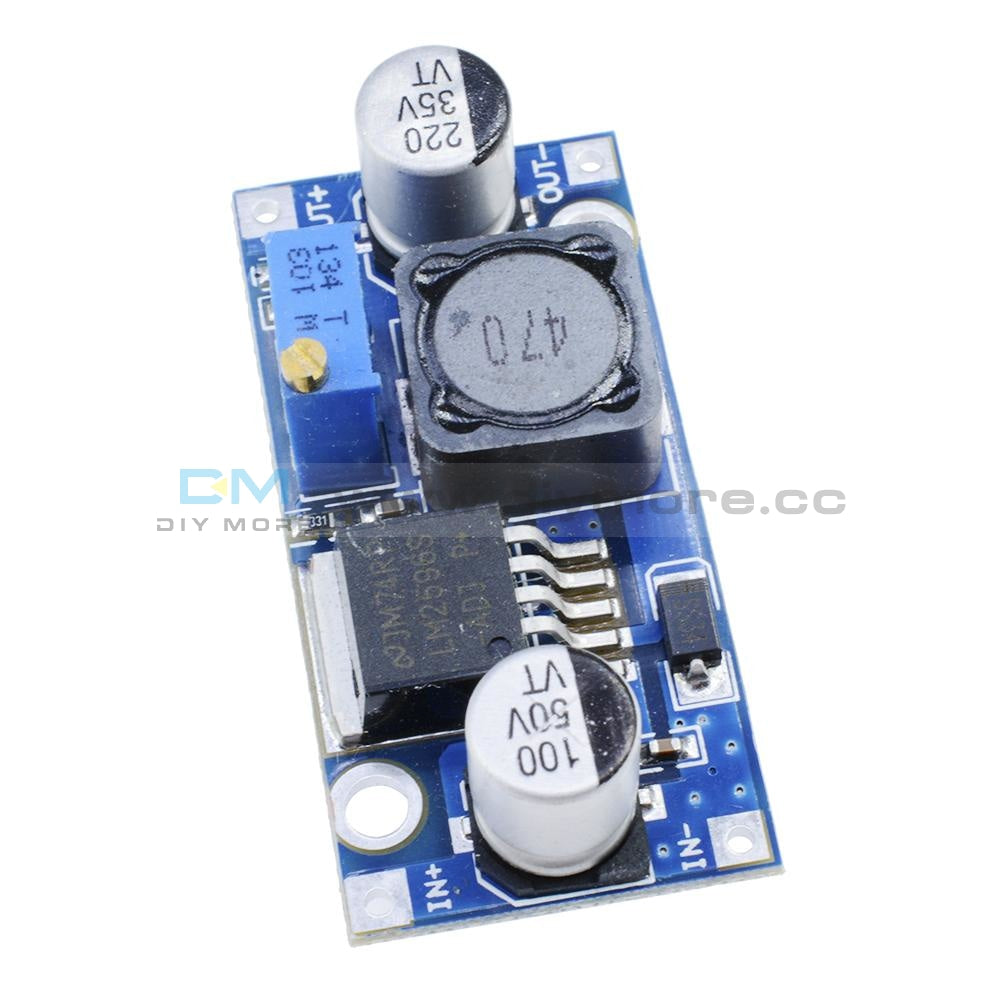

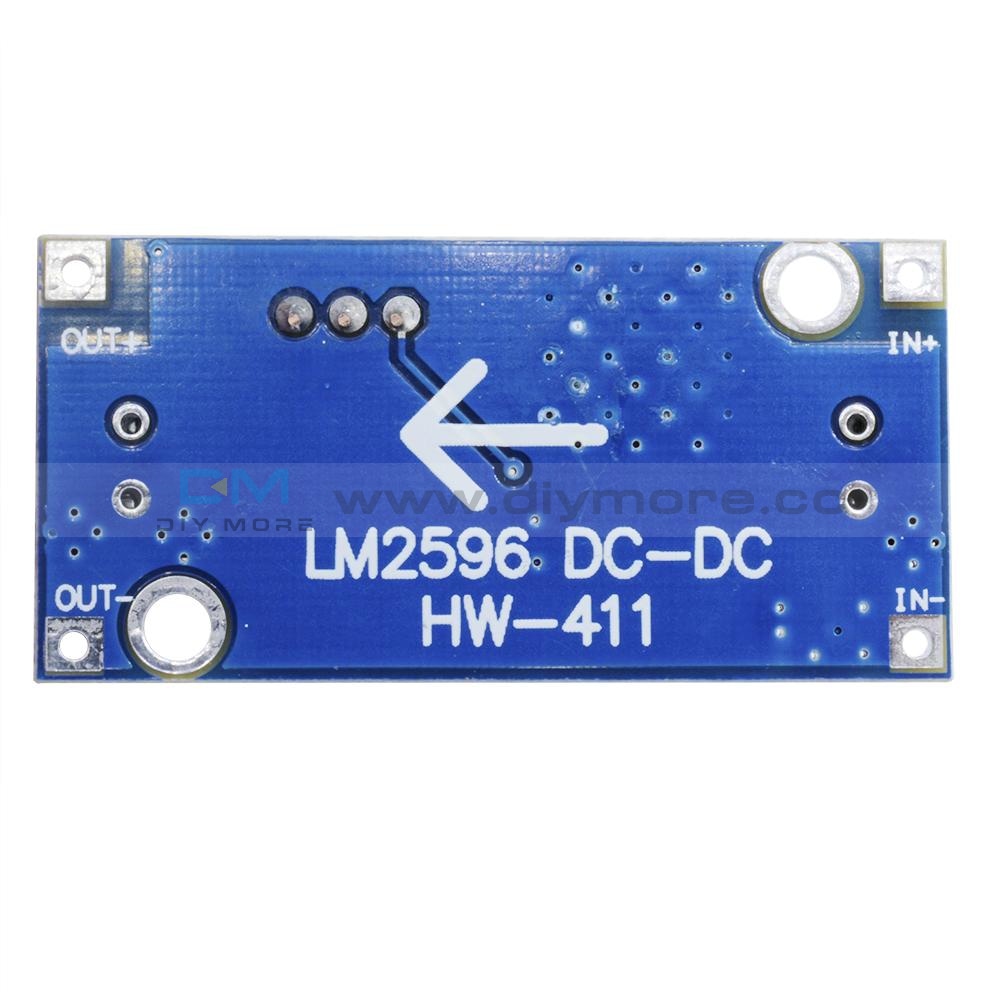

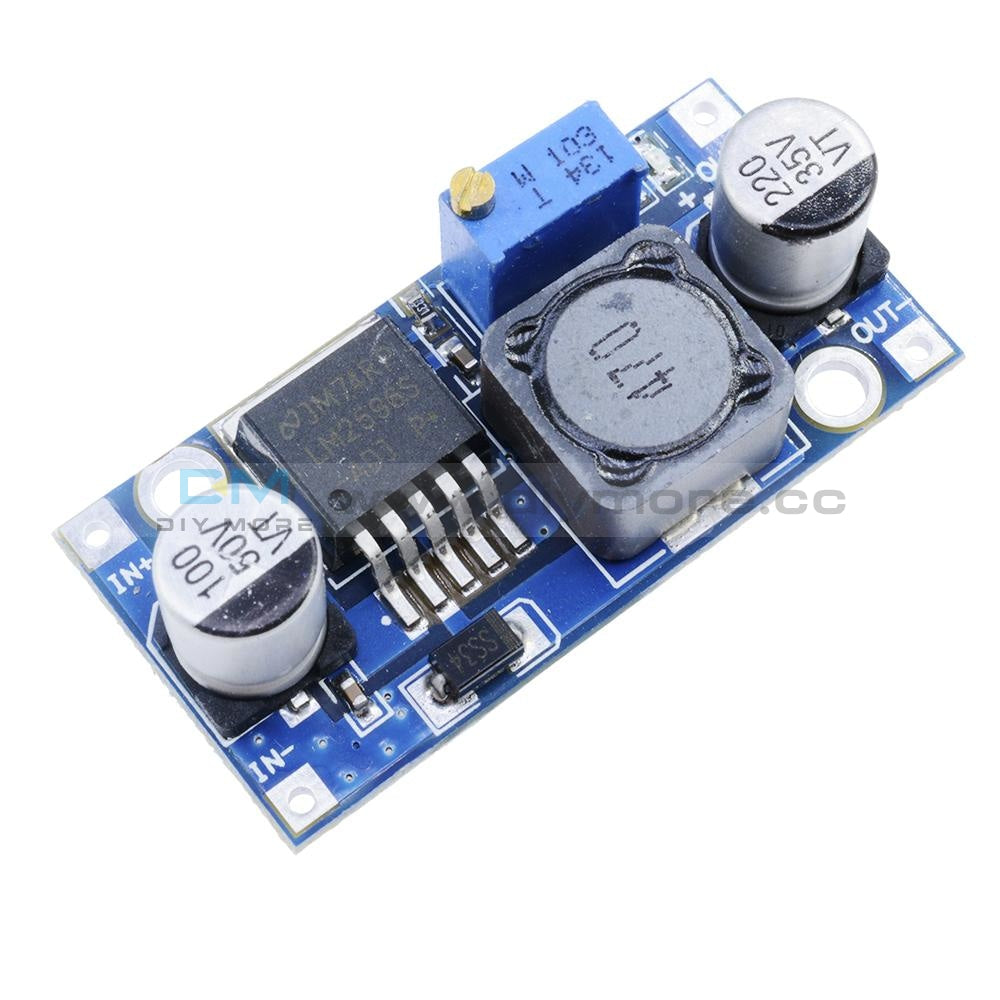

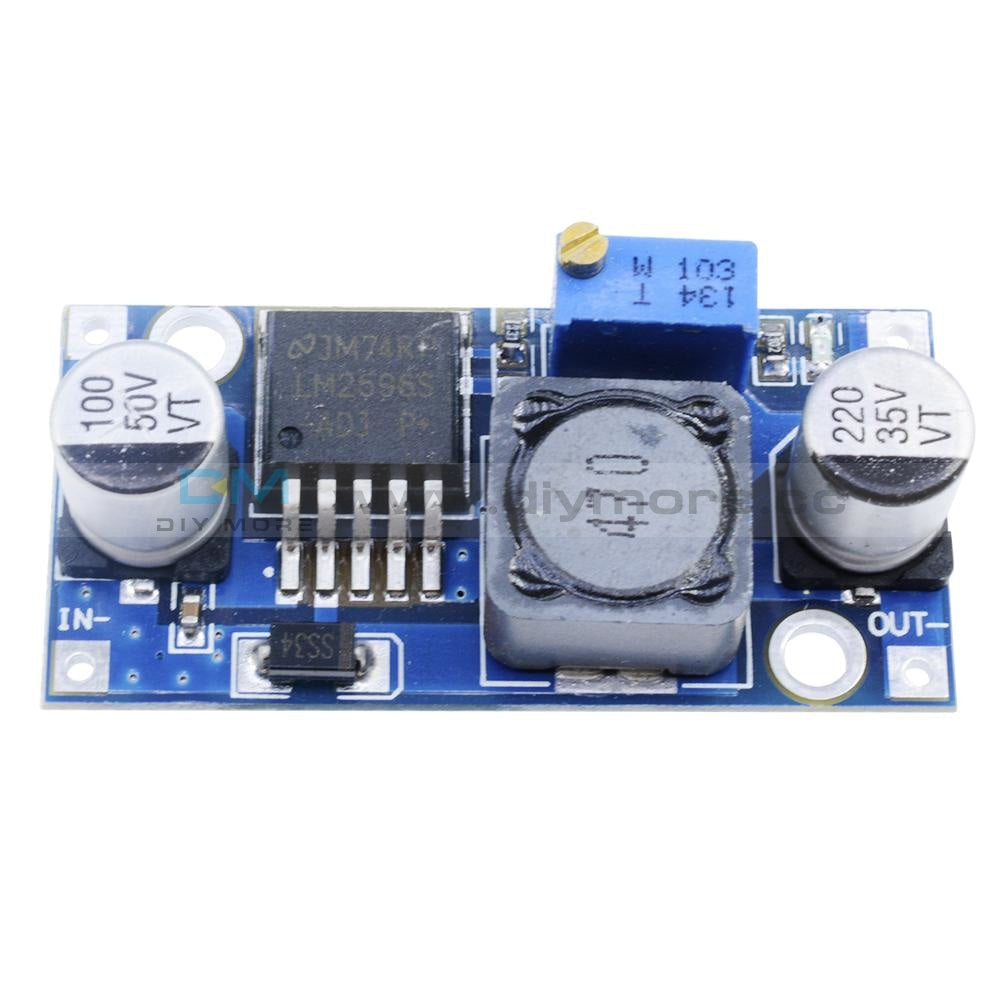

DC-DC LM2596 Power Supply Buck Converter Adjustable Step Down Module
DC-DC LM2596 Power Supply Buck Converter Adjustable Step Down Module
SKU:010062- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
- Input voltage range: DC 3.2V to 40V (input voltage must be greater than the output voltage to 1.5V or more high. no boost)
- Output Voltage Range: 1.25V to 35V DC voltage continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A, Measured 12V input, 5V output current is 1A load regulation rate of less than 1%
- Note: This is the step-down module, the input voltage must be higher than the output voltage.Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink
- Output ripple <30mV
Description:
DC-DC step-down power module
Name / number LM2596S DC-DC step-down module
Input voltage 3.2V ~ 40V
Output voltage 1.25V ~ 35V
Output current 3A (max)
Conversion efficiency of 92% (maximum)
Output ripple <30mV
Switching frequency 65KHz
Operating temperature -45 ℃ ~ +85 ℃
Size 43mm * 21mm * 14mm (L * W * H)
IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative
Input voltage range: DC 3.2V to 40V (input voltage must be greater than the output voltage to 1.5V or more high. no boost)
Output Voltage Range: 1.25V to 35V DC voltage continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A,
Measured 12V input, 5V output current is 1A load regulation rate of less than 1%
Note:
This is the step-down module, the input voltage must be higher than the output voltage.
Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink
Shipping Included:
1PCS * DC-DC Converter Step Down Module LM2596 Power Supply Output 1.25V-35V
