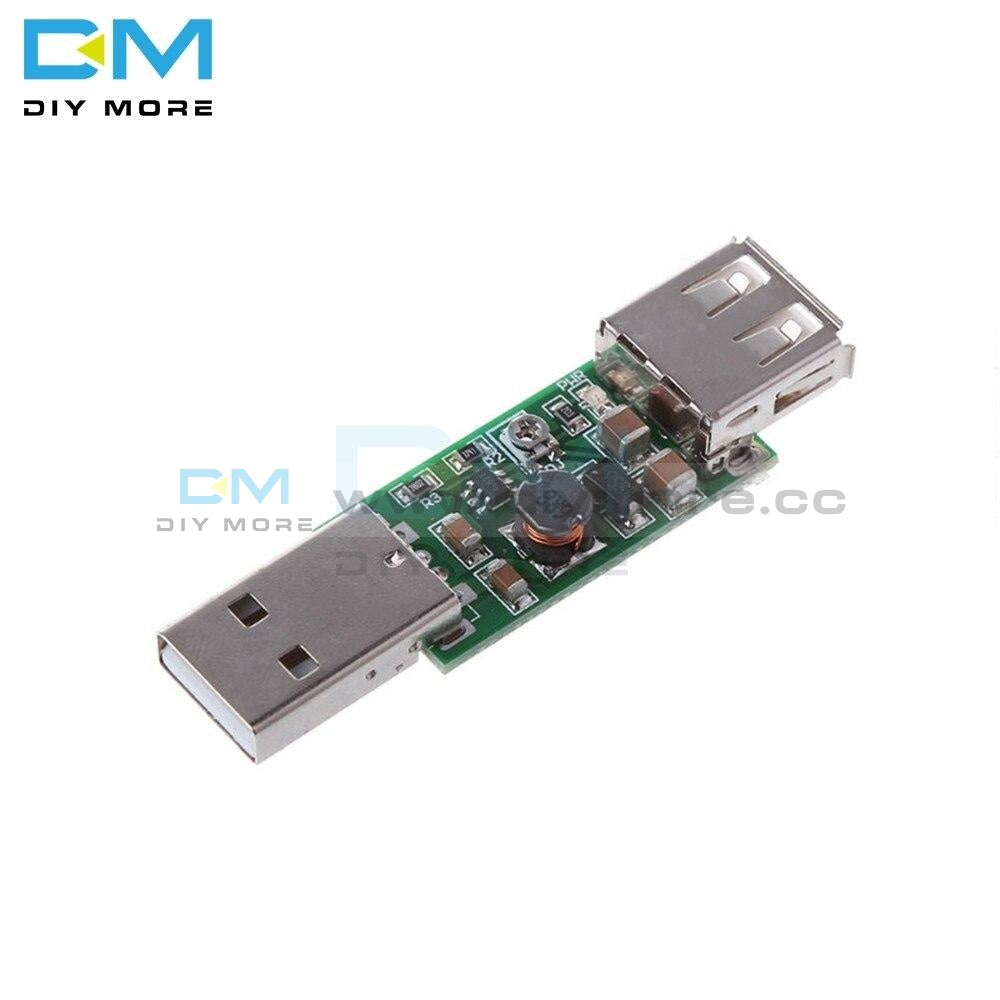

DC-DC USB 5V to 6-15V Step-Up Boost Converter Voltage Inverters Module Adjustable Board Output DC 6V 7V 8V 9V 12V

DC-DC USB 5V to 6-15V Step-Up Boost Converter Voltage Inverters Module Adjustable Board Output DC 6V 7V 8V 9V 12V

SKU:012829
Regular price $4.05 Sale price $2.25









Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Specifications:
Input voltage 3~6V, output 6-15.5V
Maximum input current :  1.4A
Long-term work Current : 1A
Conversion efficiency : 79-90%

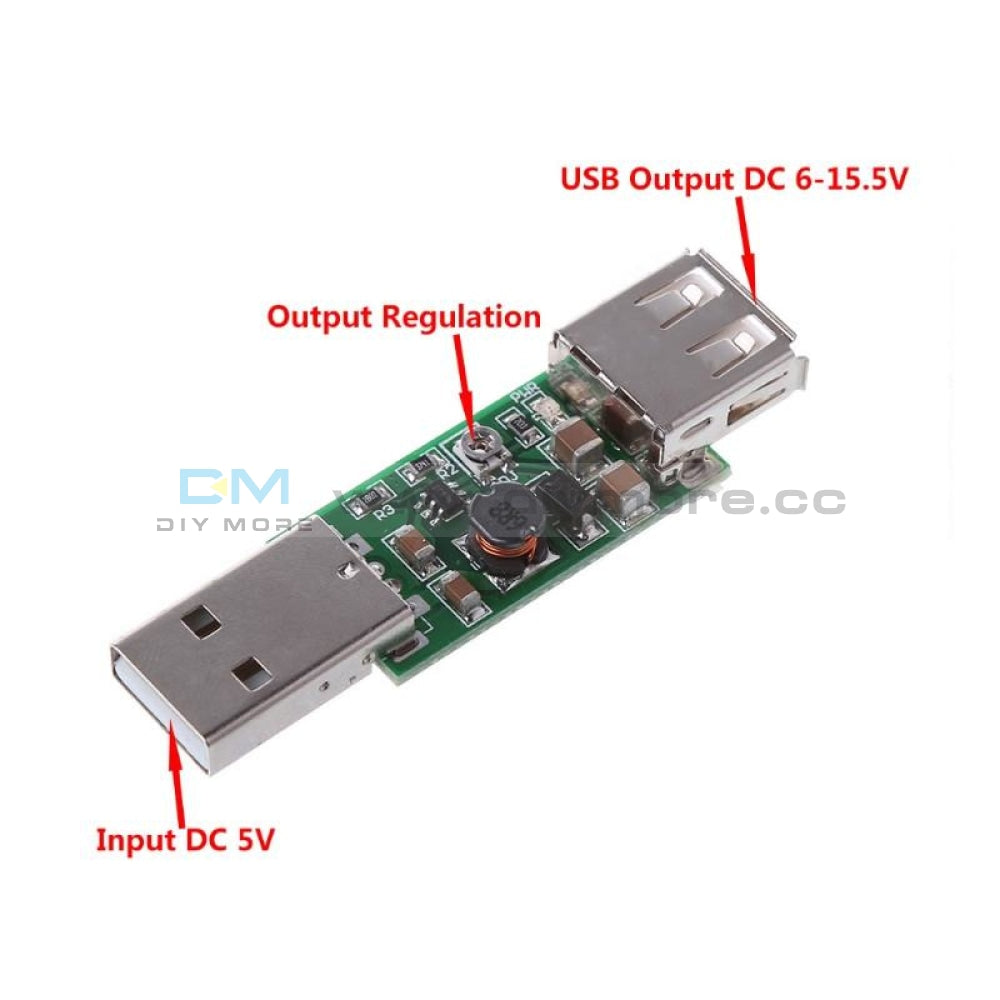

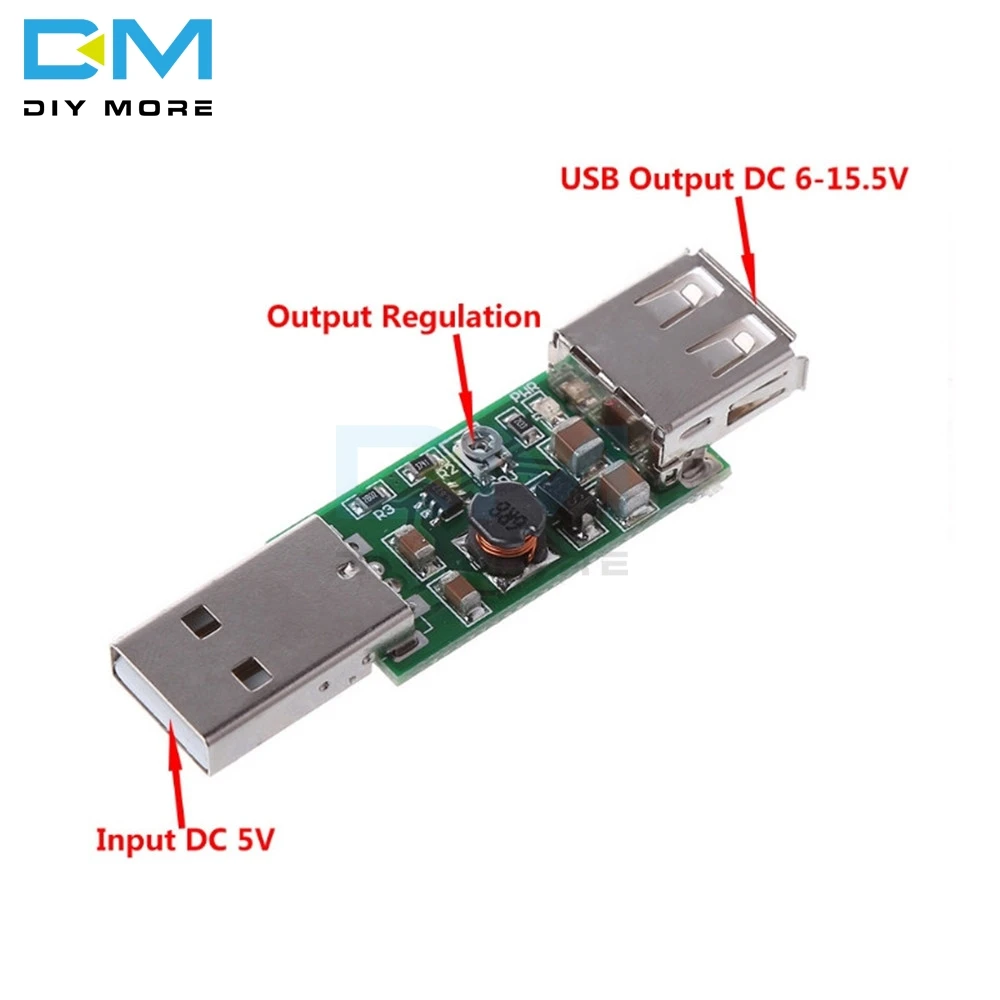

Input: USB Male Interface, DC 3-6V
Ouput: USB Female Interface,  DC 6-15.5V
If input DC 5V, output 6-15.5V Adjustable
Power : Maximum 7W
DC-DC Boost module working frequency 1.0MHZ
Operating ambient temperature : -40~+85°

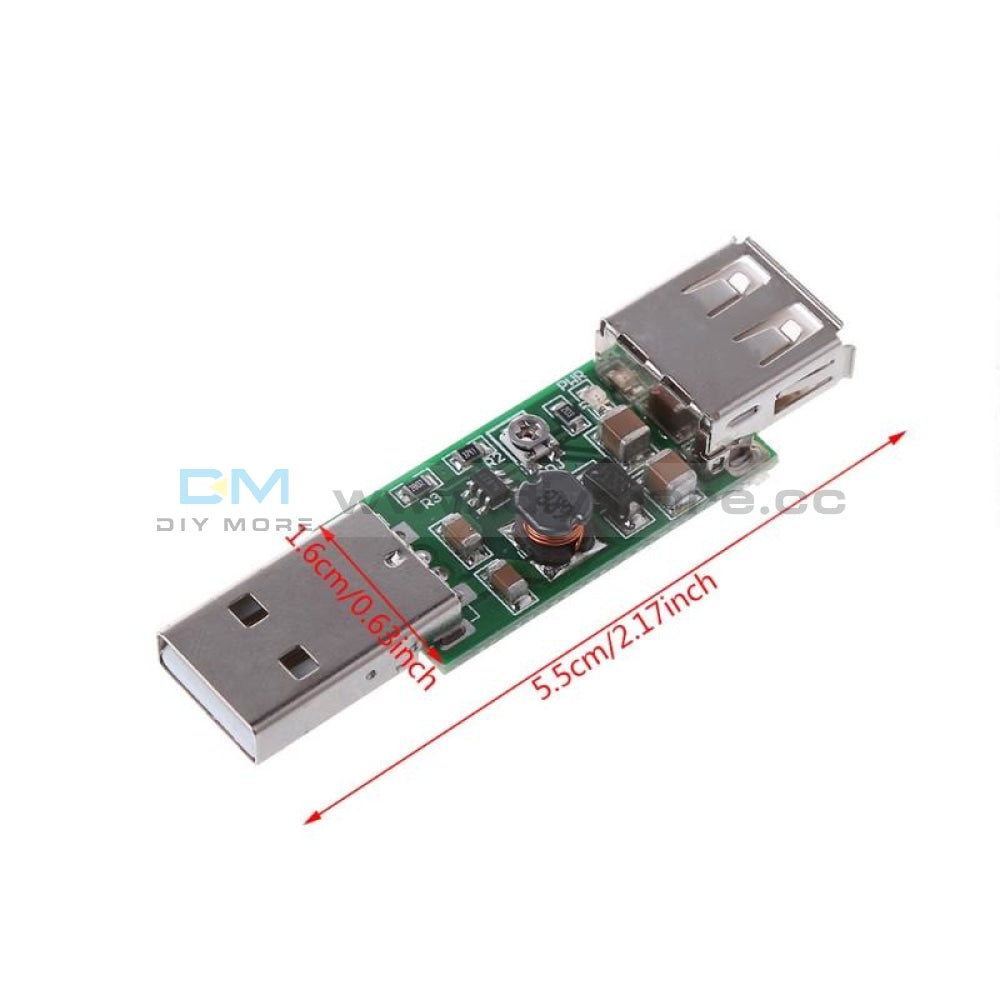

Size: 5.5x1.6cm/2.17x0.63"
Quantity: 1 Pc


Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package Contents:
1 Pc x Voltage Inverter Module
