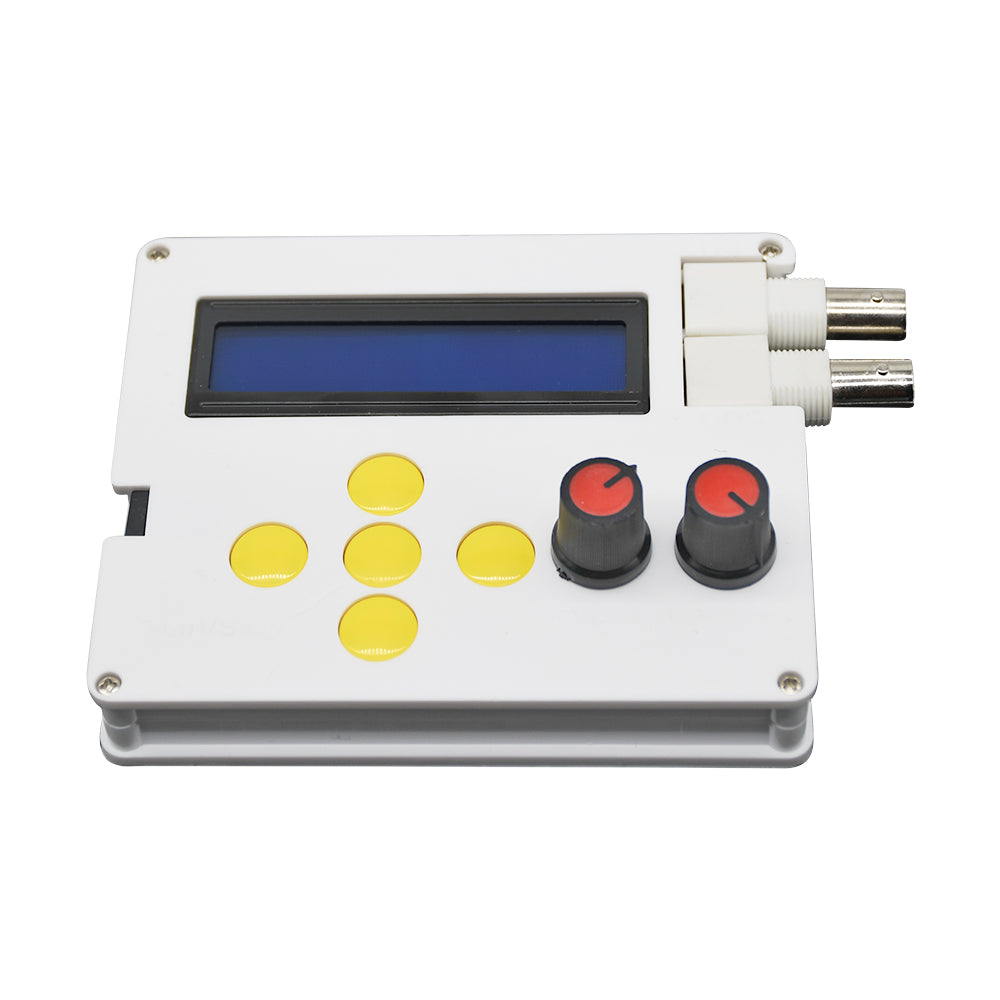

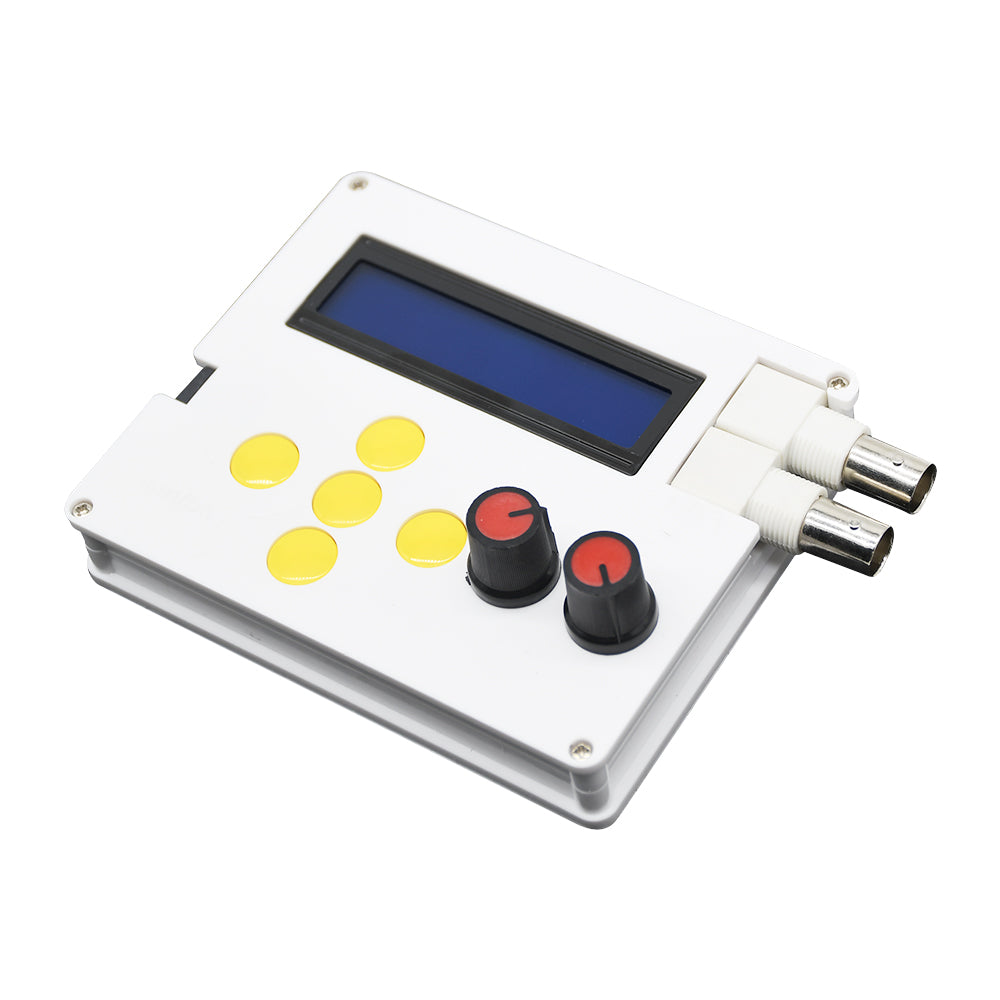

Dc4v-10v ym-100 1hz-500k DDS signal generator

Dc4v-10v ym-100 1hz-500k DDS signal generator

SKU:XF0067
Regular price $24.99

Introduction to DDS:
  • Function (waveform) signal generator. It can generate some specific periodic time function waveform (sine wave, square wave, triangle wave, sawtooth wave and pulse wave, etc.) signals, the frequency range can be from several microhertz to tens of megahertz. Function signal generator in circuit experiment and equipment It has a very wide range of uses in detection. So learning and designing circuits will also be used.
DDS signal generator parameters:
  • The frequency range of DDS is: 1HZ-500KHz.
  • High-speed frequency (HS) square wave: 1MHZ/2MHZ/4MHZ/8MHZ, 16HZ signal;
  • The offset and amplitude of the DDS generated signal can be adjusted separately through two potentiometers;
  • Signals generated by DDS: sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, ECG wave and noise wave.
  • 1602 LCD screen;
  • Intuitive 5 keyboards.
  • Step frequency value: 1, 10, 100, 1000, 10000Hz;
  • Automatically restore the last used configuration after power on
  • The offset is: 0.5pp-15Vpp
  • The amplitude is: 0.5Vpp-20Vpp
  • Output impedance: 51 ohms

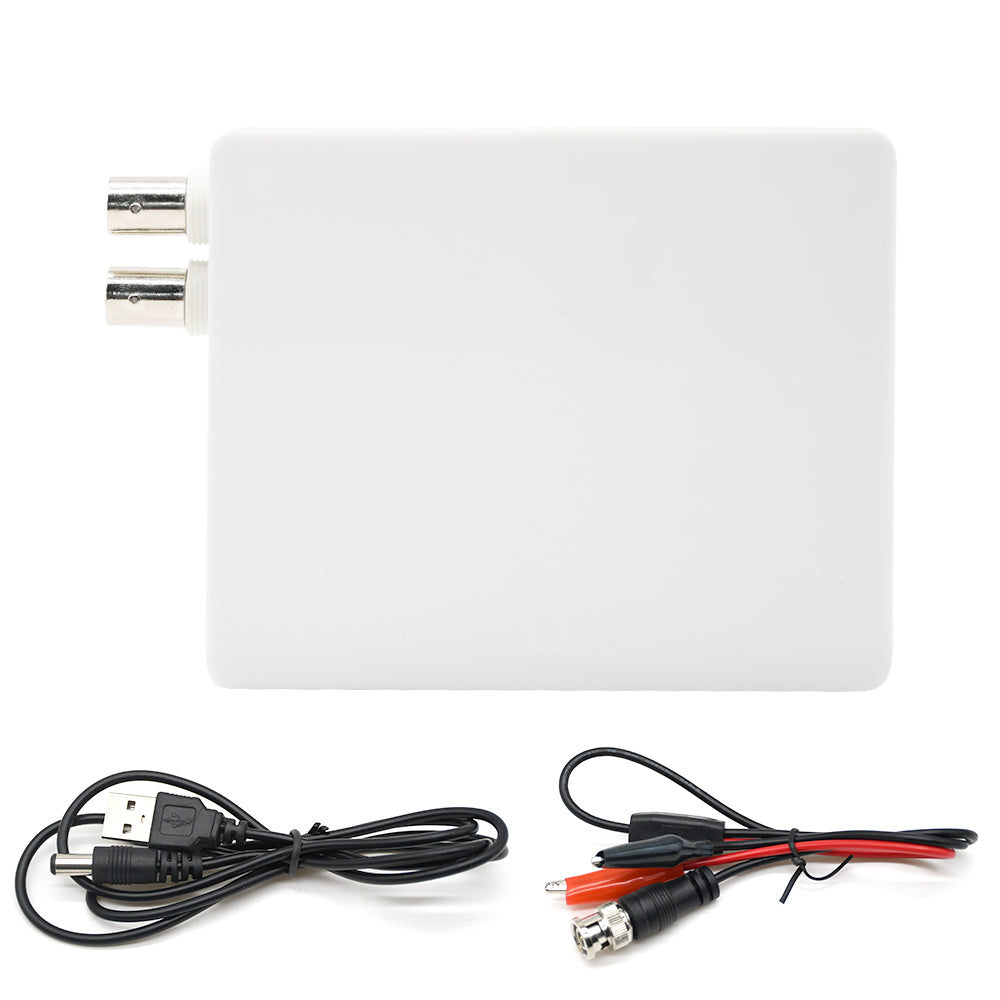

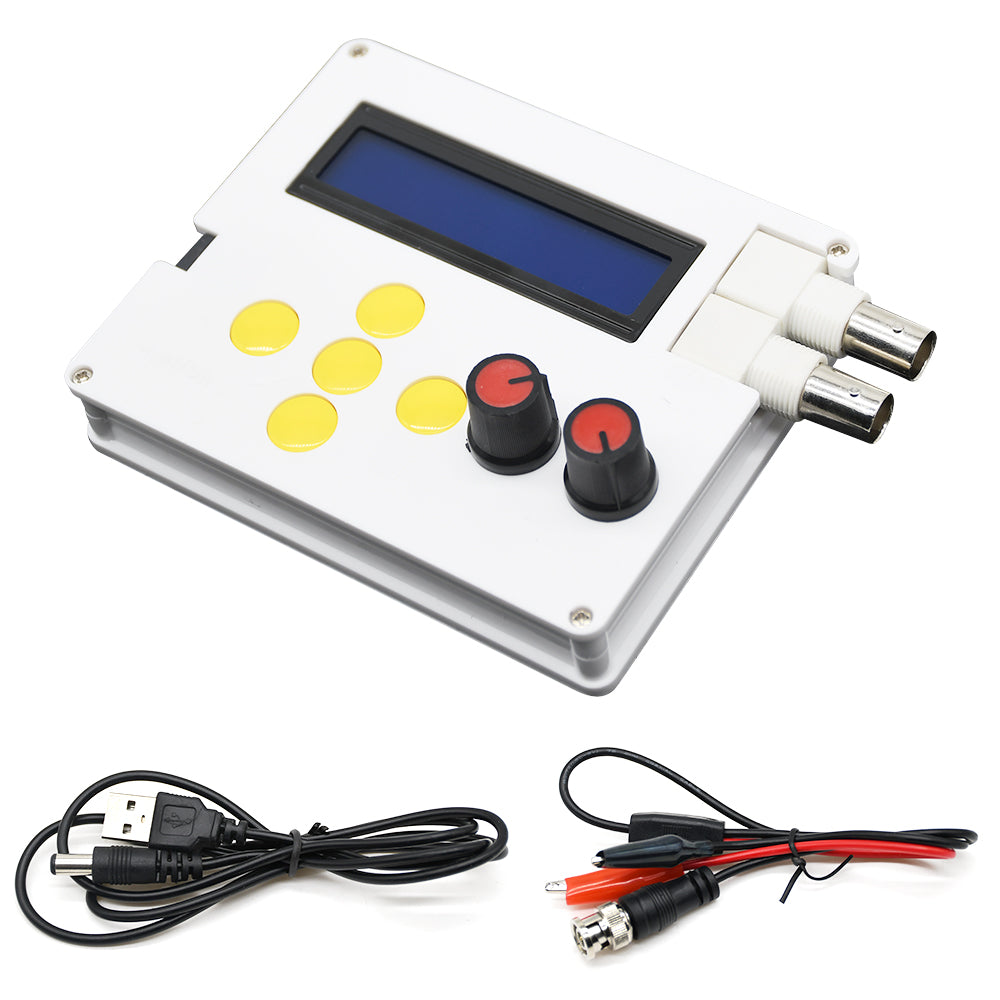

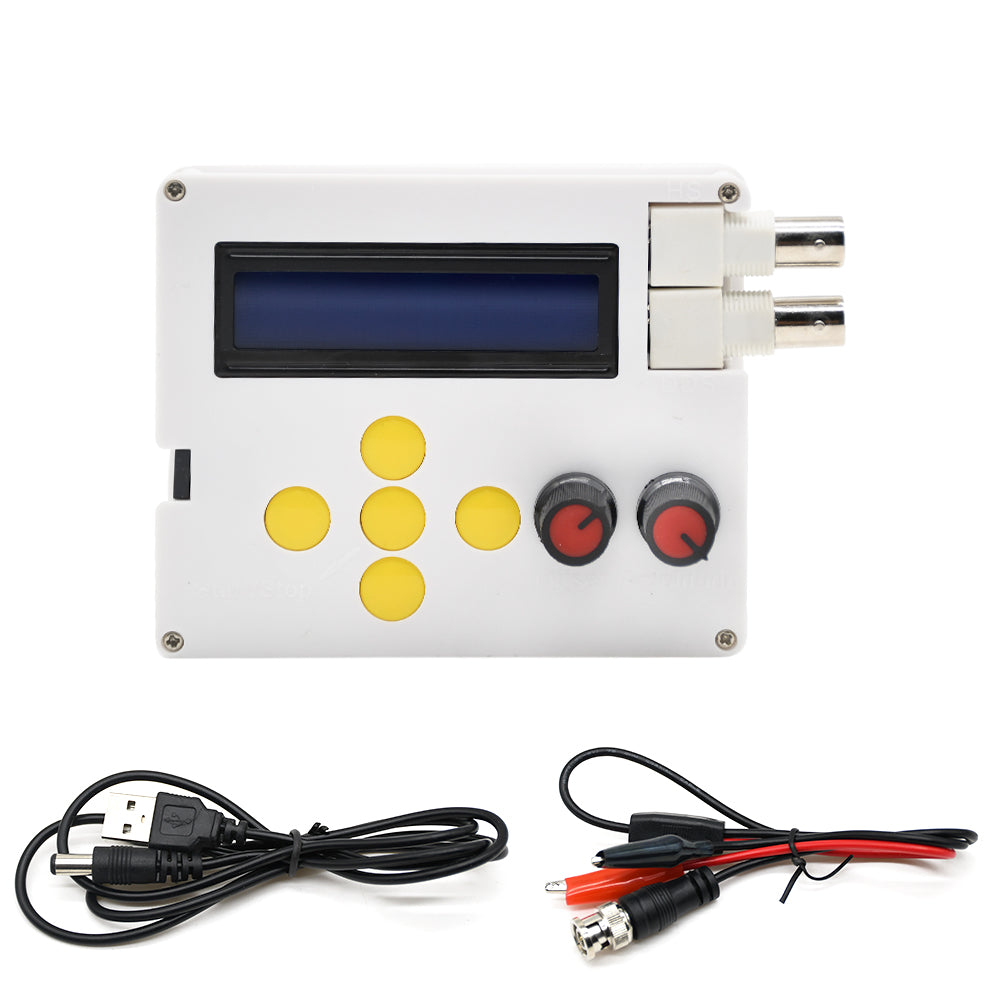

Package Included:
  • One DDS signal generator
  • One BNC signal line
  • A copy of the manual
  • A USB power cord
