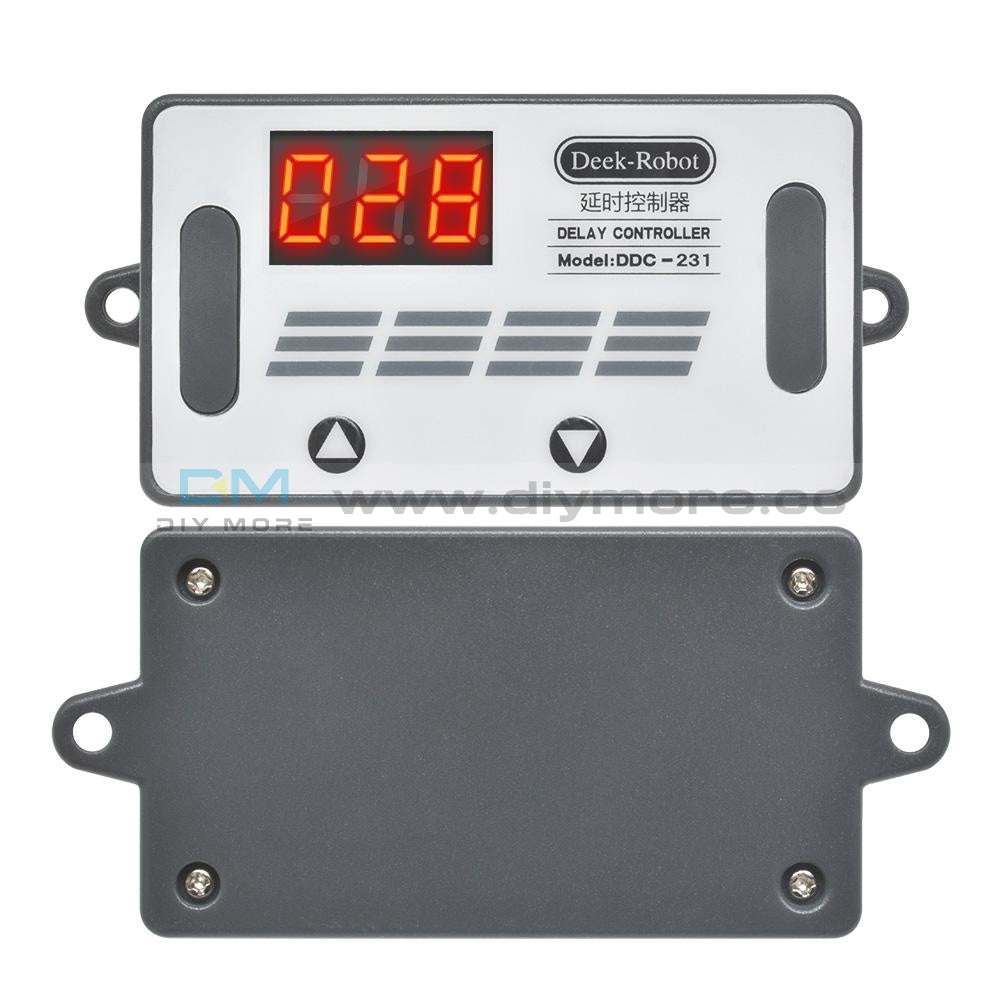

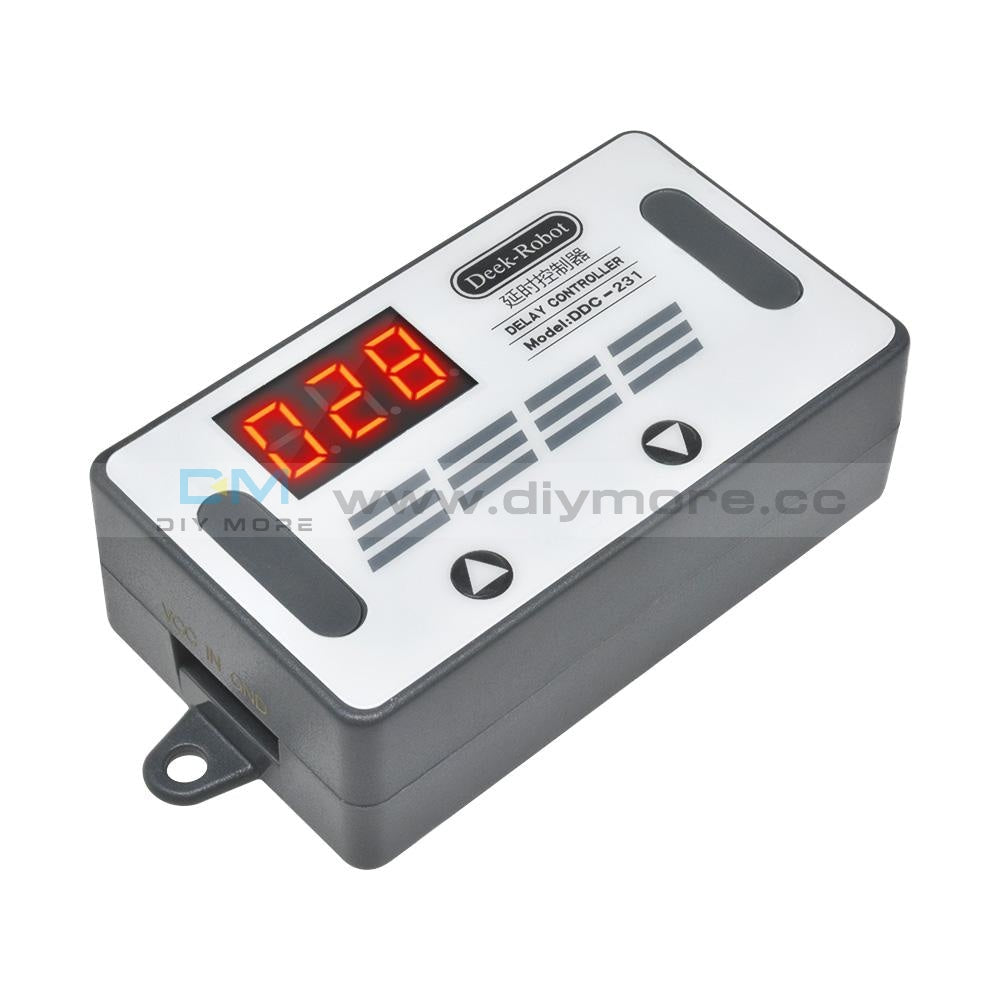

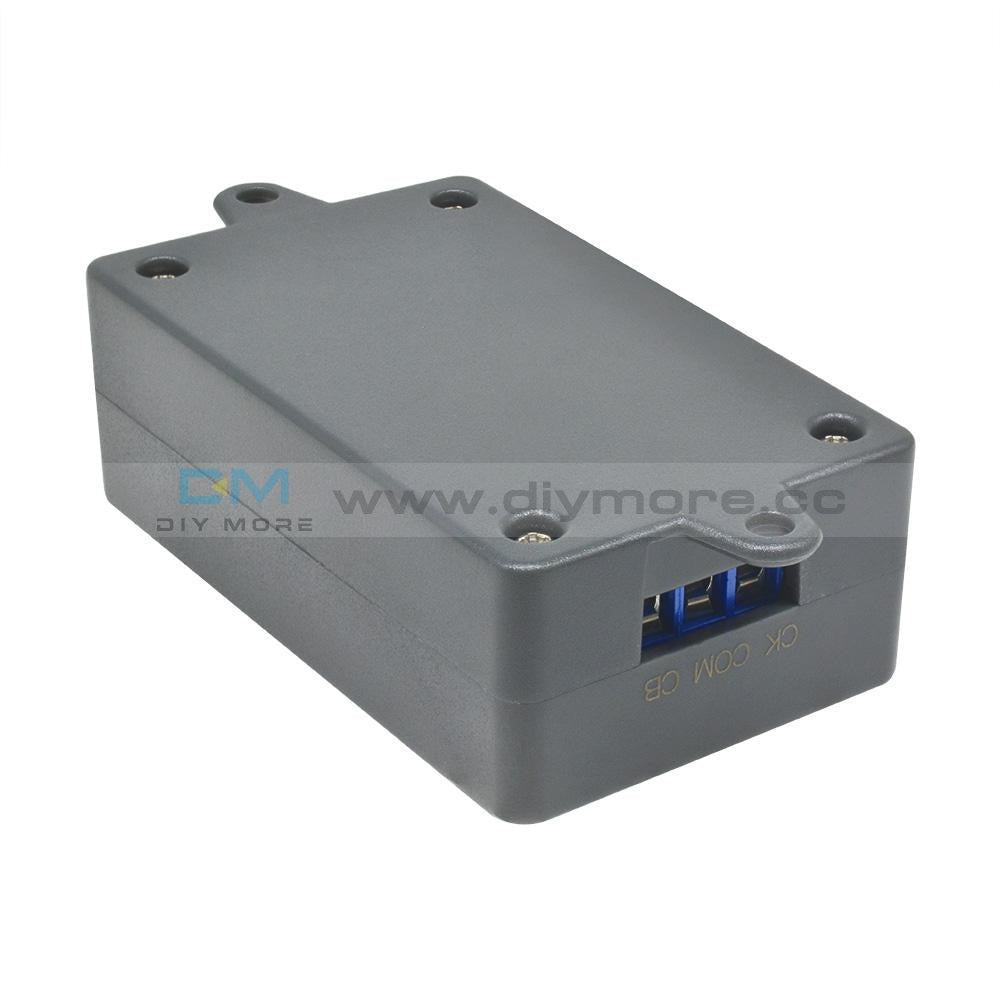

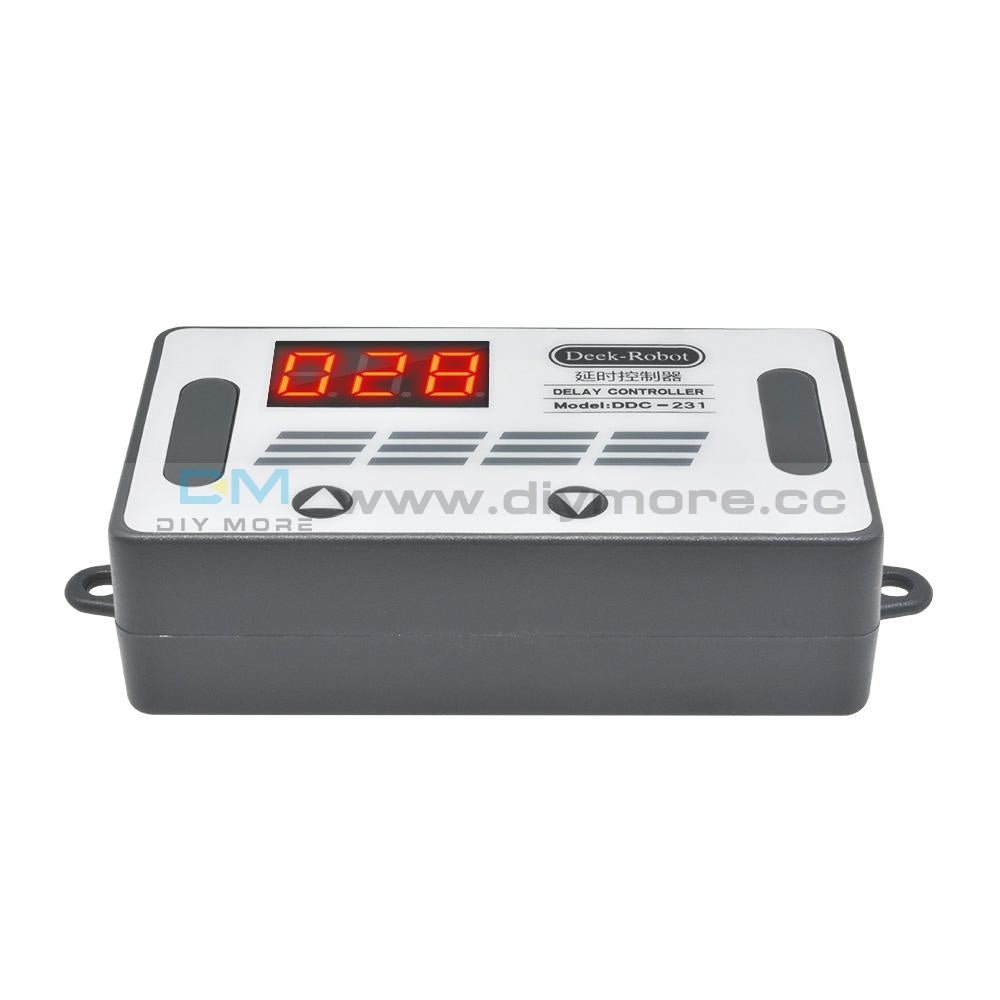

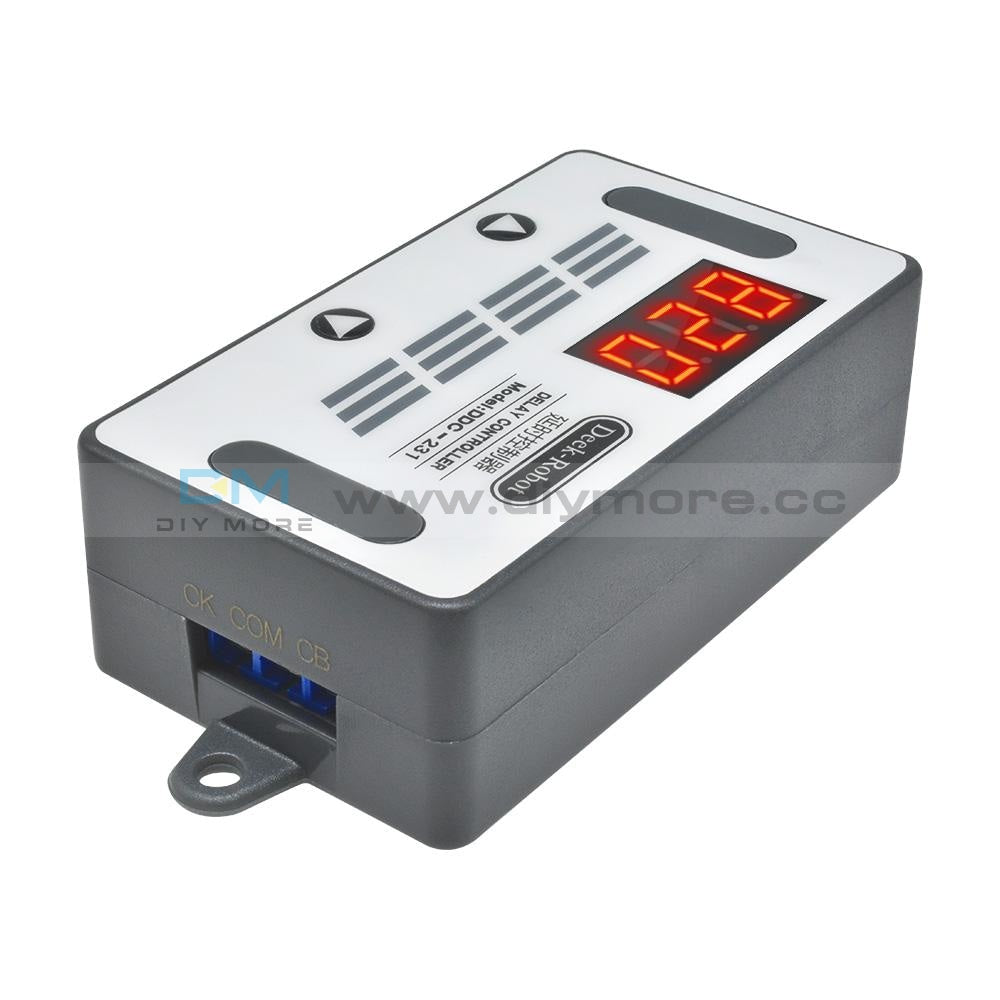

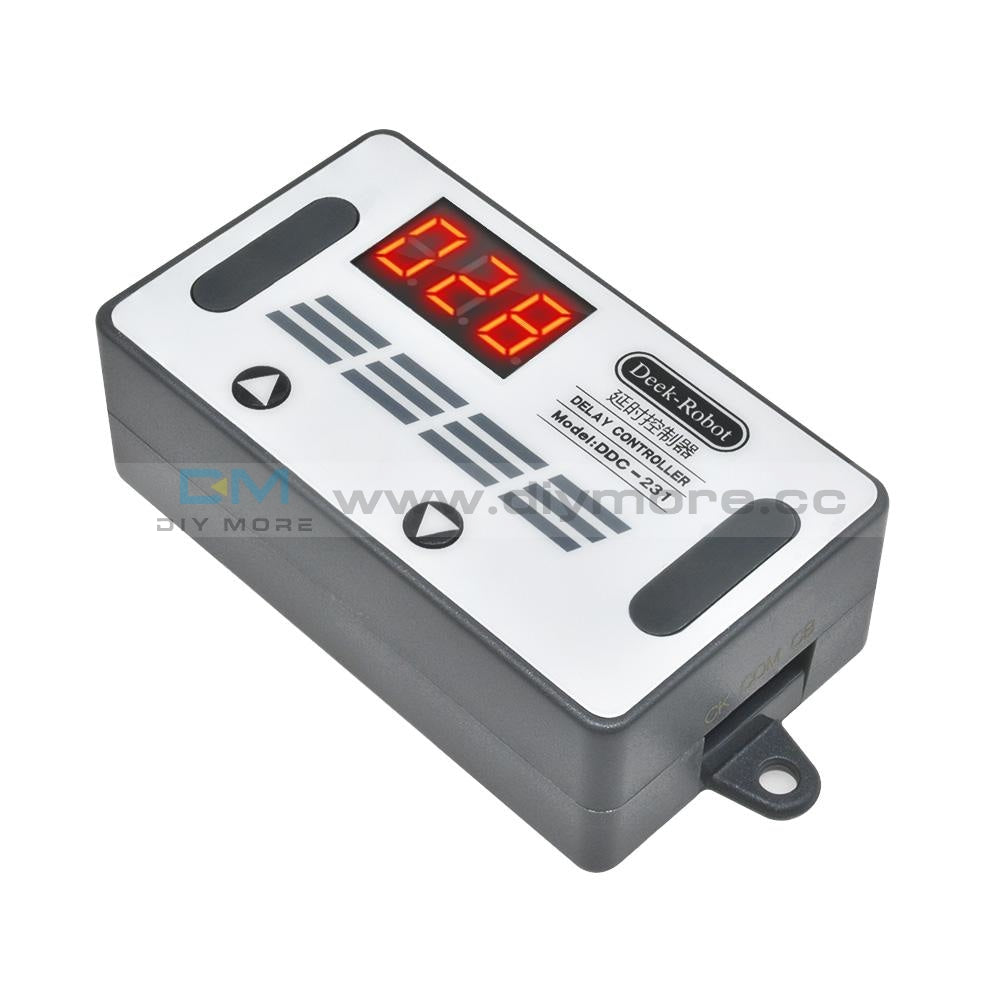

2/3/4 Button Time Delay Relay DC5V/12V Motor Speed Temperature Controller&Buzzer

2/3/4 Button Time Delay Relay DC5V/12V Motor Speed Temperature Controller&Buzzer

SKU:100035
Regular price $7.99

1、Product parameters
Working voltage: DC12V (normal working voltage DC10V-16V)
Signal source: DC4V~20V (usual power supply positive trigger, button, PNP sensor, PLC signal, etc.)
Output capability: It can control devices within 30v5A or within 220v5A
Quiescent current: 20mA, working current: 50mA
Service life: more than 100,000 times;
Working temperature: -40~85 °C;
Net weight: about 26g
Size: 64.2mm*34.8mm*18.5mm
2、Features
Voltage input anti-reverse circuit, worry-free wiring. Signal input optocoupler isolation, strong anti-interference ability. Set the parameter to power off permanent memory. Powerful flash MCU online programming function, according to user needs can contact the manufacturer to customize the required functions.
3、The module and device are respectively powered wiring diagrams.
4、Module and device share power supply wiring diagram

5、Function introduction
When the power is turned on, the trigger signal is received, the countdown starts, and the relay works. When the timer ends, the relay stops working, the time returns to the setting, and the next trigger signal is waited.
6、Instructions
1).Press K1 to enter the time setting, the hundred digit digital tube starts to flash; press K2 at this time, the hundred digits change; press K1 again, the ten digital tube starts to flash; press K2 at this time, the ten digits change; press again After K1, the digital tube starts to flash. At this time, press K2, the digit of the digit changes; press K1 again to exit the setting, and the digital tube no longer flashes.
2).When the digital tube is normally displayed, press K2, the decimal point is shifted, the decimal point is 0 to 999 seconds in ones digit, the decimal point is 0 to 99.9 seconds in ten digits, and the decimal point is 0 to 999 minutes; the time is set.

7、Package Included:
1*DDC-231 DC12V 50mA MOS Switch Time Delay Relay Controller+Buzzer Current Control
