Delay relay module 5V12V24V fully compatible trigger cycle timing industrial anti-overshoot instrument housing
Delay relay module 5V12V24V fully compatible trigger cycle timing industrial anti-overshoot instrument housing
SKU:XM0021
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Reference description:
- Wide voltage operation (5~30V), most equipment can be used, very convenient;
- The interface is clear and simple, powerful, easy to understand, and almost meets all your needs;
- There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn;
- Sleep mode, after enabling, without any operation within 3 minutes, automatically turn off the display; any key to wake up;
- Different OP, CL, LOP, CLL, CLH parameters can be set, these parameters are mutually
- Independent and kept separately;
- New serial port communication function, convenient to read and set parameters.
- All set parameters are automatically saved after power-off.
- Working voltage: DC5V-30V supports microUSB5.0V power supply;

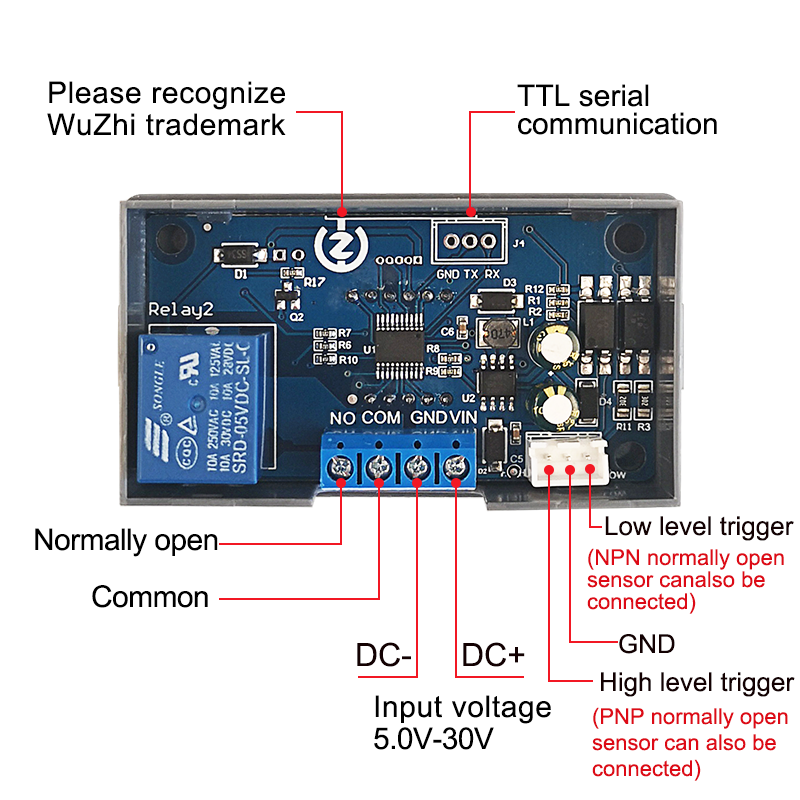

- Trigger signal source: ①High level trigger (DC3.0V-24V) ②Switch trigger ③Serial communication trigger
- Output capability: can control equipment within DC 30V5A or AC 220V5A
- Quiescent current: 20mA Working current: 50mA

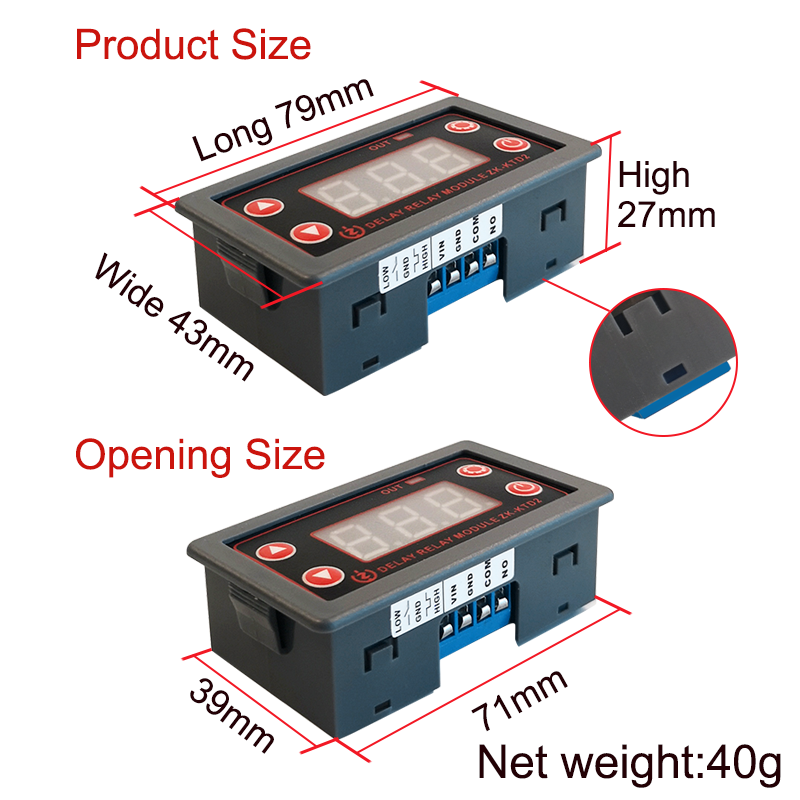

- Service life: more than 100,000 times; working temperature: -40~85C; size: 79*43*27mm6: with optocoupler isolation, enhanced anti-interference ability, industrial
- Level circuit board, set parameters forever after power off
- Far memory.
- Special attention: The relay output is a passive contact, a non-charged output, which controls the on-off operation of a line
- use.
