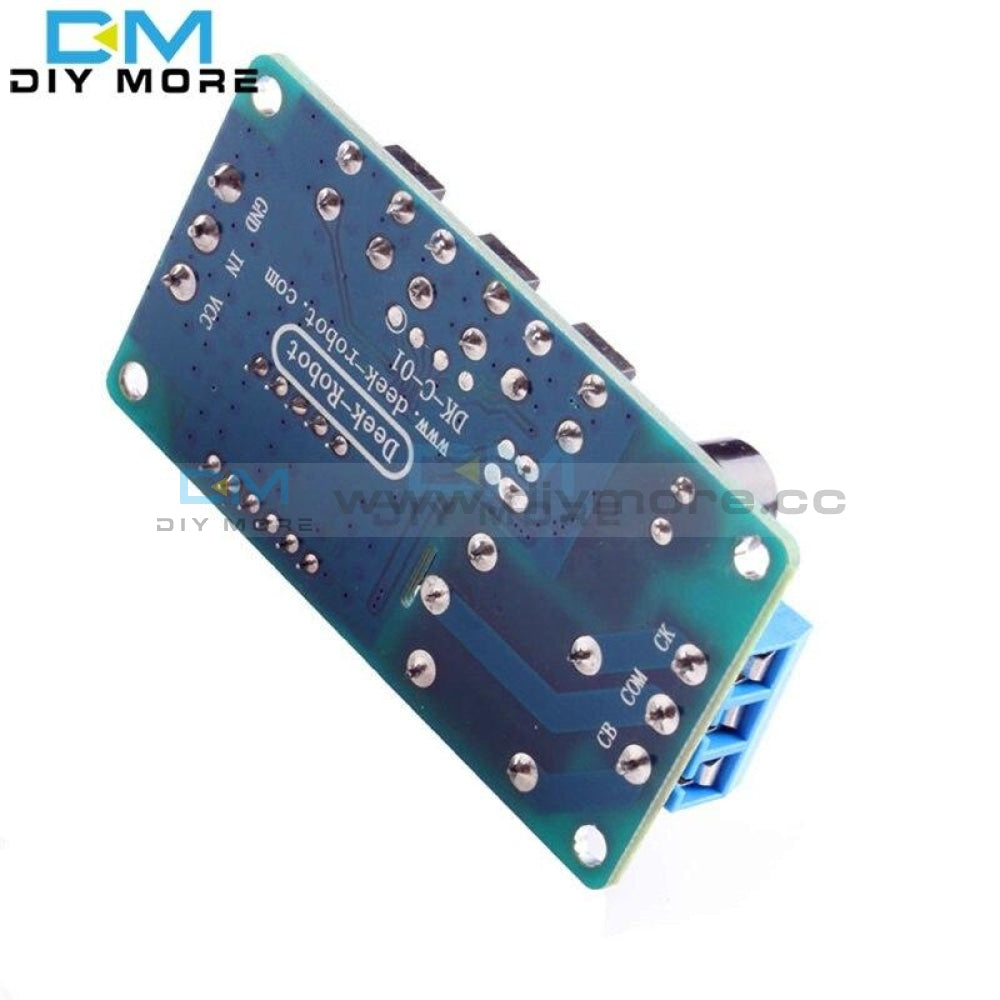

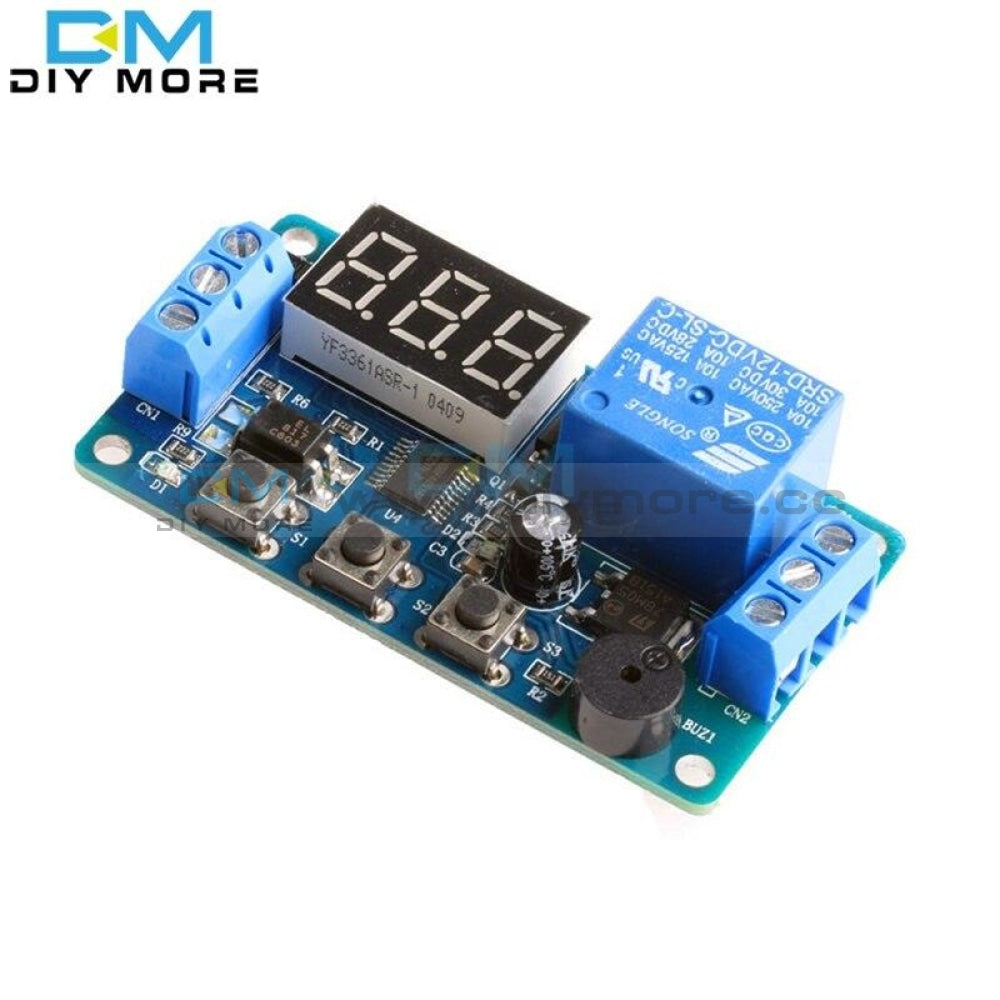

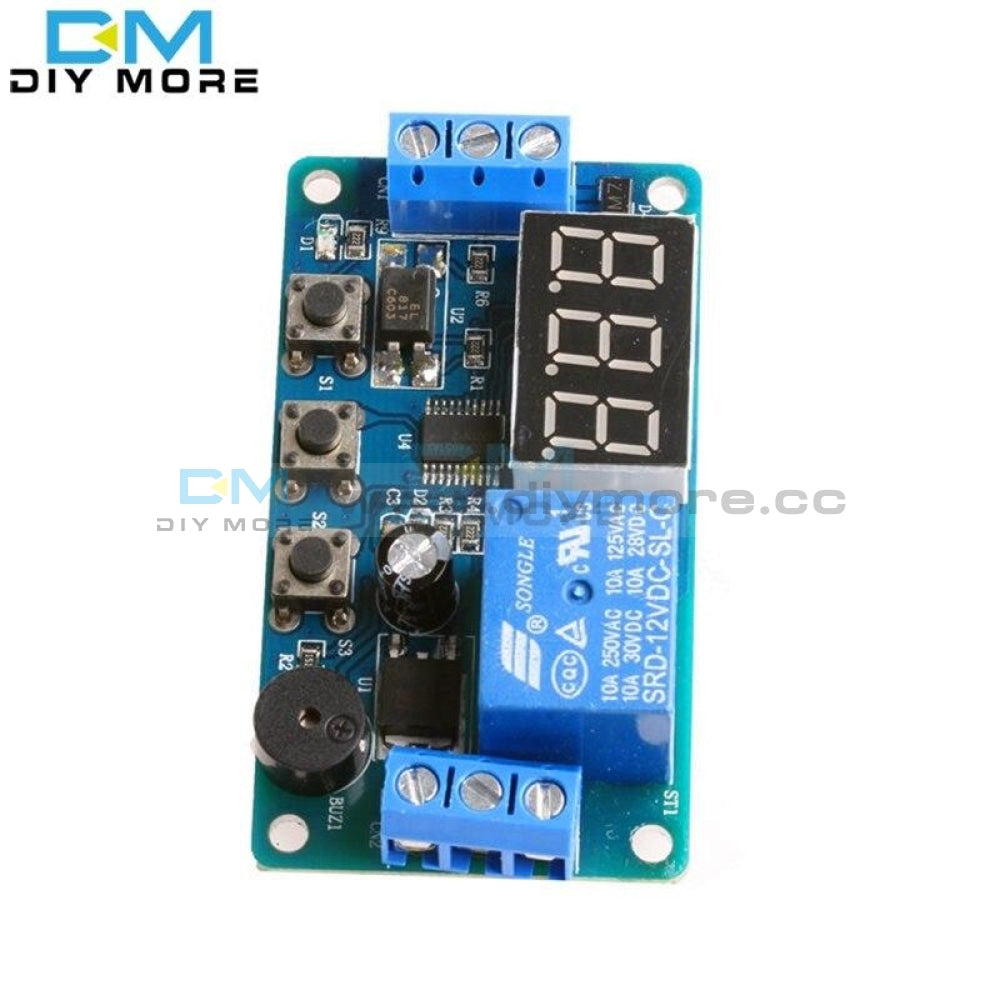

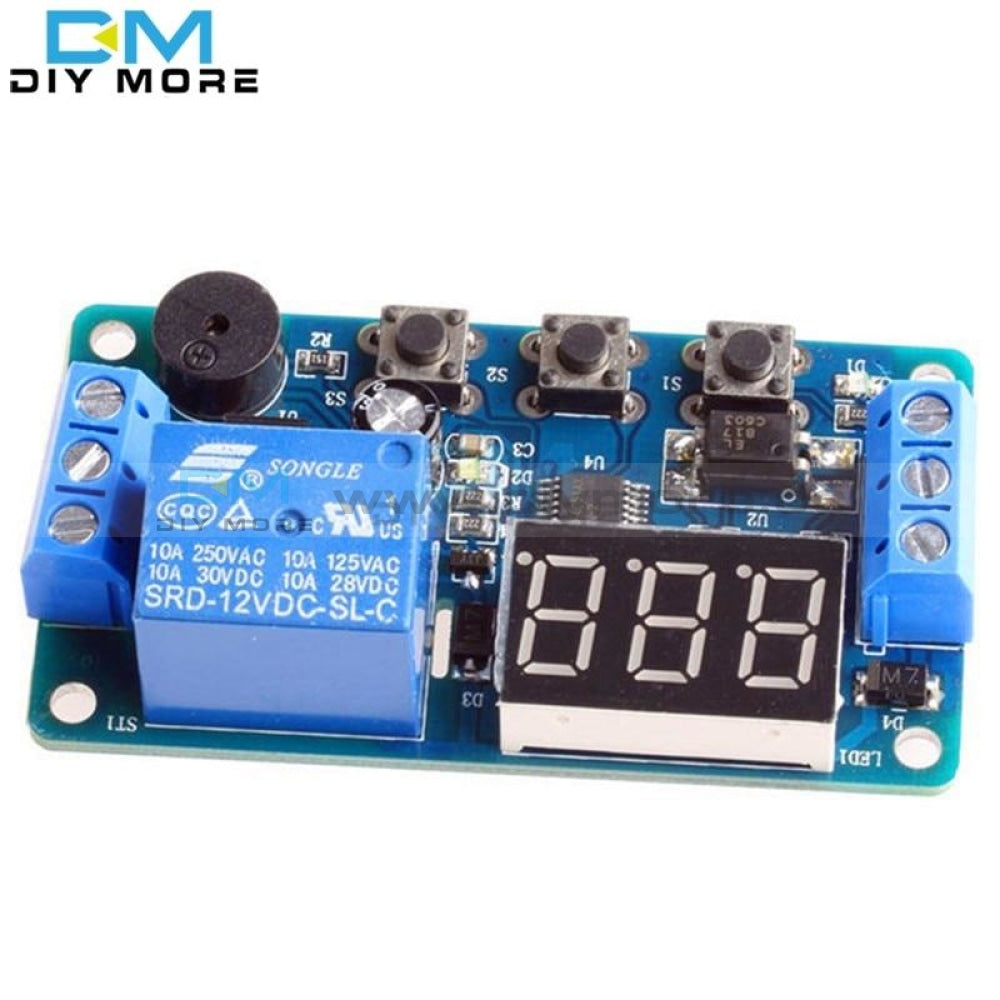

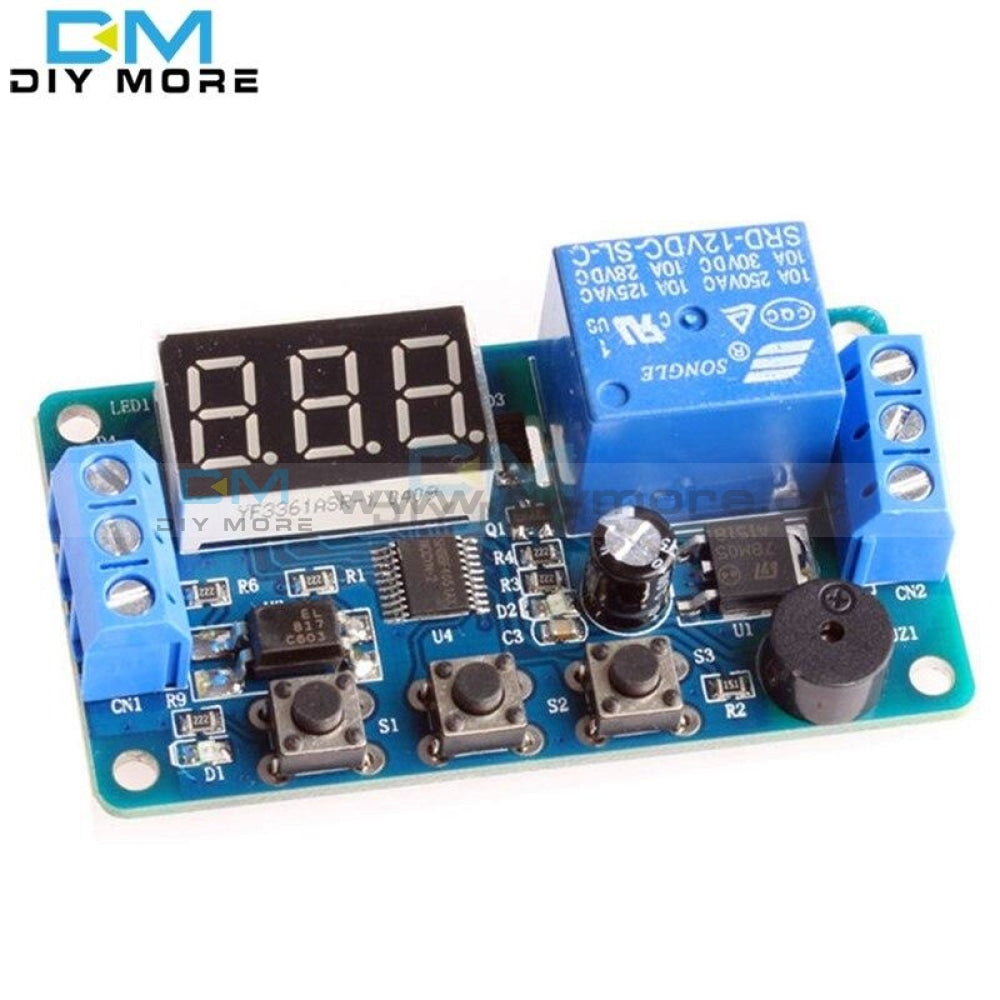

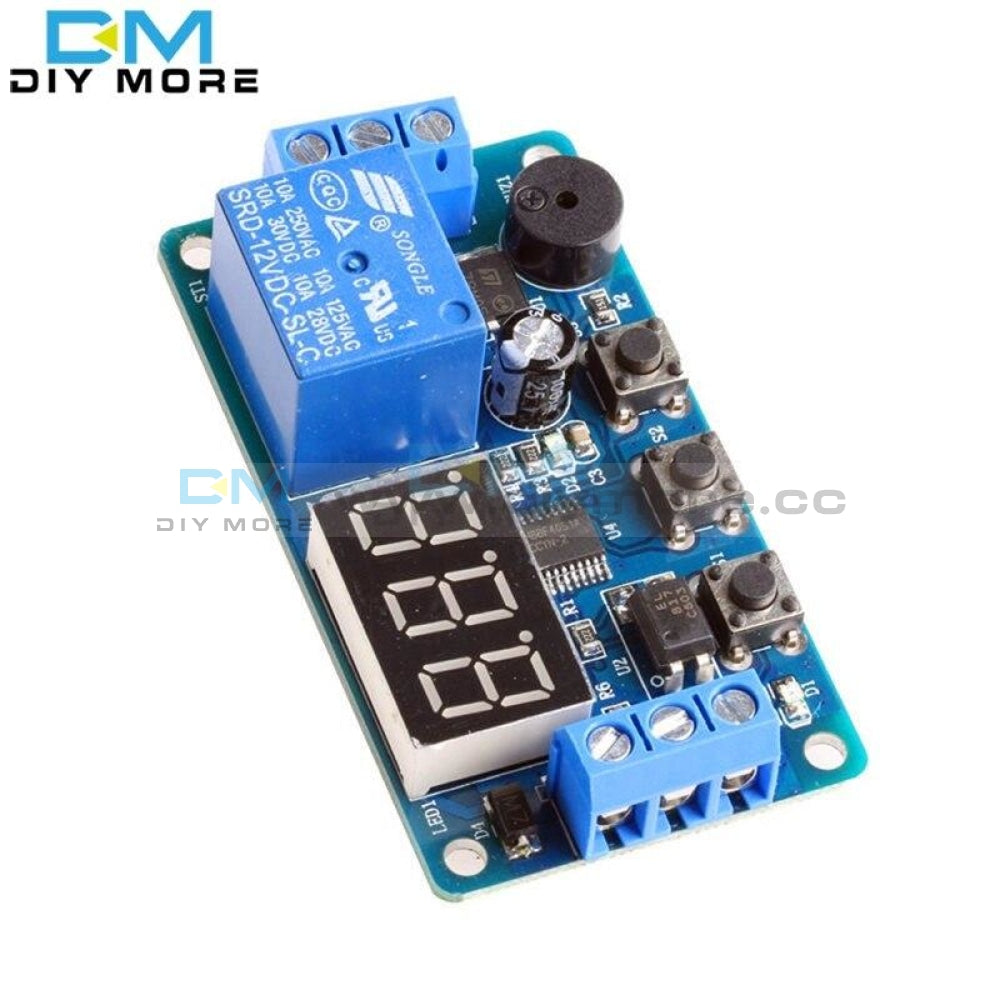

Digital LED Display Time Delay Relay Module Board DC 12V Control Programmable Timer Switch Trigger Cycle Module Car Buzzer
Digital LED Display Time Delay Relay Module Board DC 12V Control Programmable Timer Switch Trigger Cycle Module Car Buzzer
SKU:100002
Regular price
$4.68
Sale price
$3.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Notice: Dear friends, if your order more than $5, Aliexpress will not allow us send the package by not available tracking information shipping method (like China Post Ordinary Small Packet Plus, 4PX Singapore Post OM Pro). So please choose China Post Air Mail/AliExpress Standard Shipping if your order more than $5. Or pls split your order, you can submit more than 2 orders, make sure your each order less than $5 to make sure your each order less than $5, Russia less than $2. Please choose China Post Air Mail/AliExpress Standard Shipping if you want a full tracking information. Thank you for your support!
- 100% brand new and high quality
- Material: Electrical components
- Color: See the pictures
- Working voltage: DC12V (normal operating voltage DC10V-16V)
- Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)
- Output capability: You can control the DC or AC 220v5A within 30v5A within
- Quiescent Current: 20mA,
- Working current: 50mA
- Life: more than 10 million times;
- Working temperature: -40 ~ 85'C;
- Features:
- anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability.
- Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.
- S1: power on, press S1 2 seconds to enter mode selection menu, press S1, choose P-1 ~ P-4 mode.
- S2: OK / Shift key: Press to adjust the position of the LED is blinking, which LED is blinking, S3 to adjust the value of digital tube flicker.
- Until you press S2, the digital is no longer flashing.
- S3: digital display flashes, S3 adjustment digits from 0-9 successively changed. Normal digital tube display, S3 to adjust the position of the decimal point, the decimal point in bits 0-999 minutes; in 10 bit from 0 to 99.9 seconds; no decimal point indicates 0-999 seconds.
- Model Description:
- P-1: triggering signal is received, the relay is turned on, the timer expires, the relay off.
- A1: During the delay trigger again invalid
- A2: During re-timing delay trigger again
- A3: Delay trigger again during termination timing relay reset
- P-2: triggering signal is received, X start time, the end of counting relay, Y start time, the end of counting the relay off
- P-3: Cycle Switch Mode
- A1: After power relay is turned on, the end of the timing off, an infinite loop.
- A2: After power relay is off, the timing turned end, an infinite loop.
- Size: See the picture
- No retail packag
- Quantity: 1Pc
- Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!
