DIY Kits Mini ZVS Tesla High Voltage Generator Coil High Frequency Induction Heating Machine Module Board

Diy Kits Mini Zvs Tesla High Voltage Generator Coil Frequency Induction Heating Machine Module Board

DIY Kits Mini ZVS Tesla High Voltage Generator Coil High Frequency Induction Heating Machine Module Board

SKU:012836
Regular price $8.99









This is the mini ZVS suite, the package is very small, can not use ordinary battery power supply, it is



recommended to use high-power switching power supply, etc., 5 to 12V power supply current shall not be



less than 5A!!! Note that the power supply to use high-power power, power should be sufficient, the working



voltage is less than 5V does not work, the current is less than 5A does not work.



The operating voltage should not exceed 12V or less than 5V, only refers to the voltage when the circuit is

working, not the output voltage of the power supply without load! More than 12V or less than 5V power

supply, the circuit is prone to problems, the seller is not responsible!



12V power supply push high voltage package, power 60W or so, MOS tube does not heat, no auxiliary heat

dissipation. If used to do induction heating, please do not work long hours, after all, limited power, induction

heating, primary coil heating is relatively large, pay attention to heat dissipation.



Make sure all components are soldered properly, the positive and negative of the power line are not

connected, and after the load (heating coil, high voltage package), the power supply is connected again! No

electricity without load! No-load energization is easy to damage! No load is energized, the 2 MOS tubes are

easy to conduct at once, and then the heat is burned out!



Maximum power 120W (12V induction heating)



Batteries, batteries, power supply must ensure that the work voltage is above 4.5V! If you can't make sure

that the voltage is above 4.5V during work, do not use batteries or batteries! Do not use dry batteries!



The width of the heated coil shall be as high as 1/3~1/2 of the inner diameter of the heating coil, and the

maximum shall not exceed 2/3!



Heating the diameter of the object as much as possible within the control of 20mm, too large heating will be

difficult to heat up red, after all, limited power.



Induction heating, the general work of 5 minutes to power down cooling. Because the induction heating

current is relatively large, coil heating is relatively large. When heated, some of the heat produced by the

heated object is passed to the heating coil. For a long time, the temperature of the heating coil is very high. If

the heating coil is attached to the terminal, it will melt the plastic part of the terminal!



1. tin welding pads are firm and can be subjected to repeated disassembly and disassembly, and it is not easy

to fall off;

2.1.6mm plates are thick and do not subject to self bending (i.e., bending under non human conditions). Poor

plates will bend with time and environmental changes.

3.the impedance is more stable and reliable;

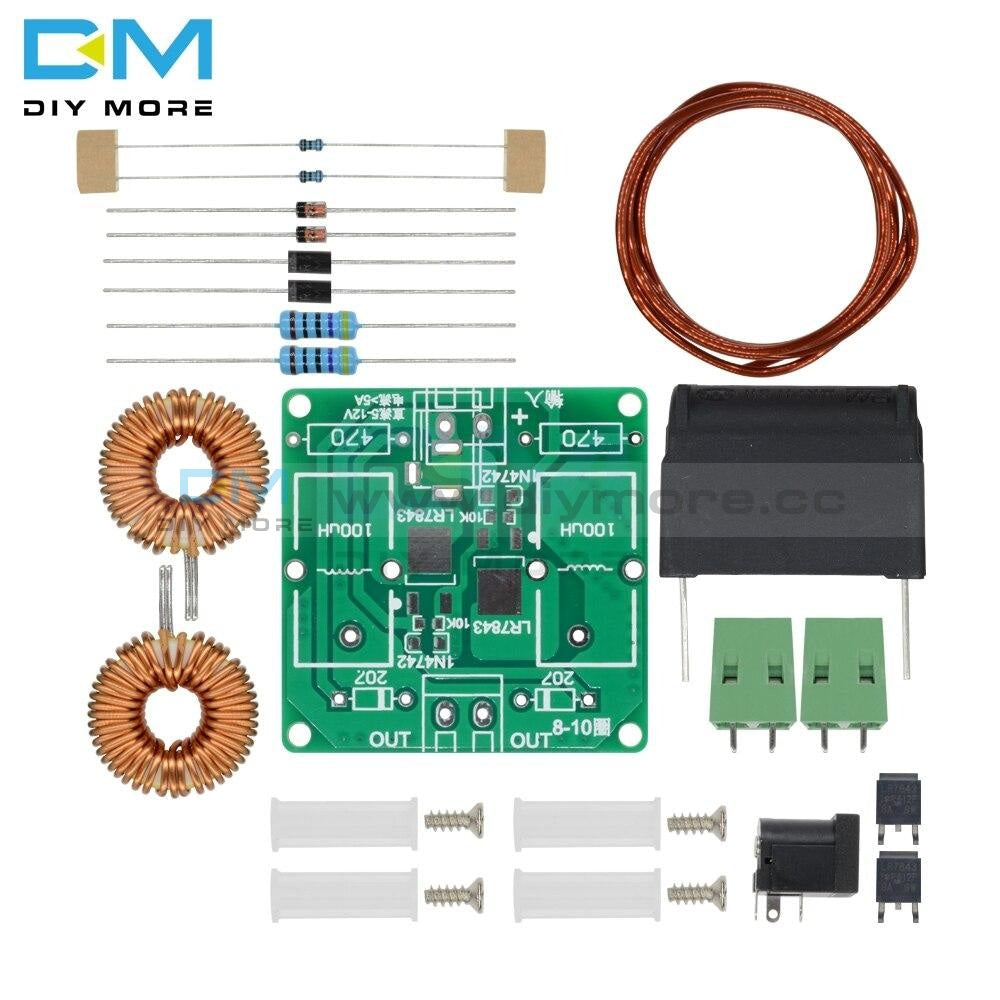

Package Included:
1 set diy kit board
