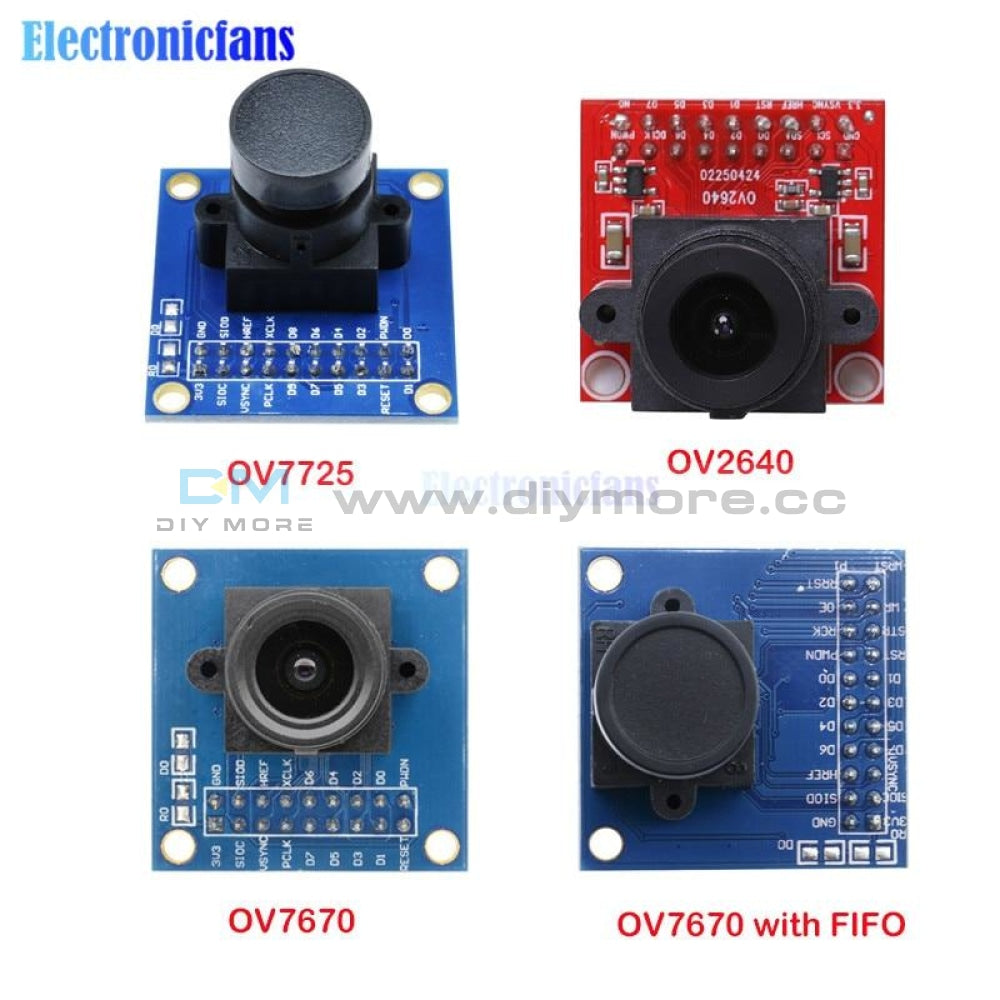

diymore Camera Module OV7670 OV7725 OV2640 OV7670 with FIFO CAM Module Image Sensor STM32 Supports VGA CIF JPEG 30W For Arduino

diymore Camera Module OV7670 OV7725 OV2640 OV7670 with FIFO CAM Module Image Sensor STM32 Supports VGA CIF JPEG 30W For Arduino

SKU:14:350852
Regular price $19.22 Sale price $9.61

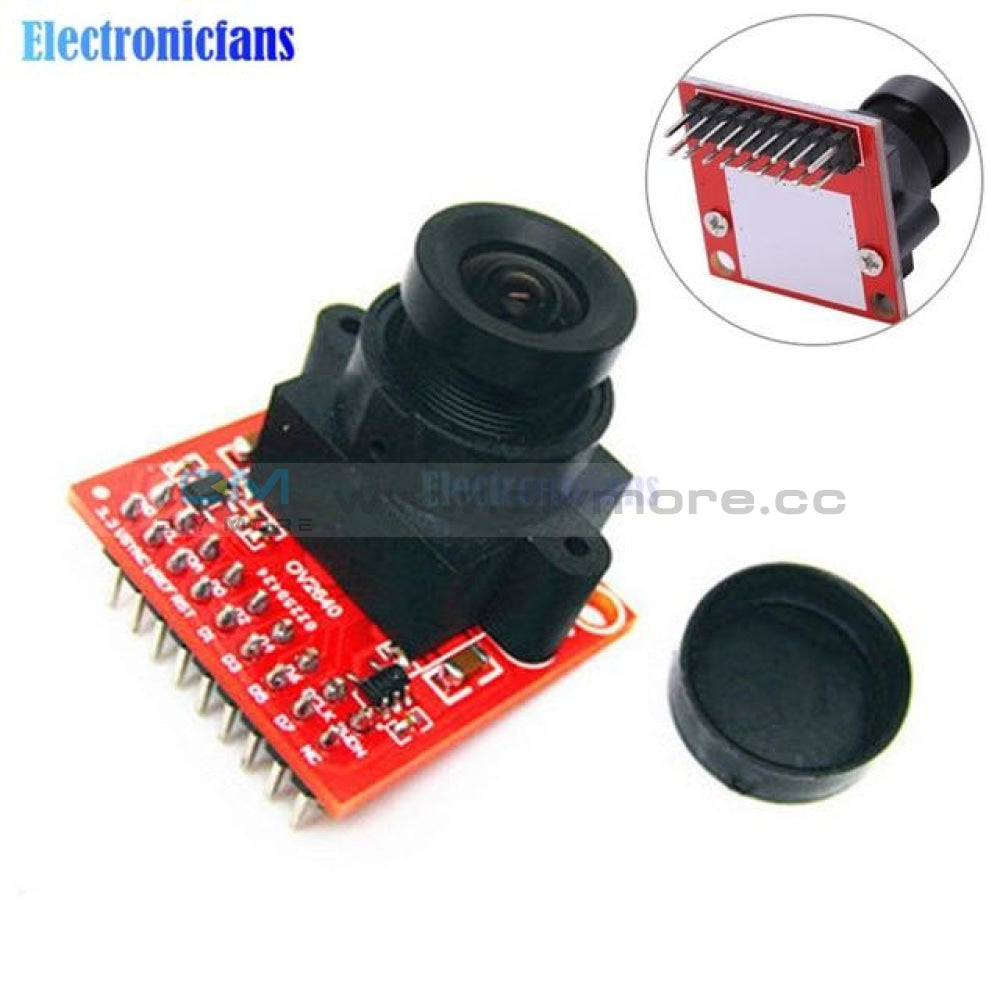

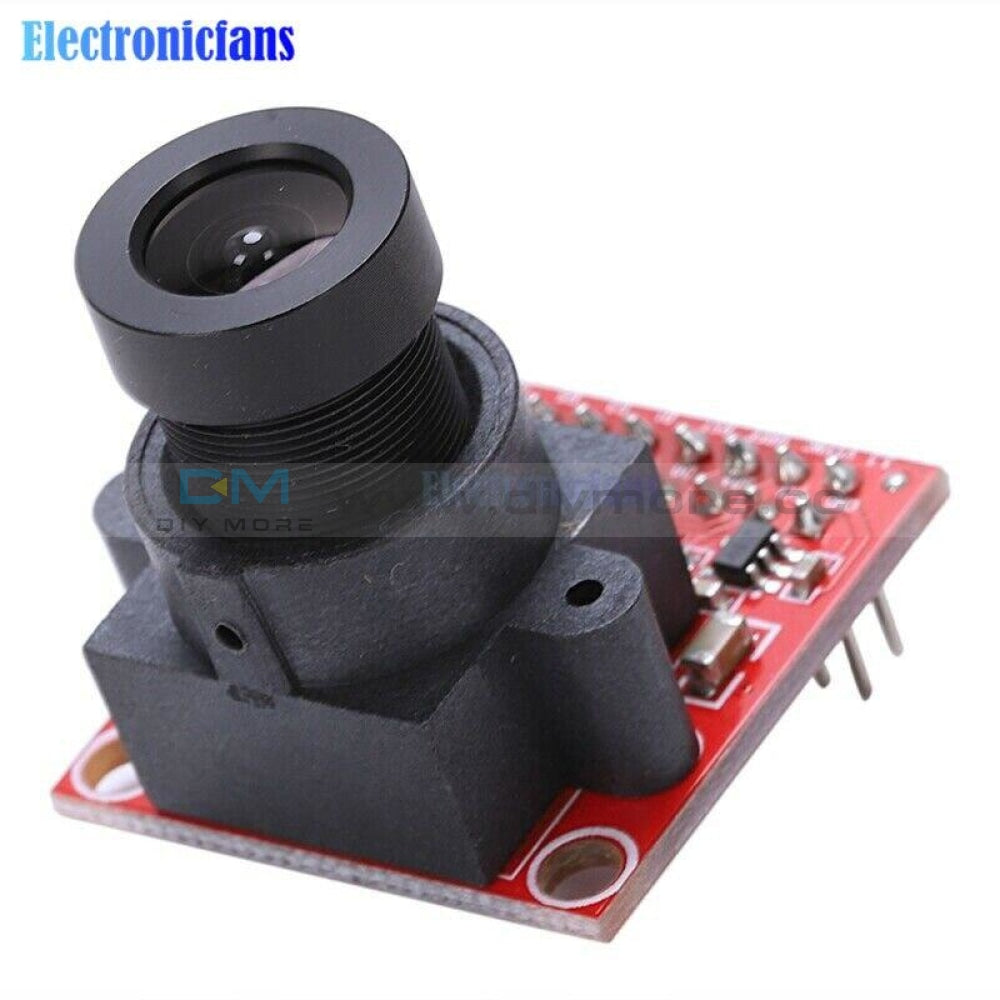

OV2640
200W pixel OV2640 camera module, made with 1/4 inch OV2640 million HD CMOS sensor. High sensitivity, high flexibility, and support for JPEG output. And can support exposure, white balance, chroma, saturation, contrast and many other parameter settings, support JPEG / RGB565 format output, can meet the needs of different occasions.
1. High sensitivity, low voltage suitable for embedded applications
2. Standard SCCB interface, compatible with I2C interface
3. Support RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
4. Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size
5. Support automatic exposure, automatic gain, automatic white balance, automatic elimination of light streaks, automatic black level calibration
6. Support image quality control (color saturation, hue, gamma, sharpness, ANTI_BLOOM, etc.)
7. Support image zoom, pan and window settings
8. Support image compression, you can output JPEG image data
9. Comes with embedded microprocessor
10. Integrated active crystal oscillator 12M, no need to provide external clock
11. Integrated LDO, only need to supply 3.3V to work properly
Product parameters:
1. Working voltage: 3.3V
2. Product power consumption: 40mA
3. MAX pixels: 1600*1200 (200W)
4. Lens focal length: 3.6mm
5. Lens angle of view: 78°
6. Lens aperture: F2.0
7. Dynamic range: 50dB
8. Output format: RGB565/JPEG/YUV/YCbCr, etc.
9. Control Interface: SCCB
10. IO port level: 2.8V LVTTL, compatible with 3.3V
11. Product size: 27*27mm
12. Working temperature: -30 ~ + 70 Degree
3V3-----Input power supply voltage (3.3,5V is recommended, but not recommended)
GDN-----ground
SIO_C---SCCB interface control clock (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
SIO_D---SCCB interface serial data input (output) end (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
VSYNC---frame sync signal (output signal)
HREF----line sync signal (output signal)
PCLK----Pixel Clock (Output Signal)
D0-D7---data port (output signal)
RESTE---Reset port (normal use pull high)
PWDN----Power consumption selection mode (normal use pull low)
● High sensitivity for low illumination applications
● Low voltage for embedded applications
● Standard SCCB interface, compatible with I2C interface
● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
● Supports VGA, CIF, and various sizes from CIF to 40x30
●VarioPixel subsampling method
● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
●ISP has noise elimination and dead point compensation
● Support image scaling
● Lens loss compensation
●50/60Hz automatic detection
● Saturation automatic adjustment (UV adjustment)
● Edge enhancement auto adjustment
● Automatic noise reduction

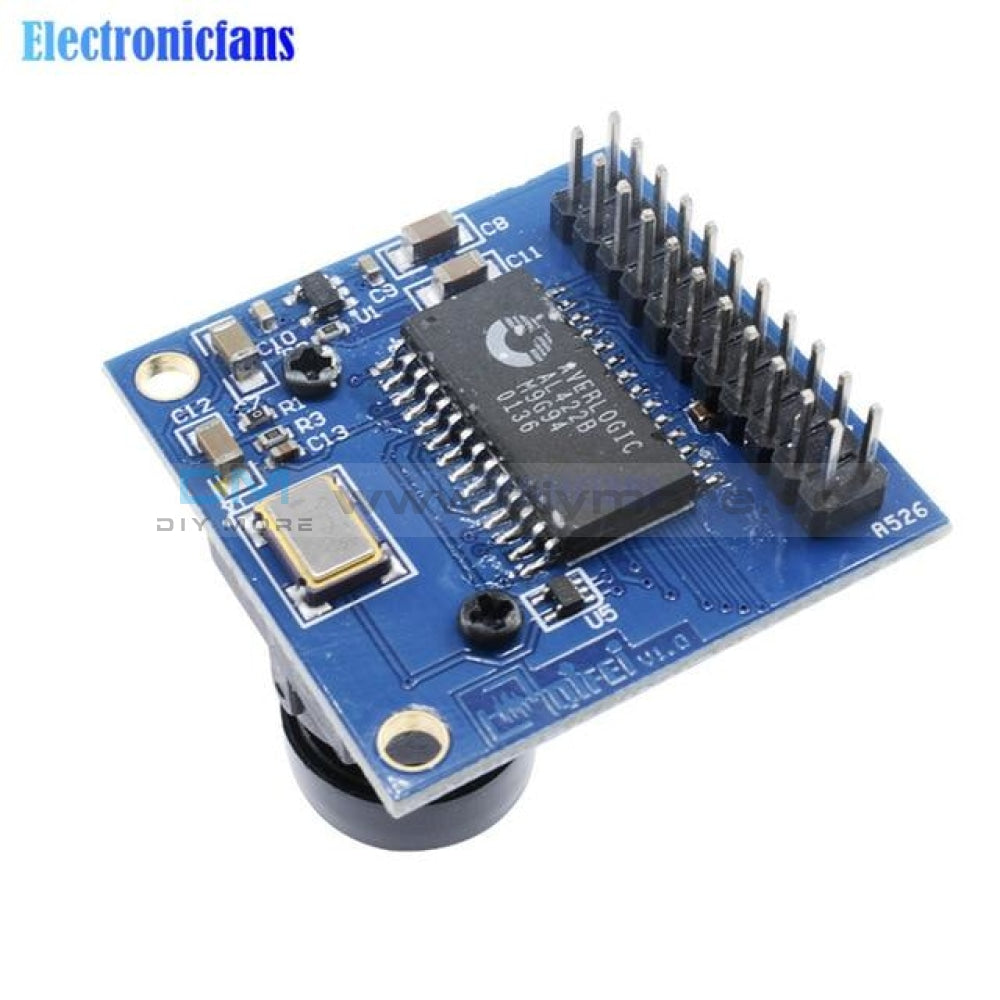

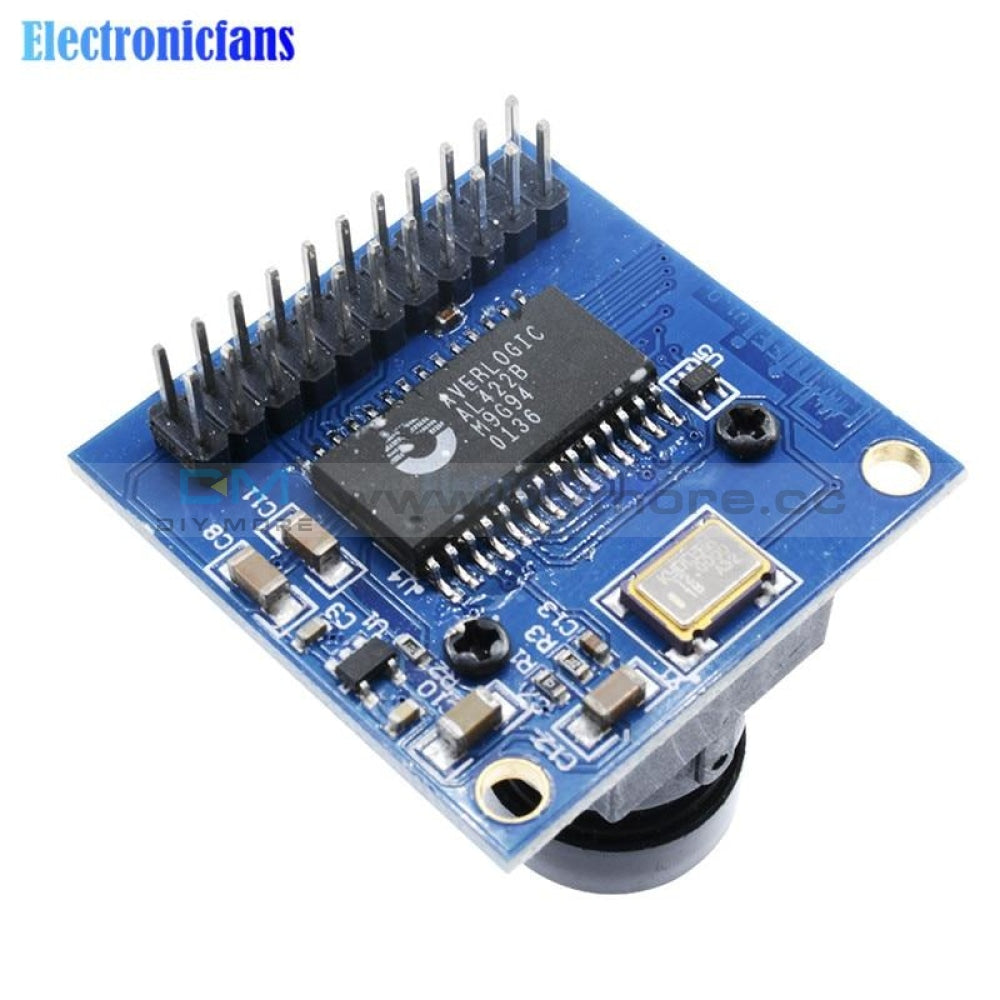

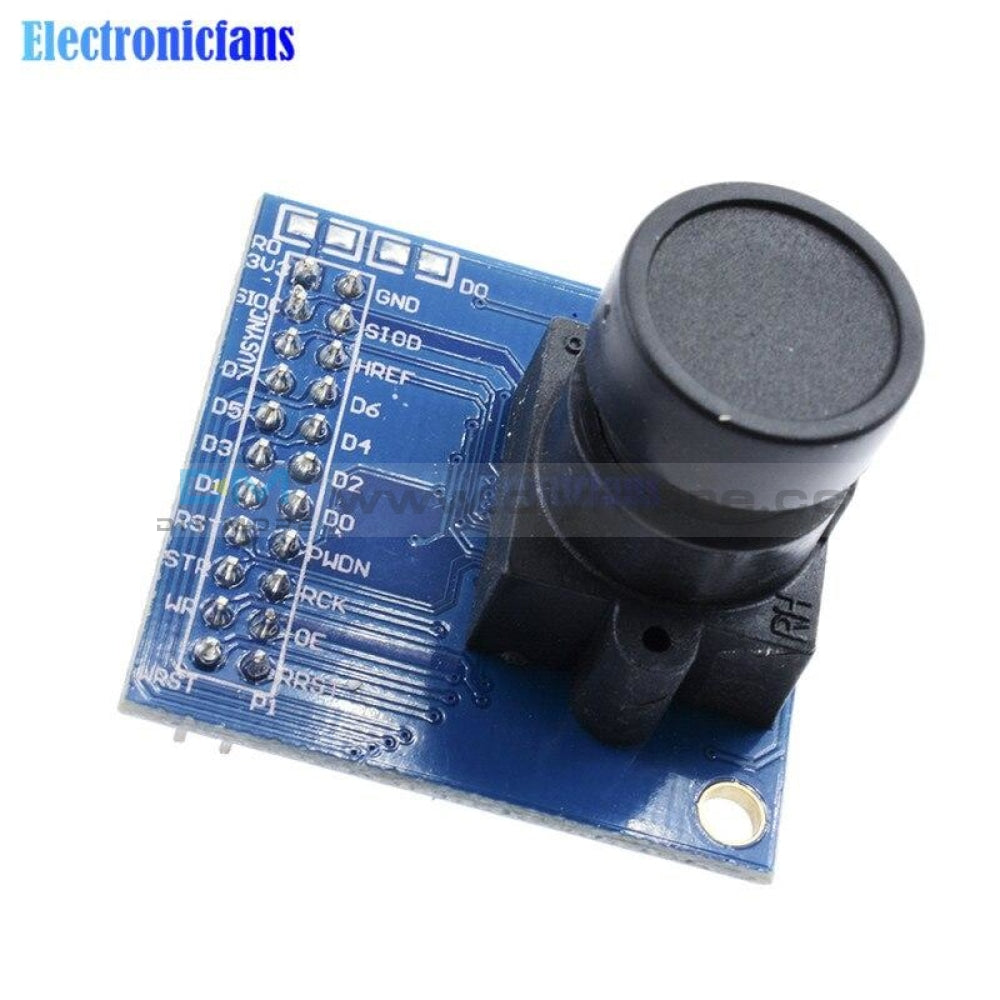

OV7670 with FIFO
The OV7670 has a FIFO module, which is a module with buffer storage space for slow MCUs that can achieve image acquisition control. This module adds a FIFO (first in, first out) memory chip, which also includes a 30w pixel CMOS image sensor chip, a 3.6mm focal length lens and lens mount, and various power supplies required for the onboard CMOS chip. The chip's data file), the board also leads to the control pin and data pin for easy operation and use.
Control Description:
Because the FIFO is used as the data buffer, the data acquisition is very simple, the user only needs to care about how to read it, and does not need to care about how the specific data is collected, so that the control and timing relationship of the CMOS can be reduced or not even concerned. It is possible to achieve image acquisition.

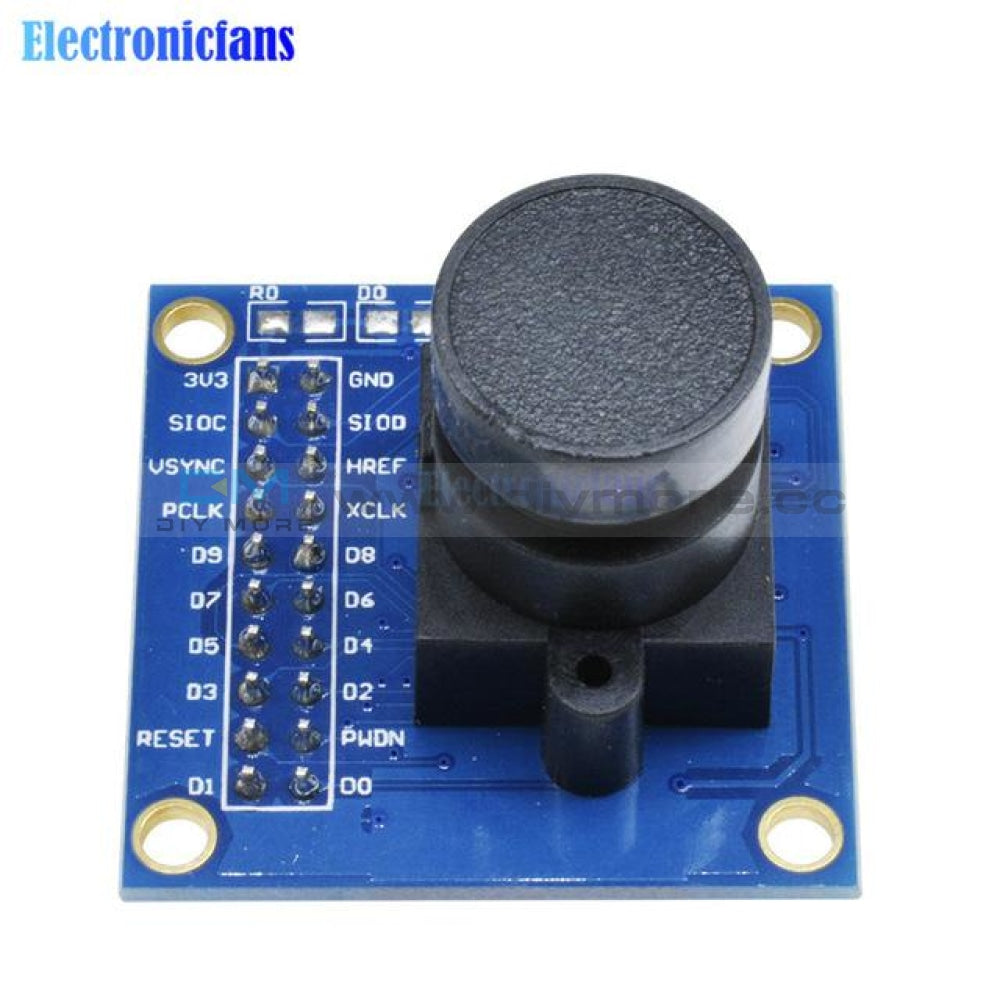

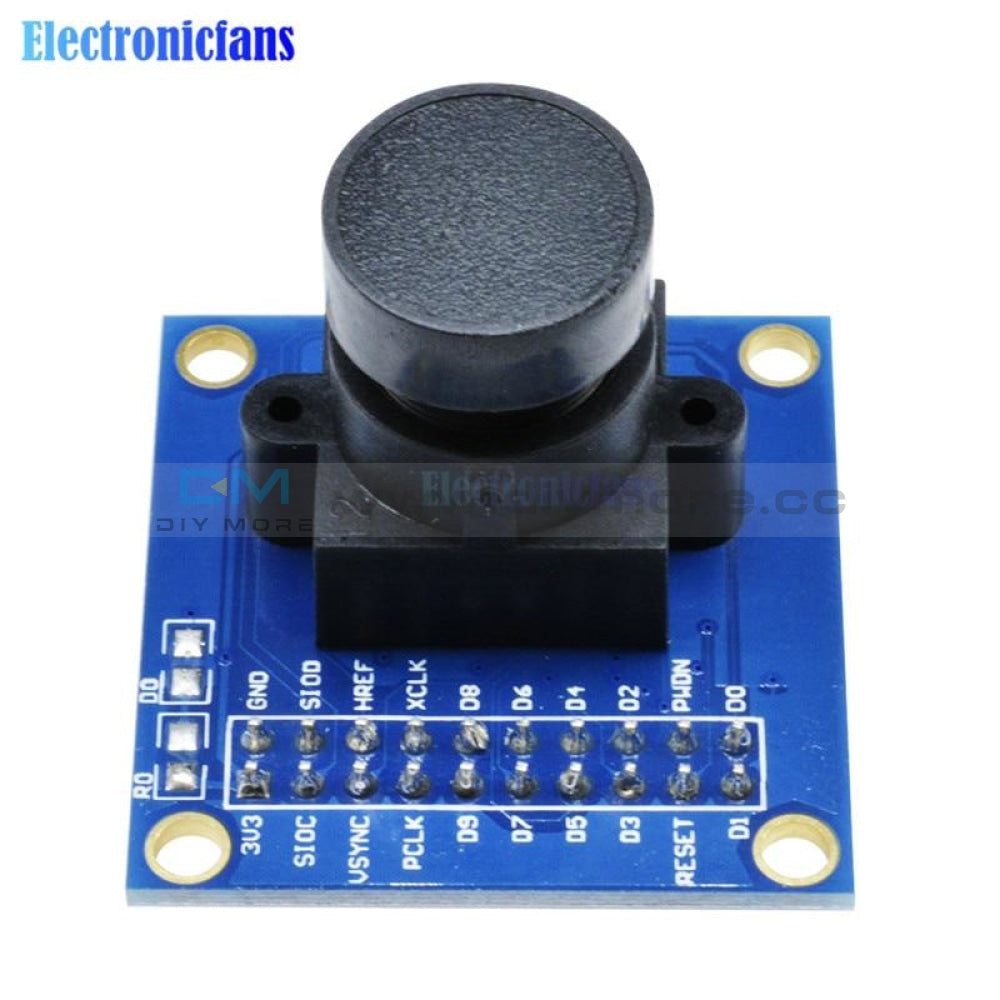

OV7725
Product Description:
1.OV7725 is a 30W pixel HD camera
2. Using infrared filter camera, the visible light band color is better
3. The indicators are much higher than OV7670, which is a replacement product of OV7670.
Brand new with high quality
This is a great camera module for DIY. This camera module comes with socket and easy for you to install.
Features:
IO voltage: 2.5V-3.0V
SNR: 46db
DYN :52db
300000 pixels
pixel Size: 3.6 μm x 3.6 μm
dark current: 12 mV/s at 60℃
Photographic Array: 640 x 480
active power: 60mW/15fps VGA
Optical Size: 1/6"
Angel of view: 67 degrees
Maximum Frame Rate:30fps VGA
Sensitivity:.1.3V/(Lux-sec)
Dormancy:< 20μA
Working Temperature:--30℃ -70℃
Package Included:
1 x 640 x 480 CMOS Camera Module
1 x socket(24pin)
trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155
OV2640
200W pixel OV2640 camera module, made with 1/4 inch OV2640 million HD CMOS sensor. High sensitivity, high flexibility, and support for JPEG output. And can support exposure, white balance, chroma, saturation, contrast and many other parameter settings, support JPEG / RGB565 format output, can meet the needs of different occasions.
1. High sensitivity, low voltage suitable for embedded applications
2. Standard SCCB interface, compatible with I2C interface
3. Support RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
4. Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size
5. Support automatic exposure, automatic gain, automatic white balance, automatic elimination of light streaks, automatic black level calibration
6. Support image quality control (color saturation, hue, gamma, sharpness, ANTI_BLOOM, etc.)
7. Support image zoom, pan and window settings
8. Support image compression, you can output JPEG image data
9. Comes with embedded microprocessor
10. Integrated active crystal oscillator 12M, no need to provide external clock
11. Integrated LDO, only need to supply 3.3V to work properly
Product parameters:
1. Working voltage: 3.3V
2. Product power consumption: 40mA
3. MAX pixels: 1600*1200 (200W)
4. Lens focal length: 3.6mm
5. Lens angle of view: 78°
6. Lens aperture: F2.0
7. Dynamic range: 50dB
8. Output format: RGB565/JPEG/YUV/YCbCr, etc.
9. Control Interface: SCCB
10. IO port level: 2.8V LVTTL, compatible with 3.3V
11. Product size: 27*27mm
12. Working temperature: -30 ~ + 70 Degree
3V3-----Input power supply voltage (3.3,5V is recommended, but not recommended)
GDN-----ground
SIO_C---SCCB interface control clock (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
SIO_D---SCCB interface serial data input (output) end (Note: some low-level microcontrollers need pull-up control, similar to I2C interface)
VSYNC---frame sync signal (output signal)
HREF----line sync signal (output signal)
PCLK----Pixel Clock (Output Signal)
D0-D7---data port (output signal)
RESTE---Reset port (normal use pull high)
PWDN----Power consumption selection mode (normal use pull low)
● High sensitivity for low illumination applications
● Low voltage for embedded applications
● Standard SCCB interface, compatible with I2C interface
● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats
● Supports VGA, CIF, and various sizes from CIF to 40x30
●VarioPixel subsampling method
● Automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
●ISP has noise elimination and dead point compensation
● Support image scaling
● Lens loss compensation
●50/60Hz automatic detection
● Saturation automatic adjustment (UV adjustment)
● Edge enhancement auto adjustment
● Automatic noise reduction
OV7670 with FIFO
The OV7670 has a FIFO module, which is a module with buffer storage space for slow MCUs that can achieve image acquisition control. This module adds a FIFO (first in, first out) memory chip, which also includes a 30w pixel CMOS image sensor chip, a 3.6mm focal length lens and lens mount, and various power supplies required for the onboard CMOS chip. The chip's data file), the board also leads to the control pin and data pin for easy operation and use.
Control Description:
Because the FIFO is used as the data buffer, the data acquisition is very simple, the user only needs to care about how to read it, and does not need to care about how the specific data is collected, so that the control and timing relationship of the CMOS can be reduced or not even concerned. It is possible to achieve image acquisition.
OV7725
Product Description:
1.OV7725 is a 30W pixel HD camera
2. Using infrared filter camera, the visible light band color is better
3. The indicators are much higher than OV7670, which is a replacement product of OV7670.
Brand new with high quality
This is a great camera module for DIY. This camera module comes with socket and easy for you to install.
Features:
IO voltage: 2.5V-3.0V
SNR: 46db
DYN :52db
300000 pixels
pixel Size: 3.6 μm x 3.6 μm
dark current: 12 mV/s at 60℃
Photographic Array: 640 x 480
active power: 60mW/15fps VGA
Optical Size: 1/6"
Angel of view: 67 degrees
Maximum Frame Rate:30fps VGA
Sensitivity:.1.3V/(Lux-sec)
Dormancy:< 20μA
Working Temperature:--30℃ -70℃
Package Included:
1 x 640 x 480 CMOS Camera Module
1 x socket(24pin)
