Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumpe

Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V

SKU:012364

$3.99

Description:
Built-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC/laptop via the USB connection, no need for an external power adapter
Designed to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance
Supports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X & Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS.
USB to serial adapter is seen as a COM port by your computer/laptop, and is available for use by any program that accesses COM ports.

Feature:
It works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial
After installing the driver,This FTDI TTL adapter will simulate a COM port on your computer/laptop.
Through this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.

Specification:
Main chip: FTDI FT232BL
Pin Definition: CTS,RTS,RXD,TXD,GND,VCC
Output VCC: 3.3V or 5V
USB interface: 2.0
With 500MA self-recovery fuse reversed does protection
The maximum speed: 921600bps

List of supported systems
Windows xp,7,8,10
Ubuntu 11.10, kernel 3.0.0-19
Mac OS X 10.3 to 10.8 (32 &64 bit)
Mac OS X 10.9 and above(64 bit)

Instructions for use:(Example MCU)
GND: Connect to GND
RXD: Connect to MCU.TX (Signal Flow: MCU.TX >> FT232 >> PC.RX)
TXD: Connect to MCU.RX (Signal Flow: MCU.RX << FT232 << PC.TX)
3V3/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)
RTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS << FT232 << PC.RTS)
CTS: Connect to MCU.RTS (Signal Flow: MCU.RTS >> FT232 >> PC.CTS)

Package Included:

1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line

Quantity

guaranteeQuality checked
Special gift cardsSpecial gift cards
Free return Within 60 days
Consultancy86-0755-85201155

List of supported systems
Windows xp,7,8,10
Ubuntu 11.10, kernel 3.0.0-19
Mac OS X 10.3 to 10.8 (32 &64 bit)
Mac OS X 10.9 and above(64 bit)

Package Included:

1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line

Purchasing & Delivery

Before you make your purchase, it’s helpful to know the measurements of the area you plan to place the furniture. You should also measure any doorways and hallways through which the furniture will pass to get to its final destination.

Picking up at the store

Shopify Shop requires that all products are properly inspected BEFORE you take it home to insure there are no surprises. Our team is happy to open all packages and will assist in the inspection process. We will then reseal packages for safe transport. We encourage all customers to bring furniture pads or blankets to protect the items during transport as well as rope or tie downs. Shopify Shop will not be responsible for damage that occurs after leaving the store or during transit. It is the purchaser’s responsibility to make sure the correct items are picked up and in good condition.

Delivery

Customers are able to pick the next available delivery day that best fits their schedule. However, to route stops as efficiently as possible, Shopify Shop will provide the time frame. Customers will not be able to choose a time. You will be notified in advance of your scheduled time frame. Please make sure that a responsible adult (18 years or older) will be home at that time.
In preparation for your delivery, please remove existing furniture, pictures, mirrors, accessories, etc. to prevent damages. Also insure that the area where you would like your furniture placed is clear of any old furniture and any other items that may obstruct the passageway of the delivery team. Shopify Shop will deliver, assemble, and set-up your new furniture purchase and remove all packing materials from your home. Our delivery crews are not permitted to move your existing furniture or other household items. Delivery personnel will attempt to deliver the purchased items in a safe and controlled manner but will not attempt to place furniture if they feel it will result in damage to the product or your home. Delivery personnel are unable to remove doors, hoist furniture or carry furniture up more than 3 flights of stairs. An elevator must be available for deliveries to the 4th floor and above.

Other Customers also buy:

USB ATmega168 Nano V3.0 CH340G 5V 16M Micro-Controller For Arduino

Translation missing: en.products.product.regular_price $11.99
{"id":4412352069703,"title":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","handle":"diymore-ft232-ft232bl-ft232rl-ftdi-usb-2-0-to-ttl-download-cable-jumper-serial-adapter-module-for-arduino-suport-win10-5v-3-3v-on-aliexpress","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e","published_at":"2019-12-18T17:53:15+08:00","created_at":"2019-12-18T17:53:22+08:00","vendor":"diymore","type":"Adapter Module","tags":[],"price":399,"price_min":399,"price_max":399,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31544606654535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012364","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","public_title":null,"options":["Default Title"],"price":399,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"],"featured_image":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","options":["Title"],"media":[{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143541831,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143967815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144131655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144459335,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144590407,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e"}

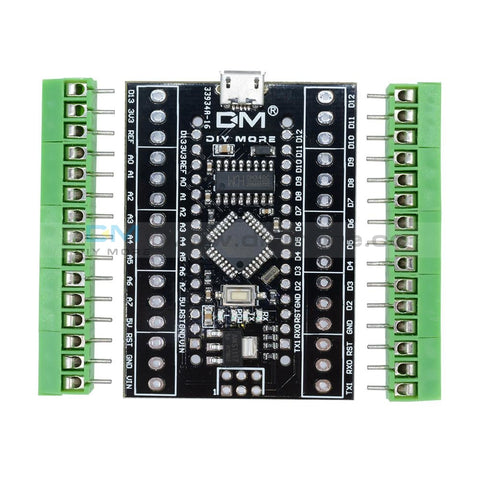

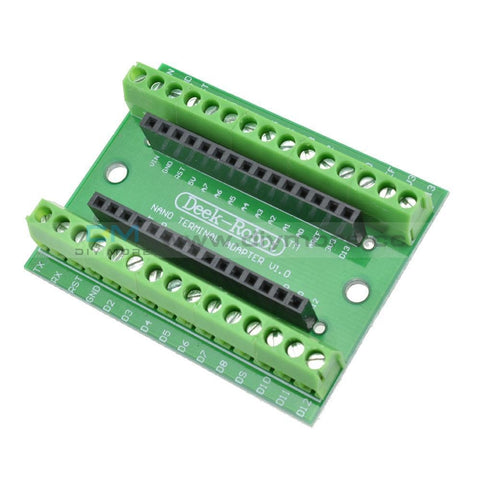

NANO V3.0 Controller Terminal Adapter Shield Expansion Board Nano AVR ATMEGA328P IO Module for Arduino

Translation missing: en.products.product.regular_price $5.99
{"id":4412352069703,"title":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","handle":"diymore-ft232-ft232bl-ft232rl-ftdi-usb-2-0-to-ttl-download-cable-jumper-serial-adapter-module-for-arduino-suport-win10-5v-3-3v-on-aliexpress","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e","published_at":"2019-12-18T17:53:15+08:00","created_at":"2019-12-18T17:53:22+08:00","vendor":"diymore","type":"Adapter Module","tags":[],"price":399,"price_min":399,"price_max":399,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31544606654535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012364","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","public_title":null,"options":["Default Title"],"price":399,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"],"featured_image":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","options":["Title"],"media":[{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143541831,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143967815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144131655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144459335,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144590407,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e"}

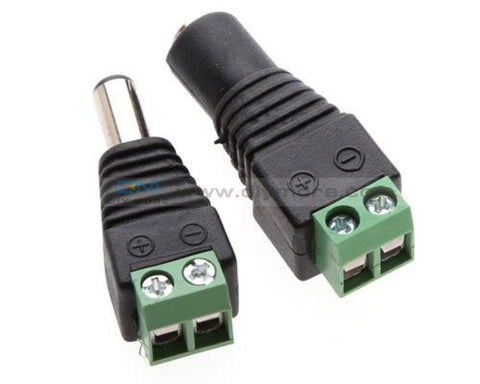

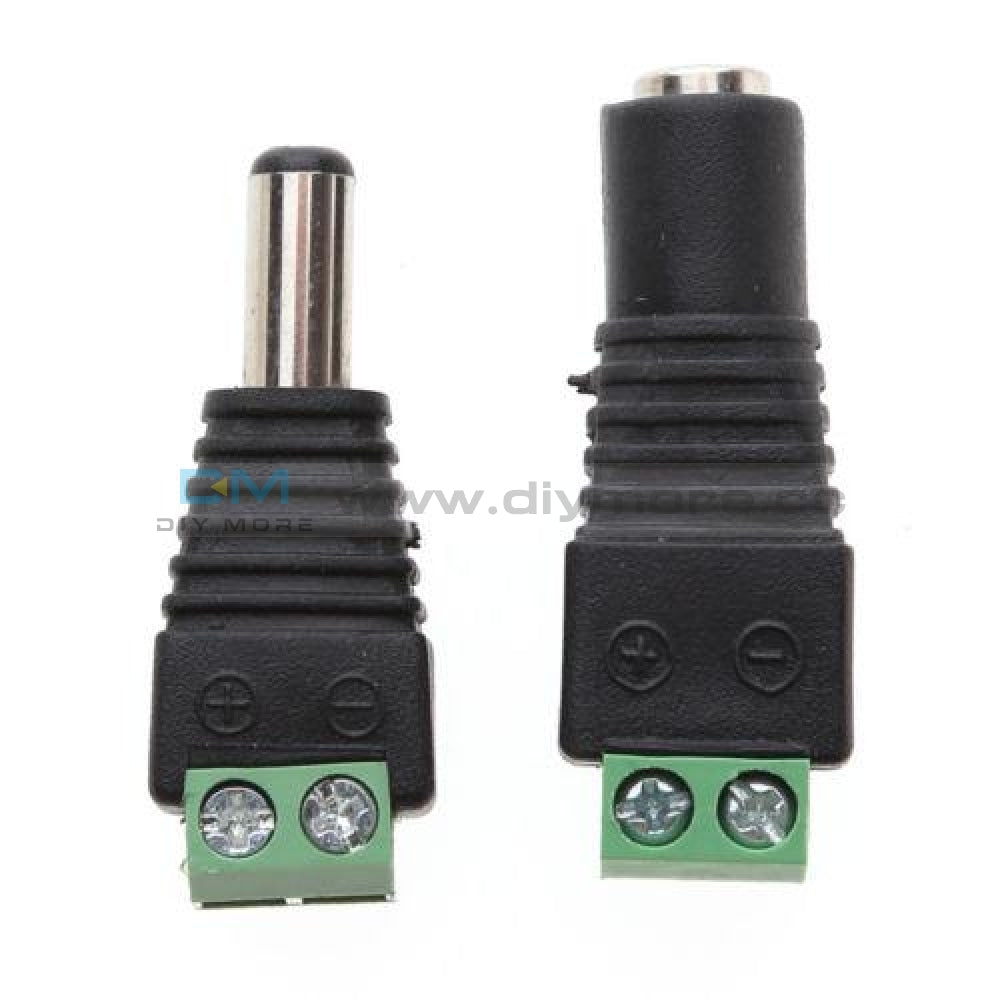

Male+Female DC Power Male Plug Jack Connector Socket Adapter 2.1x5.5mm For CCTV

Translation missing: en.products.product.regular_price $6.99
{"id":4412352069703,"title":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","handle":"diymore-ft232-ft232bl-ft232rl-ftdi-usb-2-0-to-ttl-download-cable-jumper-serial-adapter-module-for-arduino-suport-win10-5v-3-3v-on-aliexpress","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e","published_at":"2019-12-18T17:53:15+08:00","created_at":"2019-12-18T17:53:22+08:00","vendor":"diymore","type":"Adapter Module","tags":[],"price":399,"price_min":399,"price_max":399,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31544606654535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012364","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","public_title":null,"options":["Default Title"],"price":399,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"],"featured_image":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","options":["Title"],"media":[{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143541831,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143967815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144131655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144459335,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144590407,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e"}

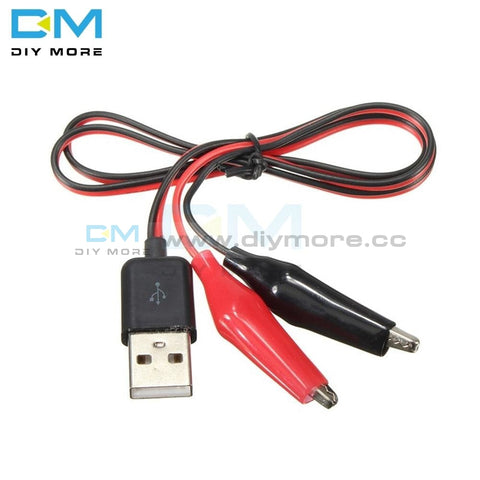

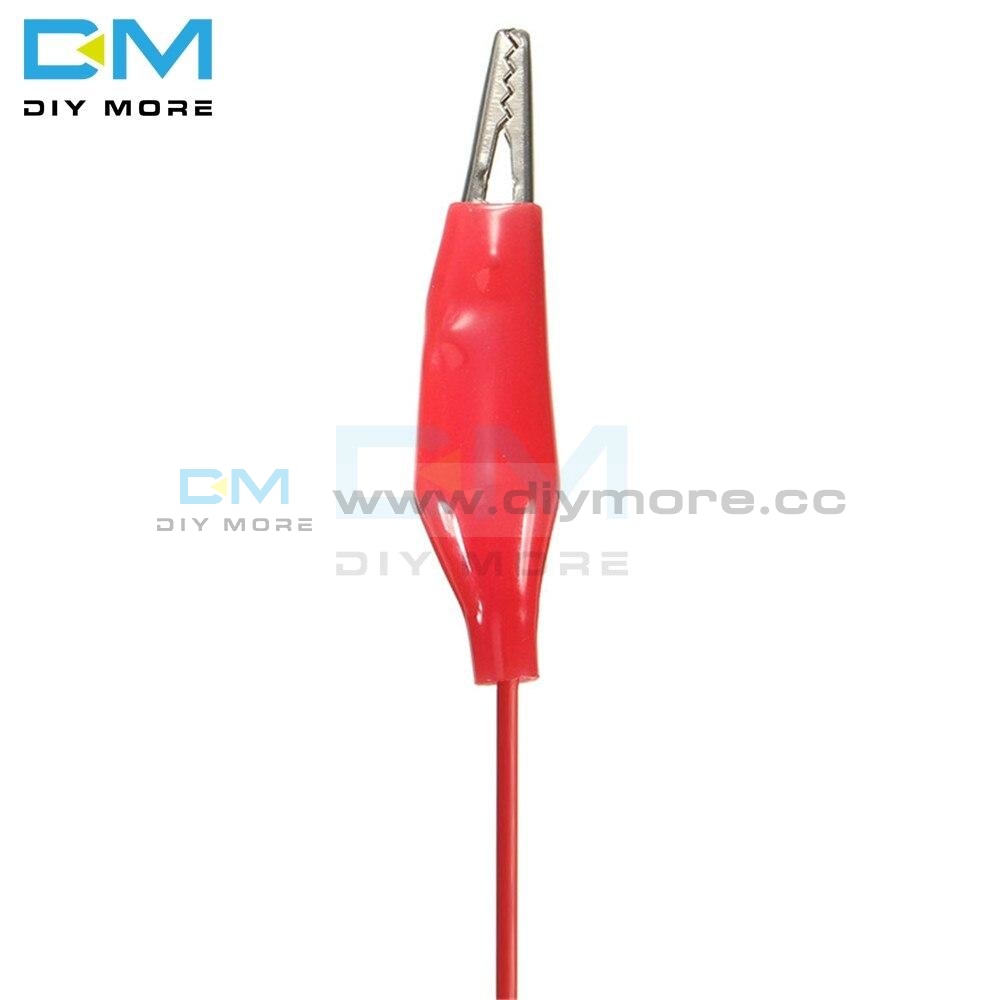

60cm Alligator Test Clips Clamp to USB Male Connector Power Supply Adapter Cable

Translation missing: en.products.product.regular_price $3.99
{"id":4412352069703,"title":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","handle":"diymore-ft232-ft232bl-ft232rl-ftdi-usb-2-0-to-ttl-download-cable-jumper-serial-adapter-module-for-arduino-suport-win10-5v-3-3v-on-aliexpress","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e","published_at":"2019-12-18T17:53:15+08:00","created_at":"2019-12-18T17:53:22+08:00","vendor":"diymore","type":"Adapter Module","tags":[],"price":399,"price_min":399,"price_max":399,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31544606654535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012364","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","public_title":null,"options":["Default Title"],"price":399,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"],"featured_image":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","options":["Title"],"media":[{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143541831,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143967815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144131655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144459335,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144590407,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e"}

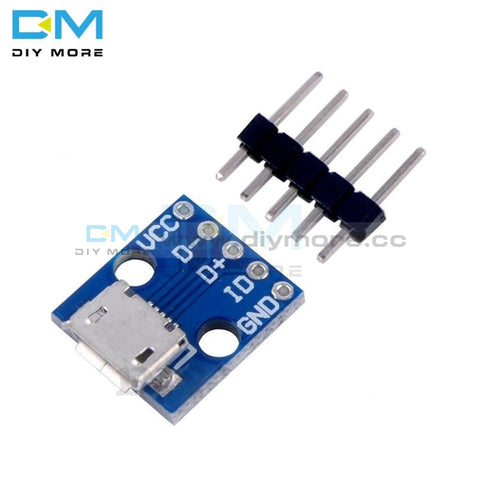

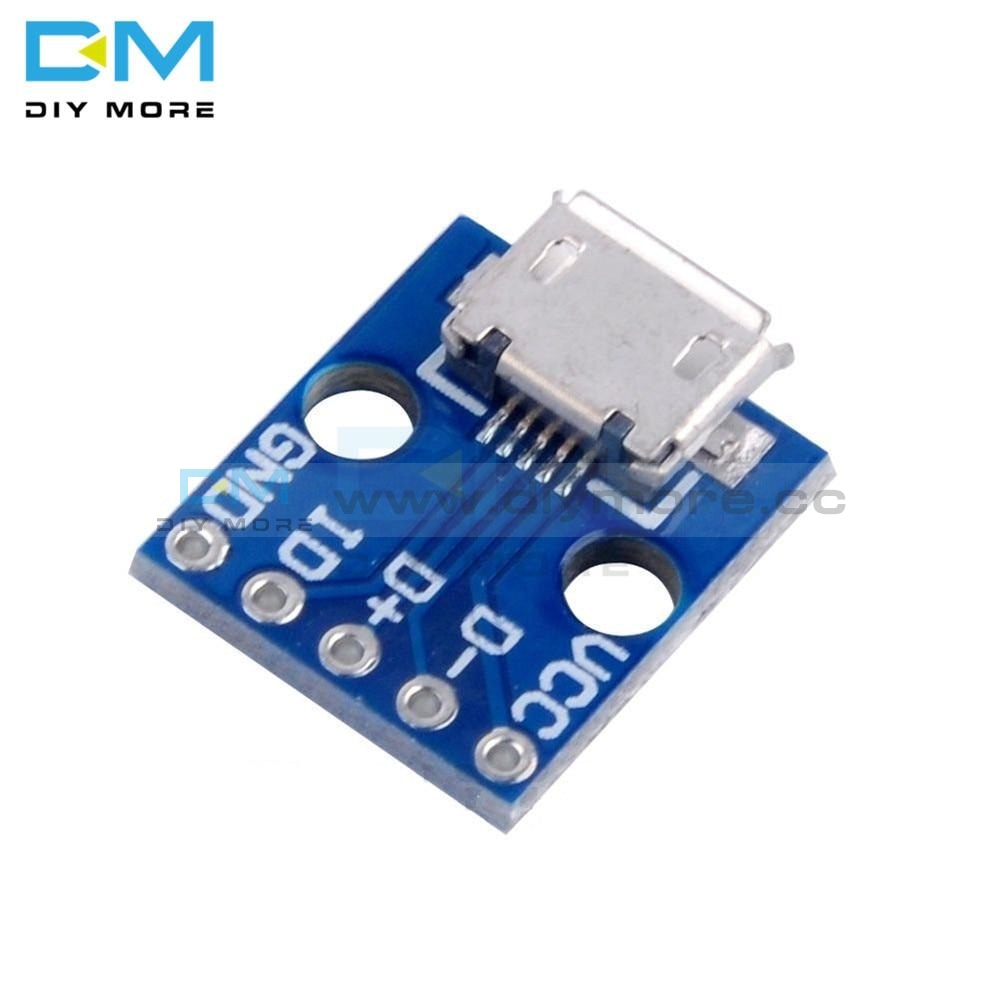

5PCS CJMCU Breakout Power Supply Module Micro USB Interface Power Adapter Board USB 5V Breakout Module

Translation missing: en.products.product.regular_price $4.99
{"id":4412352069703,"title":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","handle":"diymore-ft232-ft232bl-ft232rl-ftdi-usb-2-0-to-ttl-download-cable-jumper-serial-adapter-module-for-arduino-suport-win10-5v-3-3v-on-aliexpress","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e","published_at":"2019-12-18T17:53:15+08:00","created_at":"2019-12-18T17:53:22+08:00","vendor":"diymore","type":"Adapter Module","tags":[],"price":399,"price_min":399,"price_max":399,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31544606654535,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012364","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Diymore FT232 FT232BL FT232RL FTDI USB 2.0 to TTL Download Cable Jumper Serial Adapter Module for Arduino Suport Win10 5V 3.3V","public_title":null,"options":["Default Title"],"price":399,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"],"featured_image":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","options":["Title"],"media":[{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143541831,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_199.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681143967815,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_523cea3d-7761-4495-b2d7-14d320fa0ca4_672.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144131655,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_ca4039be-3ac0-4e10-a336-ca42ee5bd106_684.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144459335,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_22d969d0-538e-459e-80cb-6aac6bb656b4_172.jpg?v=1588681210","width":1000},{"alt":"Diymore Ft232 Ft232Bl Ft232Rl Ftdi Usb 2.0 To Ttl Download Cable Jumper Serial Adapter Module For","id":6681144590407,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.diymore.cc\/cdn\/shop\/products\/Diymore-FT232-FT232BL-FT232RL-FTDI-USB-2-0-to-TTL-Download-Cable-Jumper-Serial-Adapter-Module_cf64c072-8912-45c9-94b2-445a6cfba425_909.jpg?v=1588681210","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB12JMgilsmBKNjSZFsq6yXSVXaS.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003cspan style=\"font-size: 16px;\"\u003eDescription:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eBuilt-in a new and original FTDI IC device 'FT232BL', which handles all the USB signal ling and protocols. TTL levels of +5V and +3.3V adjustable design, and draws power directly from your PC\/laptop via the USB connection, no need for an external power adapter\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eDesigned to be used for USB to TTL electronic projects, easy to connect to your MCU or Raspberry Pi. Status LED for TX,RX,USB which can show serial adapter status and data activity at a glance\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eSupports Windows 2000, XP, Vista, Window 7,8,10, Mac OS 9, Mac OS X \u0026amp; Linux and above OS, Linux and Mac OS will install FTDI driver automatically, but NOT compatible with Chrome OS. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB to serial adapter is seen as a COM port by your computer\/laptop, and is available for use by any program that accesses COM ports.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eFeature:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eIt works great for programming microcontrollers such for Arduino, boarduino, Bareduino, Raspberry Pi, ESP8266, micro minimOSD, and Atmel Xmega Xplained, Atmega328 mini pro, or any other that can be programmed over serial\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eAfter installing the driver,This FTDI TTL adapter will simulate a COM port on your computer\/laptop. \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThrough this simulated COM port, you can communicate or program with various hardware or MCUs, such for Arduino board, Raspberry Pi, ESP8266, router and so on.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eSpecification:\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMain chip: FTDI FT232BL\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003ePin Definition: CTS,RTS,RXD,TXD,GND,VCC\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eOutput VCC: 3.3V or 5V\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUSB interface: 2.0\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWith 500MA self-recovery fuse reversed does protection\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eThe maximum speed: 921600bps\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eList of supported systems\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eWindows xp,7,8,10 \u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eUbuntu 11.10, kernel 3.0.0-19\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.3 to 10.8 (32 \u0026amp;64 bit)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eMac OS X 10.9 and above(64 bit)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003eInstructions for use:(Example MCU)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eGND: Connect to GND\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRXD: Connect to MCU.TX (Signal Flow: MCU.TX \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.RX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eTXD: Connect to MCU.RX (Signal Flow: MCU.RX \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.TX)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003e3V3\/5V: Output 3.3V or 5V (module powered by USB, jumper cap :to 3.3V or 5V)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eRTS: Connect to MCU.CTS (Signal Flow Direction: MCU.CTS \u0026lt;\u0026lt; FT232 \u0026lt;\u0026lt; PC.RTS)\u003c\/span\u003e\u003cbr\u003e\u003cspan style=\"font-size: 16px;\"\u003eCTS: Connect to MCU.RTS (Signal Flow: MCU.RTS \u0026gt;\u0026gt; FT232 \u0026gt;\u0026gt; PC.CTS)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan style=\"font-size: 16px;\"\u003e1 X FTDI FT232BL USB to TTL Adapter with 5Pin Dupont Line\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1VXjubuUXBuNjt_a0q6AysXXaA.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/Hbaf3ab35407e44f6b489615ed5afd32bC.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H67e4053392f641d794b54563eefe022f4.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/He0b2bcf63ac6490989cac301ddc1c232v.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H12e26d8a459c478aadb2b148fae3fdd3w.jpg\"\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cimg style=\"width: 1000px;\" src=\"https:\/\/ae01.alicdn.com\/kf\/H2eb2e1ada8d34fd084999b71e5e4b2afX.jpg\"\u003e\u003cimg src=\"https:\/\/ae01.alicdn.com\/kf\/HTB1Hc.uimcqBKNjSZFgq6x_kXXaq.jpg\"\u003e\u003c\/p\u003e\n\u003cscript\u003e\/\/ \u003c![CDATA[\nwindow.adminAccountId=227552571;\n\/\/ ]]\u003e\u003c\/script\u003e"}

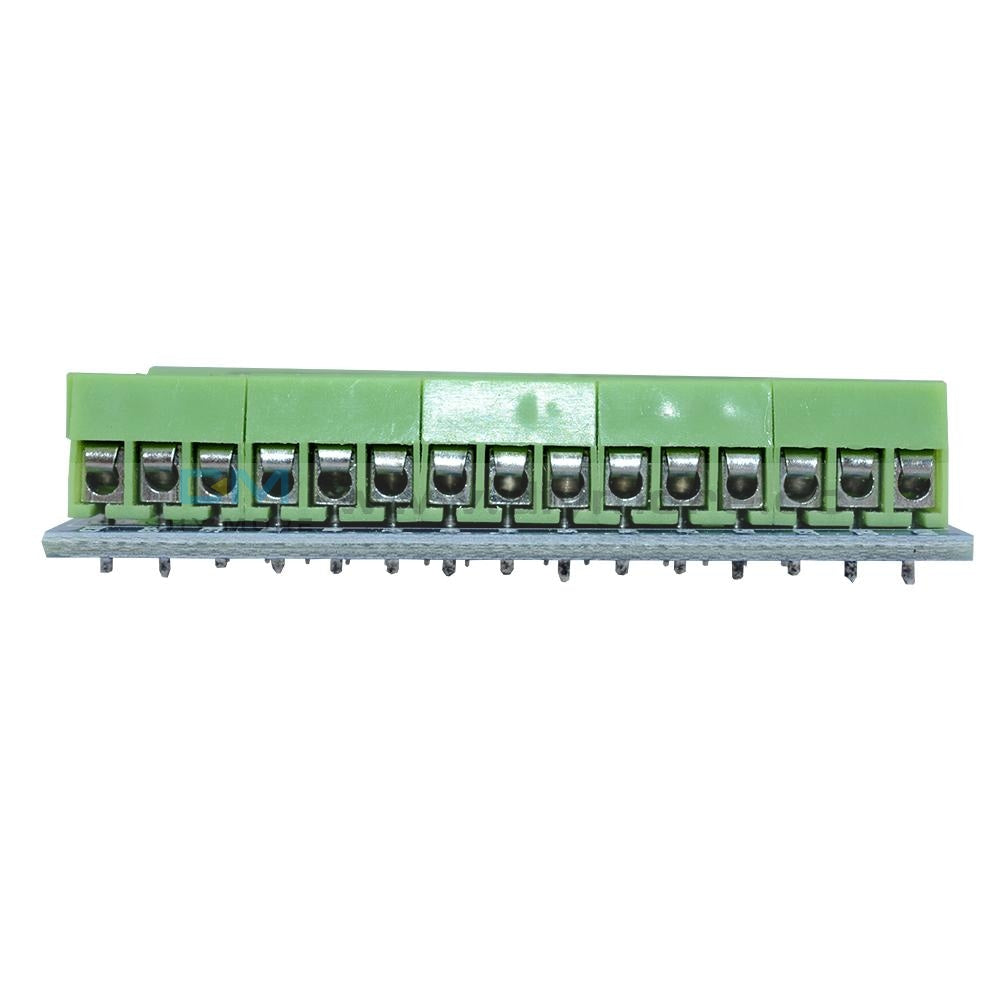

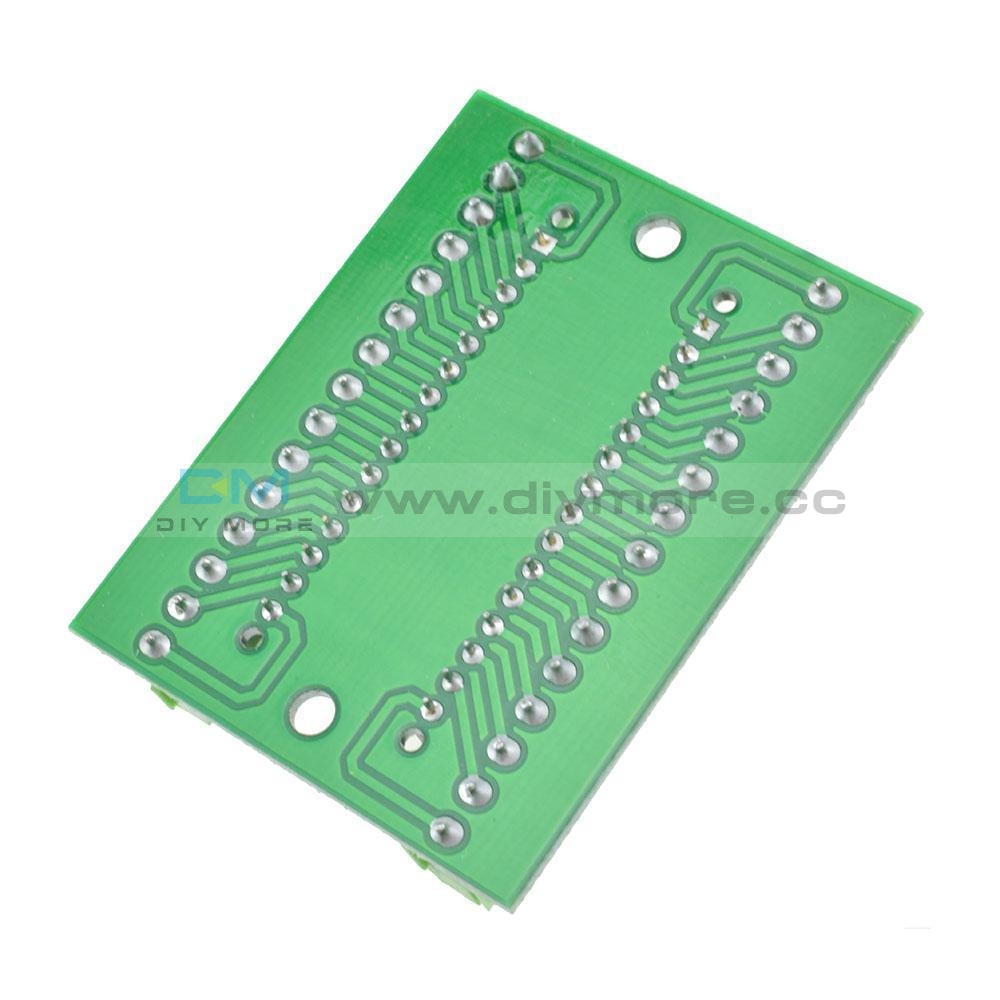

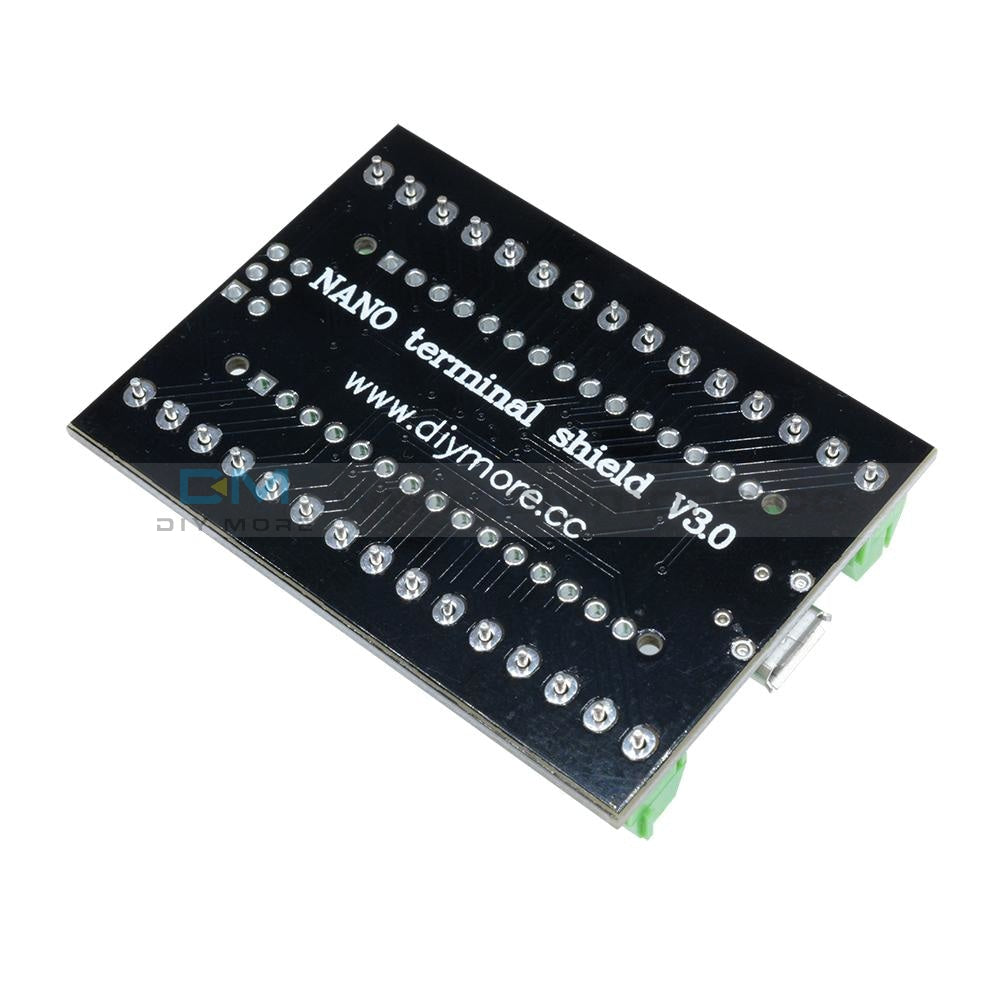

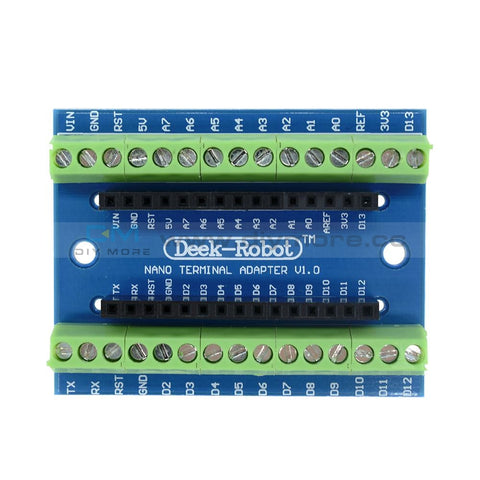

Nano Screw Terminal Adapter Shield Expansion Board Nano V3.0 AVR ATMEGA328P-AU Module for Arduino
