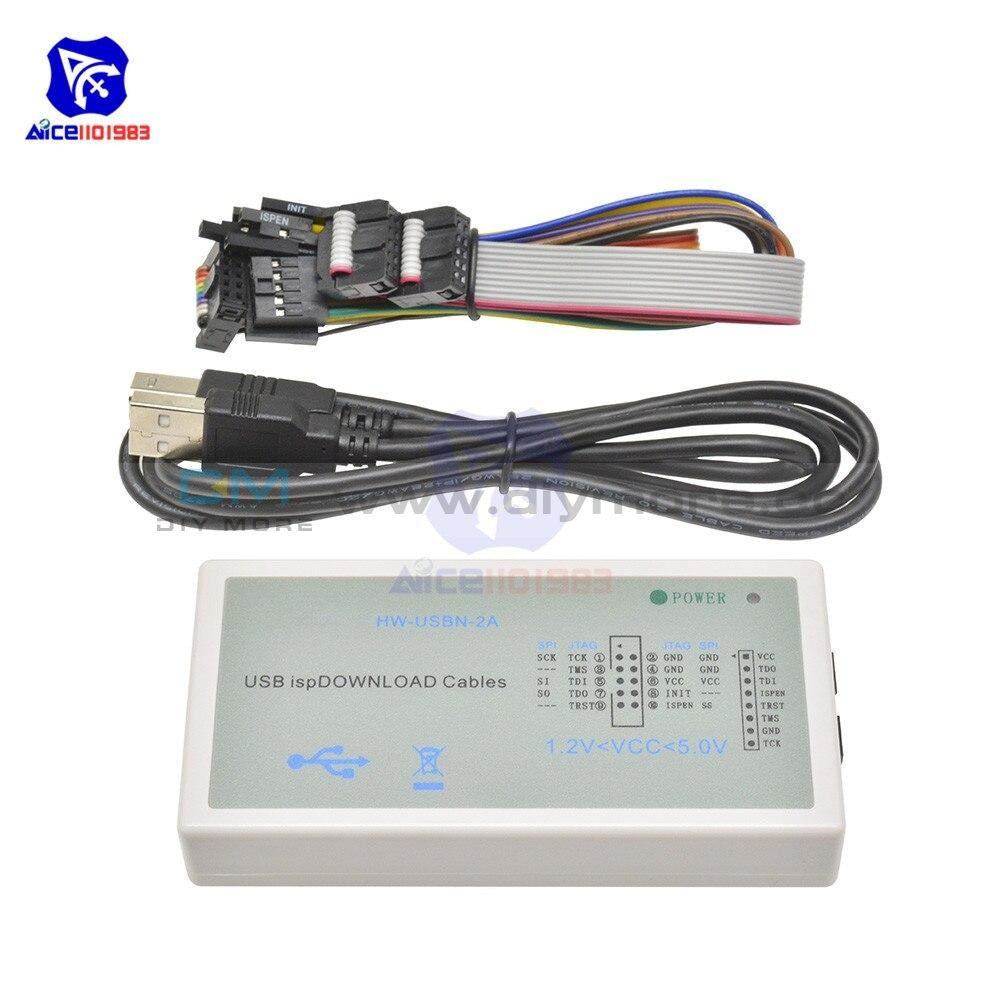

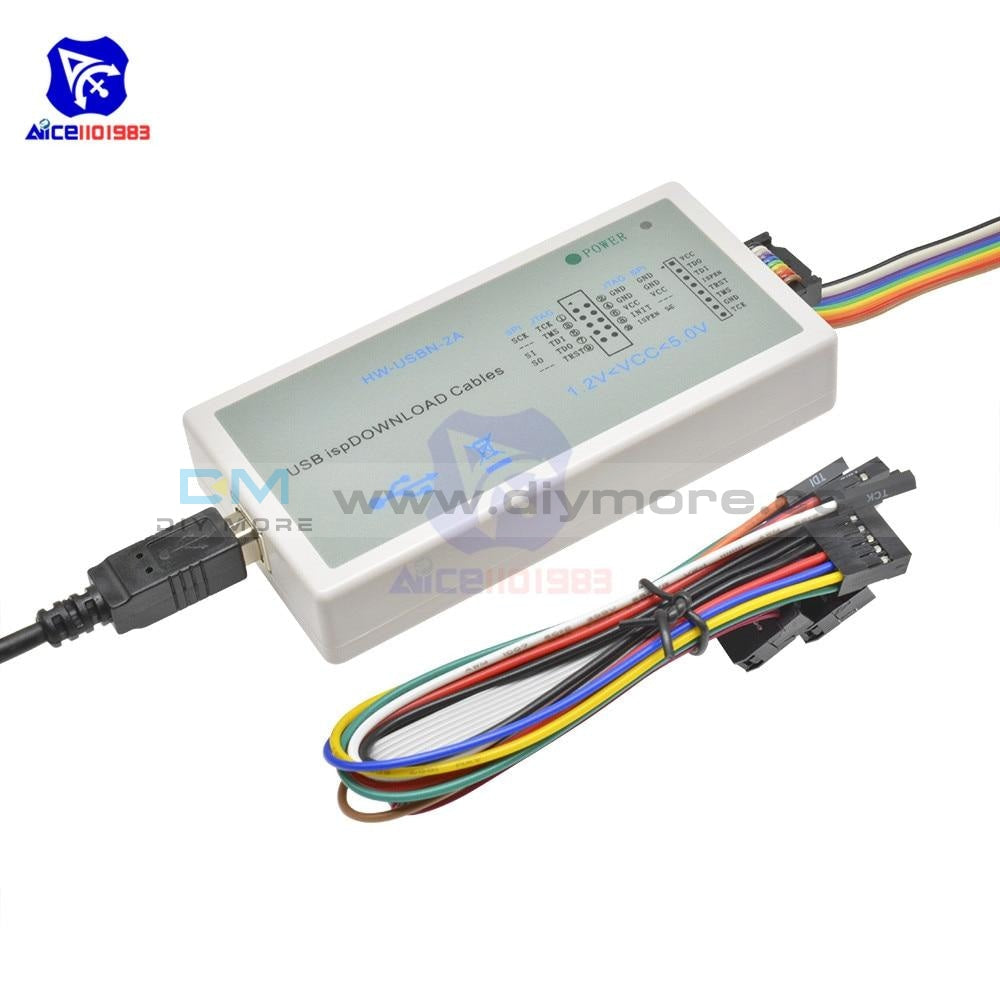

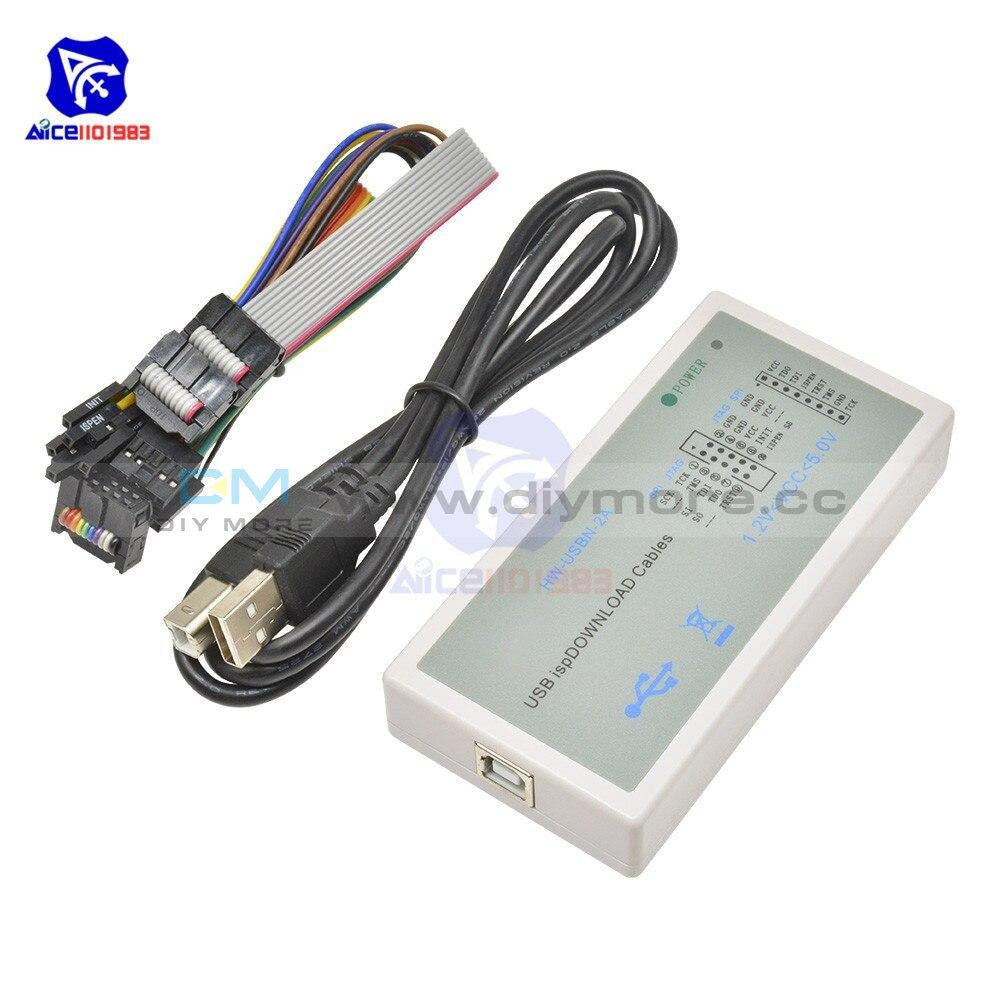

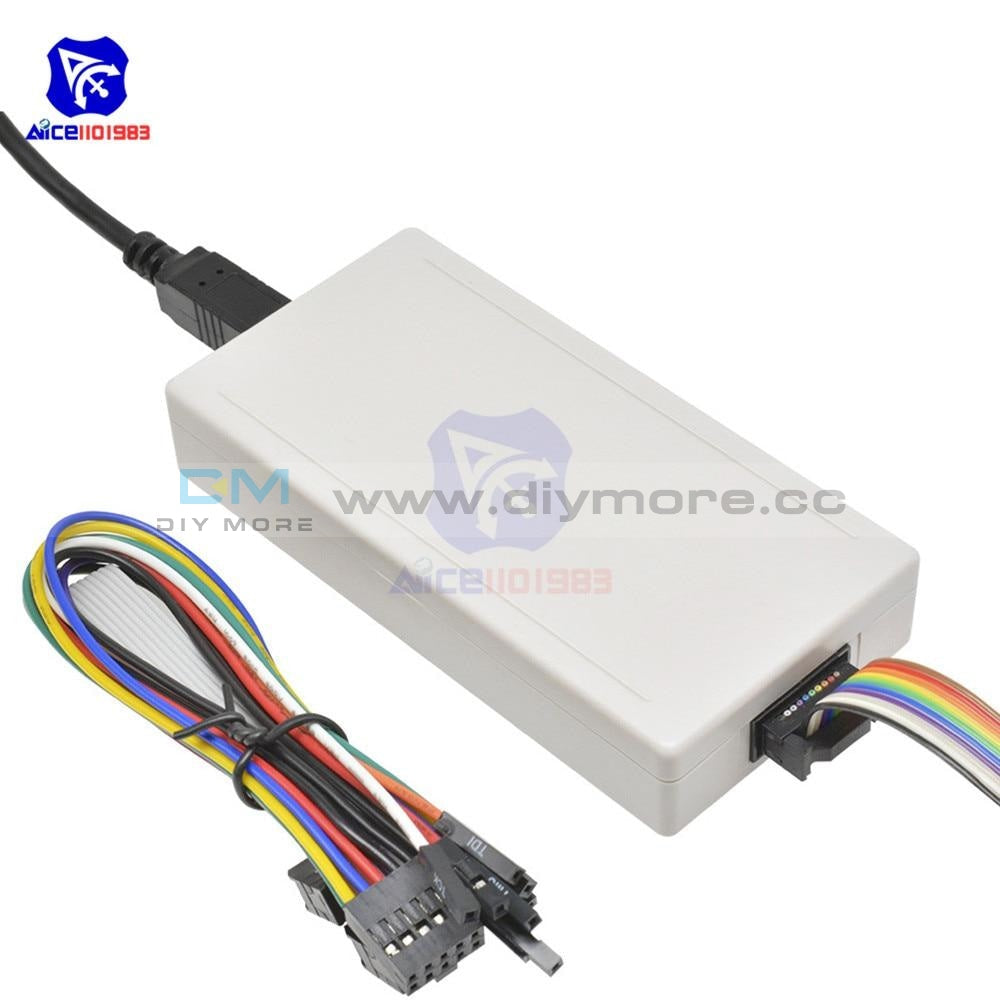

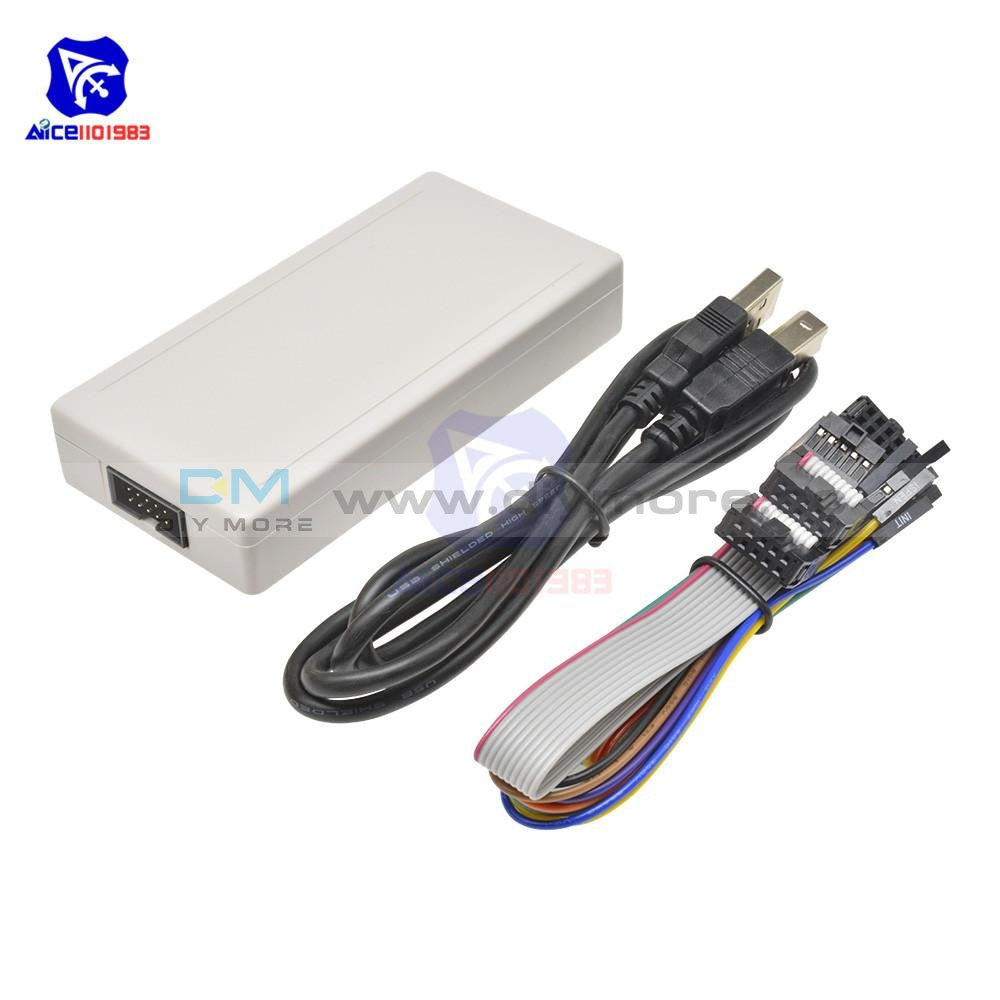

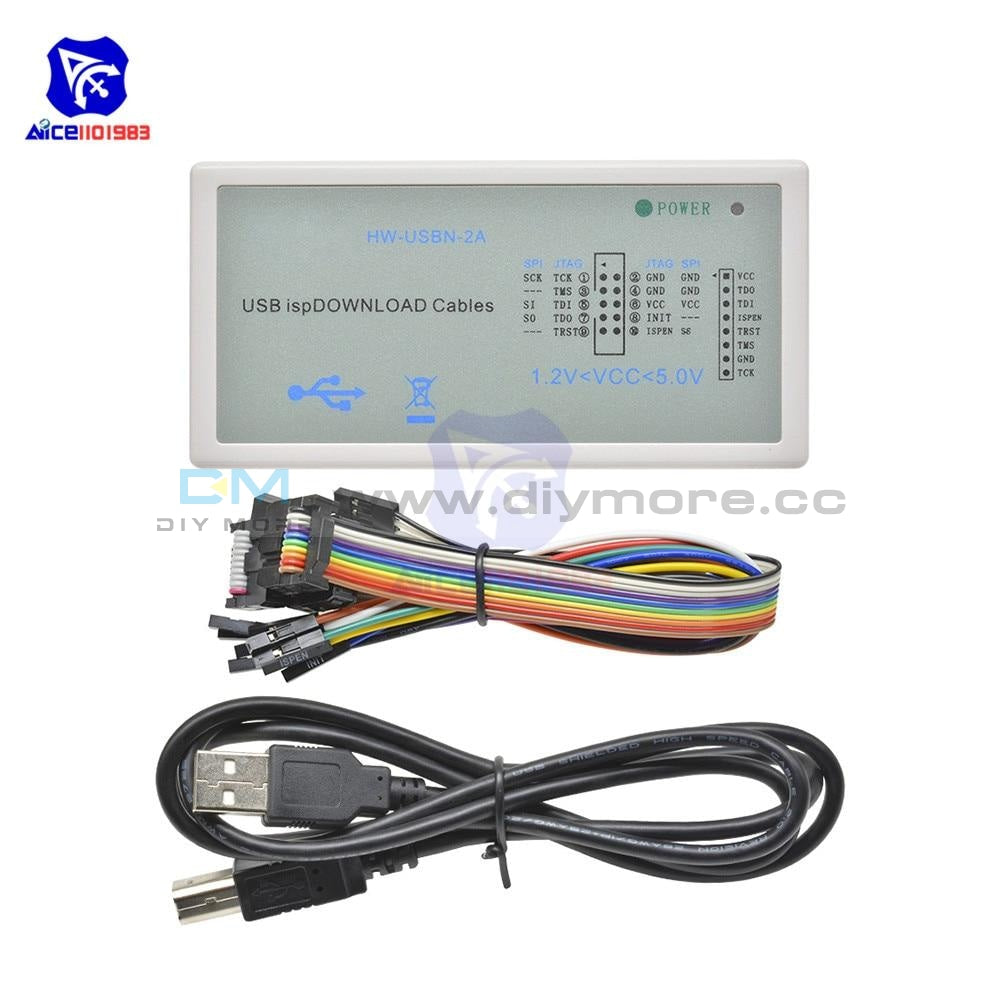

diymore Lattice USB Download Programmer ISP Download Cable with USB Cable Jumper Wire JTAG Line

diymore Lattice USB Download Programmer ISP Download Cable with USB Cable Jumper Wire JTAG Line

SKU:X12977
Regular price $19.99

Description: This product uses the original LATTICE USB download line standard scheme, perfect seamless support for all LATTICE development environment, including LATTICE DIAMOND, LATTICE PROGRAMMER, LATTICE ISPVM SYSTEM... All of the above software are presented in the form of web links. Support the CPLD/FPGA of all current LATTICE. Specification: Lattice original design quality assurance, ensure download compatibility stability. There is no need to install driver separately. It supports Diamond/ispLever 6.x/7.x/classic version and ispVM versions directly. Support lattice full range of FPGAs, such as SC/SCM/XP/XP2/EC/ECP2M/ECP2M/MachXO/MachXO2 series. Support the full range of lattice CPLDs, such as 1000/2000/4000 series. USB standard interface. PC can be connected with standard USB cable. USB power supply without external power supply. The interface part of the power supply from the target board to ensure strong compatibility! Support JTAG, internal FLASH, SPI FLASH programming mode. Support such operating systems as WIN 2K, WIN XP, WIN 732 and WIN 764. Support LSC ISPVM, LATTICE DEMIOND, LATTICE ISPEVER, and LATTICE PROGRAMMER, all of which are actually tested! Pin link: SCLK / TCK is connected with SCLK / TCK pin of chip. GND downloader and the target board of the common ground, its internal 2, 4 pins connected, the use of this 2, 4 one of the feet and the target board connected to the ground. MODE/TMS is connected to the MODE/TMS pin of the chip. GND Downloader is also the common ground of the target board, and its internal 2, 4 pins are connected. When using, one of the 2, 4 PINS needs to be connected to the ground of the target board. The SDI/TDI is connected to the SDI/TDI pin of the chip. .VCC is used to detect whether the target board connected by the Downloader Package Included: 1 * LATTICE USB Download Programmer with USB ispDownload Cable

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

Description: This product uses the original LATTICE USB download line standard scheme, perfect seamless support for all LATTICE development environment, including LATTICE DIAMOND, LATTICE PROGRAMMER, LATTICE ISPVM SYSTEM... All of the above software are presented in the form of web links. Support the CPLD/FPGA of all current LATTICE. Specification: Lattice original design quality assurance, ensure download compatibility stability. There is no need to install driver separately. It supports Diamond/ispLever 6.x/7.x/classic version and ispVM versions directly. Support lattice full range of FPGAs, such as SC/SCM/XP/XP2/EC/ECP2M/ECP2M/MachXO/MachXO2 series. Support the full range of lattice CPLDs, such as 1000/2000/4000 series. USB standard interface. PC can be connected with standard USB cable. USB power supply without external power supply. The interface part of the power supply from the target board to ensure strong compatibility! Support JTAG, internal FLASH, SPI FLASH programming mode. Support such operating systems as WIN 2K, WIN XP, WIN 732 and WIN 764. Support LSC ISPVM, LATTICE DEMIOND, LATTICE ISPEVER, and LATTICE PROGRAMMER, all of which are actually tested! Pin link: SCLK / TCK is connected with SCLK / TCK pin of chip. GND downloader and the target board of the common ground, its internal 2, 4 pins connected, the use of this 2, 4 one of the feet and the target board connected to the ground. MODE/TMS is connected to the MODE/TMS pin of the chip. GND Downloader is also the common ground of the target board, and its internal 2, 4 pins are connected. When using, one of the 2, 4 PINS needs to be connected to the ground of the target board. The SDI/TDI is connected to the SDI/TDI pin of the chip. .VCC is used to detect whether the target board connected by the Downloader Package Included: 1 * LATTICE USB Download Programmer with USB ispDownload Cable
