diymore XILINX Platform Cable USB FPGA CPLD JTAG SPI Download Debugger Programmer with USB Type B Cable

diymore XILINX Platform Cable USB FPGA CPLD JTAG SPI Download Debugger Programmer with USB Type B Cable

SKU:011052
Regular price $25.23

Description:
The Platform Cable USB ,a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.It derives all operating power from the hub port controller. No external power supply is required. A sustained slave-serial FPGA configuration transfer rate of 24 Mb/s is possible in a Hi-Speed USB environment.

Performance:
Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB
Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming
Supports JTAG, Slave-Serial and SPI
Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
Selectable target clock frequency, supports software automatic frequency adjustment
Supported on Windows and Red Hat Enterprise Linux
Automatically senses and adapts to target I/O voltage
LED Status Indicator
Target clock speeds are selectable from 750 kHz to 24 MHz.

Supported Software
Xilinx ISE 8 to ISE 14.7 and up-to-date ISE software
Xilinx Vivado
IMPACT
ChipScope
Microblaze embedded processor debugging

Supported Device:
All Xilinx devices, FPGA and PROM/CPLD:
All Virtex-FPGA families
All Spartan-FPGA families
XC9500 / XC9500XL / XC9500XV CPLDs
CoolRunnerXPLA3 / CoolRunner-II CPLDs
XC18V00 ISP PROMs
Platform Flash XCF00S/XCF00P/XL PROMs
XC4000 series FPGAs
Fresh Xilinx devices including V7, Z7 etc.

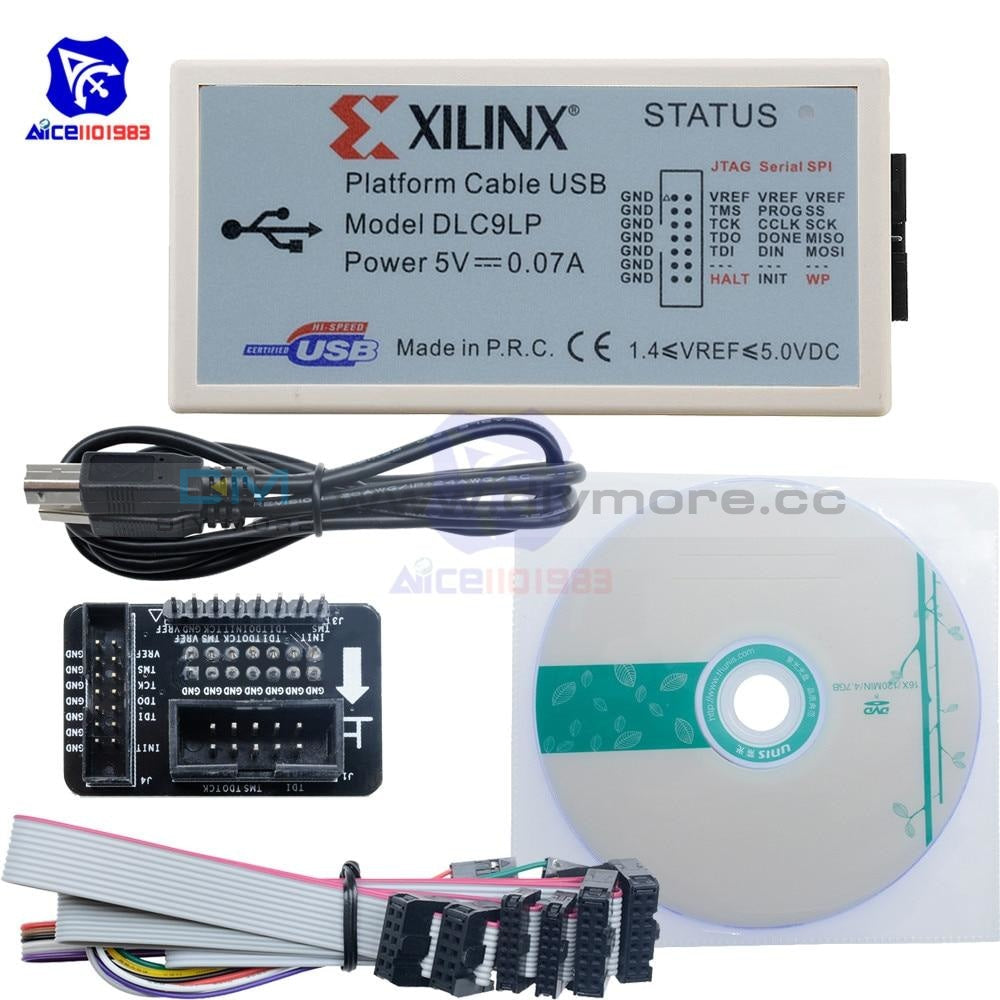

Package Included:

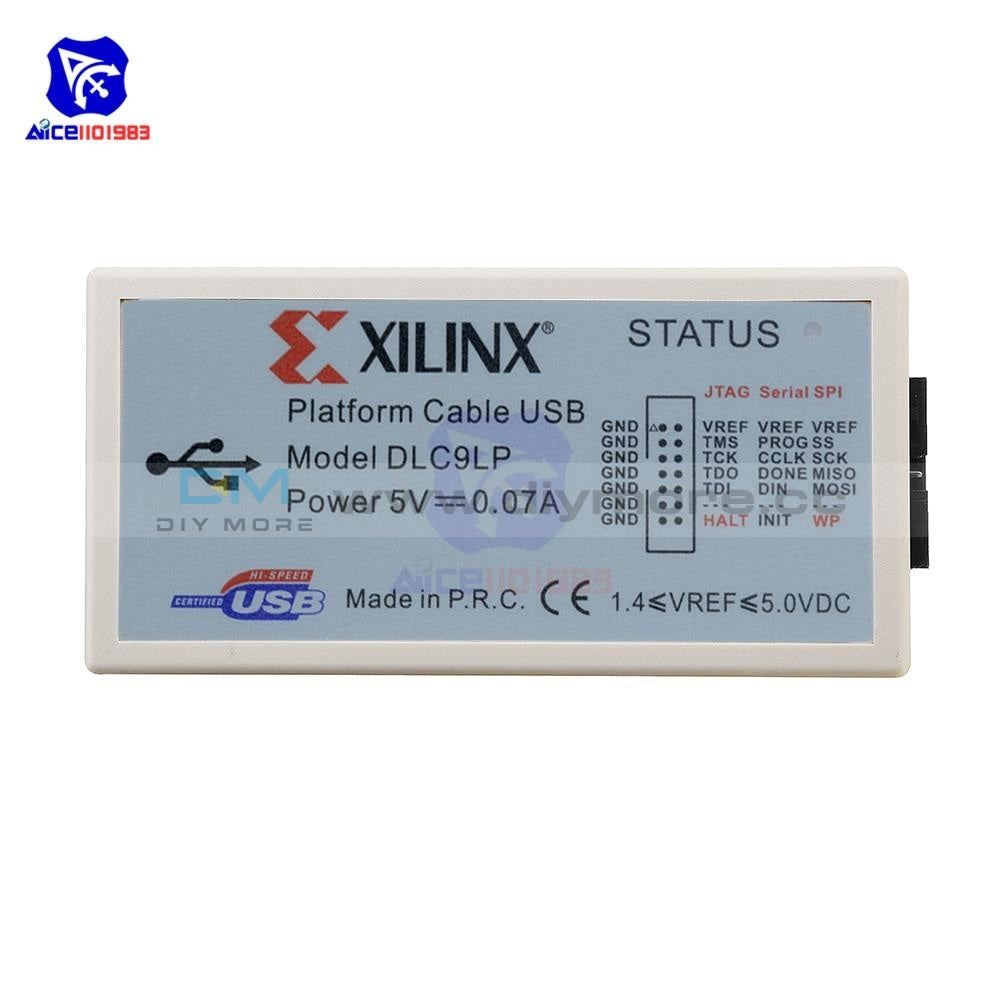

1 * Platform Cable USB

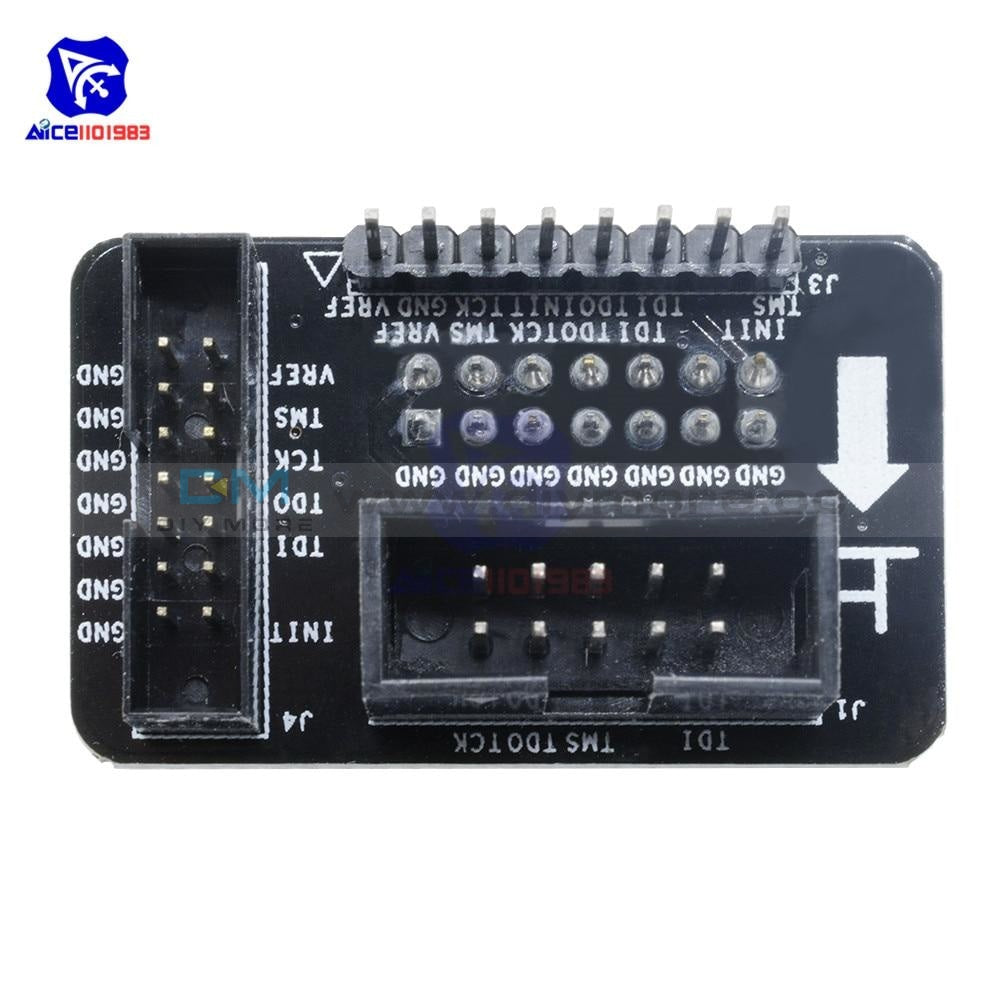

1 * JTAG adapter

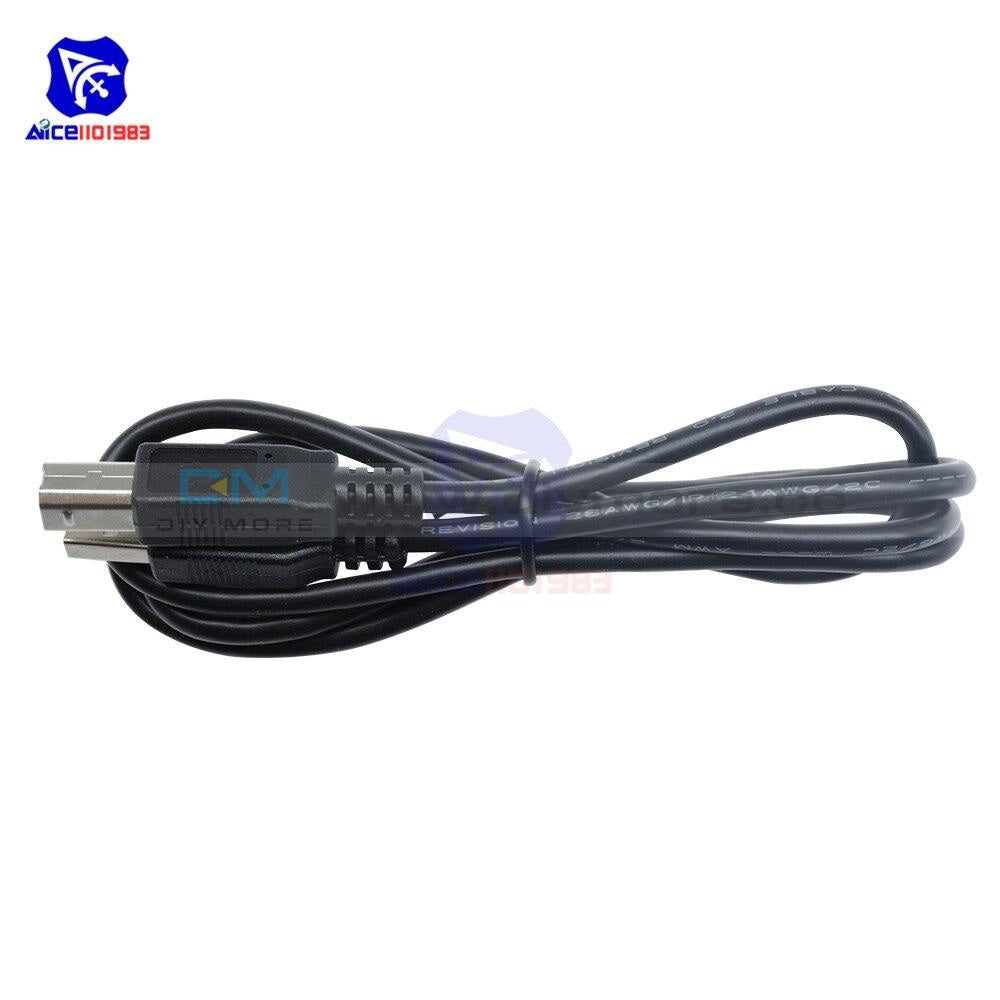

1 * USB 2.0 cable

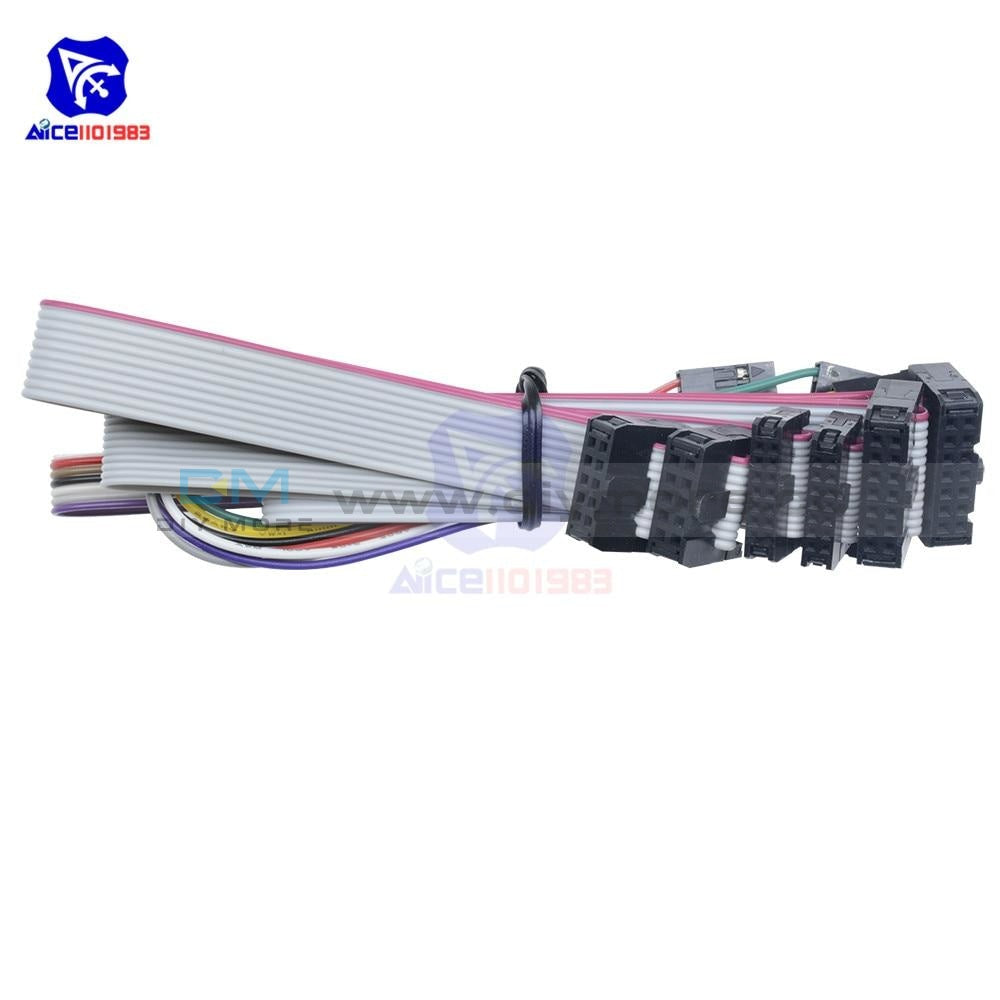

1 * 8-pin to 7-pin separated robin cable
1 * 14-pin (2.5mm pitch) JTAG flat cable
1 * 14-pin (2mm pitch) JTAG flat cable
1 * 10-pin (2.5mm pitch) JTAG flat cable
