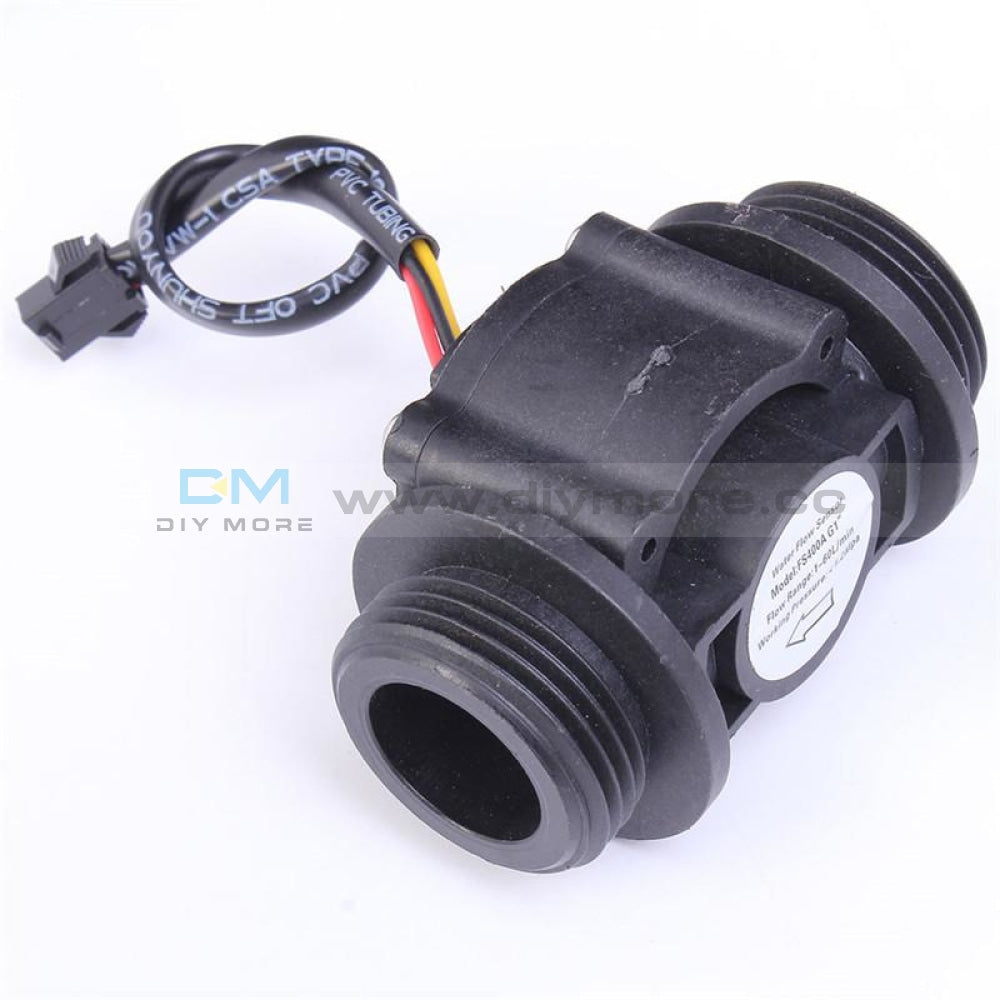

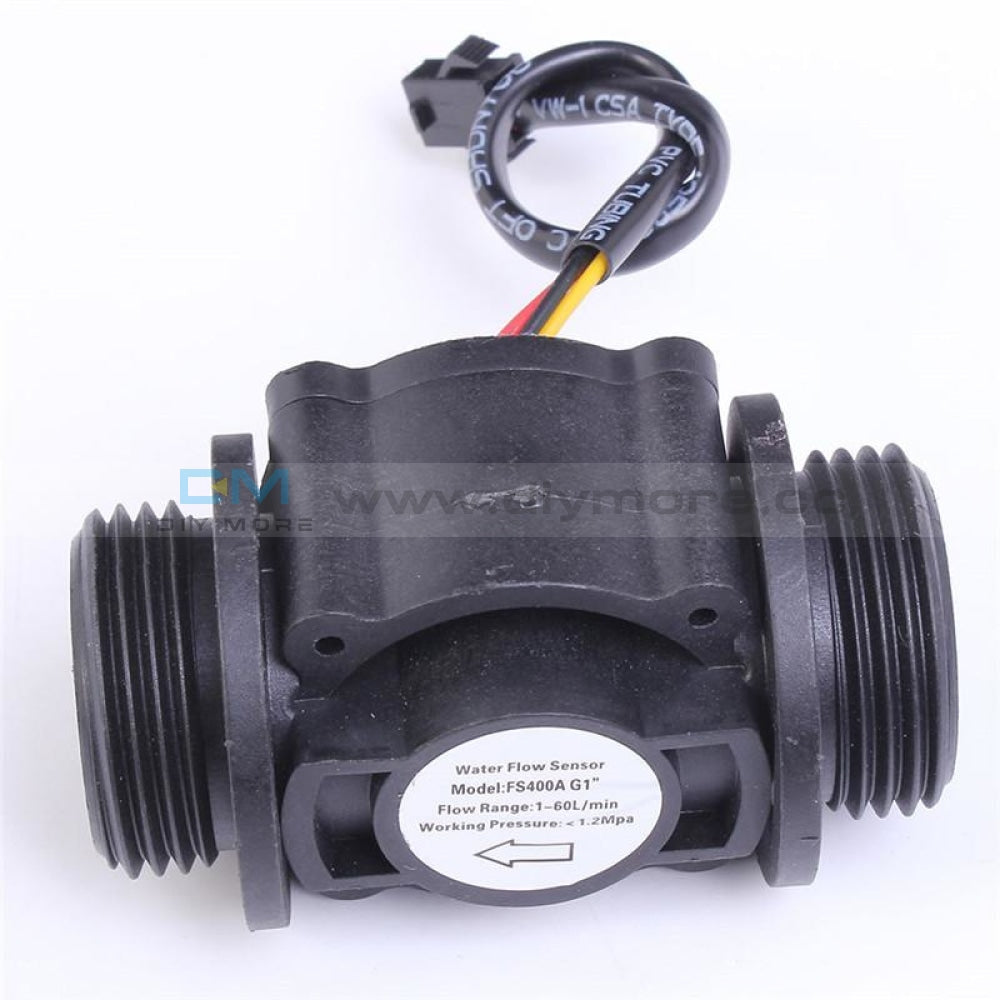

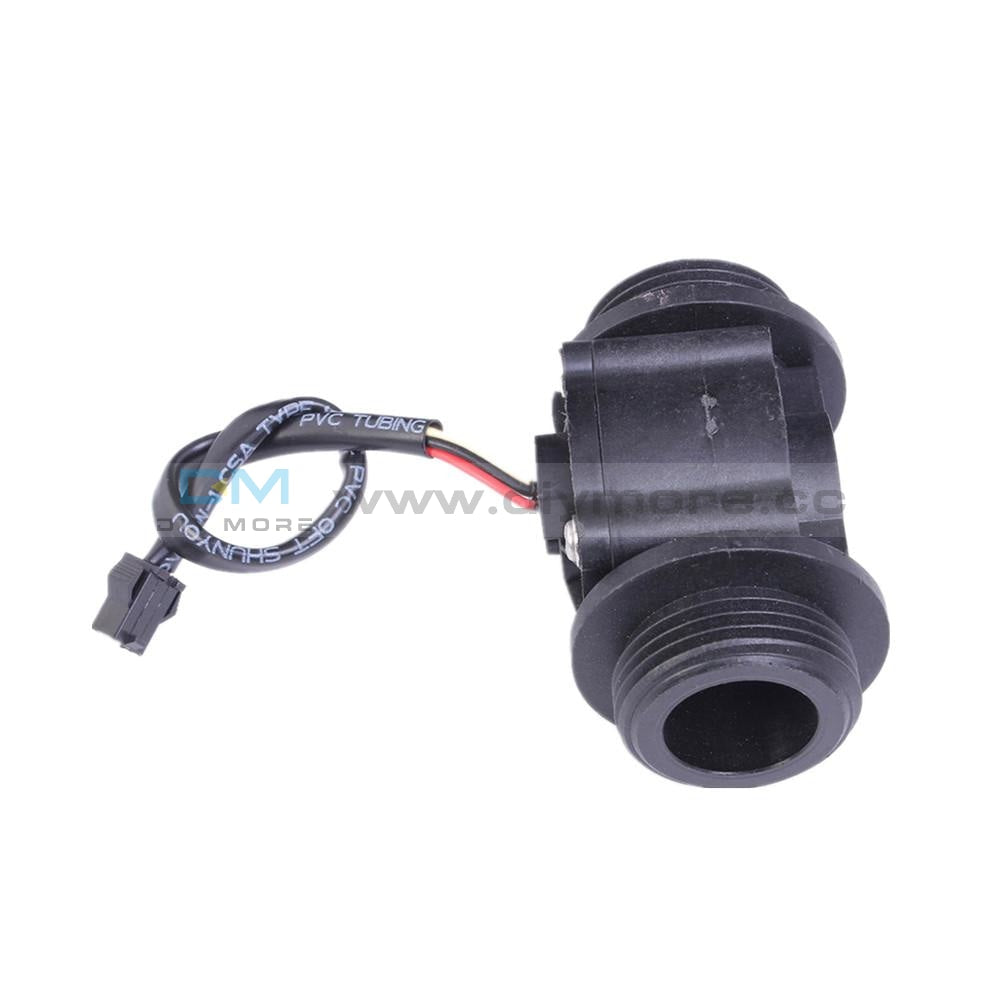

DN25 Water Hall Sensor Switch Liquid Flowmeter Counter DC 5-24V 1-60L/min

DN25 Water Hall Sensor Switch Liquid Flowmeter Counter DC 5-24V 1-60L/min

SKU:050876
Regular price $8.29

shipped within one bussiness day

Introduction:

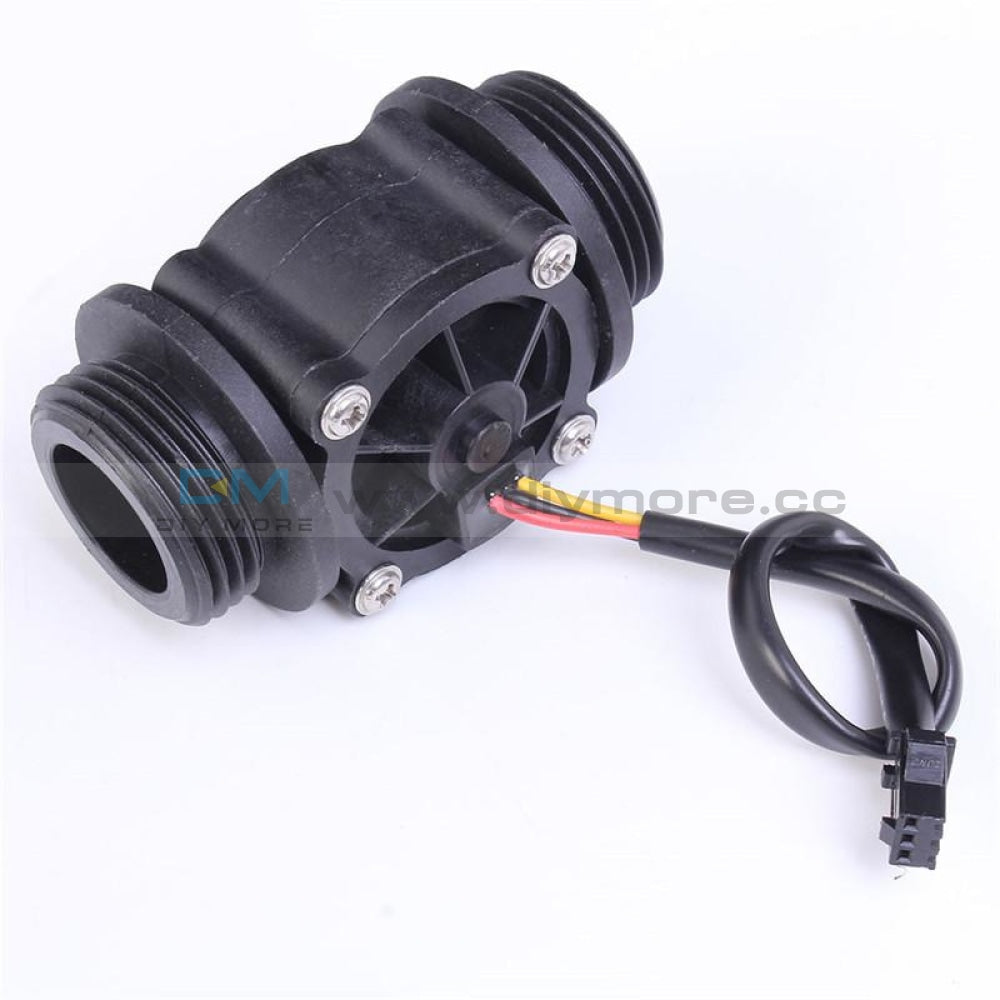

Water flow sensor is mainly composed of a plastic body, the flow of the rotor assembly and the Hall sensor. Which is mounted in the water heater inlet end for detecting water flow, the water flow through the water when the rotor assembly, and the speed of rotation of the rotor with a magnetic flow change, the Hall sensor output a corresponding pulse signal, feedback to the controller, the control is to determine the size of the water flow regulation.
Second, the use precautions
1. non-violent shocks and chemical erosion.
2. Do throw or hit.
3. mounted vertically, the tilt of no more than 5 degrees.
4. medium temperature should not exceed 1200 C.

Features:
1. This product appearance lightweight flexible, small size, easy installation.
2. impeller inlaid stainless steel beads, always wearable.
3. seal with the structure under the force never leaks.
4. Hall elements imported from Germany, and with potting package
Prevent water, never aging.
5. All materials are in line with ROSH testing standards

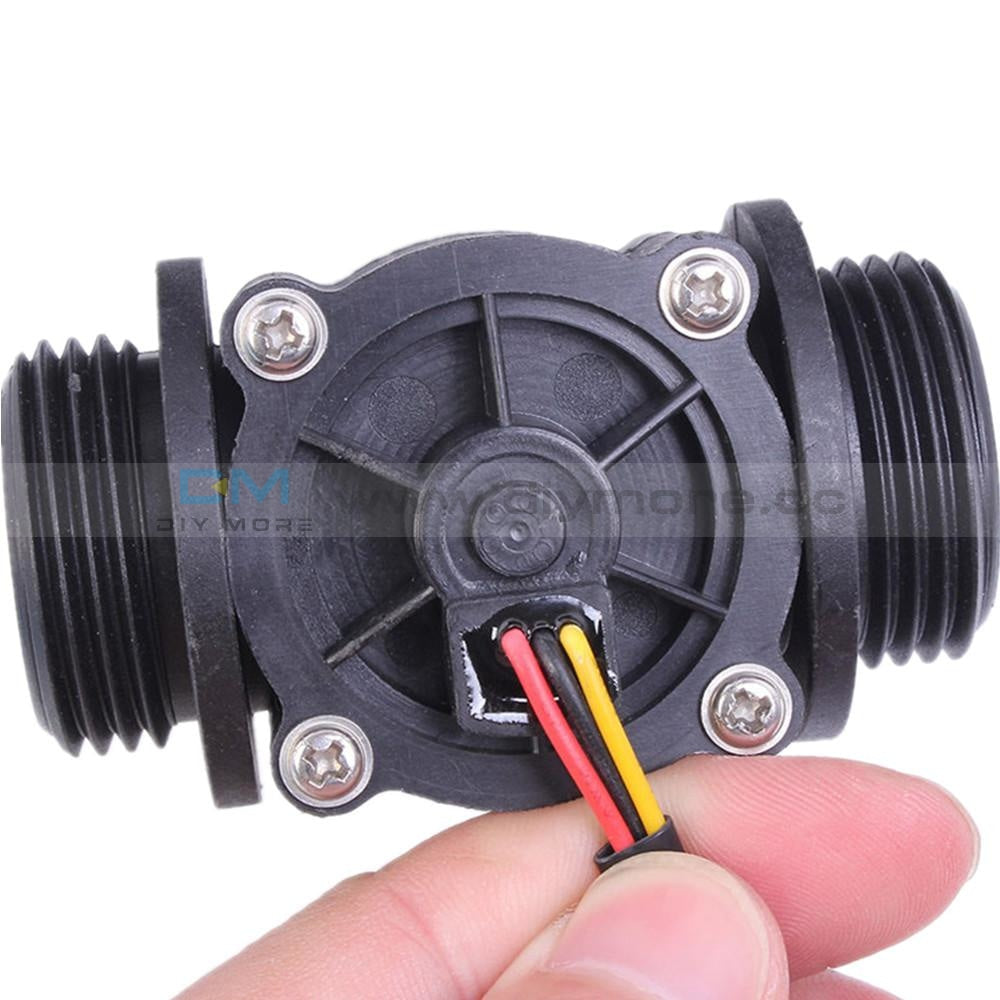

Pin Definition:
1.Red IN:connect with positive
2.Yellow OUT:signal output wire
3.Black GND:connect with negative

Basic parameters:
1.The lowest rated working voltage DC4.5 5V-24V
2.The maximum operating current of 15 mA (DC 5V)
3.The operating voltage range DC 5 ~ 18 V
4.Load capacity ≤ 10 mA (DC 5V)
5.Flow range:1-60L/min(±3%)
6.Characteristics of Flow pulse:F=(4.8*Q) Q=L/Min
7.Storage temperature -25 ~ + 80 ℃
8.Save humidity 25% ~ 95% RH

Package Include:
1x DN25 Flowmeter
