DST1000 AC 110-220V DST1000 Single Display Digital Thermostat Temperature Control Controller with DS18B20 Waterproof Sensor

Dst1000 Ac 110-220V Single Display Digital Thermostat Temperature Control Controller With Ds18B20

DST1000 AC 110-220V DST1000 Single Display Digital Thermostat Temperature Control Controller with DS18B20 Waterproof Sensor

SKU:X13070
Regular price $8.70





Product Model:DST1000
Supply Voltage:AC100~220V
Temperature Range:-50~+120°C
Temperature Measurement Accuracy:±0.5°C(In the range of -10~+85°C)
Line length:1m
Size:75mm*85mm*35mm
Applicable Scene:Various Sensor Control Boxes.Water Heater.Freezer.Fan
(Not limited to the devices)

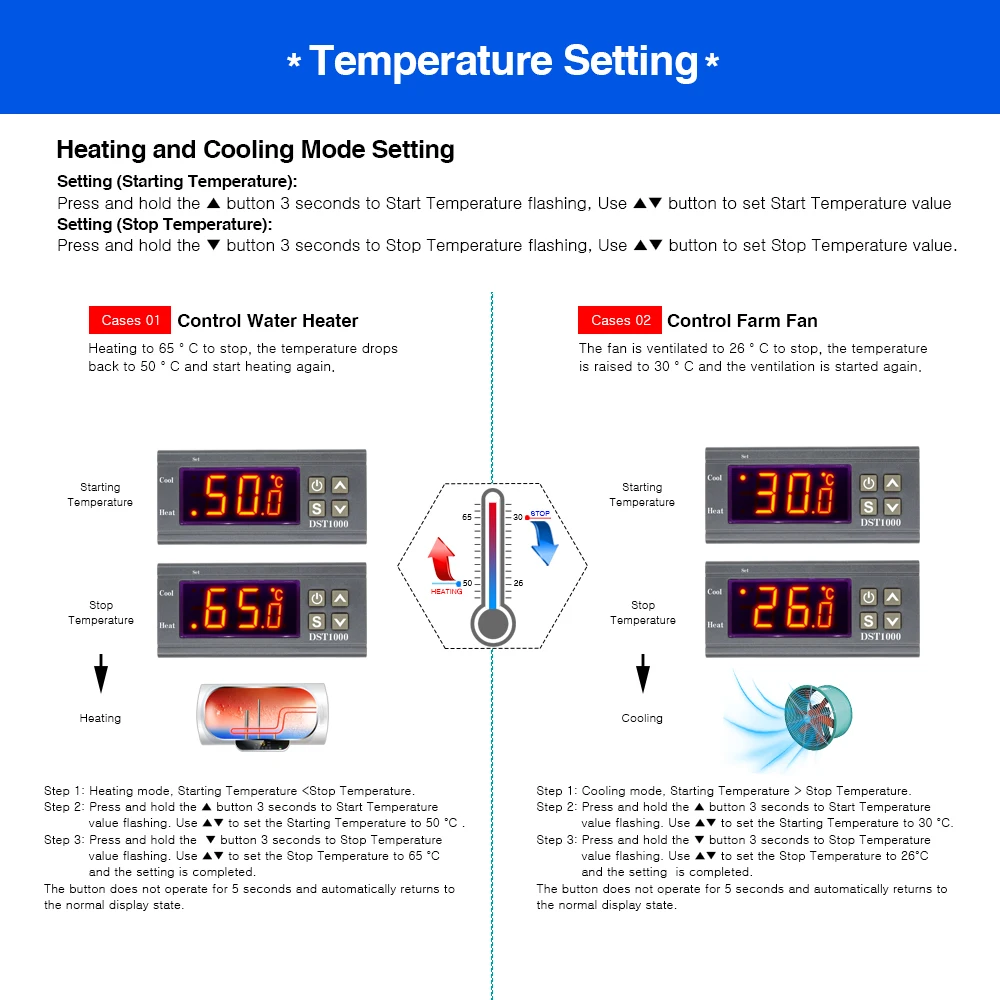

Temperature Setting
Heating and Cooling Mode Setting
Setting(Starting Temperature):
Press and hold the¡øbutton 3 seconds to Start Temperature flashing,Use¡ø¨‹button to set Start Temperature value
Setting(Stop Temperature):
Press and hold the¨‹button 3 seconds to Stop Temperature flashing,Use¡ø¨‹button to set Stop Temperature value
Cases 01 Control Water Heater
Heating to 65° to stop, the temperature drops back to 50° and heating again
Step1:Heating mode,Starting Temperature£¼Stop Temperature.
Step2:Press and hold the¡øbutton 3 seconds to Start Temperature value flashing. Use¡ø¨‹ to set the Starting Temperature to 50°.
Step3:Press and hold the¨‹button 3 seconds to Stop Temperature value flashing. Use¡ø¨‹ to set the Stop Temperature to 65° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to the normal display state.
Cases 02 Control Farm Fan
The fan is ventilated to 26° to stop, the temperature is raised to 30° and the ventilation is started again.
Step1:Cooling mode,Starting Temperature£¾Stop Temperature.
Step2:Press and hold the¡øbutton 3 seconds to Start Temperature value flashing. Use¡ø¨‹ to set the Starting Temperature to 30°.
Step3:Press and hold the¨‹button 3 seconds to Stop Temperature value flashing. Use¡ø¨‹ to set the Stop Temperature to 26° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to

X13070 (7)X13070 (8)X13070 (9)X13070 (10)X13070 (11)X13070 (12)X13070 (13)X13070 (14)



Package Included:
1PC*DST1000 AC 110-220V Temperature Controller Thermostat DS18B20 Better STC1000



 X13070 (1)X13070 (2)X13070 (3)X13070 (4)X13070 (5)X13070 (6)





trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155





Product Model:DST1000
Supply Voltage:AC100~220V
Temperature Range:-50~+120°C
Temperature Measurement Accuracy:±0.5°C(In the range of -10~+85°C)
Line length:1m
Size:75mm*85mm*35mm
Applicable Scene:Various Sensor Control Boxes.Water Heater.Freezer.Fan
(Not limited to the devices)



Temperature Setting
Heating and Cooling Mode Setting
Setting(Starting Temperature):
Press and hold the¡øbutton 3 seconds to Start Temperature flashing,Use¡ø¨‹button to set Start Temperature value
Setting(Stop Temperature):
Press and hold the¨‹button 3 seconds to Stop Temperature flashing,Use¡ø¨‹button to set Stop Temperature value
Cases 01 Control Water Heater
Heating to 65° to stop, the temperature drops back to 50° and heating again
Step1:Heating mode,Starting Temperature£¼Stop Temperature.
Step2:Press and hold the¡øbutton 3 seconds to Start Temperature value flashing. Use¡ø¨‹ to set the Starting Temperature to 50°.
Step3:Press and hold the¨‹button 3 seconds to Stop Temperature value flashing. Use¡ø¨‹ to set the Stop Temperature to 65° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to the normal display state.
Cases 02 Control Farm Fan
The fan is ventilated to 26° to stop, the temperature is raised to 30° and the ventilation is started again.
Step1:Cooling mode,Starting Temperature£¾Stop Temperature.
Step2:Press and hold the¡øbutton 3 seconds to Start Temperature value flashing. Use¡ø¨‹ to set the Starting Temperature to 30°.
Step3:Press and hold the¨‹button 3 seconds to Stop Temperature value flashing. Use¡ø¨‹ to set the Stop Temperature to 26° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to

X13070 (7)X13070 (8)X13070 (9)X13070 (10)X13070 (11)X13070 (12)X13070 (13)X13070 (14)



Package Included:
1PC*DST1000 AC 110-220V Temperature Controller Thermostat DS18B20 Better STC1000



 X13070 (1)X13070 (2)X13070 (3)X13070 (4)X13070 (5)X13070 (6)
