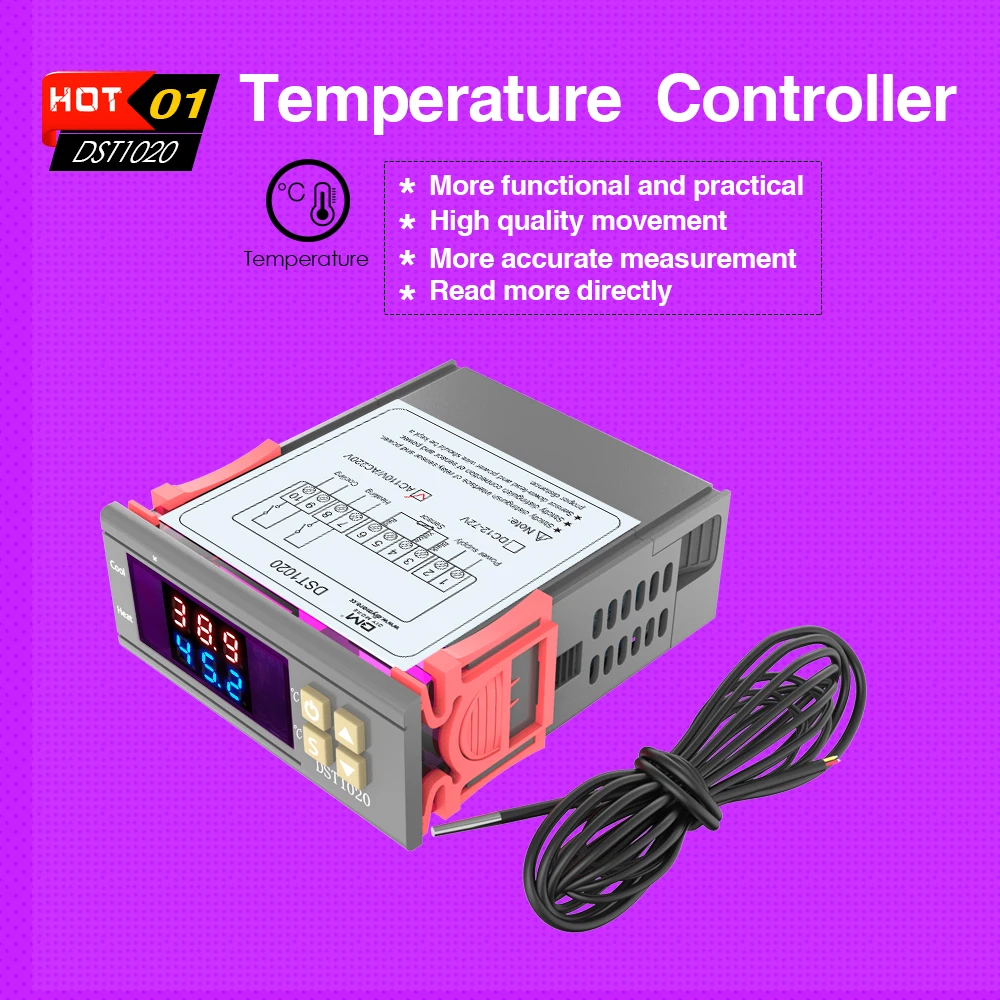

DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Waterproof Sensor Replace STC-1000

Dst1020 Ac 110-220V Dual Display Digital Temperature Controller Control Thermostat Ds18B20

DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Waterproof Sensor Replace STC-1000

SKU:X13072
Regular price $11.25





DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Sensor

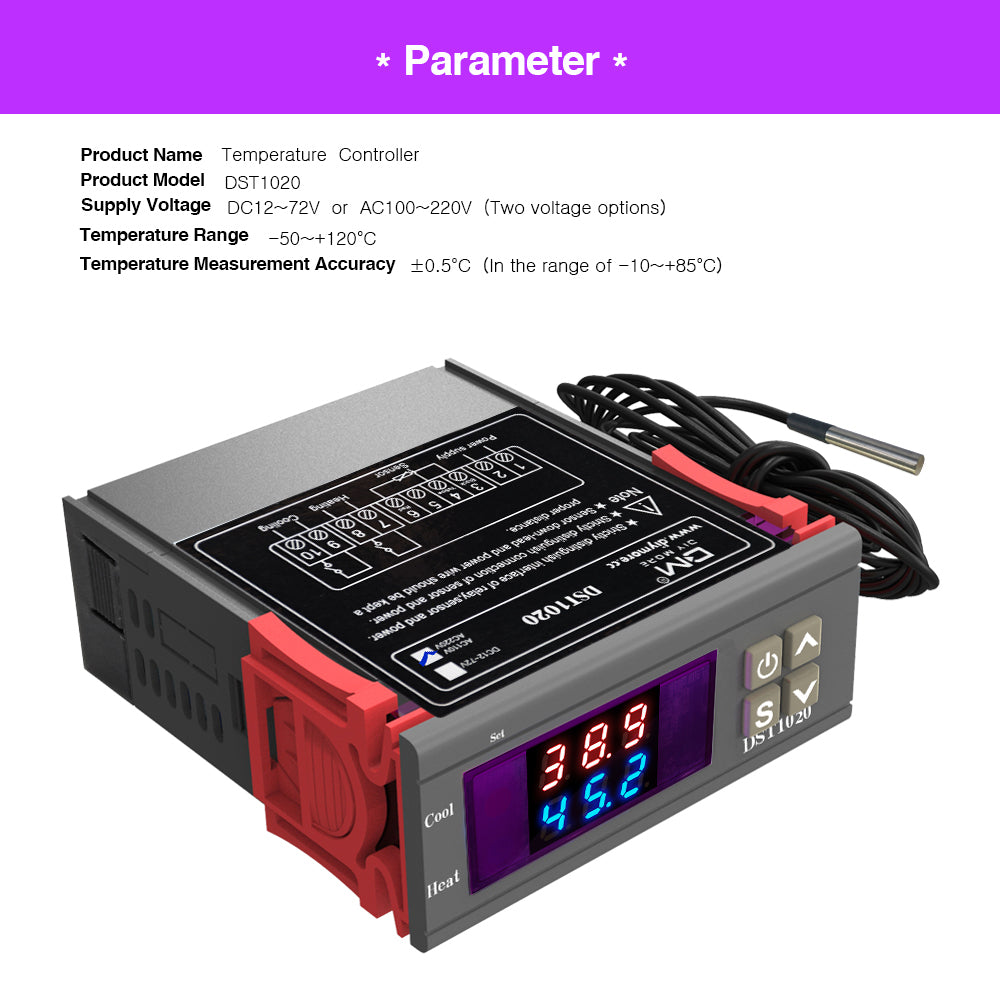

Product Name: Temperature Controller
Product model: DST1020
Supply voltage: AC110-220V
Temperature range: -50~ + 120°C
Temperature measurement accuracy: ±0.5 °C (in the range of -10~ + 85 °C)
Line length: 1 meter
Size: 75mm * 85mm * 35mm

Applicable scene: various sensor control boxes, water heaters, freezer cabinets, fans
(not limited to these devices)

temperature setting
Heating and cooling mode settings
Setting (starting temperature):
Press and hold the ¡ø button for 3 seconds to start the temperature flashing, use the ¡ø¨‹ button to set the starting temperature value.
Set (stop temperature):
Press and hold the ¨‹ button for 3 seconds to stop the temperature flashing, use the ¡ø¨‹ button to set the stop temperature value.

Case 01 control water heater
Heated to 65 ° C to stop, the temperature dropped back to 50 ° C and heated again
Step 1: Heating mode, starting temperature <stop temperature.
Step 2: Press and hold the ¡ø button for 3 seconds to start flashing the temperature value. Use ¡ø¨‹ to set the starting temperature to 50 °C.
Step 3: Hold down the ¨‹ button for 3 seconds to stop the temperature value flashing. Use ¡ø¨‹ to set the stop temperature to 65°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.

Case 02 controls the farm fan
The fan is vented to 26 ° C and the temperature is raised to 30 ° C. Ventilation begins again.
Step 1: Cooling mode, start temperature > stop temperature.
Step 2: Press and hold the ¡ø button for 3 seconds to start flashing the temperature value. Use ¡ø¨‹ to set the starting temperature to 30 °C.
Step 3: Hold down the ¨‹ button for 3 seconds to stop the temperature value flashing. Use ¡ø¨‹ to set the stop temperature to 26°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.





Package :



1 x DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Sensor Waterproof

X13072 (8)X13072 (9)X13072 (10)X13072 (11)X13072 (12)X13072 (13)X13072 (14)X13072 (15)







trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155





DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Sensor
Product Name: Temperature Controller
Product model: DST1020
Supply voltage: AC110-220V
Temperature range: -50~ + 120°C
Temperature measurement accuracy: ±0.5 °C (in the range of -10~ + 85 °C)
Line length: 1 meter
Size: 75mm * 85mm * 35mm

Applicable scene: various sensor control boxes, water heaters, freezer cabinets, fans
(not limited to these devices)

temperature setting
Heating and cooling mode settings
Setting (starting temperature):
Press and hold the ¡ø button for 3 seconds to start the temperature flashing, use the ¡ø¨‹ button to set the starting temperature value.
Set (stop temperature):
Press and hold the ¨‹ button for 3 seconds to stop the temperature flashing, use the ¡ø¨‹ button to set the stop temperature value.

Case 01 control water heater
Heated to 65 ° C to stop, the temperature dropped back to 50 ° C and heated again
Step 1: Heating mode, starting temperature <stop temperature.
Step 2: Press and hold the ¡ø button for 3 seconds to start flashing the temperature value. Use ¡ø¨‹ to set the starting temperature to 50 °C.
Step 3: Hold down the ¨‹ button for 3 seconds to stop the temperature value flashing. Use ¡ø¨‹ to set the stop temperature to 65°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.

Case 02 controls the farm fan
The fan is vented to 26 ° C and the temperature is raised to 30 ° C. Ventilation begins again.
Step 1: Cooling mode, start temperature > stop temperature.
Step 2: Press and hold the ¡ø button for 3 seconds to start flashing the temperature value. Use ¡ø¨‹ to set the starting temperature to 30 °C.
Step 3: Hold down the ¨‹ button for 3 seconds to stop the temperature value flashing. Use ¡ø¨‹ to set the stop temperature to 26°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.





Package :



1 x DST1020 AC 110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Sensor Waterproof

X13072 (8)X13072 (9)X13072 (10)X13072 (11)X13072 (12)X13072 (13)X13072 (14)X13072 (15)
