DTC-331 Digital LED Display Thermostat Temperature Controller NTC Probe Sensor
DTC-331 Digital LED Display Thermostat Temperature Controller NTC Probe Sensor
SKU:100041
Regular price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Control range: -50~110°C
Resolution: -9.9~99.9, 0.1°C, other temperature range, 1°C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5S
High temperature alarm: 0-110 °C

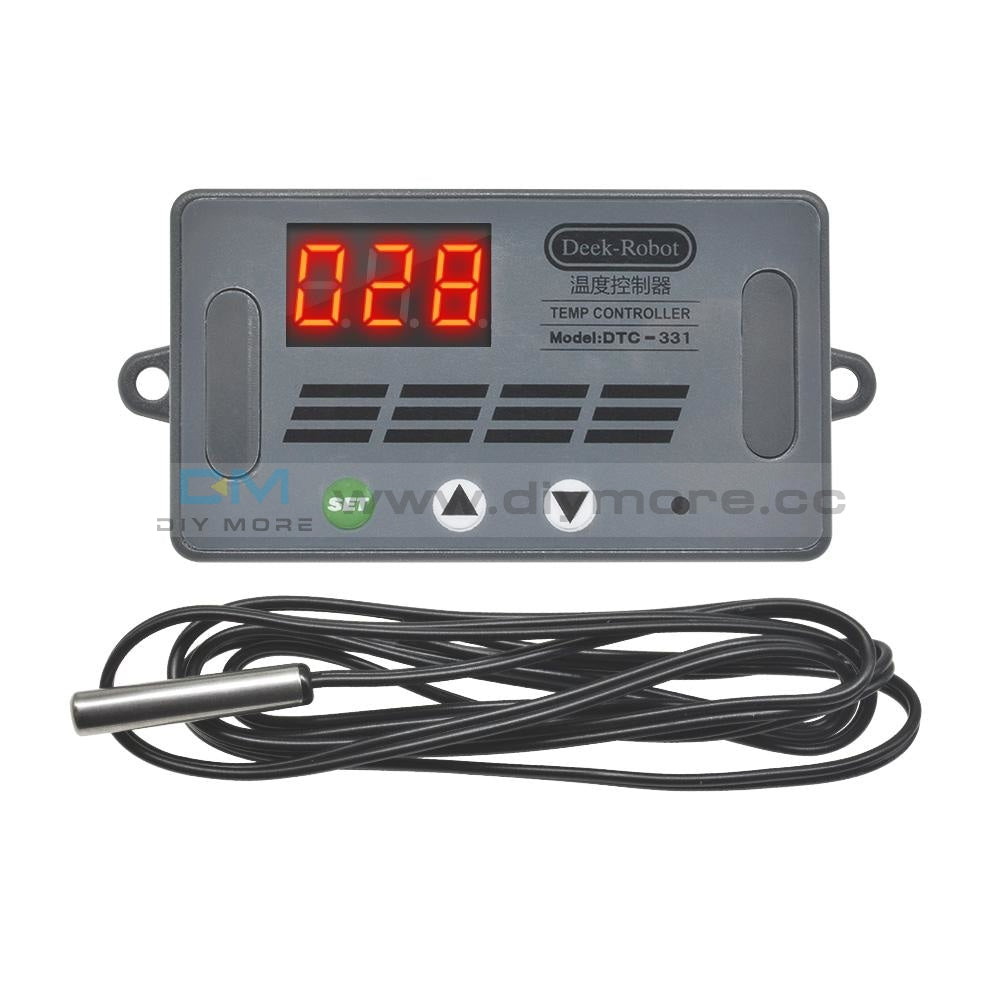

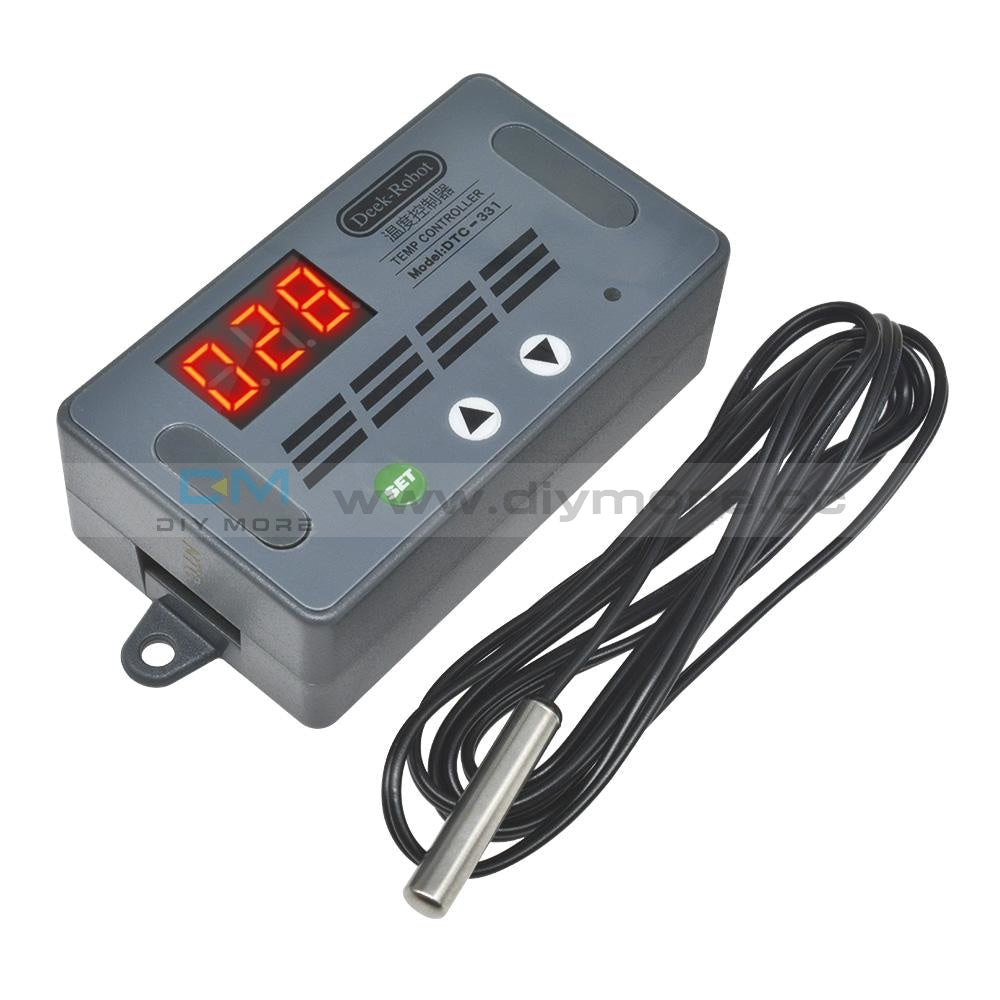

Measurement input: NTC (10K0.5%) waterproof sensor
Output: 1 Channel 10A relay
Environmental requirements: Temperature -10~60°C Humidity 20%-85%
Size: 48*40mm
Power consumption of the whole machine: quiescent current: ≤35MA Pull-in current: ≤65MA
Setting parameter method:
Once the power supply and load are connected, the control can be powered. After power-on, the digital tube displays the current real-time temperature. Press the SET button briefly, the digital tube displays the temperature flashing, press the + - button to adjust the set temperature; after the adjustment is completed, press the SET button to save the set temperature and return. At this time, the controller automatically Execute the relay on and off; press and hold the SET button for 5 seconds to enter the menu parameter setting, short press the + - button to switch P0...P6, short press the SET button to enter the menu.
The thermostat output is a 10A relay to meet a variety of high power loads, please ensure that the line is correct.

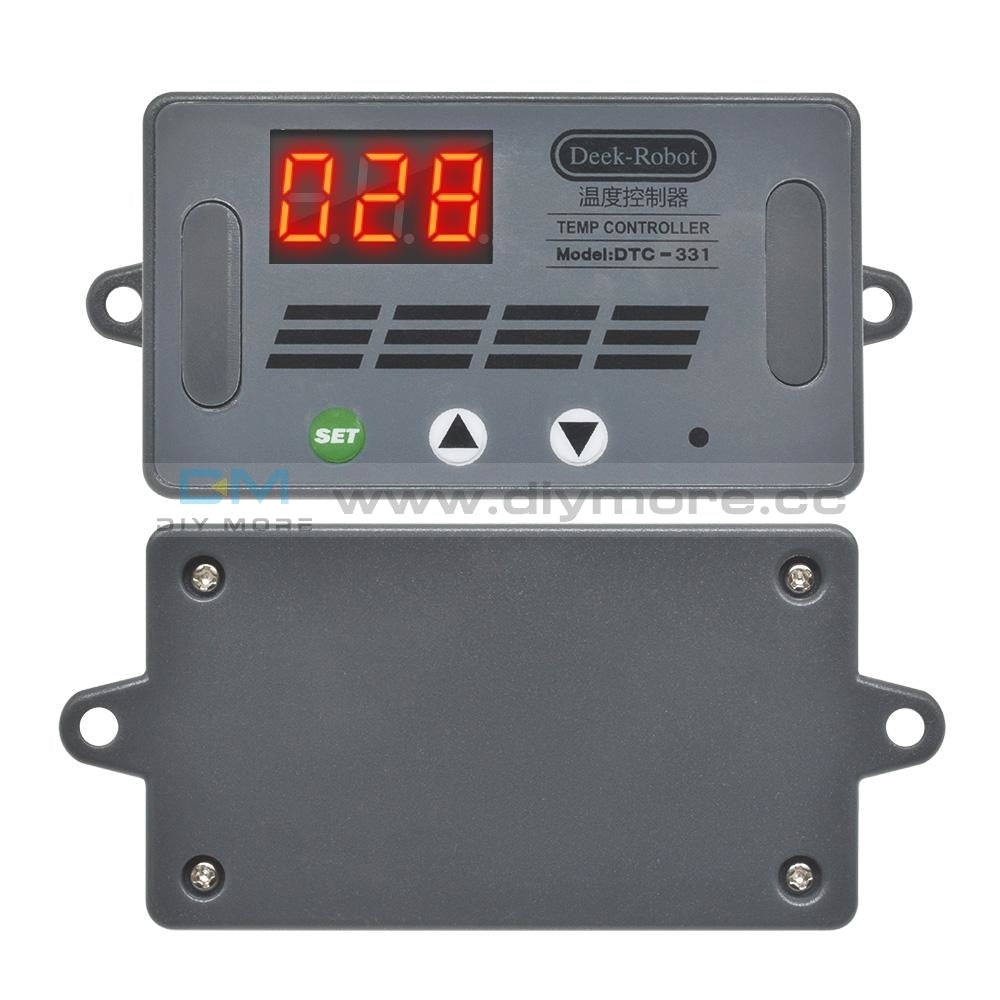

Indicator light, digital tube description
Indicator light: Off means the relay is off, steady light means the relay is closed
Digital tube: Display LLL for sensor open circuit: Display HHH is out of measurement range. The thermostat will forcibly open the relay.
Package Included:
1 x DTC-331 DC 12V 10A LED Digital Temperature Controller Thermostat Temperature Control Switch Waterproof NTC Sensor Probe
Control range: -50~110°C
Resolution: -9.9~99.9, 0.1°C, other temperature range, 1°C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 ° C
Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5S
High temperature alarm: 0-110 °C
Measurement input: NTC (10K0.5%) waterproof sensor
Output: 1 Channel 10A relay
Environmental requirements: Temperature -10~60°C Humidity 20%-85%
Size: 48*40mm
Power consumption of the whole machine: quiescent current: ≤35MA Pull-in current: ≤65MA
Setting parameter method:
Once the power supply and load are connected, the control can be powered. After power-on, the digital tube displays the current real-time temperature. Press the SET button briefly, the digital tube displays the temperature flashing, press the + - button to adjust the set temperature; after the adjustment is completed, press the SET button to save the set temperature and return. At this time, the controller automatically Execute the relay on and off; press and hold the SET button for 5 seconds to enter the menu parameter setting, short press the + - button to switch P0...P6, short press the SET button to enter the menu.
The thermostat output is a 10A relay to meet a variety of high power loads, please ensure that the line is correct.
Indicator light, digital tube description
Indicator light: Off means the relay is off, steady light means the relay is closed
Digital tube: Display LLL for sensor open circuit: Display HHH is out of measurement range. The thermostat will forcibly open the relay.
Package Included:
1 x DTC-331 DC 12V 10A LED Digital Temperature Controller Thermostat Temperature Control Switch Waterproof NTC Sensor Probe
