DTC1200 Aquarium Aquarium Hatching Seafood Machine Electronic Digital Microcomputer Computer Intelligent Thermostat

DTC1200 Aquarium Aquarium Hatching Seafood Machine Electronic Digital Microcomputer Computer Intelligent Thermostat

SKU:XA0008
Regular price $15.00 Sale price $9.99

shipped within one bussiness day

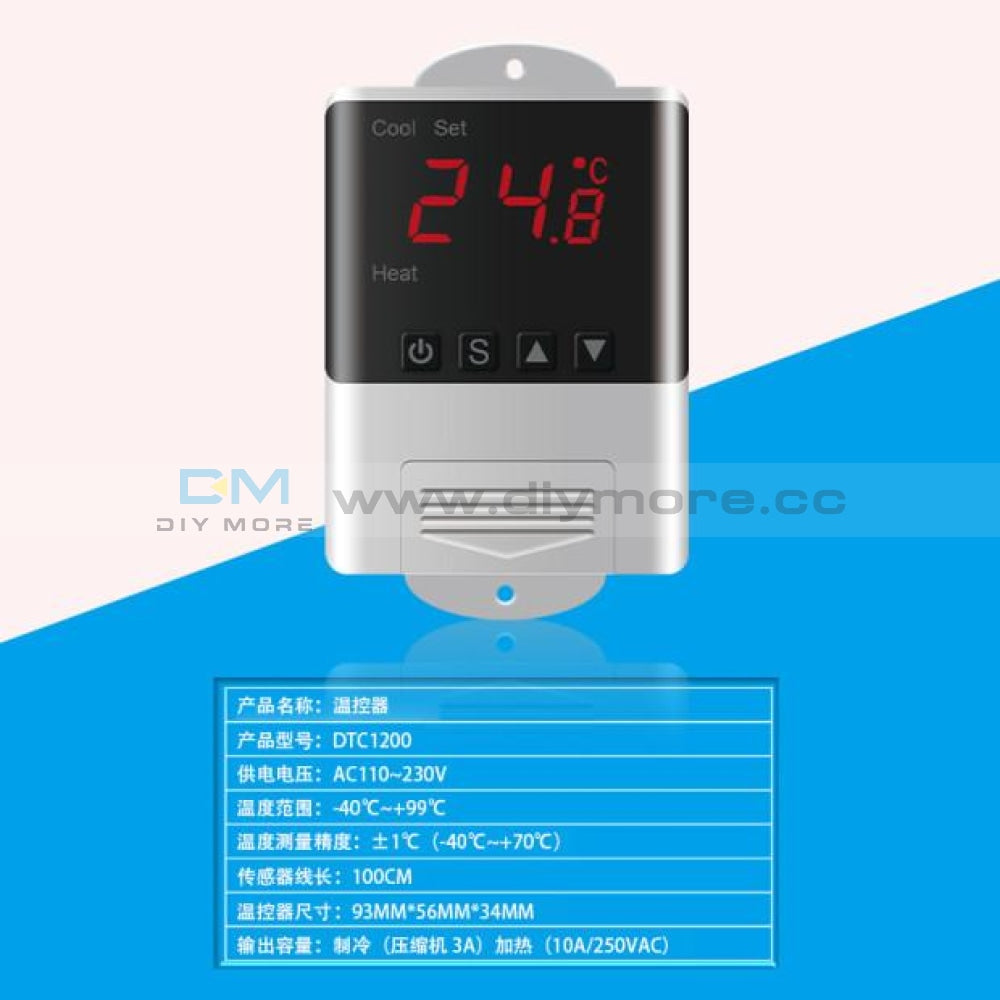

Product Name: Thermostat
Product model: DTC1200
Supply voltage: AC110~230V
Temperature range: -40°C~+99°C
Temperature measurement accuracy: ±1 °C (-40 °C ~ +70 °C)
Sensor line length: 100cm

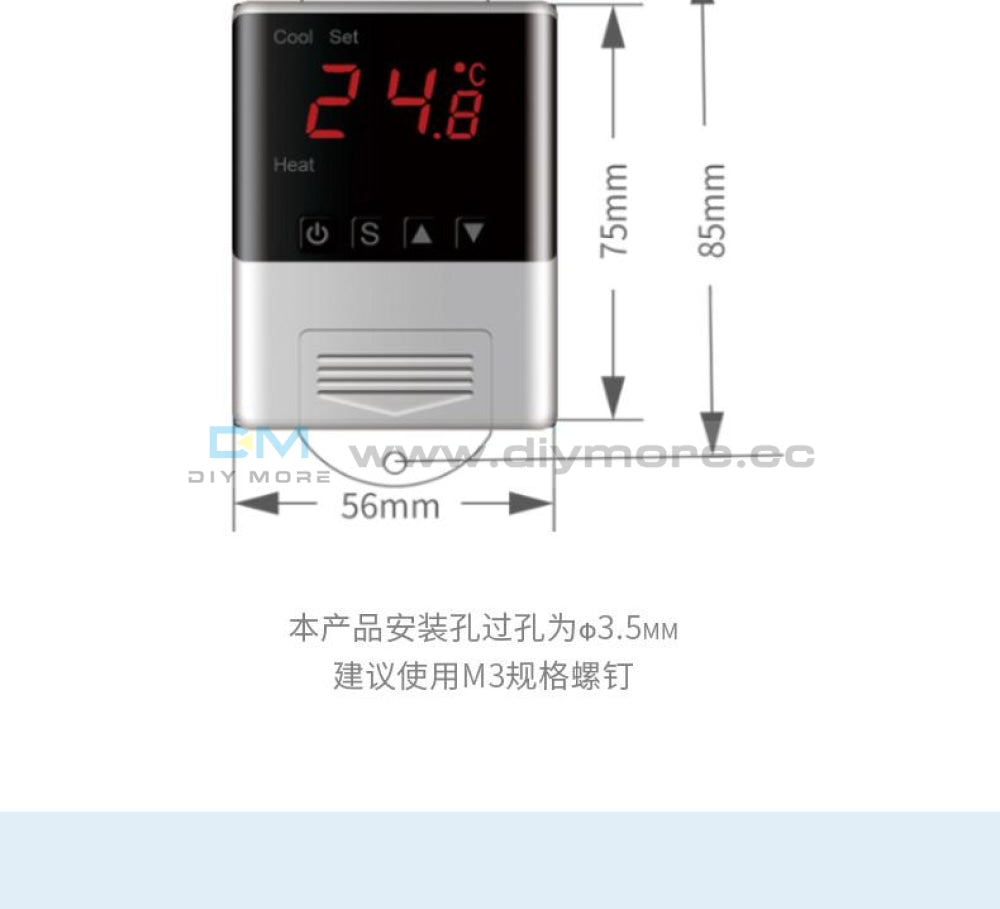

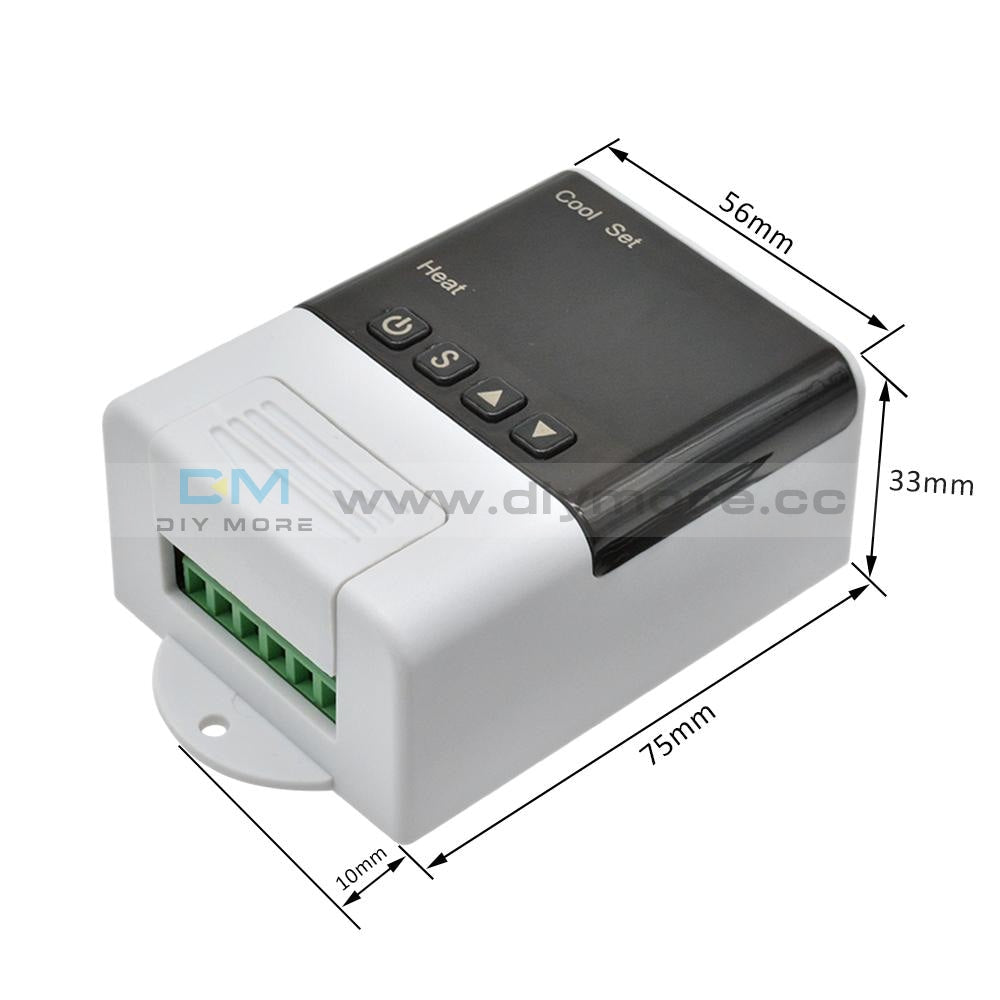

Thermostat size: 93mm*56mm*34mm
Output capacity: cooling (compressor 3A) heating (10A/250VAC)

See parameter method:

When the thermostat is working normally, press and release "▲"the key once to display the temperature setting value; press and release "▼" the key once to display the temperature difference setting value. After 3 seconds, the temperature returns to the normal display state.

Setting parameter method:

When the thermostat is working normally, press "S" key and hold the button for more than 3 seconds to enter the modified parameter mode. The “Set” indicator lights up, the digital tube displays the code “F1” of the first menu item, and press the "▲" or "▼"key to up or down the code of the menu item. Press "S" the key to display the parameter setting value of the current menu, press "S" and hold the key, then press the "▲"or "▼" key to increase or decrease the parameter setting value of the current menu; press "S" key and hold the key, and press the "▲"or "▼" key to quickly increase the speed; Or down and display the parameter settings of the current menu.
Press and hold "▲"or "▼" the key at the same time to restore the parameters to the factory settings.

Operation instructions:

1.When the thermostat is working normally, press and hold the "power button" for more than 3 seconds to turn off the thermostat. When the thermostat is off, press and hold the "power button" for more than 3 seconds to open the thermostat.
When the thermostat is working normally, the digital tube displays the current temperature measurement value, and performs automatic recognition conversion of the cooling heating operation mode.
2.When the measured temperature ≥ temperature set value + temperature difference set value, enter the cooling state, the Cool indicator light is on, the cooling relay normally open contact is closed; the Cool indicator flashes, indicating that the cooling device is in the press delay protection state; when measuring the temperature ≤ temperature set value, the Cool indicator is off, and the normally open contact of the refrigeration relay is disconnected.
3.When the measured temperature ≤ temperature set value - temperature difference set value enters the heating state, the Heat indicator light is on, the heating relay normally open contact is closed; when the measured temperature ≥ temperature set value, the Heat indicator is off, the heating relay normally open contact disconnect.


Indicator status description:

Indicator

Function

Note

Cool indicator

Light on:cooling work;

  Light off:cooling off;

Flashing: press delay

Cool and Heat Both indicator lights cannot be lit at the same time

Heat indicator

Bright: heating work;

off: heating off

Set indicator

On: parameter setting status





Menu function description:

Menu identifier

Menu function

Setting range

Factory setting

F1

Temperature setting value

-40.0~99.9°

10.0°

F2

Temperature difference setting value

0.3~10.0°

0.5°

F3

Press delay

1~10 min

3 min

F4

Temperature correction

-10.0~10.0°

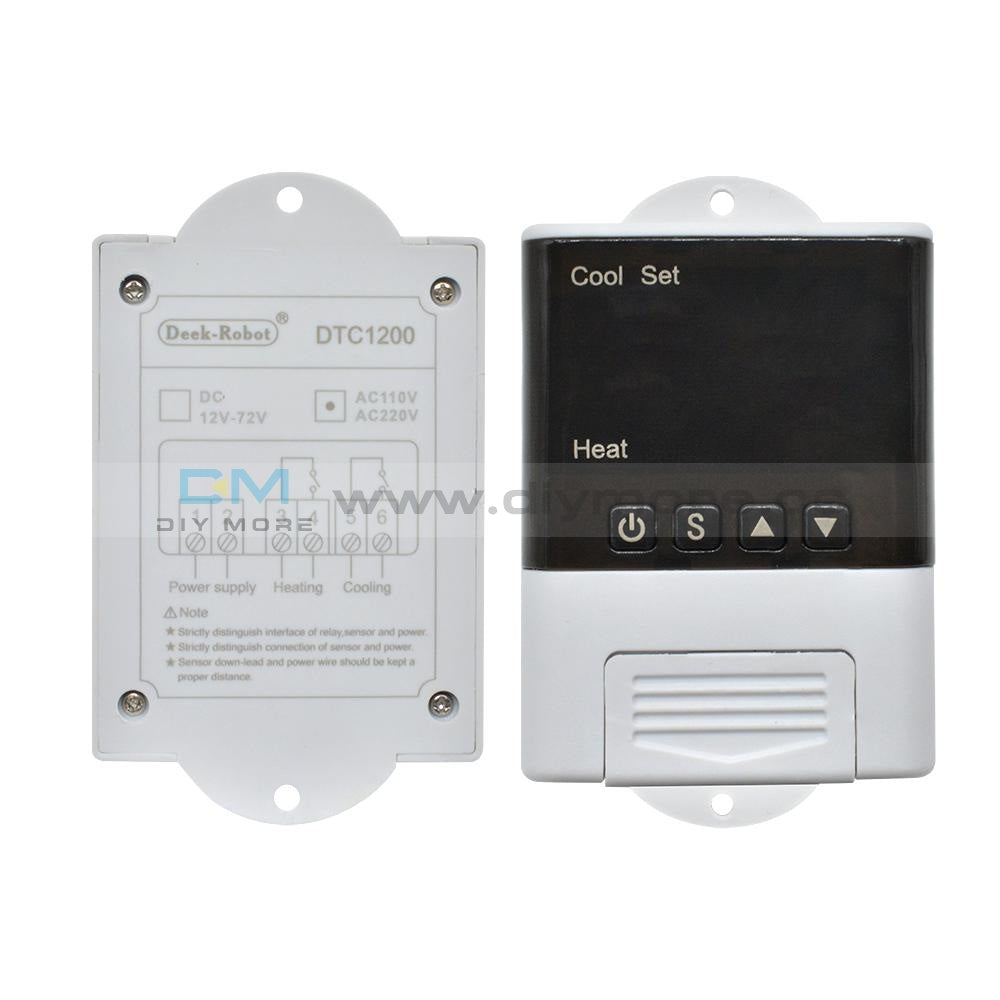

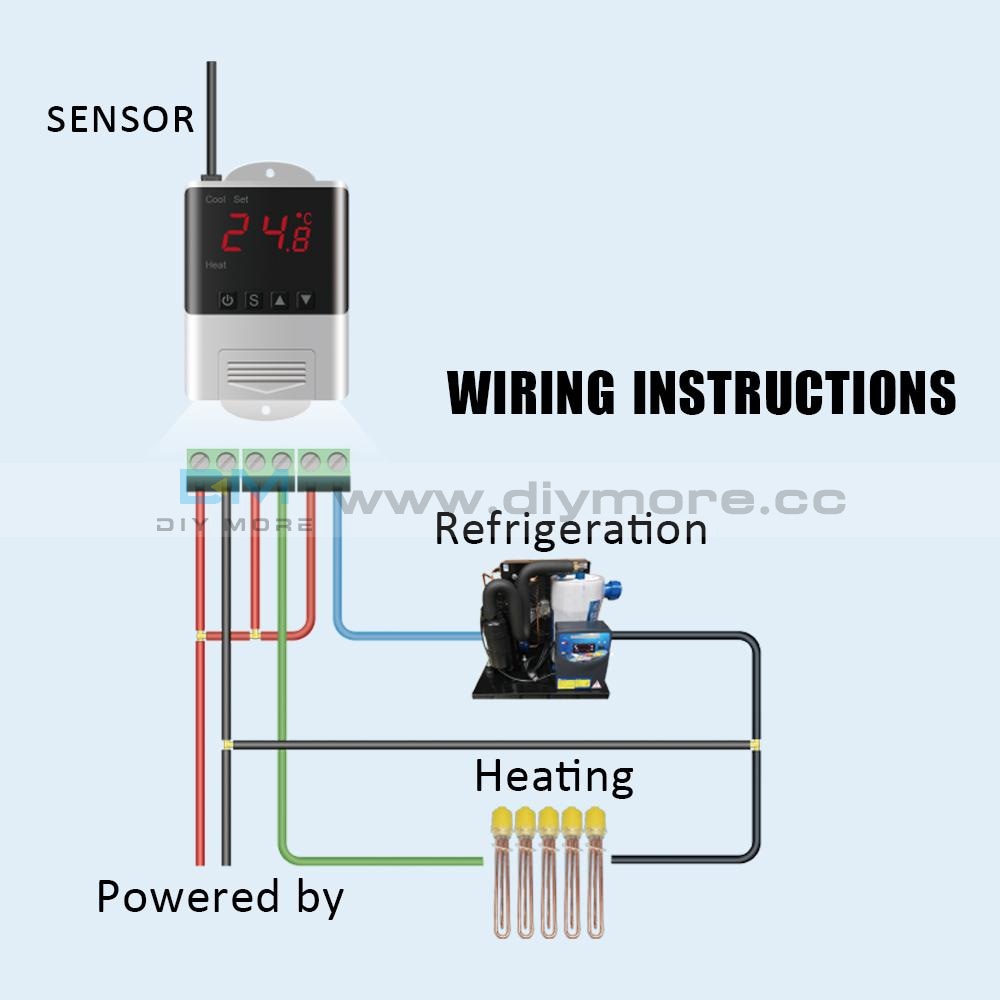

Wiring Method:


Package content:

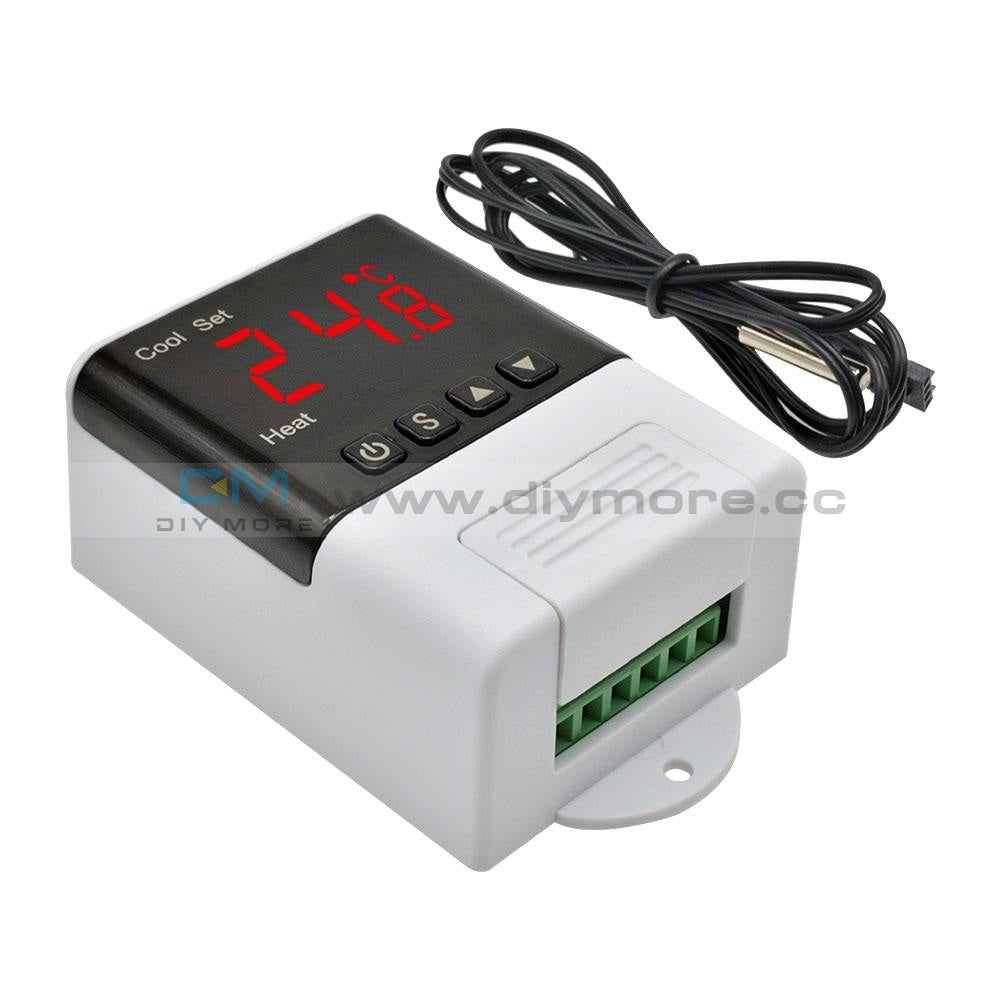

1 x DTC-1200 digital display thermostat
1 x temperature sensor cable
