English GM328 Assembled Transistor Tester LCR ESR Meter Acrylic Case DIY Kits
English GM328 Assembled Transistor Tester LCR ESR Meter Acrylic Case DIY Kits
SKU:051061
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
English GM328 Assembled Transistor
Description:
- LCD GM328B Transistor Tester Diode ESR Meter PWM Square Wave Generator
- Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
- Can measure a capacitor, capacitance range 25pf~100mF, resolution is 1pF.
- Capacitance less than 25pF can be measured by parallel connection another known capacitor is greater than or equal to 25pF.
- Support two diodes to be measured simultaneously and display voltage drop for diode.
- Automatically test the pins of a component and show on the display.
- Resistance less than 2100 ohm while it's equivalent inductance measuring range from 0.01mH-20H.
- Program tape self checking function, Support calibration of multiple parameters.
- Can be used as frequency meter and frequency generator: frequency range from 1Hz-2MHz and can output 10-bit PWM signal.
- Notice:
- Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
- Be sure to disconnect the power from the circuit board when testing the components on the circuit board, the test equipment have residual voltage is not allowed.
- Type: Assembled Tester
- Display: 1.8inch 160*128 LCD
- Power Supply: DC 7-12V
- Current: Approx. 20nA
- Resistance Measurement: Max. 50MΩ
- Resistance Resolution: 0.01Ω
- Capacitance Measurement: 25pF~100mF
- Capacitance Resolution: 1pF
- Inductance Measurement: 0.01mH~20H
- PCB Size: 7.5 * 6cm / 2.95 * 2.36in
- Product Weight: 50g / 1.79oz
- Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Package Included:
- 1 x Fully Assembled Transistor Tester

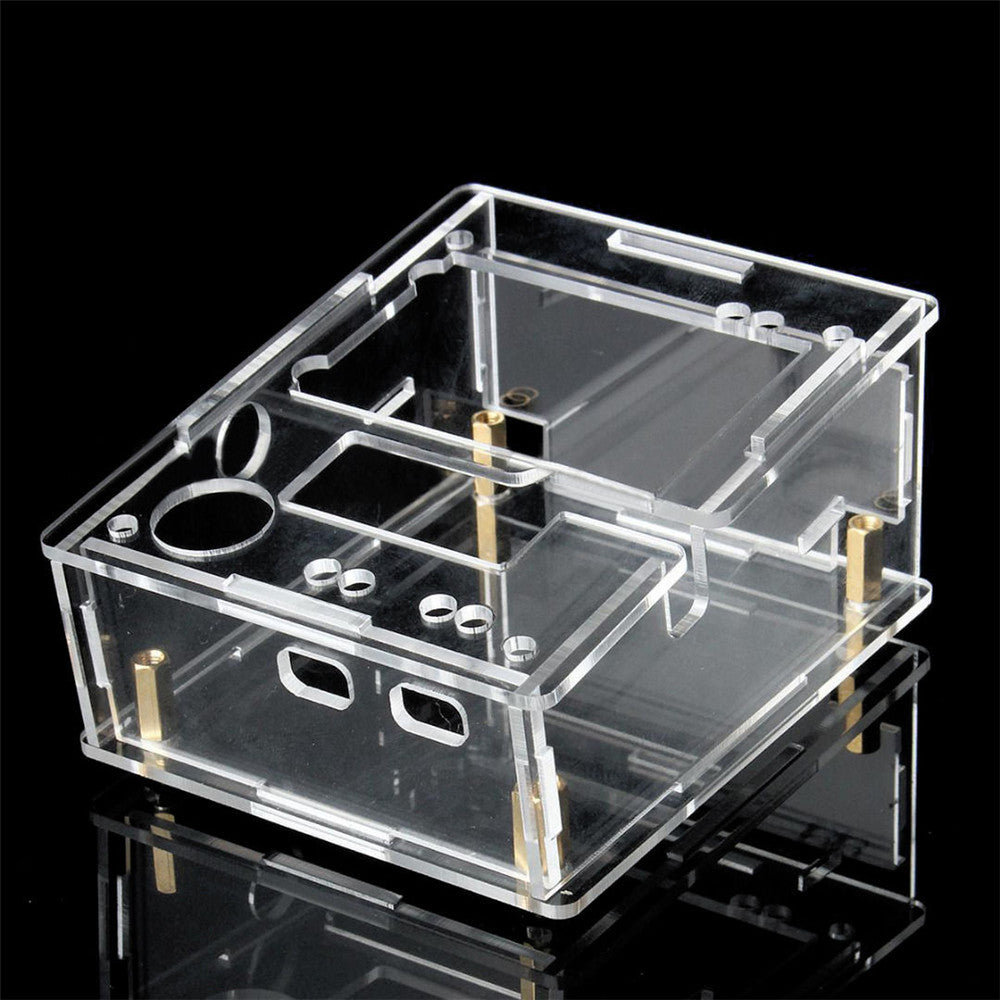

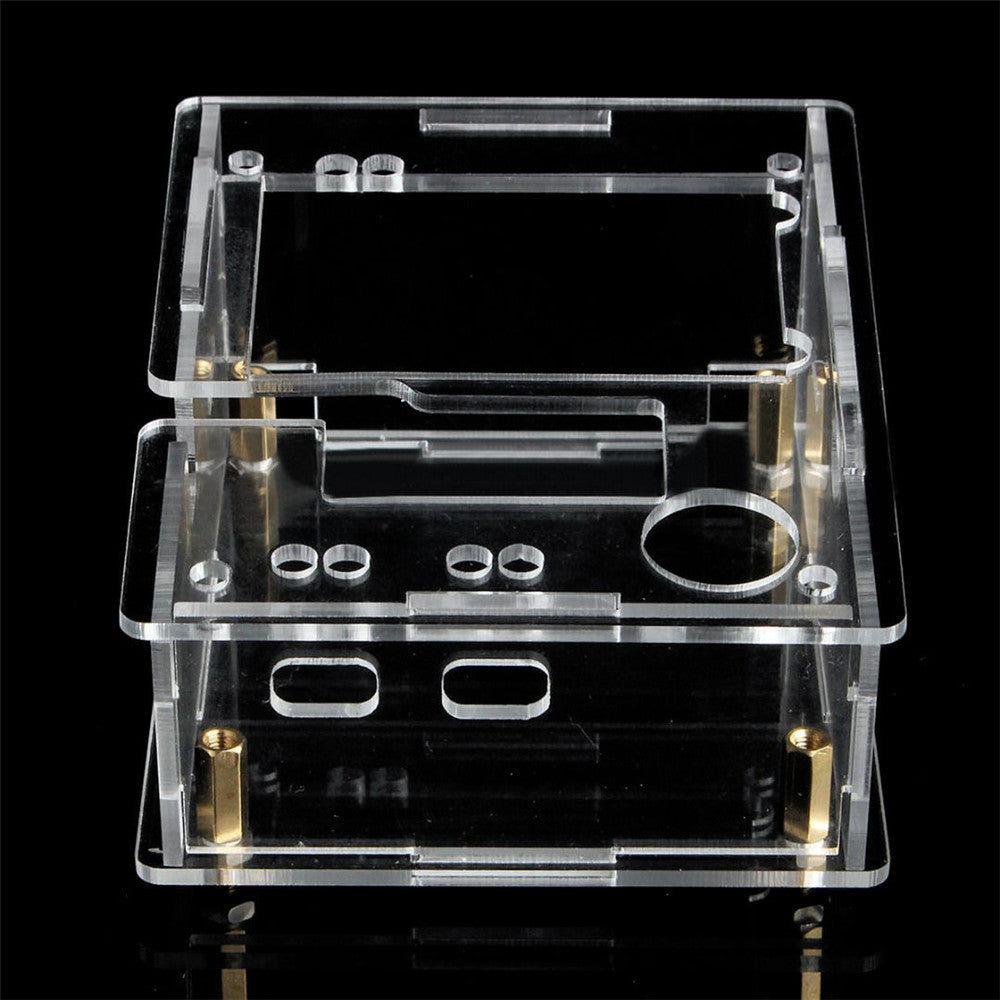

GM328 Transistor Tester Case
Specification:
- Material: Acrylic
- Color: Transparent
- Size: approx.83 x 83 x 30 mm
- For DIY mega328 Transistor-tester
Package Included:

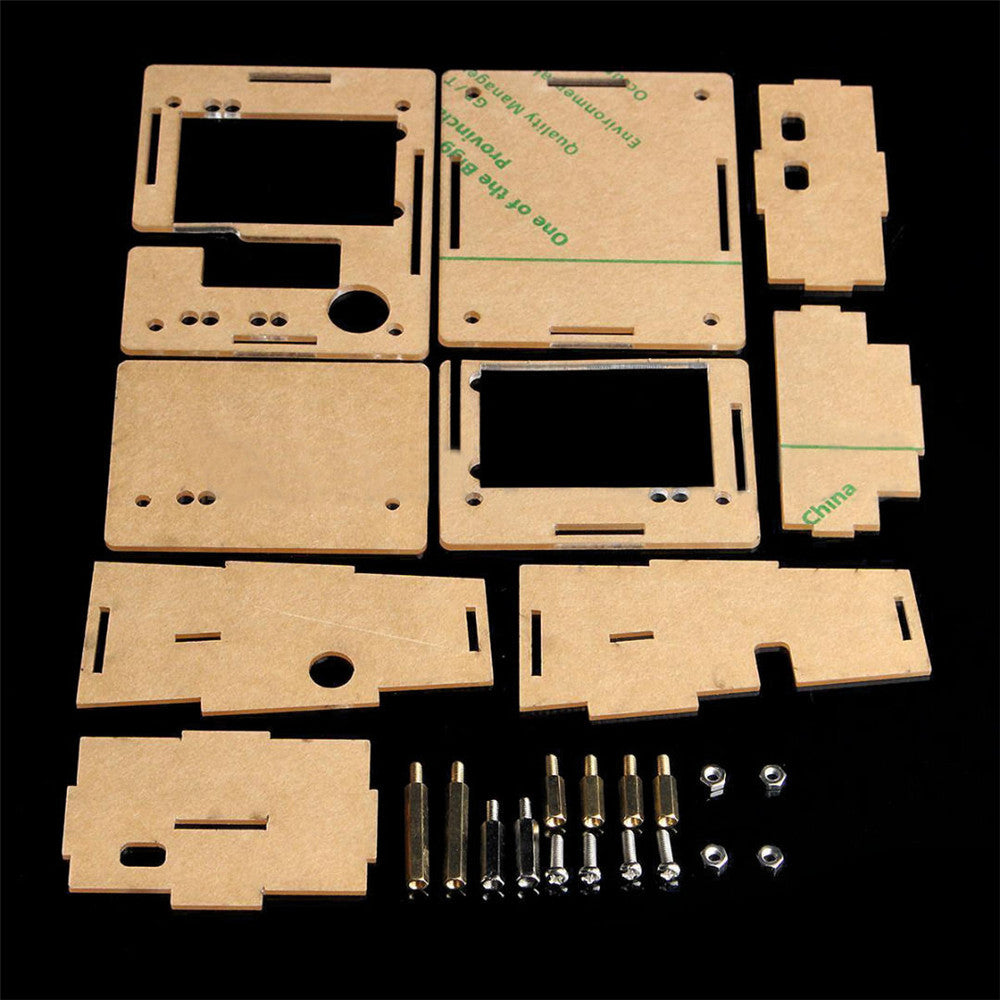

- 1 x Acrylic Case for GM328 Transistor Tester(DIY Kits)

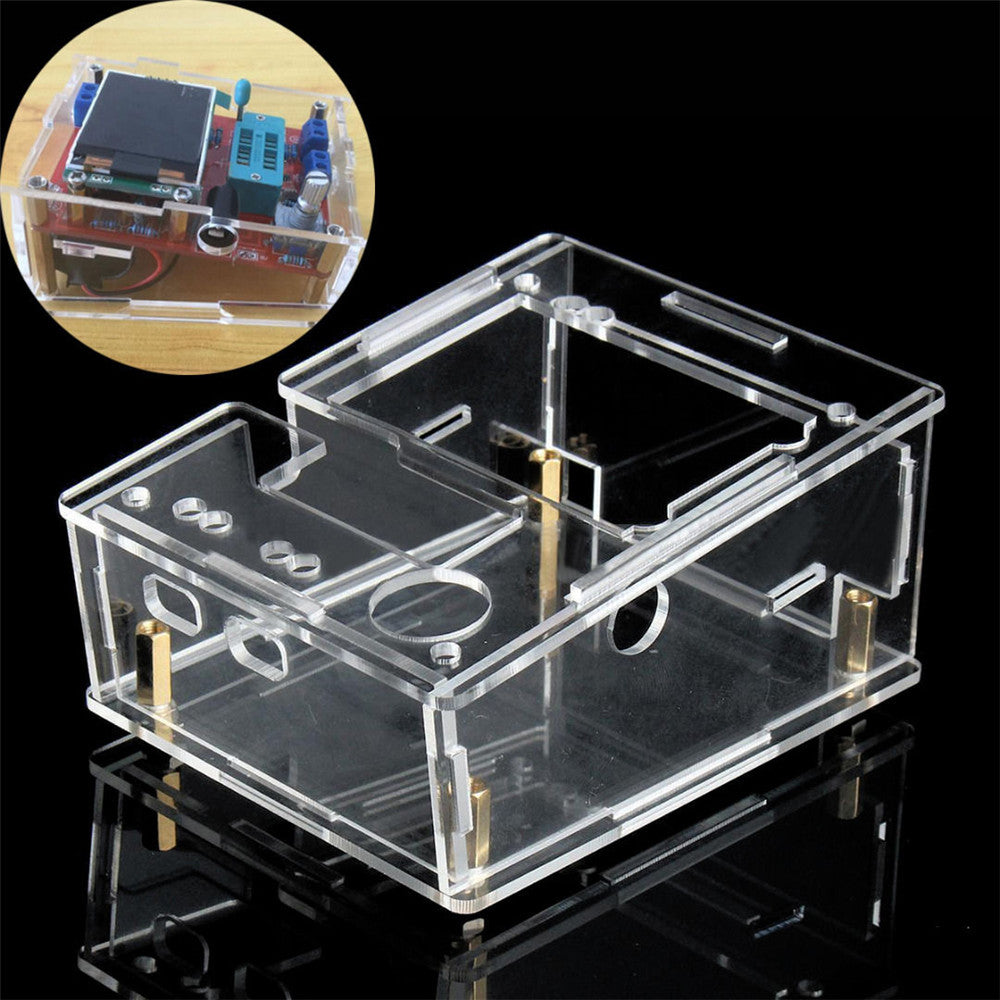

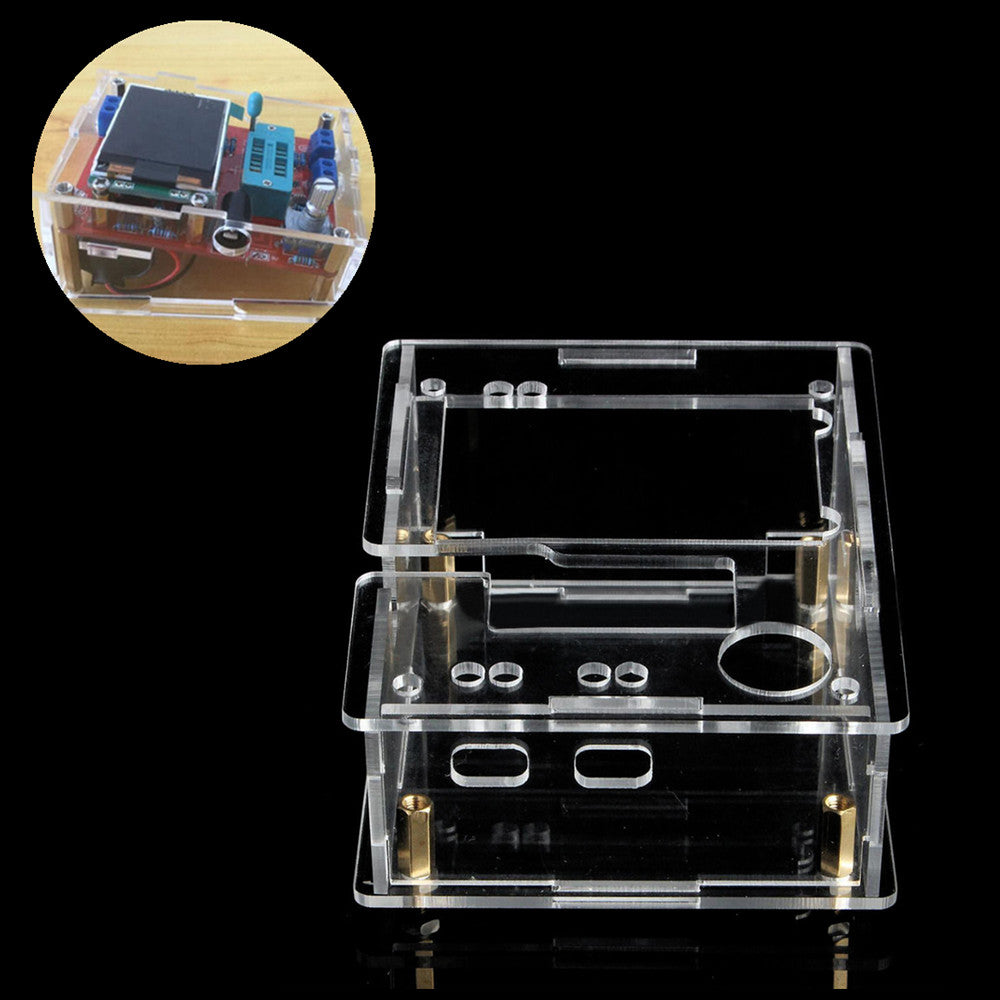

GM328 Assembled Transistor Tester+Case
Package Included:- 1 x English Fully Assembled Transistor Tester
- 1 x Acrylic Case for GM328 Transistor Tester(DIY Kits)
