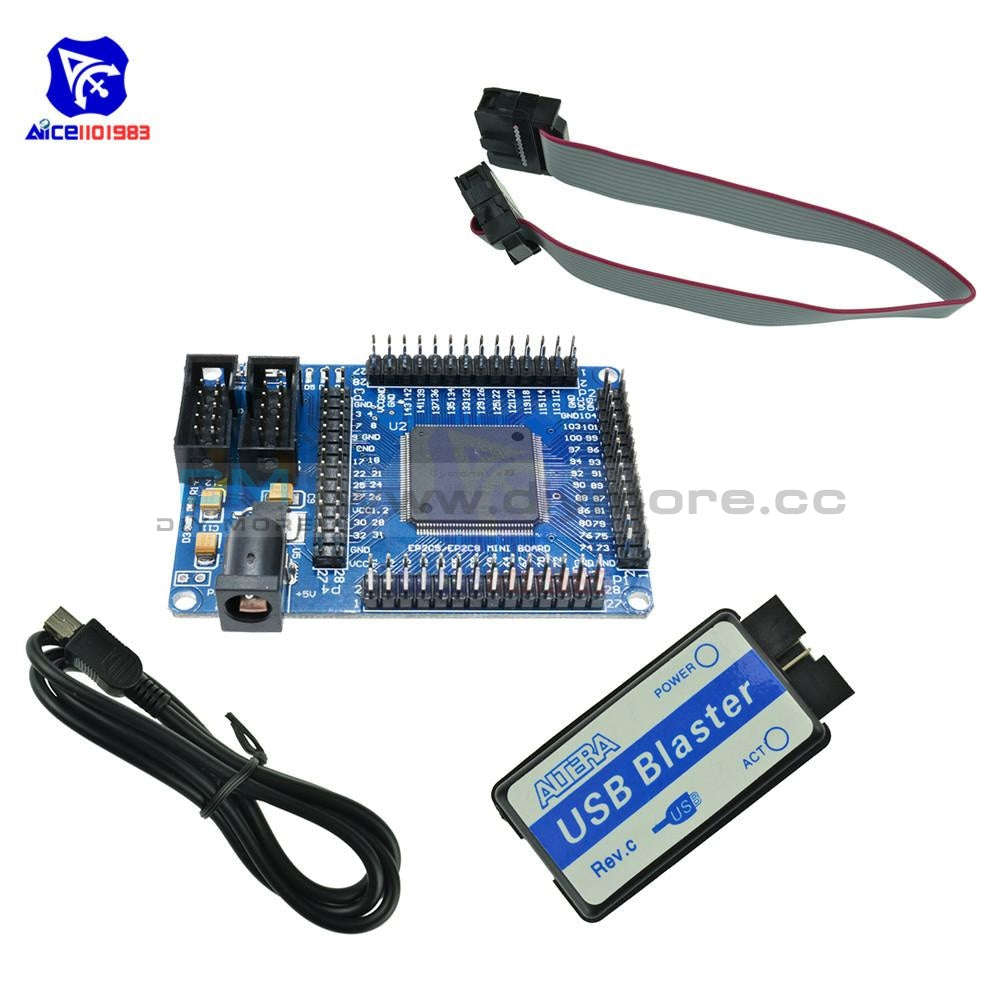

EPROM 5V ALTERA FPGA CycloneII EP2C5T144 Minimum System Development Board USB Blaster Mini USB Cable 10Pin JTAG Connection Cable

EPROM 5V ALTERA FPGA CycloneII EP2C5T144 Minimum System Development Board USB Blaster Mini USB Cable 10Pin JTAG Connection Cable

SKU:ZH0999
Regular price $18.97 Sale price $15.99

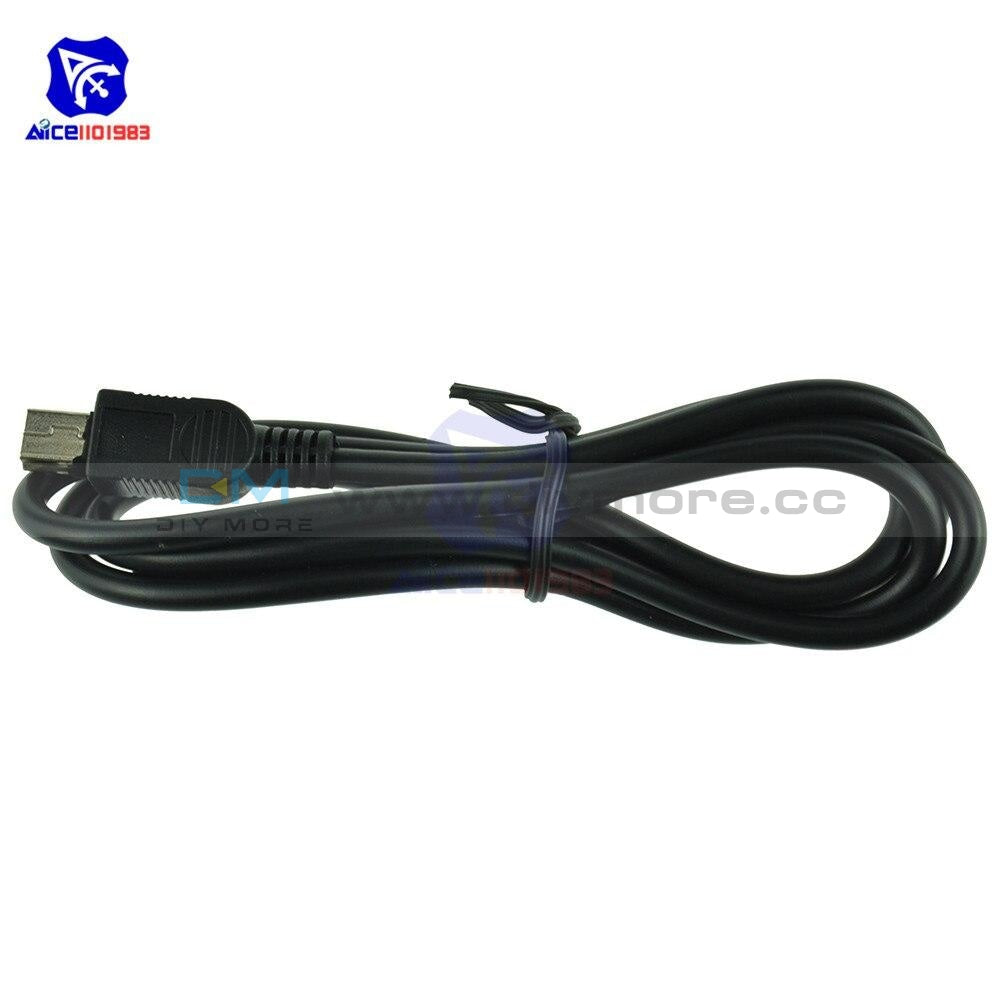

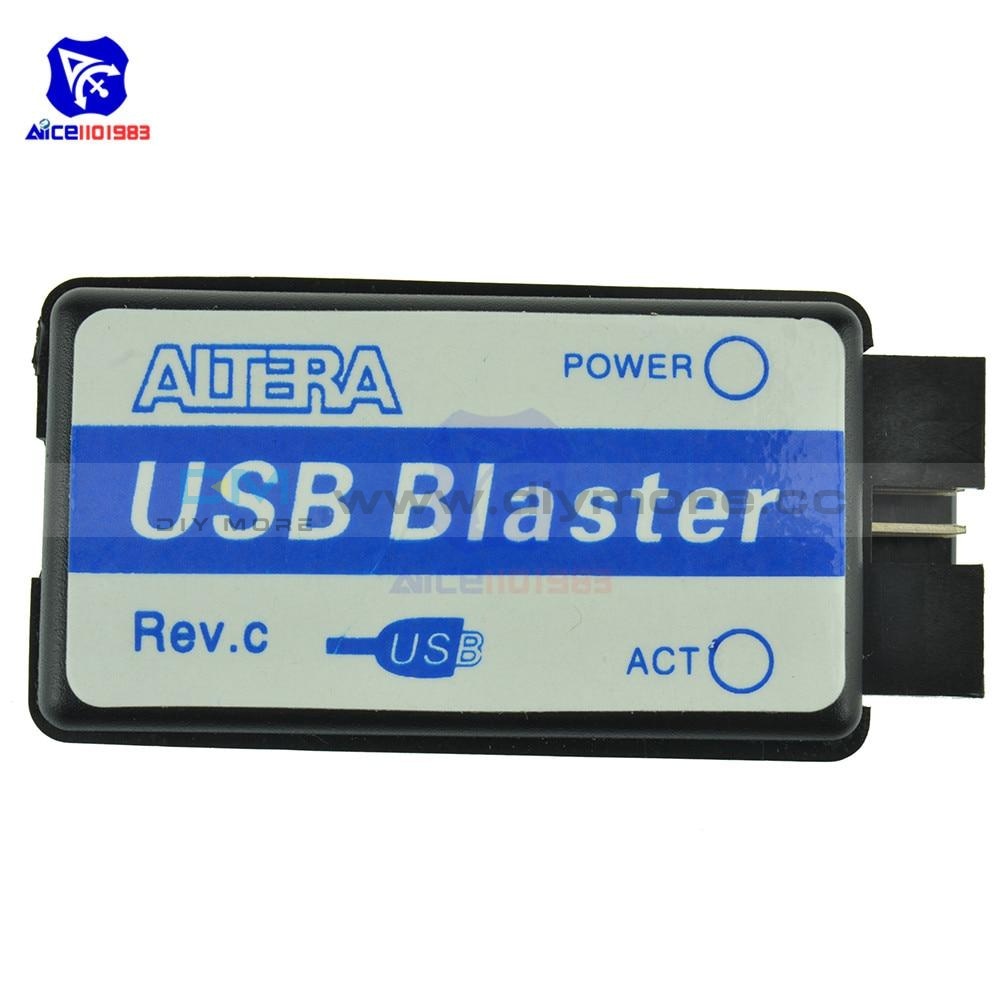

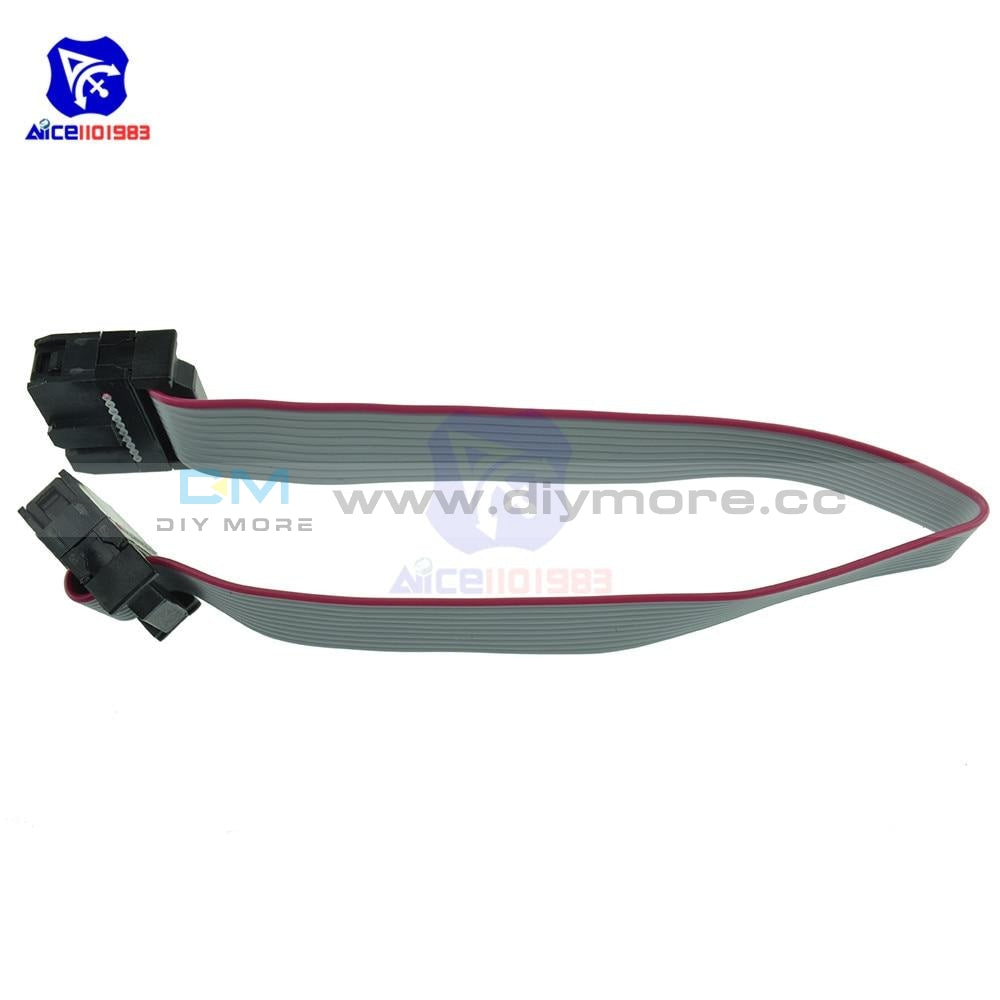

[USB Blaster Mini USB Cable 10-Pin JTAG Connection Cable]

Feature: Fully compatible with original Altera USB-Blaster. Supported target voltage : 1.0V-5.5V. Support all ALTERA device. CPLD:MAX 3000A.MAX 7000A.MAX 7000B.MAX 7000S.MAX 9000.MAX 9000A and MAX II. FPGA:Stratix.Stratix II.Stratix GX.Cyclone.Cyclone II.Cyclone III.ACEX 1K.APEX II.APEX 20K.APEX 20KE.APEX 20KC.FLEX 10K.FLEX 10KE.FLEX 10KA.FLEX 6000.FLEX 8000.EPCS1.EPCS4.EPCS16.EPCS64EPC1.EPC4.EPC8.EPC16. Support:JTAG, AS, PS Mode. Support NiosII embeded core based debug. Supports Quartus II SignalTap? II Logic Analyzer (for logic analysis). High performance, 6 times faster than ByteBlasterII. USB interface with status and Power LED. Size:5.5cm x 2.8cm x 1.5cm - 2.17inch x 1.1inch x 0.59inch.

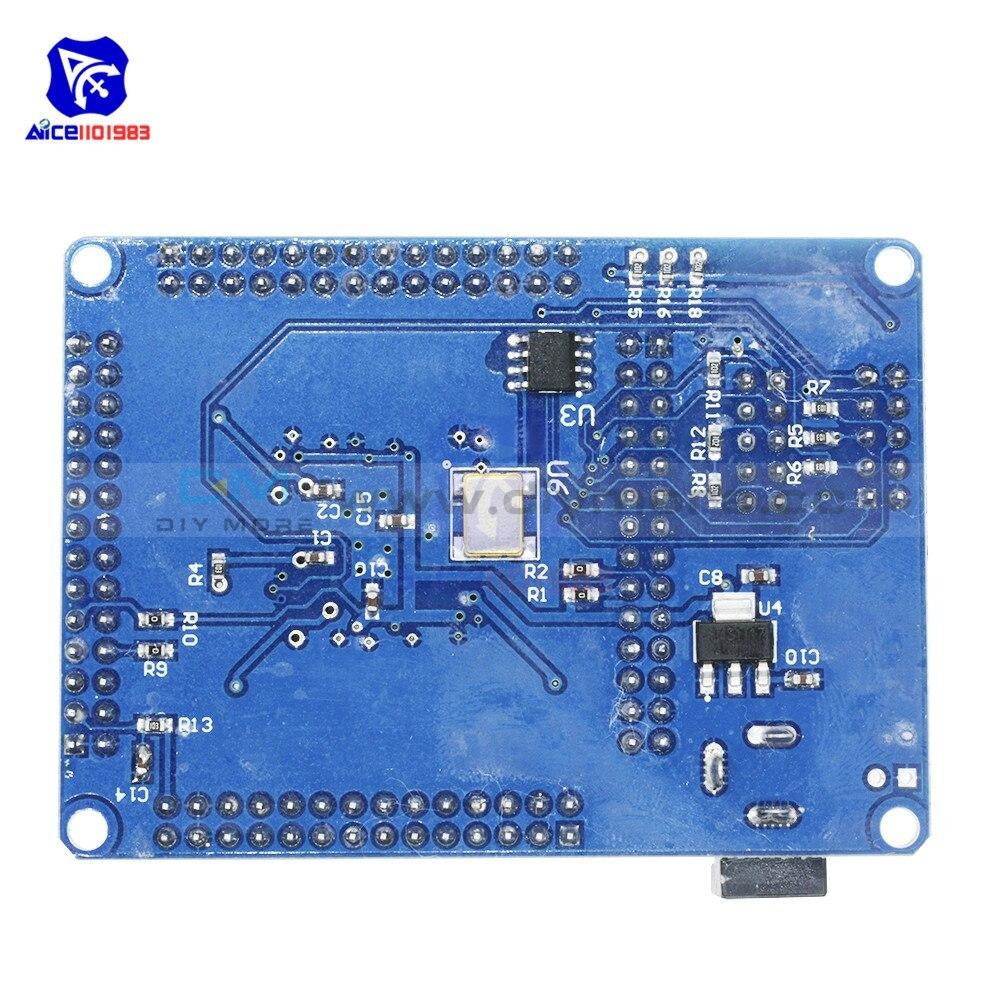

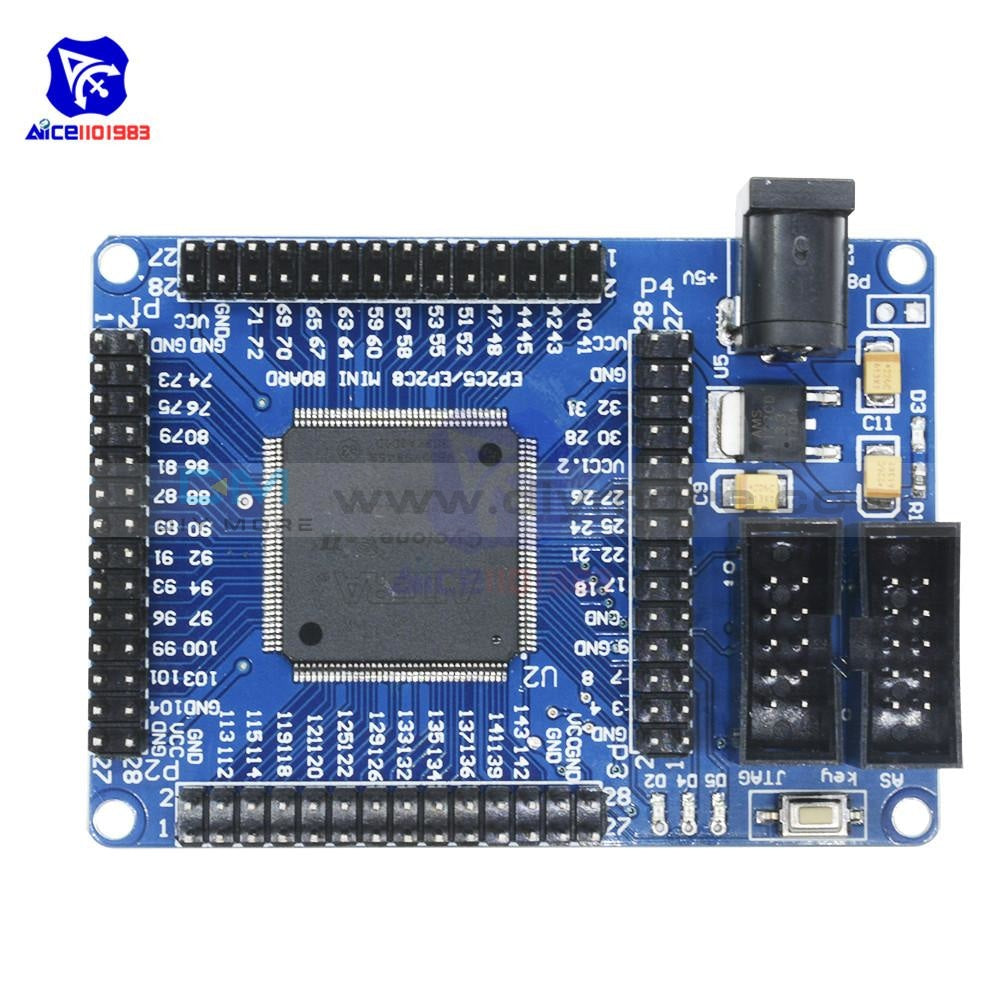

[EPROM 5V ALTERA FPGA CycloneII EP2C5T144 Minimum System Development Board]

Note: This board is unsoldered. Buyer should solder it by yourself. Feature: Cyclone II EP2C5T144 chip as the core of the smallest system, the FPGA easily embedded in the actual system Complete the simple logic control, data acquisition, signal processing, mathematical calculations and other functions Core board FPGA chip pin all leads directly to the board into the application board, the board's 5V power supply can be introduced through the outlet can also be introduced through the row array Size: 51.7 * 71.9 mm On-board EP2C5T144 chip. The EPROM chip adopt EPCS4 with 4Mbit. Have power indicator and reset switch. On-board 3 SMD LED, you can do the LED test experiments. All the IO ports and clock pins leads by the pin, through these interfaces can be extended to any memory and peripheral. Support the development of NiosII embedded CPU.

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

[USB Blaster Mini USB Cable 10-Pin JTAG Connection Cable]

Feature: Fully compatible with original Altera USB-Blaster. Supported target voltage : 1.0V-5.5V. Support all ALTERA device. CPLD:MAX 3000A.MAX 7000A.MAX 7000B.MAX 7000S.MAX 9000.MAX 9000A and MAX II. FPGA:Stratix.Stratix II.Stratix GX.Cyclone.Cyclone II.Cyclone III.ACEX 1K.APEX II.APEX 20K.APEX 20KE.APEX 20KC.FLEX 10K.FLEX 10KE.FLEX 10KA.FLEX 6000.FLEX 8000.EPCS1.EPCS4.EPCS16.EPCS64EPC1.EPC4.EPC8.EPC16. Support:JTAG, AS, PS Mode. Support NiosII embeded core based debug. Supports Quartus II SignalTap? II Logic Analyzer (for logic analysis). High performance, 6 times faster than ByteBlasterII. USB interface with status and Power LED. Size:5.5cm x 2.8cm x 1.5cm - 2.17inch x 1.1inch x 0.59inch.

[EPROM 5V ALTERA FPGA CycloneII EP2C5T144 Minimum System Development Board]

Note: This board is unsoldered. Buyer should solder it by yourself. Feature: Cyclone II EP2C5T144 chip as the core of the smallest system, the FPGA easily embedded in the actual system Complete the simple logic control, data acquisition, signal processing, mathematical calculations and other functions Core board FPGA chip pin all leads directly to the board into the application board, the board's 5V power supply can be introduced through the outlet can also be introduced through the row array Size: 51.7 * 71.9 mm On-board EP2C5T144 chip. The EPROM chip adopt EPCS4 with 4Mbit. Have power indicator and reset switch. On-board 3 SMD LED, you can do the LED test experiments. All the IO ports and clock pins leads by the pin, through these interfaces can be extended to any memory and peripheral. Support the development of NiosII embedded CPU.
