ESP 01 ESP 01S ESP8266 RGB LED Controller Adpater WIFI module For Arduino IDE 16 Bits Light Ring Christmas DIY WS2812B WS2812

ESP 01 ESP 01S ESP8266 RGB LED Controller Adpater WIFI module For Arduino IDE 16 Bits Light Ring Christmas DIY WS2812B WS2812

SKU:011814
Regular price $1.76 Sale price $1.55

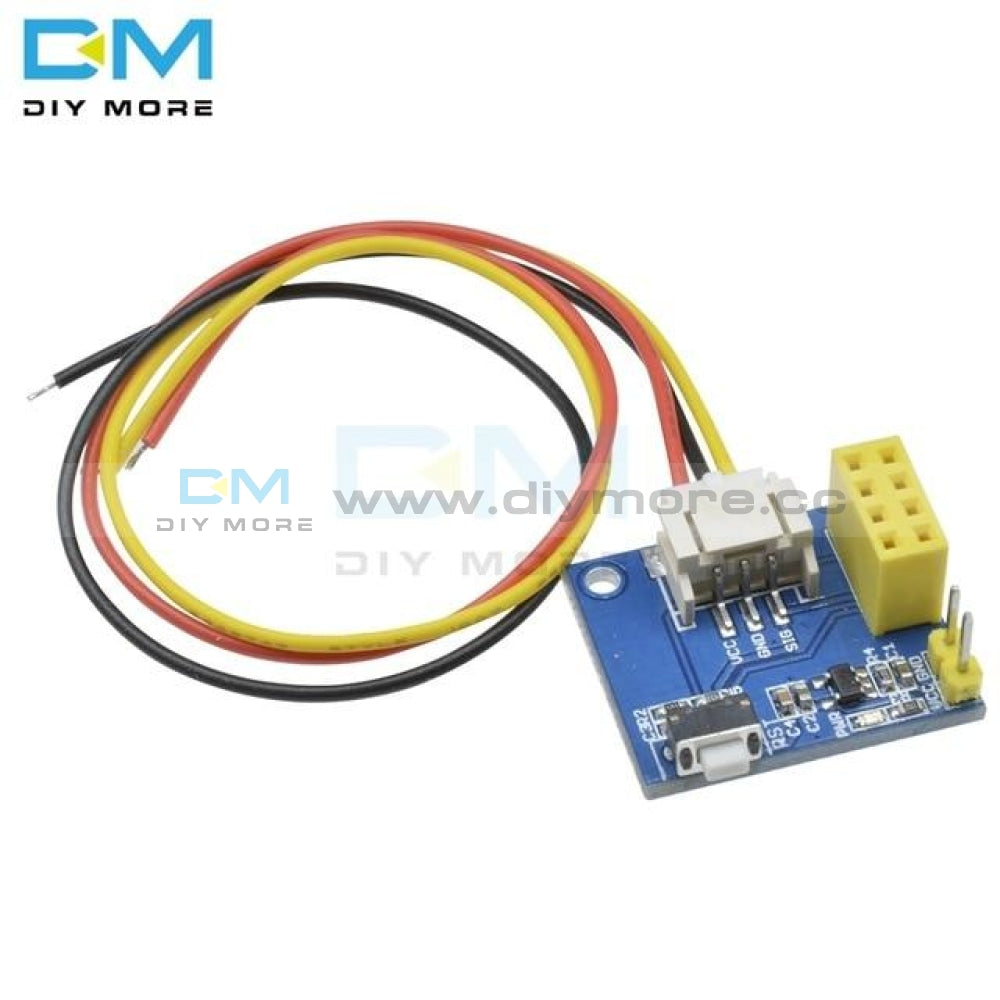

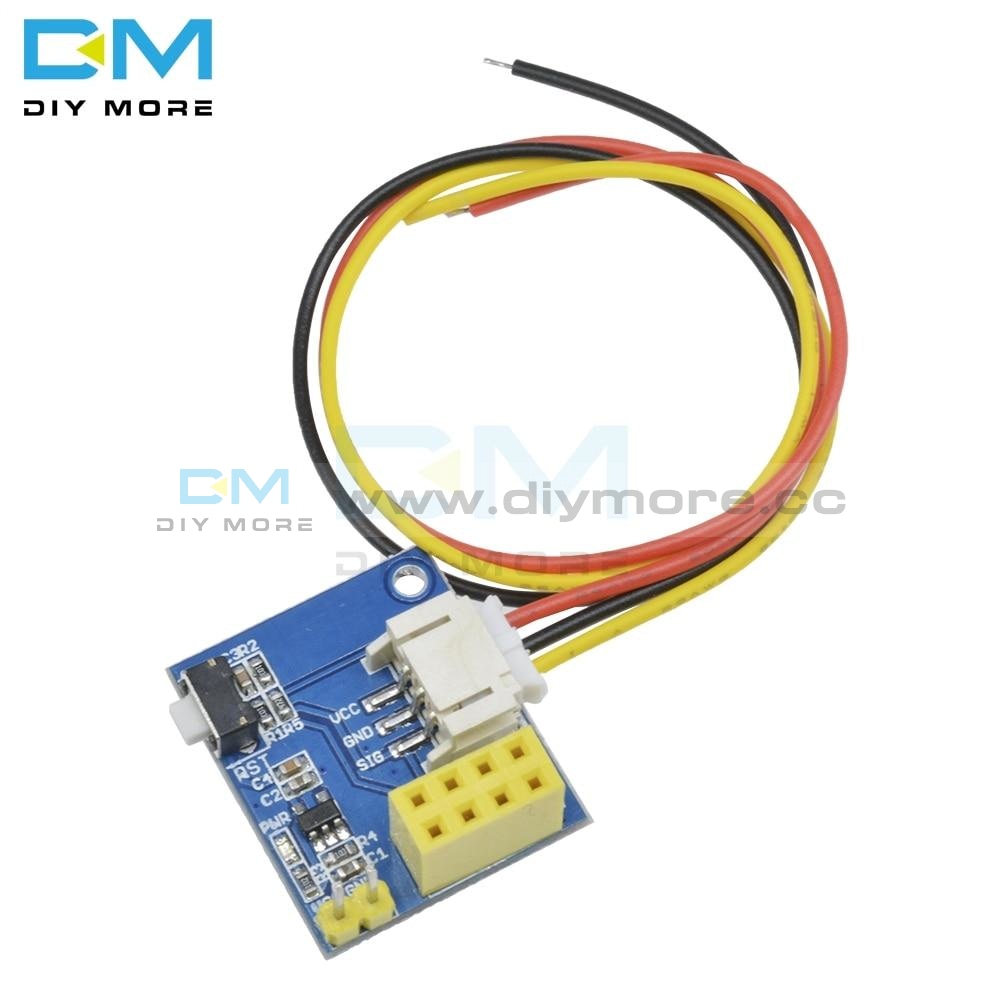

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.

Characteristic:

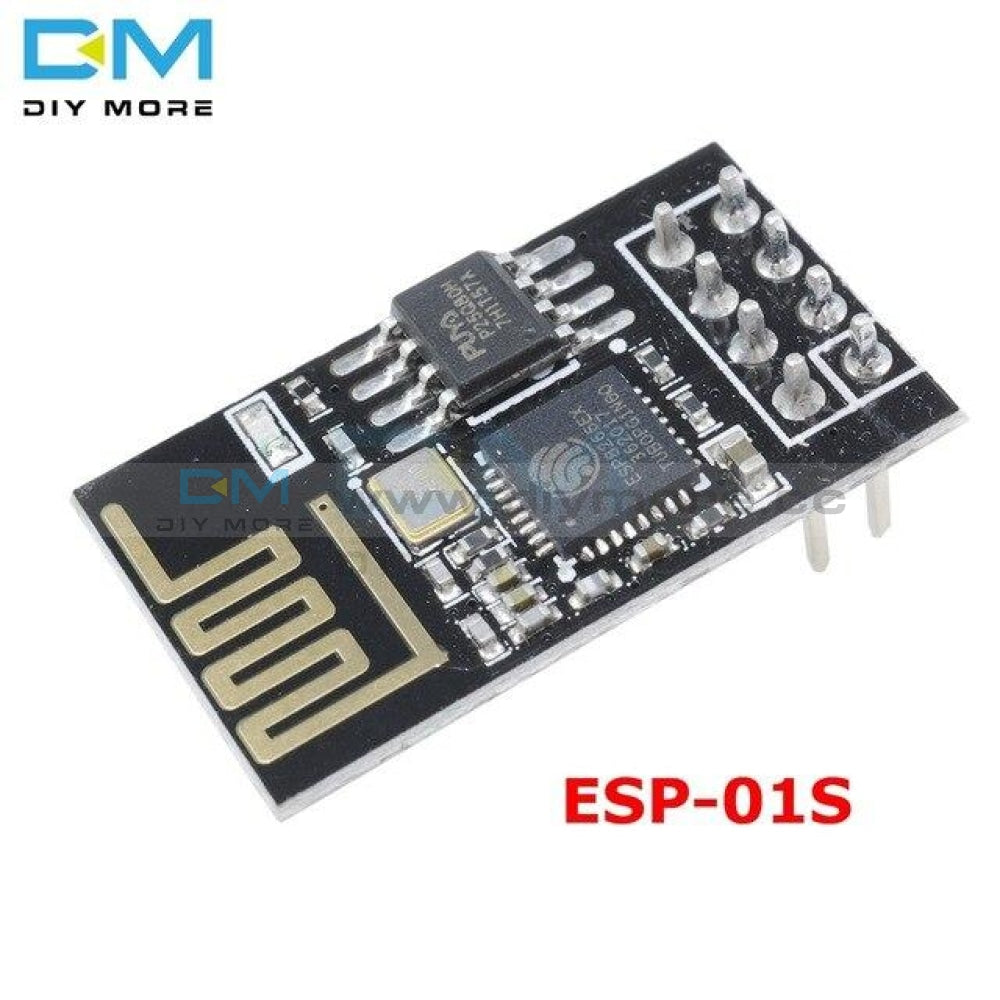

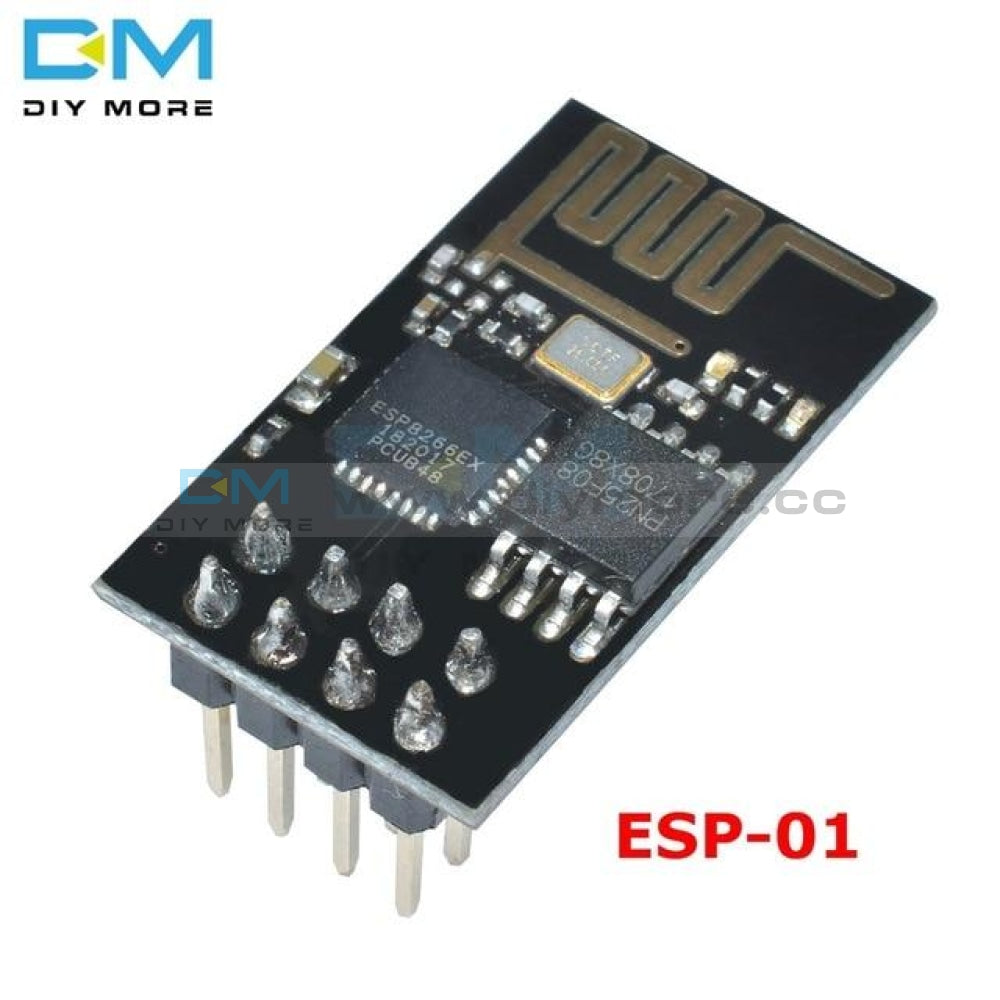

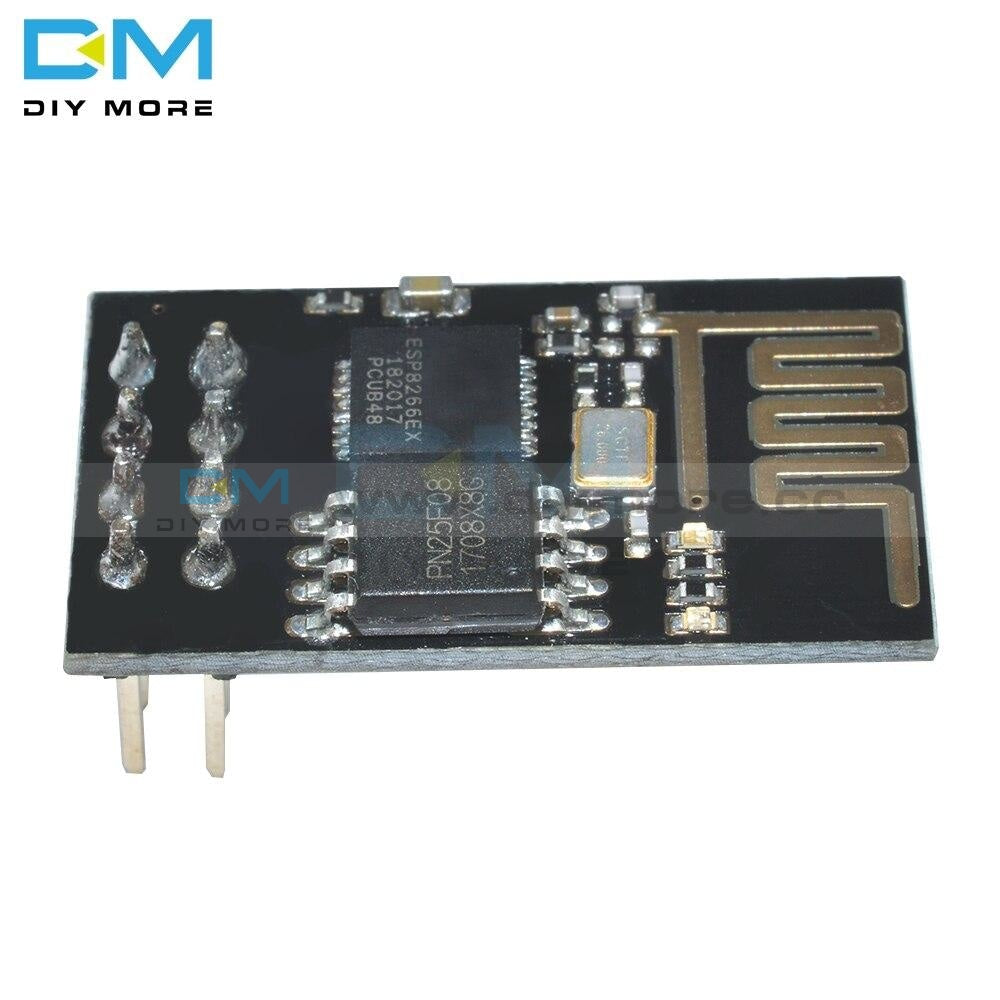

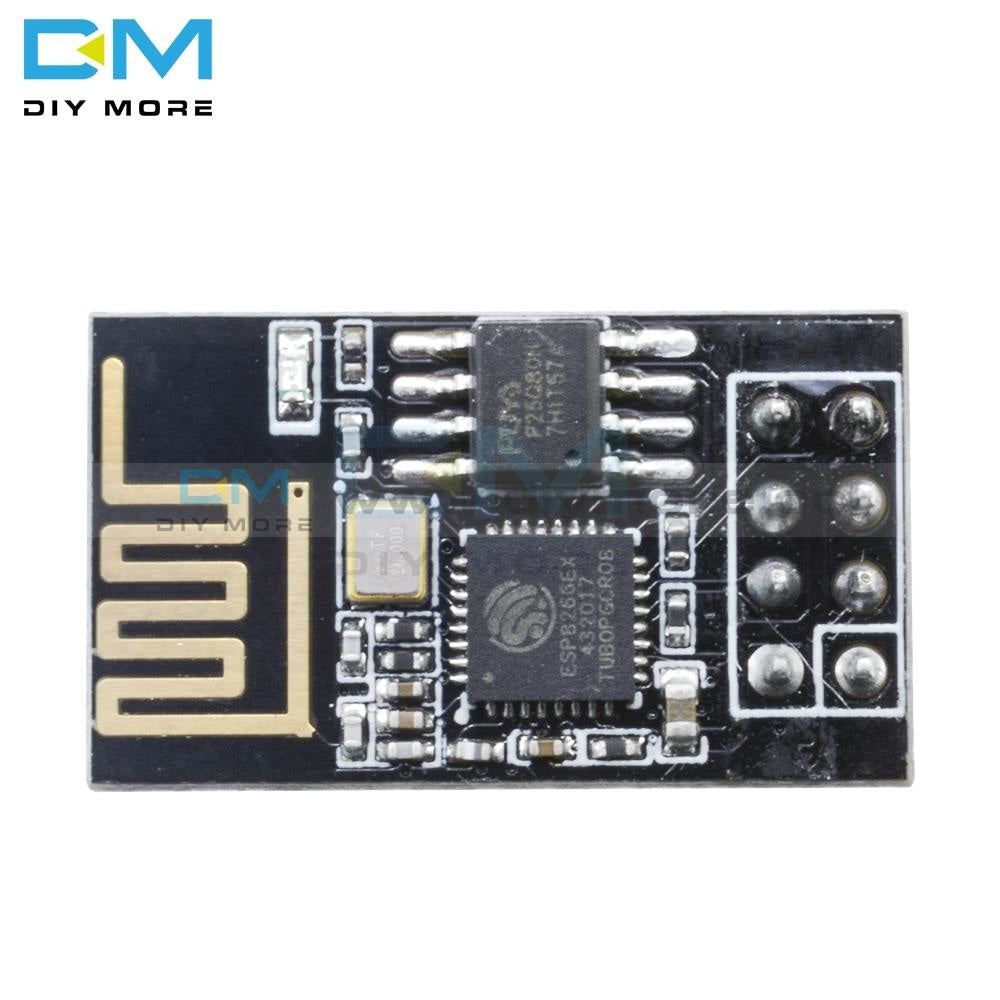

* Master: ESP-01 / ESP-01S (This module include ESP-01 / ESP-01S)

* Control Pin: GPIO2

* Interface: 3Pin PH2.0 connector

* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery

Packaging:

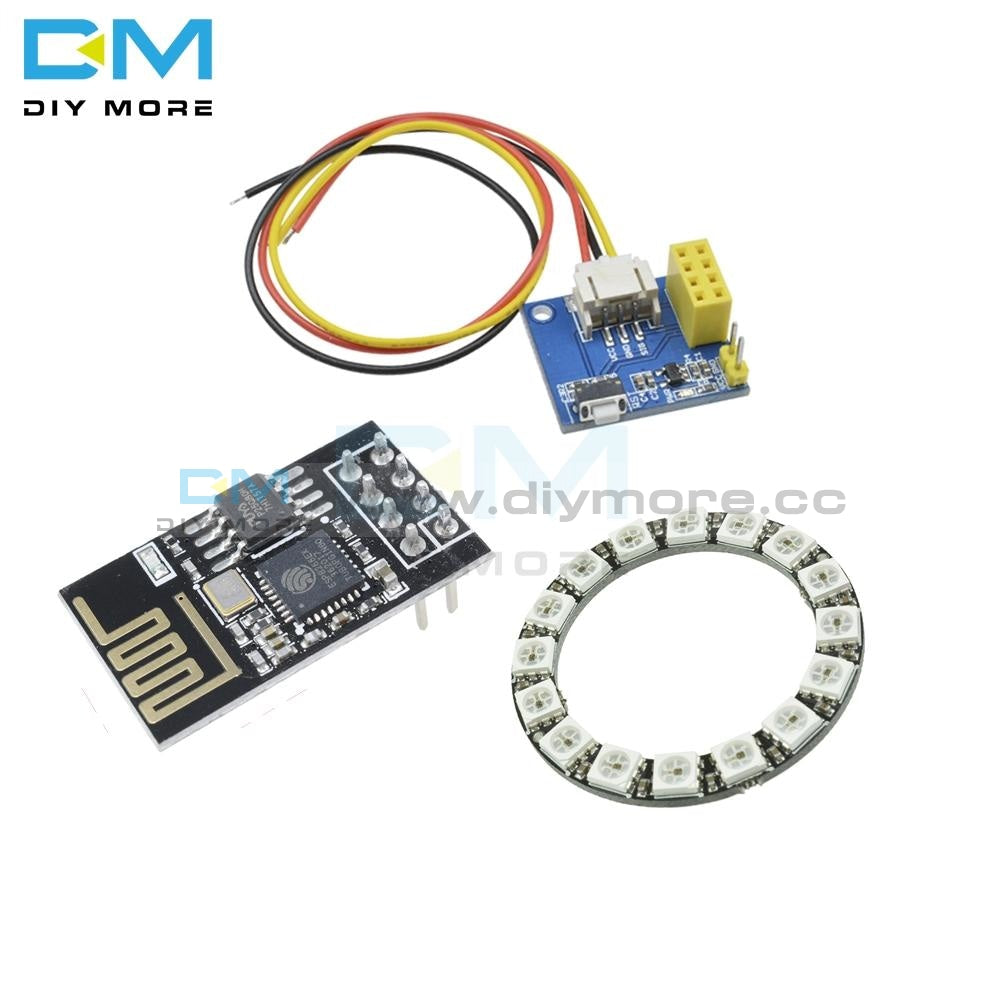

1.ESP-01S/ESP-01 RGB LED module X1 (include ESP-01S/ESP-01 WiFi module and RGB LED)

2. 3PIN PH2.0 connector X1

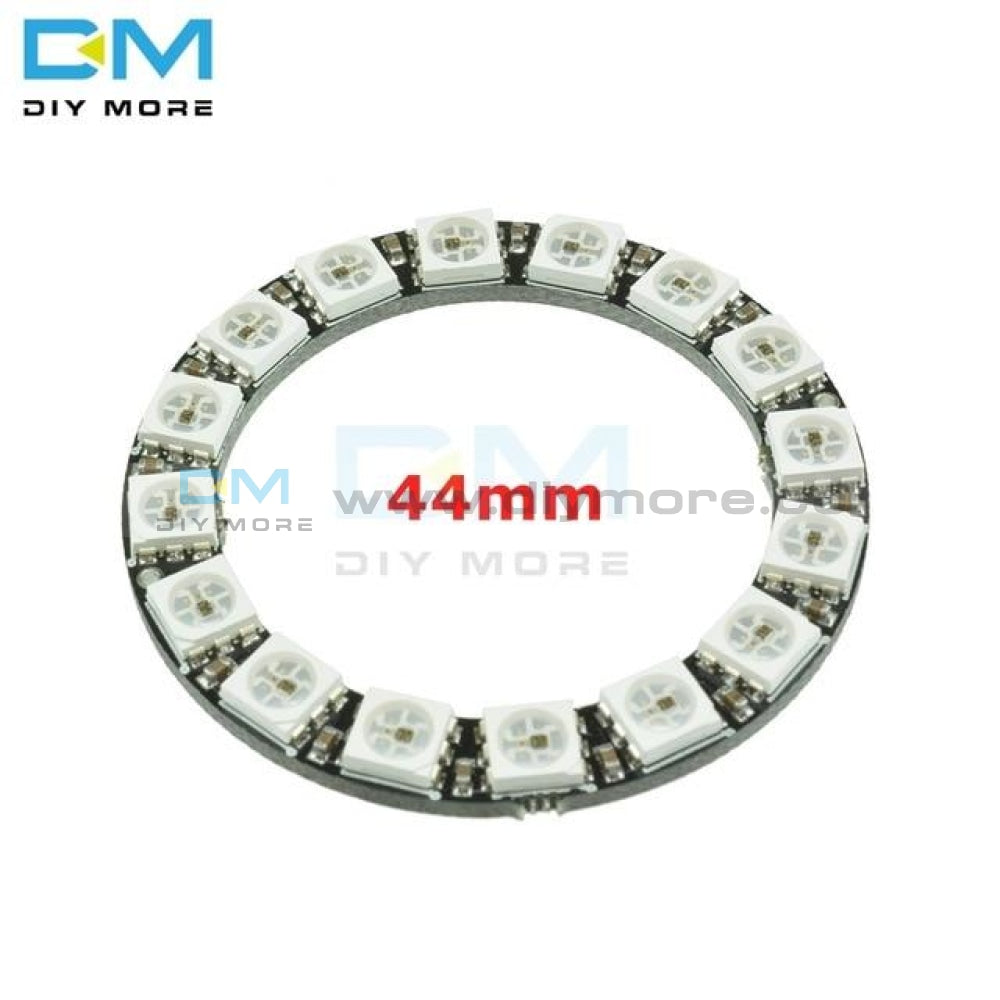

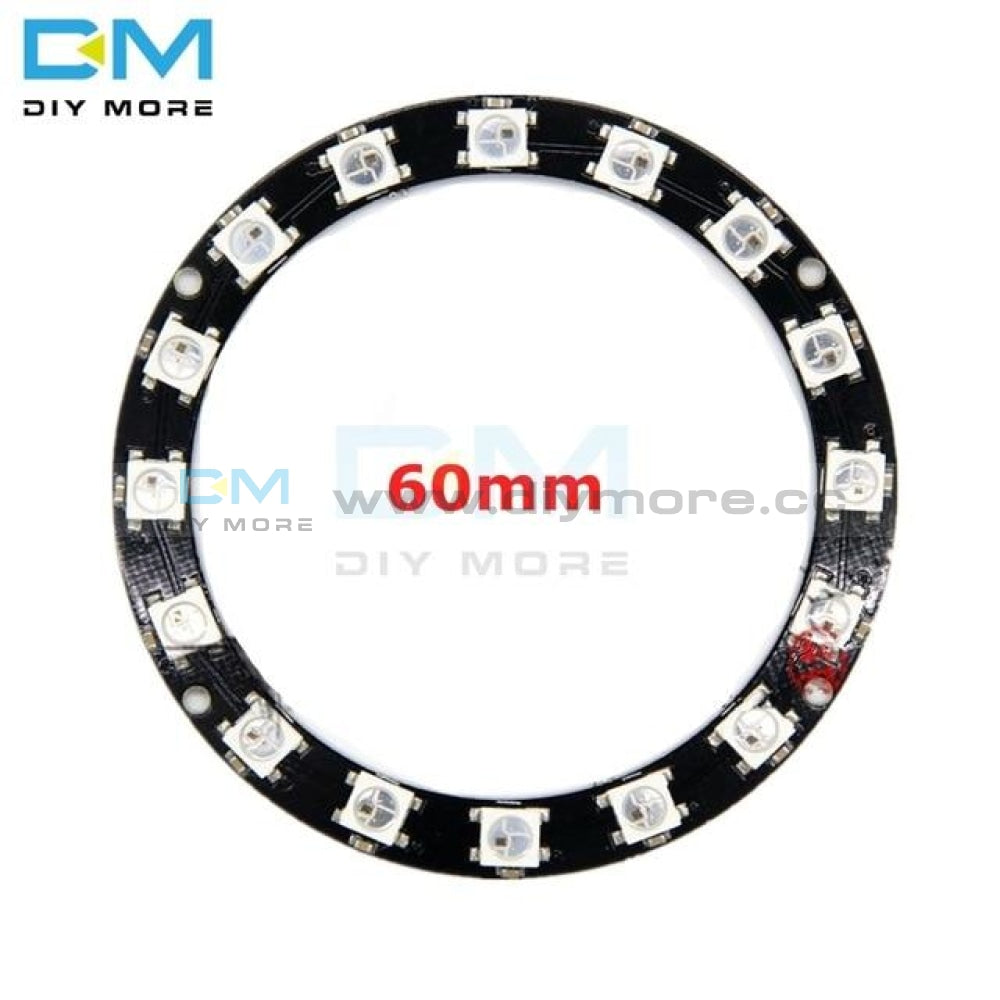

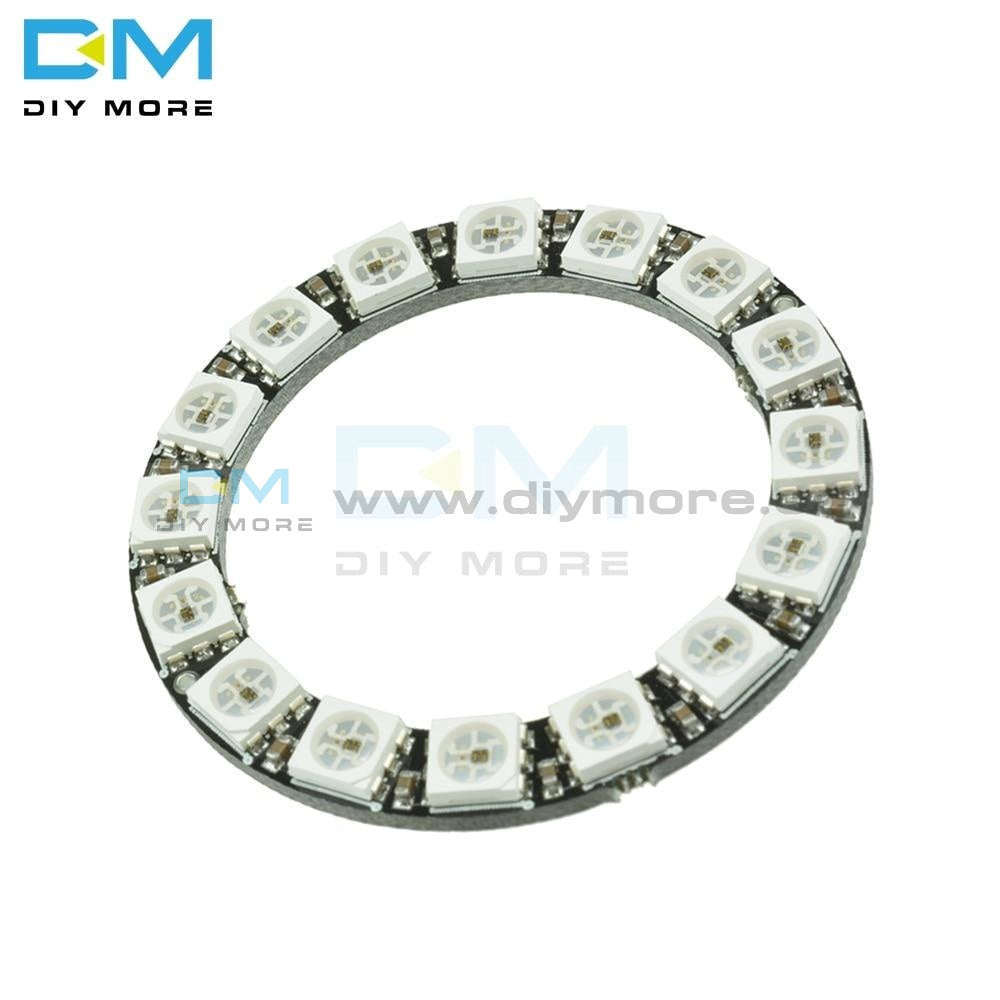

3.RGB LED Ring 16 Bit WS2812 5050 RGB LED with Integrated Driver

Note:It dose not include battery

Application example:

1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)

2.Download the program to ESP-01S

3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow) as shown below:
